随着mysql mgr版本的升级和技术的成熟，mgr在取代mha成为mysql高可用首选方案后，其搭建过程虽然不算复杂，但仍涉及一系列手动操作。为了简化mgr的搭建和故障诊断，开发了一个自动化脚本，用于实现mgr的自动化搭建、自动化故障诊断及修复。

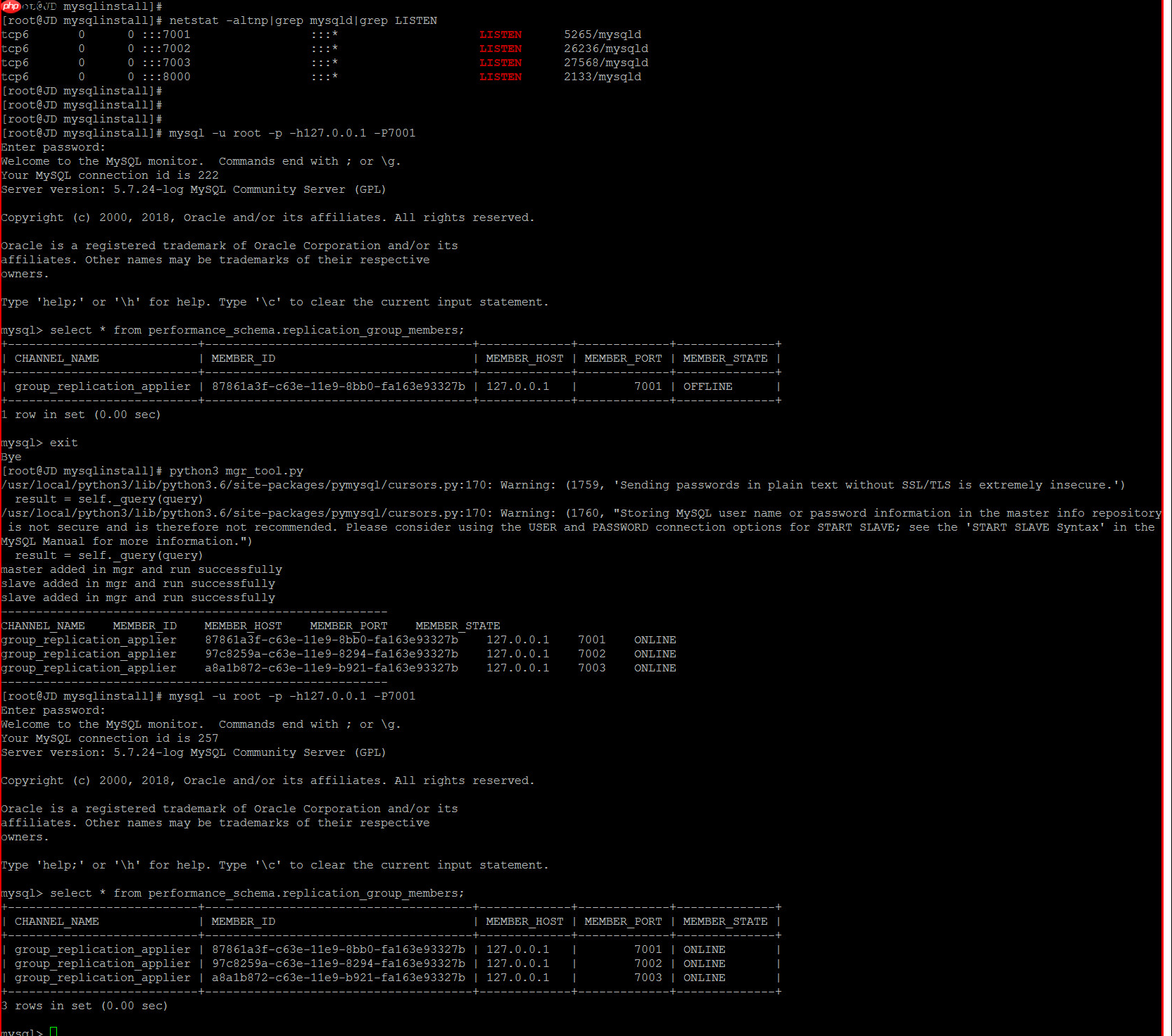

为了简化起见，MGR的自动化搭建测试采用单机多实例模式，预先安装了三个MySQL实例，端口号分别为7001、7002和7003，其中7001作为写入节点，其余两个节点作为读取节点，8000节点为作者的另一个测试节点，可忽略。在指定主从节点的情况下，以下是mgr_tool.py一键搭建MGR集群的测试demo。

MGR故障模拟1

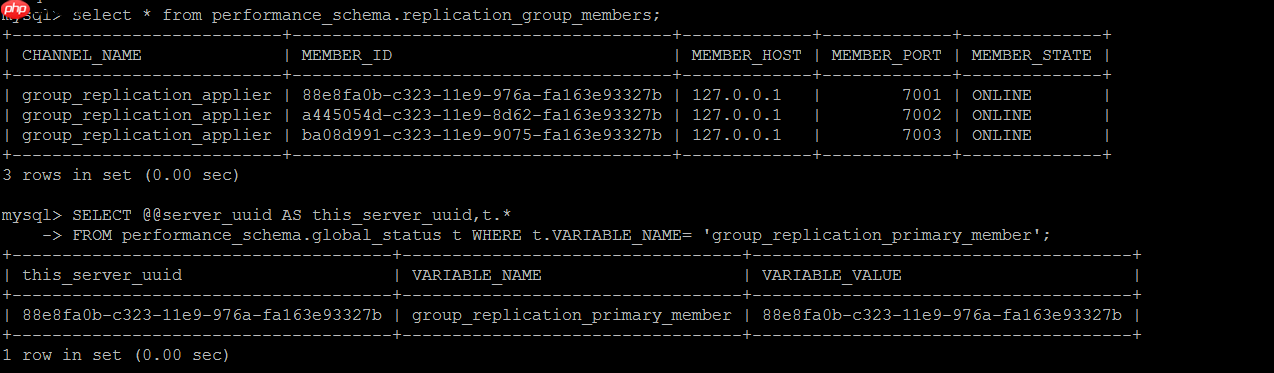

MGR节点故障的自动监测和自愈实现如下图所示，搭建完成后的MGR集群目前处于完全正常的状态。

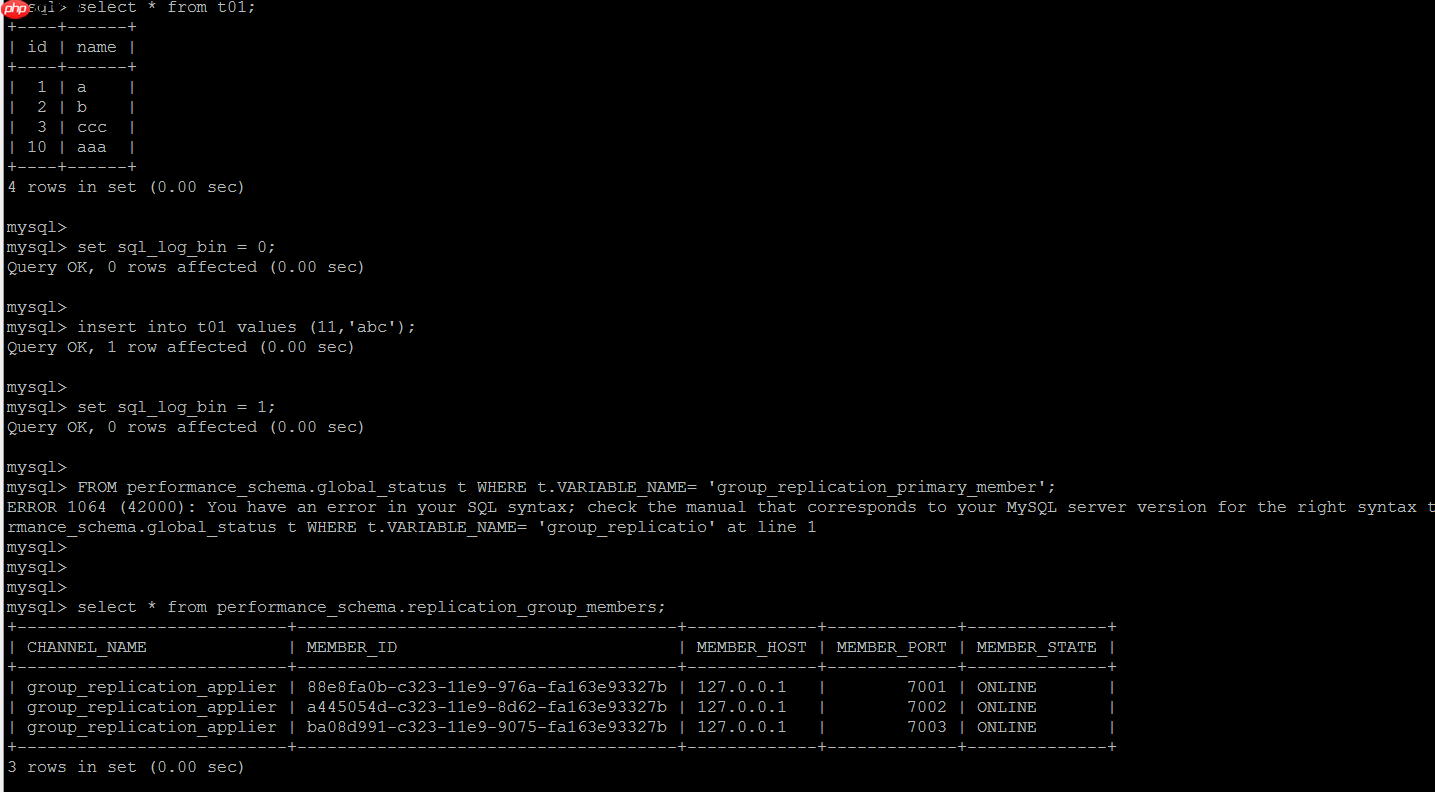

主观造成主从节点间binlog的丢失

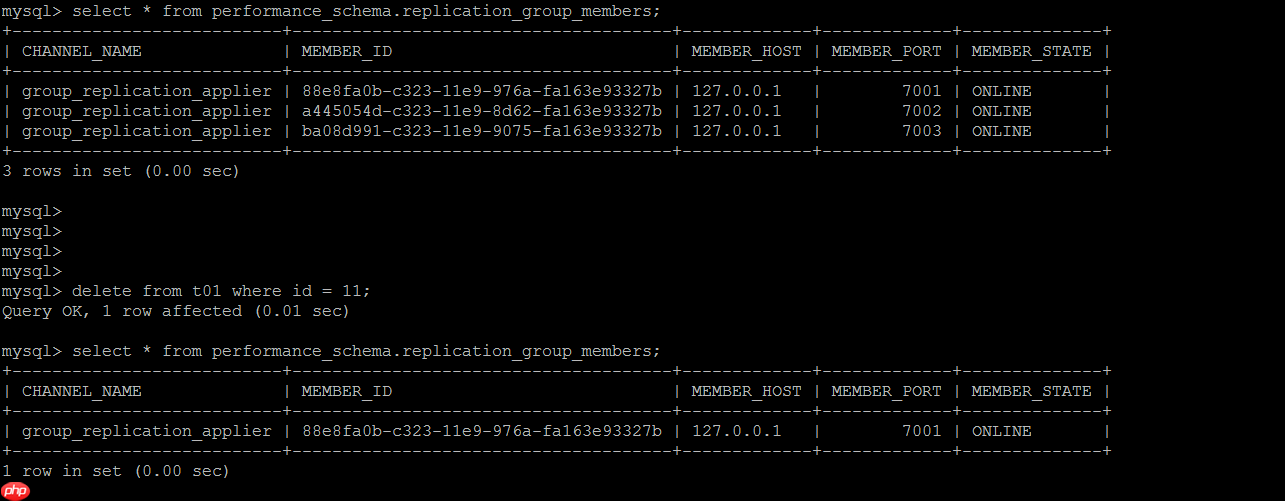

在主节点上对从节点丢失的数据进行操作，GTID无法找到对应的数据，组复制立即停止。

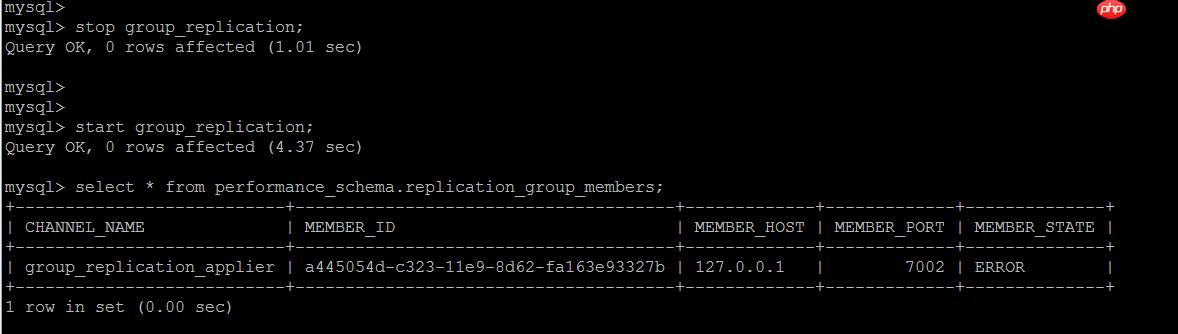

非写入节点出现错误

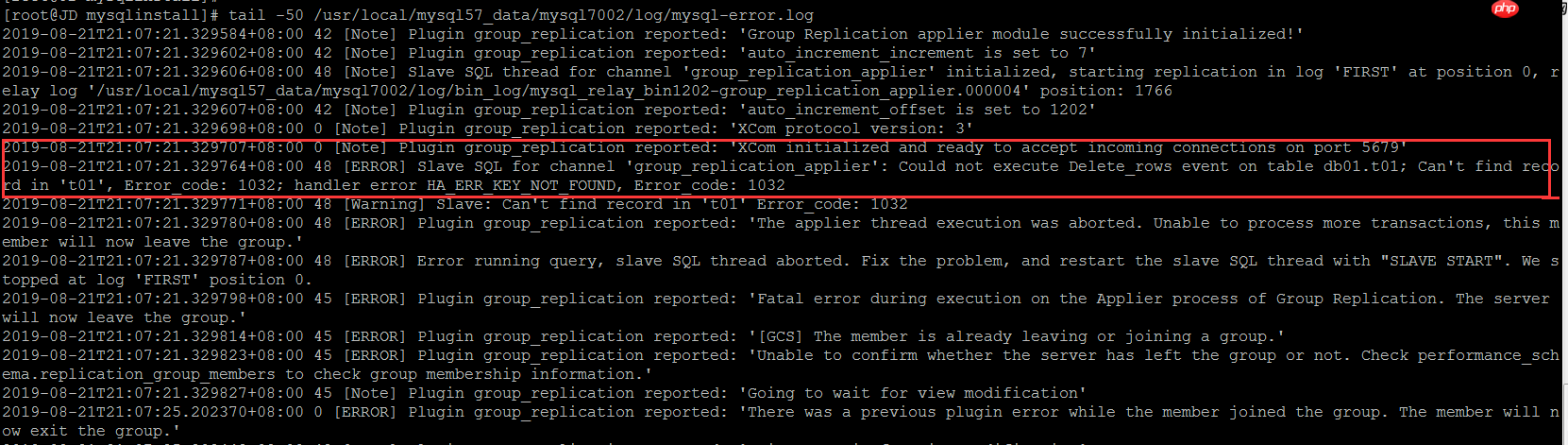

查看errorlog

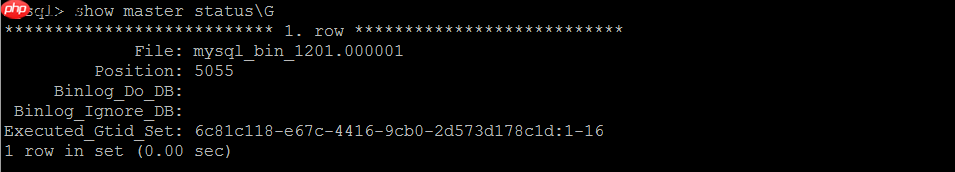

如果手动解决，仍需使用GTID跳过错误事务的常规方法，获取master上的GTID信息。

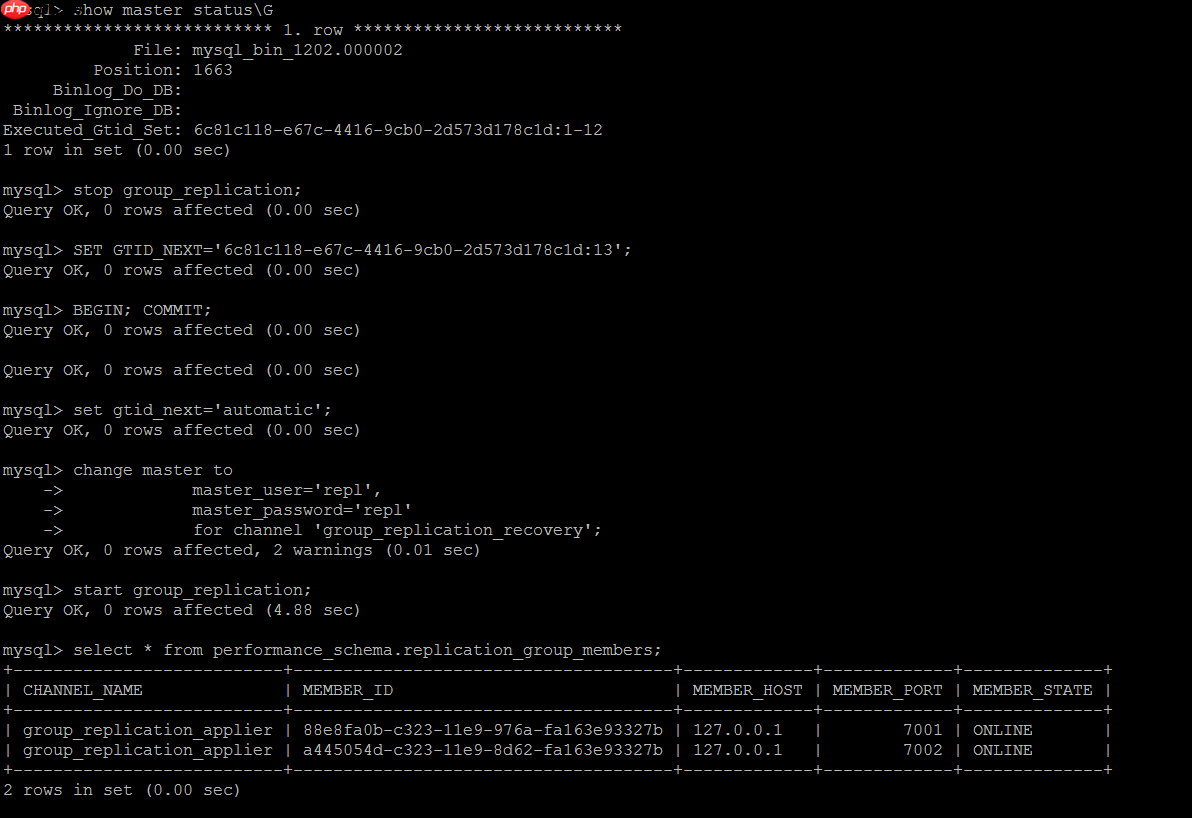

尝试跳过最新的一个事务ID，然后重新连接到组，可以正常连接到组，另一个节点仍处于错误状态。

stop group_replication;

SET GTID_NEXT='6c81c118-e67c-4416-9cb0-2d573d178c1d:13';

BEGIN; COMMIT;

set gtid_next='automatic';

集简云

软件集成平台，快速建立企业自动化与智能化

22

查看详情

另一个节点类似，依次解决。

MGR故障模拟2

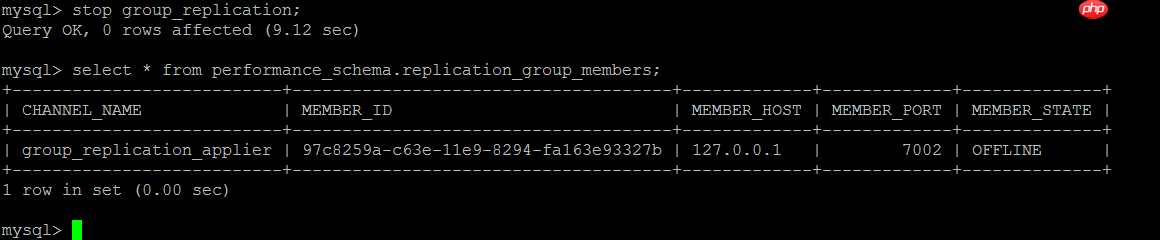

从节点脱离Group

这种情况相对简单，重新启动组复制即可，执行start group_replication。

MGR故障自动检测和修复

对于上述两种情况，1，如果是从节点丢失主节点的事务，尝试在从节点上跳过GTID，重新开始复制即可；2，如果是从节点非丢失主节点事务，尝试在从节点重新开始组复制即可。

实现代码如下：

def auto_fix_mgr_error(conn_master_dict,conn_slave_dict):
    group_replication_status = get_group_replication_status(conn_slave_dict)
    if(group_replication_status[0]["MEMBER_STATE"]=="ERROR" or group_replication_status[0]["MEMBER_STATE"] == "OFFLINE"):
        print(conn_slave_dict["host"]+str(conn_slave_dict["port"])+'------>'+group_replication_status[0]["MEMBER_STATE"])
        print("auto fixing......")
        while 1 > 0:
            master_gtid_list = get_gtid(conn_master_dict)
            slave_gtid_list = get_gtid(conn_slave_dict)
            master_executed_gtid_value = int((master_gtid_list[-1]["Executed_Gtid_Set"]).split("-")[-1])
            slave_executed_gtid_value = int(slave_gtid_list[-1]["Executed_Gtid_Set"].split("-")[-1])
            slave_executed_gtid_prefix = slave_gtid_list[-1]["Executed_Gtid_Set"].split(":")[0]
            slave_executed_skiped_gtid = slave_executed_gtid_value + 1
            if (master_executed_gtid_value > slave_executed_gtid_value):
                print("skip gtid and restart group replication,skiped gtid is "
                      + slave_gtid_list[-1]["Executed_Gtid_Set"].split(":")[-1].split("-")[0]
                      + ":"+str(slave_executed_skiped_gtid))
                slave_executed_skiped_gtid = slave_executed_gtid_prefix+":"+str(slave_executed_skiped_gtid)
                skip_gtid_on_slave(conn_slave_dict,slave_executed_skiped_gtid)
                time.sleep(10)
                start_group_replication(conn_slave_dict)
                if(get_group_replication_status(conn_slave_dict)[0]["MEMBER_STATE"]=="ONLINE"):
                    print("mgr cluster fixed,back to normal")
                    break
            else:
                start_group_replication(conn_slave_dict)
                if(get_group_replication_status(conn_slave_dict)[0]["MEMBER_STATE"]=="ONLINE"):
                    print("mgr cluster fixed,back to normal")
                break
    elif (group_replication_status[0]['MEMBER_STATE'] == 'ONLINE'):
        print("mgr cluster is normal,nothing to do")
        check_replication_group_members(conn_slave_dict)

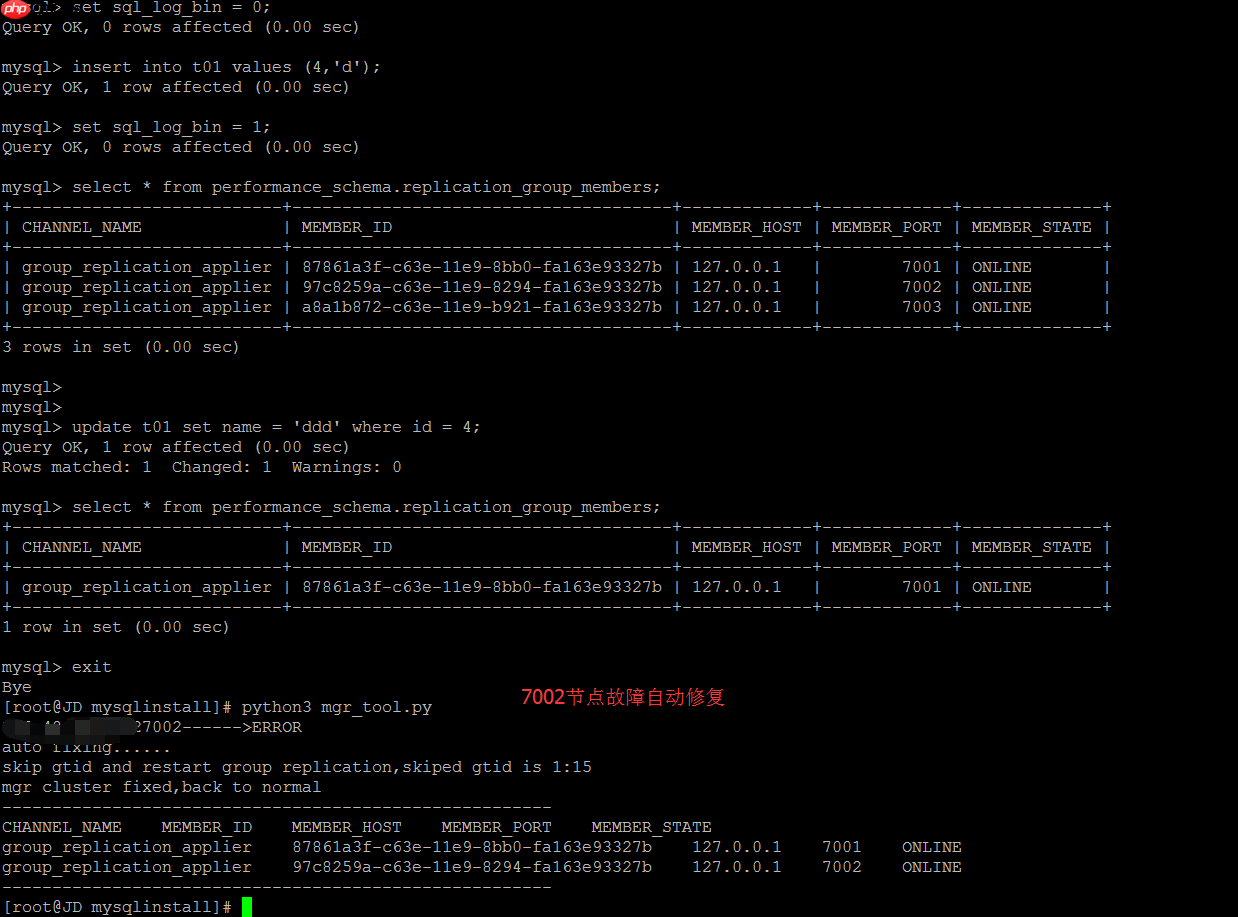

对于故障类型1，GTID事务不一致的自动化修复

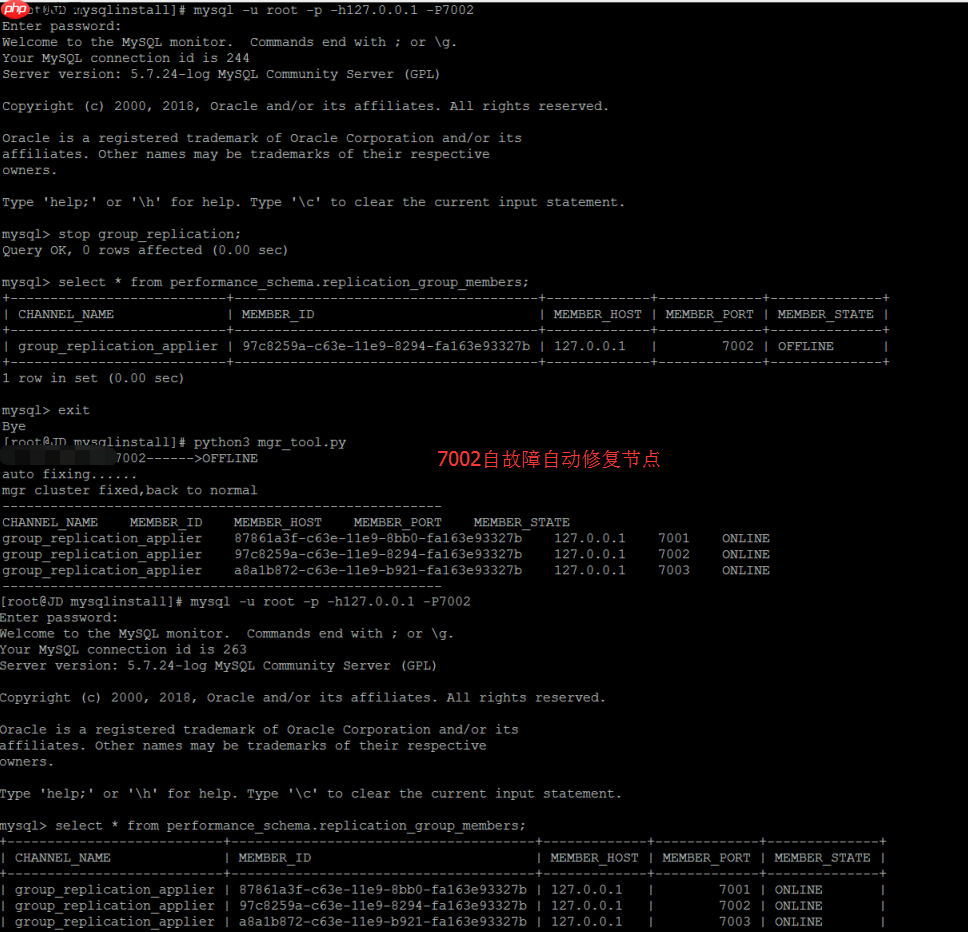

对于故障类型2从节点offline的自动化修复

完整的实现代码

该过程要求MySQL实例必须满足MGR的基本条件，如果环境本身无法满足MGR，一切都无从谈起，因此要非常清楚MGR环境的最基本要求。

完成的实现代码如下，花了一个下午编写，目前存在以下不足：1，创建复制用户时，未指定具体的slave机器，目前直接指定为%：create user repl@'%' identified by repl2；2，对于slave的修复，目前无法整体修复，只能一台一台修复，实际上是缺少了一个循环slave机器判断的过程；3，目前搭建之前都会reset master（不管主从，主要是清理可能的残留GTID），因此只适合新环境的搭建；4，目前只支持offline和gtid事务冲突的错误类型修复，无法支持其他MGR错误类型的修复；5，开发环境是单机多实例模式测试，没有在多机单实例模式下充分测试。这些问题将逐步改善和加强。

# -*- coding: utf-8 -*-
<p>import pymysql
import logging
import time
import decimal</p><p>def execute_query(conn_dict,sql):
conn = pymysql.connect(host=conn_dict['host'], port=conn_dict['port'], user=conn_dict['user'], passwd=conn_dict['password'], db=conn_dict['db'])
cursor = conn.cursor(pymysql.cursors.DictCursor)
cursor.execute(sql)
list = cursor.fetchall()
cursor.close()
conn.close()
return list</p><p>def execute_noquery(conn_dict,sql):
conn = pymysql.connect(host=conn_dict['host'], port=conn_dict['port'], user=conn_dict['user'], passwd=conn_dict['password'], db=conn_dict['db'])
cursor = conn.cursor()
cursor.execute(sql)
conn.commit()
cursor.close()
conn.close()
return list</p><p>def get_gtid(conn_dict):
sql = "show master status;"
list = execute_query(conn_dict,sql)
return list</p><p>def skip_gtid_on_slave(conn_dict,gtid):
sql_1 = 'stop group_replication;'
sql_2 = '''set gtid_next='{0}';'''.format(gtid)
sql_3 = 'begin;'
sql_4 = 'commit;'
sql_5 = '''set gtid_next='automatic';'''</p><pre class="brush:php;toolbar:false;"><code>try:
    execute_noquery(conn_dict, sql_1)
    execute_noquery(conn_dict, sql_2)
    execute_noquery(conn_dict, sql_3)
    execute_noquery(conn_dict, sql_4)
    execute_noquery(conn_dict, sql_5)
except:
    raise

def get_group_replication_status(conn_dict): sql = '''select MEMBER_STATE from performance_schema.replication_group_members where (MEMBER_HOST = '{0}' or ifnull(MEMBER_HOST,'') = '') AND (MEMBER_PORT={1} or ifnull(MEMBER_PORT,'') ='') ; '''.format(conn_dict["host"], conn_dict["port"]) result = execute_query(conn_dict,sql) if result: return result else: return None

def check_replication_group_members(conn_dict): print('-------------------------------------------------------') result = execute_query(conn_dict, " select * from performance_schema.replication_group_members; ") if result: column = result[0].keys() current_row = '' for key in column: current_row += str(key) + " " print(current_row)

<code>    for row in result:
        current_row = ''
        for key in row.values():
            current_row += str(key) + " "
        print(current_row)
print('-------------------------------------------------------')</code>

def auto_fix_mgr_error(conn_master_dict,conn_slave_dict): group_replication_status = get_group_replication_status(conn_slave_dict) if(group_replication_status[0]["MEMBER_STATE"]=="ERROR" or group_replication_status[0]["MEMBER_STATE"] == "OFFLINE"): print(conn_slave_dict["host"]+str(conn_slave_dict["port"])+'------>'+group_replication_status[0]["MEMBER_STATE"]) print("auto fixing......") while 1 > 0: master_gtid_list = get_gtid(conn_master_dict) slave_gtid_list = get_gtid(conn_slave_dict) master_executed_gtid_value = int((master_gtid_list[-1]["Executed_Gtid_Set"]).split("-")[-1]) slave_executed_gtid_value = int(slave_gtid_list[-1]["Executed_Gtid_Set"].split("-")[-1]) slave_executed_gtid_prefix = slave_gtid_list[-1]["Executed_Gtid_Set"].split(":")[0] slave_executed_skiped_gtid = slave_executed_gtid_value + 1 if (master_executed_gtid_value > slave_executed_gtid_value): print("skip gtid and restart group replication,skiped gtid is "

• slave_gtid_list[-1]["Executed_Gtid_Set"].split(":")[-1].split("-")[0]
• ":"+str(slave_executed_skiped_gtid)) slave_executed_skiped_gtid = slave_executed_gtid_prefix+":"+str(slave_executed_skiped_gtid) skip_gtid_on_slave(conn_slave_dict,slave_executed_skiped_gtid) time.sleep(10) start_group_replication(conn_slave_dict) if(get_group_replication_status(conn_slave_dict)[0]["MEMBER_STATE"]=="ONLINE"): print("mgr cluster fixed,back to normal") break else: start_group_replication(conn_slave_dict) if(get_group_replication_status(conn_slave_dict)[0]["MEMBER_STATE"]=="ONLINE"): print("mgr cluster fixed,back to normal") break elif (group_replication_status[0]['MEMBER_STATE'] == 'ONLINE'): print("mgr cluster is normal,nothing to do") check_replication_group_members(conn_slave_dict)

'''reset master''' def reset_master(conn_dict): try: execute_noquery(conn_dict, "reset master;") except: raise

def install_group_replication_plugin(conn_dict): get_plugin_sql = "SELECT name,dl FROM mysql.plugin WHERE name = 'group_replication';" install_plugin_sql = '''install plugin group_replication soname 'group_replication.so'; ''' try: result = execute_query(conn_dict, get_plugin_sql) if not result: execute_noquery(conn_dict, install_plugin_sql) except: raise

def create_mgr_repl_user(conn_master_dict,user,password): try: reset_master(conn_master_dict) sql_exists_user = '''select user from mysql.user where user = '{0}'; '''.format(user) user_list = execute_query(conn_master_dict,sql_exists_user) if not user_list: create_user_sql = '''create user {0}@'%' identified by '{1}'; '''.format(user,password) grant_privilege_sql = '''grant replication slave on . to {0}@'%';'''.format(user) execute_noquery(conn_master_dict,create_user_sql) execute_noquery(conn_master_dict, grant_privilege_sql) execute_noquery(conn_master_dict, "flush privileges;") except: raise

def set_super_read_only_off(conn_dict): super_read_only_off = '''set global super_read_only = 0;''' execute_noquery(conn_dict, super_read_only_off)

def open_group_replication_bootstrap_group(conn_dict): sql = '''select variable_name,variable_value from performance_schema.global_variables where variable_name = 'group_replication_bootstrap_group';''' result = execute_query(conn_dict, sql) open_bootstrap_group_sql = '''set @@global.group_replication_bootstrap_group=on;''' if result and result[0]['variable_value']=="OFF": execute_noquery(conn_dict, open_bootstrap_group_sql)

def close_group_replication_bootstrap_group(conn_dict): sql = '''select variable_name,variable_value from performance_schema.global_variables where variable_name = 'group_replication_bootstrap_group';''' result = execute_query(conn_dict, sql) close_bootstrap_group_sql = '''set @@global.group_replication_bootstrap_group=off;''' if result and result[0]['variable_value'] == "ON": execute_noquery(conn_dict, close_bootstrap_group_sql)

def start_group_replication(conn_dict): start_group_replication = '''start group_replication;''' group_replication_status = get_group_replication_status(conn_dict) if not (group_replication_status[0]['MEMBER_STATE'] == 'ONLINE'): execute_noquery(conn_dict, start_group_replication)

def connect_to_group(conn_dict,repl_user,repl_password): connect_to_group_sql = '''change master to master_user='{0}', master_password='{1}' for channel 'group_replication_recovery'; '''.format(repl_user,repl_password) try: execute_noquery(conn_dict, connect_to_group_sql) except: raise

def start_mgr_on_master(conn_master_dict,repl_user,repl_password): try: set_super_read_only_off(conn_master_dict) reset_master(conn_master_dict) create_mgr_repl_user(conn_master_dict,repl_user,repl_password) connect_to_group(conn_master_dict,repl_user,repl_password)

<code>    open_group_replication_bootstrap_group(conn_master_dict)
    start_group_replication(conn_master_dict)
    close_group_replication_bootstrap_group(conn_master_dict)

    group_replication_status = get_group_replication_status(conn_master_dict)
    if (group_replication_status[0]['MEMBER_STATE'] == 'ONLINE'):
        print("master added in mgr and run successfully")
        return True
except:
    raise
print("############start master mgr error################")
exit(1)</code>

def start_mgr_on_slave(conn_slave_dict,repl_user,repl_password): try: set_super_read_only_off(conn_slave_dict) reset_master(conn_slave_dict) connect_to_group(conn_slave_dict,repl_user,repl_password) start_group_replication(conn_slave_dict)

wait for 10

<code>    time.sleep(10)
    # then check mgr status
    group_replication_status = get_group_replication_status(conn_slave_dict)
    if (group_replication_status[0]['MEMBER_STATE'] == 'ONLINE'):
        print("slave added in mgr and run successfully")
    if (group_replication_status[0]['MEMBER_STATE'] == 'RECOVERING'):
        print("slave is recovering")
except:
    print("############start slave mgr error################")
    exit(1)</code>

def auto_mgr(conn_master,conn_slave_1,conn_slave_2,repl_user,repl_password): install_group_replication_plugin(conn_master) master_replication_status = get_group_replication_status(conn_master)

<code>if not (master_replication_status[0]['MEMBER_STATE'] == 'ONLINE'):
    start_mgr_on_master(conn_master,repl_user,repl_password)

slave1_replication_status = get_group_replication_status(conn_slave_1)
if not (slave1_replication_status[0]['MEMBER_STATE'] == 'ONLINE'):
    install_group_replication_plugin(conn_slave_1)
    start_mgr_on_slave(conn_slave_1, repl_user, repl_user)

slave2_replication_status = get_group_replication_status(conn_slave_2)
if not (slave2_replication_status[0]['MEMBER_STATE'] == 'ONLINE'):
    install_group_replication_plugin(conn_slave_2)
    start_mgr_on_slave(conn_slave_2, repl_user, repl_user)

check_replication_group_members(conn_master)</code>

if name == 'main': conn_master = {'host': '127.0.0.1', 'port': 7001, 'user': 'root', 'password': 'root', 'db': 'mysql', 'charset': 'utf8mb4'} conn_slave_1 = {'host': '127.0.0.1', 'port': 7002, 'user': 'root', 'password': 'root', 'db': 'mysql', 'charset': 'utf8mb4'} conn_slave_2 = {'host': '127.0.0.1', 'port': 7003, 'user': 'root', 'password': 'root', 'db': 'mysql', 'charset': 'utf8mb4'} repl_user = "repl" repl_password = "repl"

auto_mgr(conn_master,conn_slave_1,conn_slave_2,repl_user,repl_password)

<code>auto_fix_mgr_error(conn_master,conn_slave_1)
check_replication_group_members(conn_master)</code></pre></code>

以上就是MySQL MGR集群单主模式的自动搭建和自动化故障修复的详细内容，更多请关注php中文网其它相关文章！
