效果展示

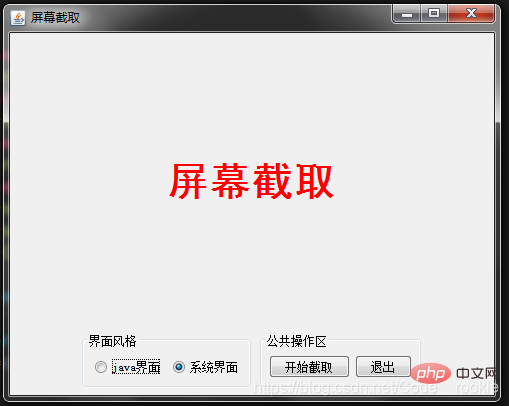

程序运行后的截图：
先测试一下功能：

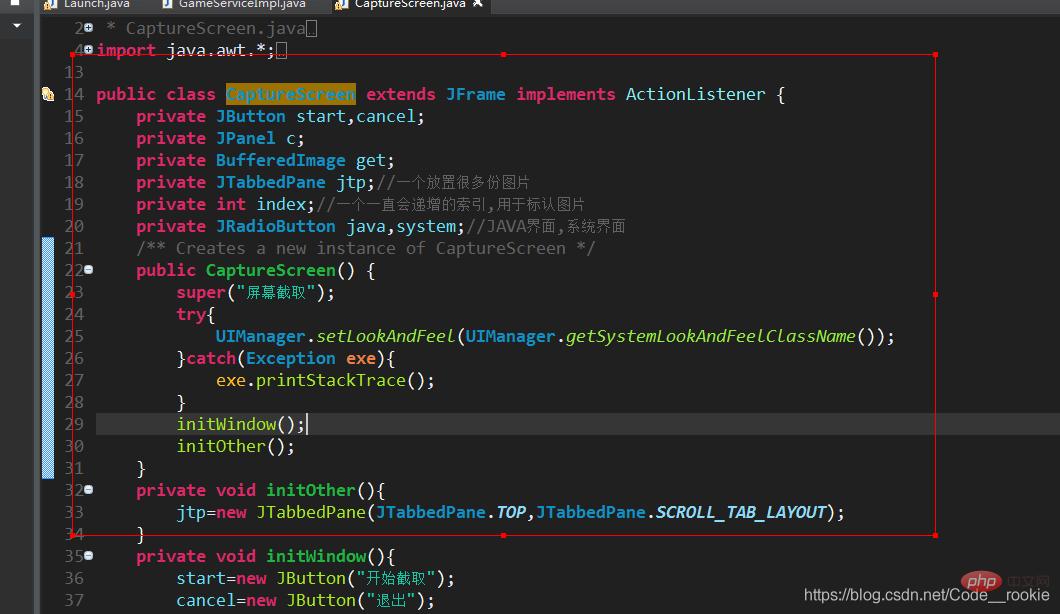

截图过程对界面的捕捉：
立即学习“Java免费学习笔记（深入）”；

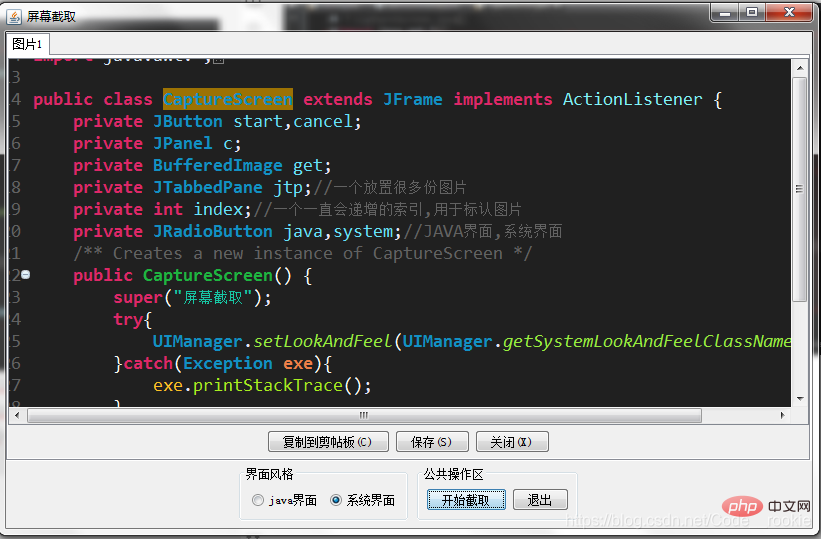

双击保存后的显示界面：
后续的步骤就自己去尝试吧，这里给出了简单的测试过程。

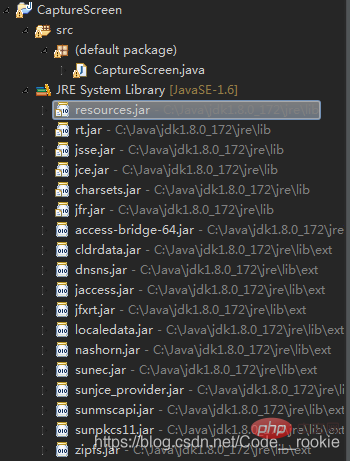

程序结构
核心代码
CaptureScreen.java类
/**
* CaptureScreen.java
*/
import java.awt.*;
import java.awt.datatransfer.DataFlavor;
import java.awt.datatransfer.Transferable;
import java.awt.datatransfer.UnsupportedFlavorException;
import java.awt.event.*;
import javax.swing.*;
import java.io.*;
import javax.imageio.*;
import java.awt.image.*;
public class CaptureScreen extends JFrame implements ActionListener {
private JButton start,cancel;
private JPanel c;
private BufferedImage get;
private JTabbedPane jtp;//一个放置很多份图片
private int index;//一个一直会递增的索引,用于标认图片
private JRadioButton java,system;//JAVA界面,系统界面
/** Creates a new instance of CaptureScreen */
public CaptureScreen() {
super("屏幕截取");
try{
UIManager.setLookAndFeel(UIManager.getSystemLookAndFeelClassName());
}catch(Exception exe){
exe.printStackTrace();
}
initWindow();
initOther();
}
private void initOther(){
jtp=new JTabbedPane(JTabbedPane.TOP,JTabbedPane.SCROLL_TAB_LAYOUT);
}
private void initWindow(){
start=new JButton("开始截取");
cancel=new JButton("退出");
start.addActionListener(this);
cancel.addActionListener(this);
JPanel buttonJP=new JPanel();
c=new JPanel(new BorderLayout());
JLabel jl=new JLabel("屏幕截取", JLabel.CENTER);
jl.setFont(new Font("黑体",Font.BOLD,40));
jl.setForeground(Color.RED);
c.add(jl,BorderLayout.CENTER);
buttonJP.add(start);
buttonJP.add(cancel);
buttonJP.setBorder(BorderFactory.createTitledBorder("公共操作区"));
JPanel jp=new JPanel();//放置两个单选按钮的面板
jp.add(java=new JRadioButton("java界面"));
jp.add(system=new JRadioButton("系统界面",true));
java.addActionListener(this);
system.addActionListener(this);
jp.setBorder(BorderFactory.createTitledBorder("界面风格"));
ButtonGroup bg=new ButtonGroup();
bg.add(java);
bg.add(system);
JPanel all=new JPanel();
all.add(jp);
all.add(buttonJP);
this.getContentPane().add(c,BorderLayout.CENTER);
this.getContentPane().add(all,BorderLayout.SOUTH);
this.setSize(500,400);
this.setLocationRelativeTo(null);
this.setVisible(true);
this.setAlwaysOnTop(true);
this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
}
private void updates(){
this.setVisible(true);
if(get!=null){
//如果索引是0,则表示一张图片都没有被加入过,
//则要清除当前的东西,重新把tabpane放进来
if(index==0){
c.removeAll();
c.add(jtp,BorderLayout.CENTER);
}else{//否则的话,直接对tabpane添加面板就可以了
//就什么都不用做了
}
PicPanel pic=new PicPanel(get);
jtp.addTab("图片"+(++index),pic);
jtp.setSelectedComponent(pic);
SwingUtilities.updateComponentTreeUI(c); // 调整LookAndFeel（javax.swing）
}
}
private void doStart(){
try{
this.setVisible(false);
Thread.sleep(500);//睡500毫秒是为了让主窗完全不见
Robot ro=new Robot(); // （通过本地操作）控制鼠标、键盘等实际输入源（java.awt）
Toolkit tk=Toolkit.getDefaultToolkit(); // AWT组件的抽象父类（java.awt）
Dimension di=tk.getScreenSize();
Rectangle rec=new Rectangle(0,0,di.width,di.height);
BufferedImage bi=ro.createScreenCapture(rec);
JFrame jf=new JFrame();
Temp temp=new Temp(jf,bi,di.width,di.height); // 自定义的Temp类的对象
jf.getContentPane().add(temp,BorderLayout.CENTER);
jf.setUndecorated(true);
jf.setSize(di);
jf.setVisible(true);
jf.setAlwaysOnTop(true);
} catch(Exception exe){
exe.printStackTrace();
}
}
/**
*公用的处理保存图片的方法
*/
public void doSave(BufferedImage get){
try{
if(get==null){
JOptionPane.showMessageDialog(this
, "图片不能为空!!", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
JFileChooser jfc=new JFileChooser(".");
jfc.addChoosableFileFilter(new GIFfilter());
jfc.addChoosableFileFilter(new BMPfilter());
jfc.addChoosableFileFilter(new JPGfilter());
jfc.addChoosableFileFilter(new PNGfilter());
int i=jfc.showSaveDialog(this);
if(i==JFileChooser.APPROVE_OPTION){
File file=jfc.getSelectedFile();
String about="PNG";
String ext=file.toString().toLowerCase();
javax.swing.filechooser.FileFilter ff=jfc.getFileFilter();
if(ff instanceof JPGfilter){
if(!ext.endsWith(".jpg")){
String ns=ext+".jpg";
file=new File(ns);
about="JPG";
}
} else if(ff instanceof PNGfilter){
if(!ext.endsWith(".png")){
String ns=ext+".png";
file=new File(ns);
about="PNG";
}
}else if(ff instanceof BMPfilter){
if(!ext.endsWith(".bmp")){
String ns=ext+".bmp";
file=new File(ns);
about="BMP";
}
}else if(ff instanceof GIFfilter){
if(!ext.endsWith(".gif")){
String ns=ext+".gif";
file=new File(ns);
about="GIF";
}
}
if(ImageIO.write(get,about,file)){
JOptionPane.showMessageDialog(this,"保存成功！");
} else
JOptionPane.showMessageDialog(this,"保存失败！");
}
} catch(Exception exe){
exe.printStackTrace();
}
}
/**
*公共的处理把当前的图片加入剪帖板的方法
*/
public void doCopy(final BufferedImage image){
try{
if(get==null){
JOptionPane.showMessageDialog(this
,"图片不能为空!!","错误",JOptionPane.ERROR_MESSAGE);
return;
} // java.awt.datatransfer（接口）
Transferable trans = new Transferable(){ // 内部类
public DataFlavor[] getTransferDataFlavors() {
return new DataFlavor[] { DataFlavor.imageFlavor };
}
public boolean isDataFlavorSupported(DataFlavor flavor) {
return DataFlavor.imageFlavor.equals(flavor);
}
public Object getTransferData(DataFlavor flavor)
throws UnsupportedFlavorException, IOException {
if(isDataFlavorSupported(flavor))
return image;
throw new UnsupportedFlavorException(flavor);
}
};
Toolkit.getDefaultToolkit().getSystemClipboard().setContents(trans, null);
JOptionPane.showMessageDialog(this,"已复制到系统粘帖板!!");
}catch(Exception exe){
exe.printStackTrace();
JOptionPane.showMessageDialog(this
,"复制到系统粘帖板出错!!","错误",JOptionPane.ERROR_MESSAGE);
}
}
//处理关闭事件
private void doClose(Component c){
jtp.remove(c);
c=null;
System.gc();
}
public void actionPerformed(ActionEvent ae){
Object source=ae.getSource();
if(source==start){
doStart();
} else if(source==cancel){
System.exit(0);
}else if(source==java){ // 金属外观
try{
UIManager.setLookAndFeel(UIManager.getCrossPlatformLookAndFeelClassName());
SwingUtilities.updateComponentTreeUI(this);
}catch(Exception exe){
exe.printStackTrace();
}
}else if(source==system){ // 本地外观
try{
UIManager.setLookAndFeel(UIManager.getSystemLookAndFeelClassName());
SwingUtilities.updateComponentTreeUI(this);
}catch(Exception exe){
exe.printStackTrace();
}
}
}
//一个内部类,它表示一个面板,一个可以被放进tabpane的面板
//也有自己的一套处理保存和复制的方法
private class PicPanel extends JPanel implements ActionListener{
JButton save,copy,close;//表示保存,复制,关闭的按钮
BufferedImage get;//得到的图片
public PicPanel(BufferedImage get){
super(new BorderLayout());
this.get=get;
initPanel();
}
private void initPanel(){
save=new JButton("保存(S)");
copy=new JButton("复制到剪帖板(C)");
close=new JButton("关闭(X)");
save.setMnemonic('S');
copy.setMnemonic('C');
close.setMnemonic('X');
JPanel buttonPanel=new JPanel();
buttonPanel.add(copy);
buttonPanel.add(save);
buttonPanel.add(close);
JLabel icon=new JLabel(new ImageIcon(get));
this.add(new JScrollPane(icon),BorderLayout.CENTER);
this.add(buttonPanel,BorderLayout.SOUTH);
save.addActionListener(this);
copy.addActionListener(this);
close.addActionListener(this);
}
public void actionPerformed(ActionEvent e) {
Object source=e.getSource();
if(source==save){
doSave(get);
}else if(source==copy){
doCopy(get);
}else if(source==close){
get=null;
doClose(this);
}
}
}
//保存BMP格式的过滤器
private class BMPfilter extends javax.swing.filechooser.FileFilter{
public BMPfilter(){
}
public boolean accept(File file){
if(file.toString().toLowerCase().endsWith(".bmp")||
file.isDirectory()){
return true;
} else
return false;
}
public String getDescription(){
return "*.BMP(BMP图像)";
}
}
//保存JPG格式的过滤器
private class JPGfilter extends javax.swing.filechooser.FileFilter{
public JPGfilter(){
}
public boolean accept(File file){
if(file.toString().toLowerCase().endsWith(".jpg")||
file.isDirectory()){
return true;
} else
return false;
}
public String getDescription(){
return "*.JPG(JPG图像)";
}
}
//保存GIF格式的过滤器
private class GIFfilter extends javax.swing.filechooser.FileFilter{
public GIFfilter(){
}
public boolean accept(File file){
if(file.toString().toLowerCase().endsWith(".gif")||
file.isDirectory()){
return true;
} else
return false;
}
public String getDescription(){
return "*.GIF(GIF图像)";
}
}
//保存PNG格式的过滤器
private class PNGfilter extends javax.swing.filechooser.FileFilter{
public boolean accept(File file){
if(file.toString().toLowerCase().endsWith(".png")||
file.isDirectory()){
return true;
} else
return false;
}
public String getDescription(){
return "*.PNG(PNG图像)";
}
}
//一个临时类，用于显示当前的屏幕图像
private class Temp extends JPanel implements MouseListener,MouseMotionListener{
private BufferedImage bi;
private int width,height;
private int startX,startY,endX,endY,tempX,tempY;
private JFrame jf;
private Rectangle select=new Rectangle(0,0,0,0);//表示选中的区域
private Cursor cs=new Cursor(Cursor.CROSSHAIR_CURSOR);//表示一般情况下的鼠标状态（十字线）
private States current=States.DEFAULT;// 表示当前的编辑状态
private Rectangle[] rec;//表示八个编辑点的区域
//下面四个常量,分别表示谁是被选中的那条线上的端点
public static final int START_X=1;
public static final int START_Y=2;
public static final int END_X=3;
public static final int END_Y=4;
private int currentX,currentY;//当前被选中的X和Y,只有这两个需要改变
private Point p=new Point();//当前鼠标移的地点
private boolean showTip=true;//是否显示提示.如果鼠标左键一按,则提示就不再显示了
public Temp(JFrame jf,BufferedImage bi,int width,int height){
this.jf=jf;
this.bi=bi;
this.width=width;
this.height=height;
this.addMouseListener(this);
this.addMouseMotionListener(this);
initRecs();
}
private void initRecs(){
rec=new Rectangle[8];
for(int i=0;iendX?startX:endX)-5,y-5,10,10);
rec[3]=new Rectangle((startX>endX?startX:endX)-5,y1-5,10,10);
rec[4]=new Rectangle((startX>endX?startX:endX)-5,(startY>endY?startY:endY)-5,10,10);
rec[5]=new Rectangle(x1-5,(startY>endY?startY:endY)-5,10,10);
rec[6]=new Rectangle(x-5,(startY>endY?startY:endY)-5,10,10);
rec[7]=new Rectangle(x-5,y1-5,10,10);
if(showTip){
g.setColor(Color.CYAN);
g.fillRect(p.x,p.y,170,20);
g.setColor(Color.RED);
g.drawRect(p.x,p.y,170,20);
g.setColor(Color.BLACK);
g.drawString("请按住鼠标左键不放选择截图区",p.x,p.y+15);
}
}
//根据东南西北等八个方向决定选中的要修改的X和Y的座标
private void initSelect(States state){
switch(state){
case DEFAULT:
currentX=0;
currentY=0;
break;
case EAST:
currentX=(endX>startX?END_X:START_X);
currentY=0;
break;
case WEST:
currentX=(endX>startX?START_X:END_X);
currentY=0;
break;
case NORTH:
currentX=0;
currentY=(startY>endY?END_Y:START_Y);
break;
case SOUTH:
currentX=0;
currentY=(startY>endY?START_Y:END_Y);
break;
case NORTH_EAST:
currentY=(startY>endY?END_Y:START_Y);
currentX=(endX>startX?END_X:START_X);
break;
case NORTH_WEST:
currentY=(startY>endY?END_Y:START_Y);
currentX=(endX>startX?START_X:END_X);
break;
case SOUTH_EAST:
currentY=(startY>endY?START_Y:END_Y);
currentX=(endX>startX?END_X:START_X);
break;
case SOUTH_WEST:
currentY=(startY>endY?START_Y:END_Y);
currentX=(endX>startX?START_X:END_X);
break;
default:
currentX=0;
currentY=0;
break;
}
}
public void mouseMoved(MouseEvent me){
doMouseMoved(me);
initSelect(current); // current：当前状态（state）
if(showTip){
p=me.getPoint();
repaint();
}
}
//特意定义一个方法处理鼠标移动,是为了每次都能初始化一下所要选择的区域
private void doMouseMoved(MouseEvent me){
if(select.contains(me.getPoint())){
this.setCursor(new Cursor(Cursor.MOVE_CURSOR));
current=States.MOVE;
} else{
States[] st=States.values();
for(int i=0;i=this.getWidth()){
wid=this.getWidth()-select.x;
}
if(select.y+select.height>=this.getHeight()){
het=this.getHeight()-select.y;
}
get=bi.getSubimage(select.x,select.y,wid,het);
jf.dispose();
updates();
}
}
}
}
}
public static void main(String args[]) {
SwingUtilities.invokeLater(new Runnable(){
public void run(){
new CaptureScreen();
}
});
}
}
//一些表示状态的枚举
enum States{
NORTH_WEST(new Cursor(Cursor.NW_RESIZE_CURSOR)),//表示西北角
NORTH(new Cursor(Cursor.N_RESIZE_CURSOR)),
NORTH_EAST(new Cursor(Cursor.NE_RESIZE_CURSOR)),
EAST(new Cursor(Cursor.E_RESIZE_CURSOR)),
SOUTH_EAST(new Cursor(Cursor.SE_RESIZE_CURSOR)),
SOUTH(new Cursor(Cursor.S_RESIZE_CURSOR)),
SOUTH_WEST(new Cursor(Cursor.SW_RESIZE_CURSOR)),
WEST(new Cursor(Cursor.W_RESIZE_CURSOR)),
MOVE(new Cursor(Cursor.MOVE_CURSOR)),
DEFAULT(new Cursor(Cursor.DEFAULT_CURSOR));
private Cursor cs;
States(Cursor cs){
this.cs=cs;
}
public Cursor getCursor(){
return cs;
}
}
