图形可视化

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class DisplayUSMap extends Application {
    @Override // Override the start method in the Application class
    public void start(Stage primaryStage) {

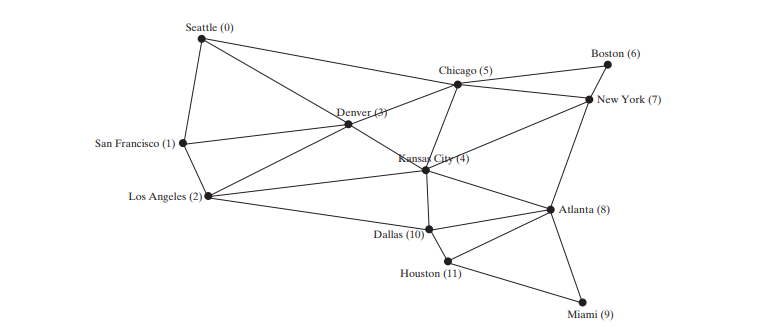

        City[] vertices = {new City("Seattle", 75, 50),
                new City("San Francisco", 50, 210),
                new City("Los Angeles", 75, 275), new City("Denver", 275, 175),
                new City("Kansas City", 400, 245),
                new City("Chicago", 450, 100), new City("Boston", 700, 80),
                new City("New York", 675, 120), new City("Atlanta", 575, 295),
                new City("Miami", 600, 400), new City("Dallas", 408, 325),
                new City("Houston", 450, 360)};

        // Edge array for graph
        int[][] edges = {
                {0, 1}, {0, 3}, {0, 5}, {1, 0}, {1, 2}, {1, 3},
                {2, 1}, {2, 3}, {2, 4}, {2, 10},
                {3, 0}, {3, 1}, {3, 2}, {3, 4}, {3, 5},
                {4, 2}, {4, 3}, {4, 5}, {4, 7}, {4, 8}, {4, 10},
                {5, 0}, {5, 3}, {5, 4}, {5, 6}, {5, 7},
                {6, 5}, {6, 7}, {7, 4}, {7, 5}, {7, 6}, {7, 8},
                {8, 4}, {8, 7}, {8, 9}, {8, 10}, {8, 11},
                {9, 8}, {9, 11}, {10, 2}, {10, 4}, {10, 8}, {10, 11},
                {11, 8}, {11, 9}, {11, 10}
        };

        Graph<City> graph = new UnweightedGraph<>(vertices, edges);

        // Create a scene and place it in the stage

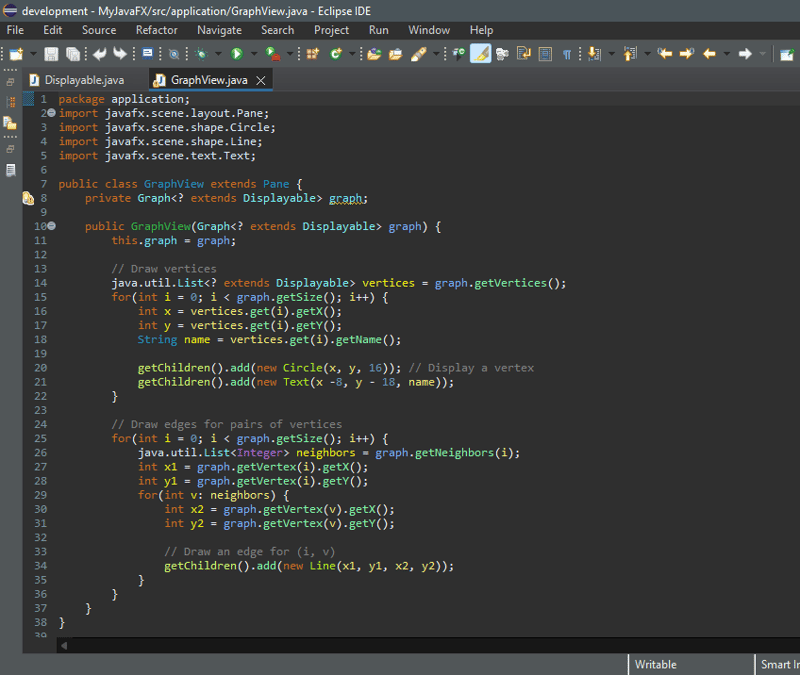

        Scene scene = new Scene(new GraphView(graph), 750, 450);

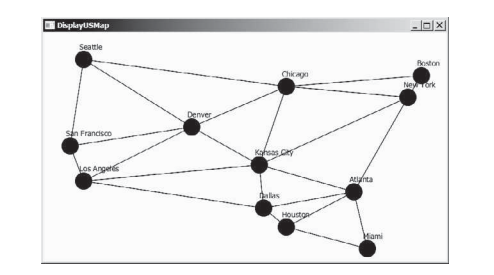

        primaryStage.setTitle("DisplayUSMap"); // Set the stage title
        primaryStage.setScene(scene); // Place the scene in the stage
        primaryStage.show(); // Display the stage
    }

    public static void main(String[] args) {
        Application.launch(args);
    }

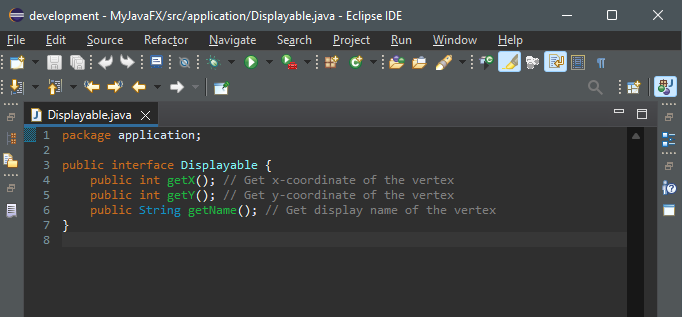

    static class City implements Displayable {
        private int x, y;
        private String name;

        City(String name, int x, int y) {
            this.name = name;
            this.x = x;
            this.y = y;
        }

        @Override
        public int getX() {
            return x;
        }

        @Override
        public int getY() {
            return y;
        }

        @Override
        public String getName() {
            return name;
        }
    }
}
