ShiftViT：采用简单高效的移位操作证明Attention是否必要

!pip install einops-0.3.0-py3-none-any.whl

%matplotlib inlineimport paddleimport numpy as npimport matplotlib.pyplot as pltfrom paddle.vision.datasets import Cifar10from paddle.vision.transforms import Transposefrom paddle.io import Dataset, DataLoaderfrom paddle import nnimport paddle.nn.functional as Fimport paddle.vision.transforms as transformsimport osimport matplotlib.pyplot as pltfrom matplotlib.pyplot import figurefrom einops.layers.paddle import Rearrange, Reducefrom einops import rearrange

train_tfm = transforms.Compose([
    transforms.Resize((230, 230)),
    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),
    transforms.RandomResizedCrop(224, scale=(0.6, 1.0)),
    transforms.RandomHorizontalFlip(0.5),
    transforms.RandomRotation(20),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

test_tfm = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

paddle.vision.set_image_backend('cv2')# 使用Cifar10数据集train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )
val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)print("train_dataset: %d" % len(train_dataset))print("val_dataset: %d" % len(val_dataset))

batch_size=128

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

class LabelSmoothingCrossEntropy(nn.Layer):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing    def forward(self, pred, target):

        confidence = 1. - self.smoothing
        log_probs = F.log_softmax(pred, axis=-1)
        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)
        nll_loss = paddle.gather_nd(-log_probs, index=idx)
        smooth_loss = paddle.mean(-log_probs, axis=-1)
        loss = confidence * nll_loss + self.smoothing * smooth_loss        return loss.mean()

def drop_path(x, drop_prob=0.0, training=False):
    """
    Drop paths (Stochastic Depth) per sample (when applied in main path of residual blocks).
    the original name is misleading as 'Drop Connect' is a different form of dropout in a separate paper...
    See discussion: https://github.com/tensorflow/tpu/issues/494#issuecomment-532968956 ...
    """
    if drop_prob == 0.0 or not training:        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (paddle.shape(x)[0],) + (1,) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor)  # binarize
    output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)

class MLP(nn.Layer):
    def __init__(self, in_features, hidden_features=None, out_features=None,act_layer=nn.GELU, drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.fc1 = nn.Conv2D(in_features, hidden_features, 1)
        self.act = act_layer()
        self.fc2 = nn.Conv2D(hidden_features, out_features, 1)
        self.drop = nn.Dropout(drop)    def forward(self, x):
        x = self.fc1(x)
        x = self.act(x)
        x = self.drop(x)
        x = self.fc2(x)
        x = self.drop(x)        return x

class Shift(nn.Layer):
    def __init__(self, n_div):
        super().__init__()
        self.n_div = n_div    def forward(self, x):
        B, C, H, W = x.shape
        g = C // self.n_div        # out = paddle.zeros_like(x)

        x[:, g * 0:g * 1, :, :-1] = x[:, g * 0:g * 1, :, 1:]  # shift left
        x[:, g * 1:g * 2, :, 1:] = x[:, g * 1:g * 2, :, :-1]  # shift right
        x[:, g * 2:g * 3, :-1, :] = x[:, g * 2:g * 3, 1:, :]  # shift up
        x[:, g * 3:g * 4, 1:, :] = x[:, g * 3:g * 4, :-1, :]  # shift down

        x[:, g * 4:, :, :] = x[:, g * 4:, :, :]  # no shift
        return x

class ShiftViTBlock(nn.Layer):
    def __init__(self, dim, n_div=12, mlp_ratio=4., drop=0., drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm,
                input_resolution=None):
        super().__init__()
        self.input_resolution = input_resolution
        self.mlp_ratio = mlp_ratio

        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()
        self.norm = norm_layer(dim)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = MLP(in_features=dim,
                       hidden_features=mlp_hidden_dim,
                       act_layer=act_layer,
                       drop=drop)
        self.n_div = n_div
        self.shift = Shift(n_div)    def forward(self, x):
        x = self.shift(x)
        shortcut = x
        x = shortcut + self.drop_path(self.mlp(self.norm(x.transpose([0, 2, 3, 1])).transpose([0, 3, 1, 2])))        return x

class BasicLayer(nn.Layer):

    def __init__(self, dim, input_resolution, depth, n_div=12, mlp_ratio=4., drop=0., drop_path=None, norm_layer=None, downsample=True,
                act_layer=nn.GELU):

        super(BasicLayer, self).__init__()
        self.dim = dim
        self.input_resolution = input_resolution
        self.depth = depth        # build blocks
        self.blocks = nn.LayerList([
            ShiftViTBlock(dim=dim,
                          n_div=n_div,
                          mlp_ratio=mlp_ratio,
                          drop=drop,
                          drop_path=drop_path[i],
                          norm_layer=norm_layer,
                          act_layer=act_layer,
                          input_resolution=input_resolution)            for i in range(depth)
        ])        # patch merging layer
        if downsample:
            self.downsample = nn.Sequential(
                nn.GroupNorm(num_groups=1, num_channels=dim),
                nn.Conv2D(dim, dim * 2, kernel_size=2, stride=2,bias_attr=False)
            )        else:
            self.downsample = None

    def forward(self, x):
        for blk in self.blocks:
            x = blk(x)        if self.downsample is not None:
            x = self.downsample(x)        return x

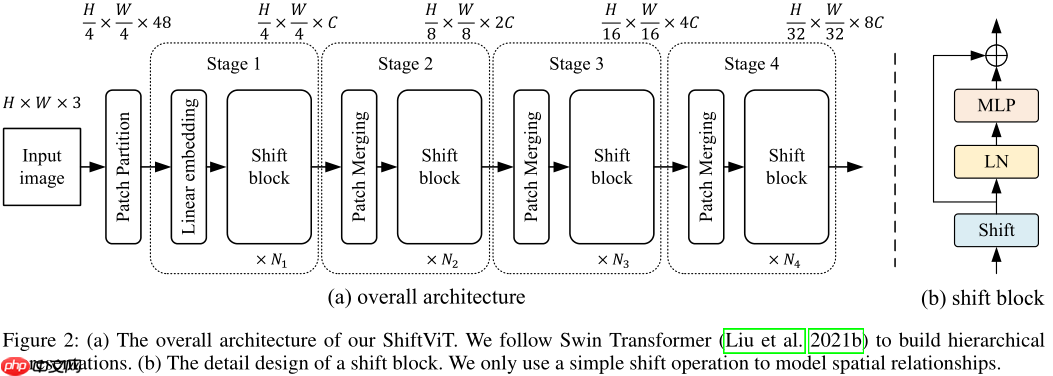

class ShiftViT(nn.Layer):

    def __init__(self,n_div=12, img_size=224, patch_size=4, in_chans=3, num_classes=1000, embed_dim=96, depths=(2, 2, 6, 2), mlp_ratio=2.,
                drop_rate=0., drop_path_rate=0.1, patch_norm=True, **kwargs):
        super().__init__()

        norm_layer = nn.LayerNorm

        act_layer = nn.GELU

        self.num_classes = num_classes
        self.num_layers = len(depths)
        self.embed_dim = embed_dim
        self.patch_norm = patch_norm
        self.num_features = int(embed_dim * 2 ** (self.num_layers - 1))
        self.mlp_ratio = mlp_ratio        # split image into non-overlapping patches
        self.patch_embed = nn.Sequential(
            nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size),
            Rearrange('b c h w->b h w c'),
            nn.LayerNorm(embed_dim) if self.patch_norm else nn.Identity(),
            Rearrange('b h w c->b c h w')
        )        # num_patches = self.patch_embed.num_patches
        patches_resolution = [img_size // patch_size, img_size // patch_size]
        self.patches_resolution = patches_resolution
        self.pos_drop = nn.Dropout(p=drop_rate)        # stochastic depth decay rule
        dpr = [x.item()               for x in paddle.linspace(0, drop_path_rate, sum(depths))]        # build layers
        self.layers = nn.LayerList()        for i_layer in range(self.num_layers):
            layer = BasicLayer(dim=int(embed_dim * 2 ** i_layer),
                               n_div=n_div,
                               input_resolution=(patches_resolution[0] // (2 ** i_layer),
                                                 patches_resolution[1] // (2 ** i_layer)),
                               depth=depths[i_layer],
                               mlp_ratio=self.mlp_ratio,
                               drop=drop_rate,
                               drop_path=dpr[sum(depths[:i_layer]):sum(depths[:i_layer + 1])],
                               norm_layer=norm_layer,
                               downsample=(i_layer < self.num_layers - 1),
                               act_layer=act_layer)
            self.layers.append(layer)

        self.norm = norm_layer(self.num_features)
        self.avgpool = nn.AdaptiveAvgPool2D(1)
        self.head = nn.Linear(self.num_features, num_classes) \            if num_classes > 0 else nn.Identity()

        self.apply(self._init_weights)    def _init_weights(self, m):
        tn = nn.initializer.TruncatedNormal(std=.02)
        zeros = nn.initializer.Constant(0.)
        ones = nn.initializer.Constant(1.)        if isinstance(m, nn.Linear):
            tn(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:
                zeros(m.bias)        elif isinstance(m, (nn.Conv1D, nn.Conv2D)):
            tn(m.weight)            if m.bias is not None:
                zeros(m.bias)        elif isinstance(m, (nn.LayerNorm, nn.GroupNorm)):
            zeros(m.bias)
            ones(m.weight)    def forward_features(self, x):
        x = self.patch_embed(x)
        x = self.pos_drop(x)        for layer in self.layers:
            x = layer(x)

        x = self.norm(x.transpose([0, 2, 3, 1])).transpose([0, 3, 1, 2])
        x = self.avgpool(x)
        x = paddle.flatten(x, 1)        return x    def forward(self, x):
        x = self.forward_features(x)
        x = self.head(x)        return x

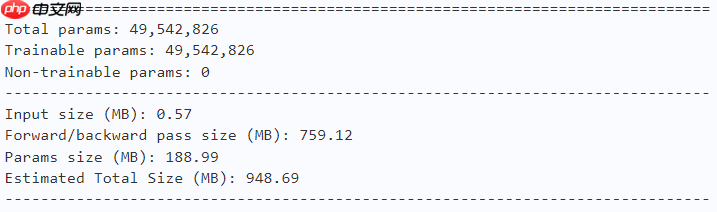

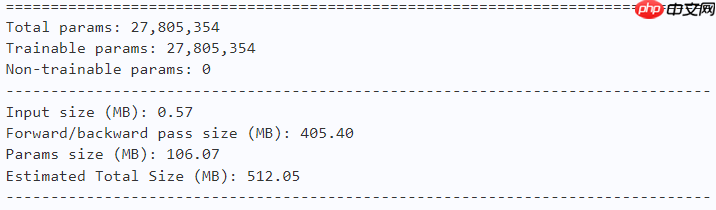

# Shift-Tmodel = ShiftViT(n_div=12, embed_dim=96, depths=(6, 8, 18, 6), num_classes=10)
paddle.summary(model, (1, 3, 224, 224))

# Shift-Smodel = ShiftViT(n_div=12, embed_dim=96, depths=(10, 18, 36, 10), num_classes=10)
paddle.summary(model, (1, 3, 224, 224))

# Shift-Bmodel = ShiftViT(n_div=16, embed_dim=128, depths=(10, 18, 36, 10), num_classes=10)
paddle.summary(model, (1, 3, 224, 224))

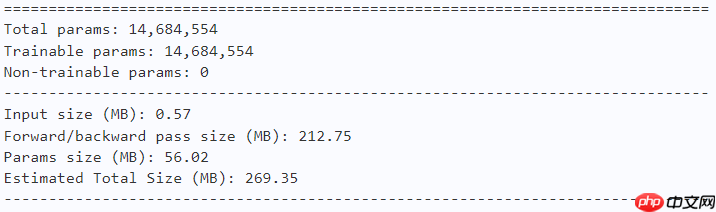

# Shift-oursmodel = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)
paddle.summary(model, (1, 3, 224, 224))

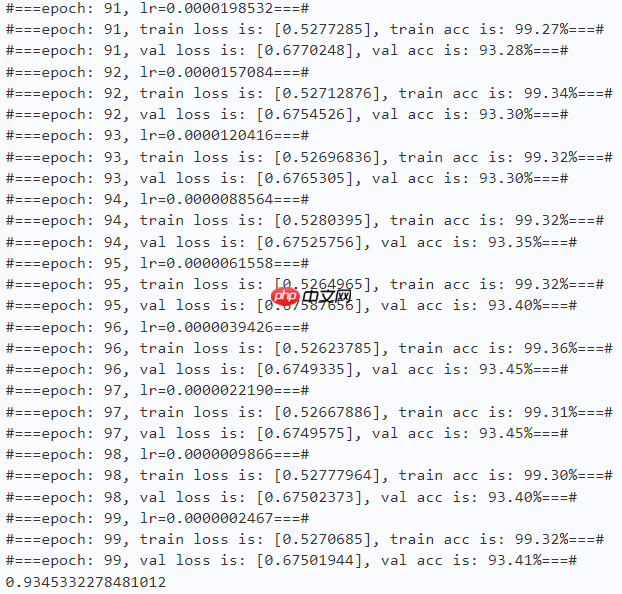

learning_rate = 0.001n_epochs = 100paddle.seed(42)
np.random.seed(42)

work_path = 'work/model'# Shift-oursmodel = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0threshold = 0.0best_acc = 0.0val_acc = 0.0loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording lossacc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracyloss_iter = 0acc_iter = 0for epoch in range(n_epochs):    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = accuracy_manager.compute(logits, labels)
        accuracy_manager.update(acc)        if batch_id % 10 == 0:
            loss_record['train']['loss'].append(loss.numpy())
            loss_record['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record['train']['acc'].append(train_acc)
    acc_record['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))    # ---------- Validation ----------
    model.eval()    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = val_accuracy_manager.compute(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record['val']['loss'].append(total_val_loss.numpy())
    loss_record['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record['val']['acc'].append(val_acc)
    acc_record['val']['iter'].append(acc_iter)
    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):
    ''' Plot learning curve of your CNN '''
    maxtrain = max(map(float, record['train'][title]))
    maxval = max(map(float, record['val'][title]))
    ymax = max(maxtrain, maxval) * 1.1
    mintrain = min(map(float, record['train'][title]))
    minval = min(map(float, record['val'][title]))
    ymin = min(mintrain, minval) * 0.9

    total_steps = len(record['train'][title])
    x_1 = list(map(int, record['train']['iter']))
    x_2 = list(map(int, record['val']['iter']))
    figure(figsize=(10, 6))
    plt.plot(x_1, record['train'][title], c='tab:red', label='train')
    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')
    plt.ylim(ymin, ymax)
    plt.xlabel('Training steps')
    plt.ylabel(ylabel)
    plt.title('Learning curve of {}'.format(title))
    plt.legend()
    plt.show()

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

import time
work_path = 'work/model'model = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

def get_cifar10_labels(labels):
    """返回CIFAR10数据集的文本标签。"""
    text_labels = [        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',        'horse', 'ship', 'truck']    return [text_labels[int(i)] for i in labels]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):
    """Plot a list of images."""
    figsize = (num_cols * scale, num_rows * scale)
    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)
    axes = axes.flatten()    for i, (ax, img) in enumerate(zip(axes, imgs)):        if paddle.is_tensor(img):
            ax.imshow(img.numpy())        else:
            ax.imshow(img)
        ax.axes.get_xaxis().set_visible(False)
        ax.axes.get_yaxis().set_visible(False)        if pred or gt:
            ax.set_title("pt: " + pred[i] + "\ngt: " + gt[i])    return axes

work_path = 'work/model'X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 224, 224, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()
