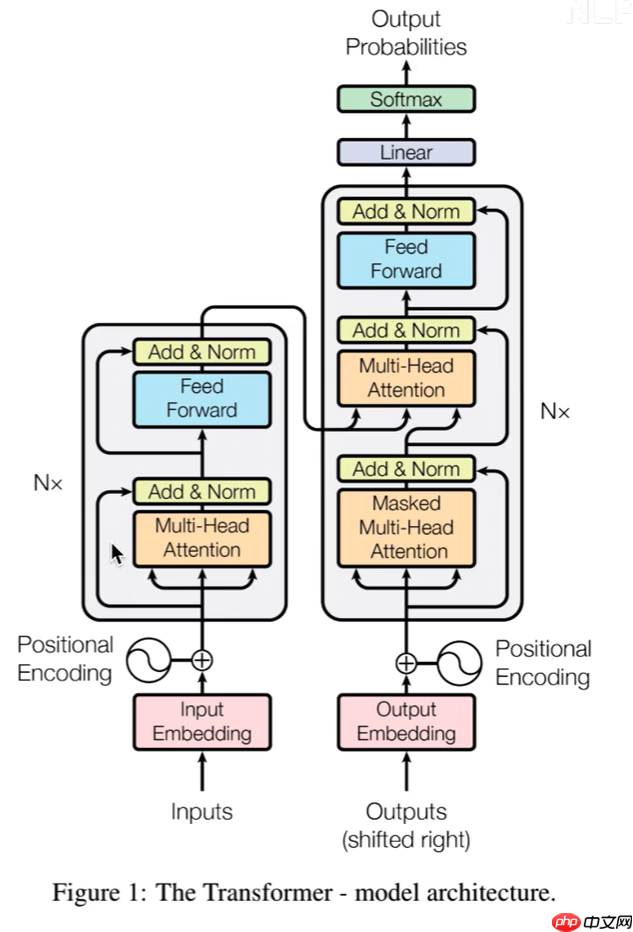

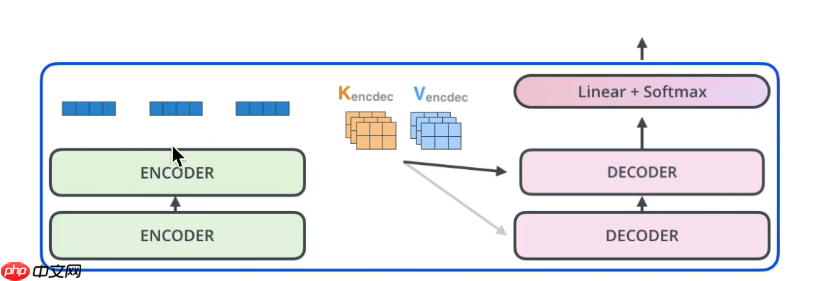

教学transformer原理及应用

import osimport zipfileimport randomimport paddlefrom paddle import fluidimport numpy as npimport matplotlib.pyplot as pltimport PIL.Image as Imagefrom paddle.io import Dataset
import numpy as np
import sysimport paddle.nn as nnfrom multiprocessing import cpu_count
from paddle.nn import MaxPool2D,Conv2D,BatchNorm2Dfrom paddle.nn import Linear
import randomfrom paddle.nn.initializer import TruncatedNormal, Constant
from paddle.nn import TransformerEncoderLayer, TransformerEncoderfrom paddle.regularizer import L2Decay

'''
参数配置
'''train_parameters = {    "input_size": [3, 120, 120],                             #输入图片的shape
    "class_dim": 3,                                          #分类数
    "src_path":"/home/aistudio/data/data93289/Data.zip",     #原始数据集路径
    "target_path":"/home/aistudio/work/",                    #要解压的路径
    "train_list_path": "/home/aistudio/data/train.txt",      #train.txt路径
    "eval_list_path": "/home/aistudio/data/eval.txt",        #eval.txt路径
    "label_dict":{'0':'汽车','1':'摩托车','2':'货车'},        #标签字典
    "num_epochs": 40,                                        #训练轮数
    "train_batch_size": 32,                                   #训练时每个批次的大小
    "learning_strategy": {                                   #优化函数相关的配置
        "lr": 1.0e-5                                        #超参数学习率
    },
    'skip_steps': 50,                                        #每N个批次打印一次结果
    'save_steps': 500,                                       #每N个批次保存一次模型参数
    "checkpoints": "/home/aistudio/work/checkpoints"         #保存的路径}def seed_paddle(seed=1024):
    seed = int(seed)
    random.seed(seed)
    os.environ['PYTHONHASHSEED'] = str(seed)
    np.random.seed(seed)
    paddle.seed(seed)

seed_paddle(seed=1024)

# 解压原始数据集def unzip_data(src_path,target_path):
    '''
    解压原始数据集，将src_path路径下的zip包解压至target_path目录下
    '''
    if(not os.path.isdir(os.path.join(target_path,'Data'))):
        z = zipfile.ZipFile(src_path, 'r')
        z.extractall(path=target_path)
        z.close()        print('数据集解压完成')    else:        print('文件已存在')def get_data_list(target_path, train_list_path, eval_list_path):
    '''
    生成数据列表
    '''
    data_dir = 'work/Data'
    all_data_list  = []    for im in os.listdir(data_dir):
        img_path = os.path.join(data_dir, im)
        img_label = str(int(im.split('_')[0])-1)
        all_data_list.append(img_path + '\t' + img_label + '\n')    # 对训练列表进行乱序
    random.shuffle(all_data_list)
    with open(train_list_path, 'a') as f1:        with open(eval_list_path, 'a') as f2:            for ind, img_path_label in enumerate(all_data_list):                #划分测试集和训练集
                if ind % 10 == 0:
                    f2.write(img_path_label)
                else:
                    f1.write(img_path_label)    print ('生成数据列表完成！')class dataset(Dataset):
    def __init__(self, data_path, mode='train'):
        """
        数据读取器
        :param data_path: 数据集所在路径
        :param mode: train or eval
        """
        super().__init__()
        self.data_path = data_path
        self.img_paths = []
        self.labels = []        if mode == 'train':            with open(os.path.join(self.data_path, "train.txt"), "r", encoding="utf-8") as f:
                self.info = f.readlines()            for img_info in self.info:
                img_path, label = img_info.strip().split('\t')
                self.img_paths.append(img_path)
                self.labels.append(int(label))        else:            with open(os.path.join(self.data_path, "eval.txt"), "r", encoding="utf-8") as f:
                self.info = f.readlines()            for img_info in self.info:
                img_path, label = img_info.strip().split('\t')
                self.img_paths.append(img_path)
                self.labels.append(int(label))    def __getitem__(self, index):
        """
        获取一组数据
        :param index: 文件索引号
        :return:
        """
        # 第一步打开图像文件并获取label值
        img_path = self.img_paths[index]
        img = Image.open(img_path)        if img.mode != 'RGB':
            img = img.convert('RGB')
        img = np.array(img).astype('float32')
        img = img.transpose((2, 0, 1)) / 255
        label = self.labels[index]
        label = np.array([label], dtype="int64")        return img, label    def print_sample(self, index: int = 0):
        print("文件名", self.img_paths[index], "\t标签值", self.labels[index])    def __len__(self):
        return len(self.img_paths)

#参数初始化src_path=train_parameters['src_path']
target_path=train_parameters['target_path']
train_list_path=train_parameters['train_list_path']
eval_list_path=train_parameters['eval_list_path']#解压原始数据到指定路径unzip_data(src_path,target_path)

#查看数据path1='/home/aistudio/work/Data/1_96.png'path2='/home/aistudio/work/Data/2_832.png'path3='/home/aistudio/work/Data/3_1398.png'# 汽车img1 = Image.open(path1)
plt.imshow(img1)          #根据数组绘制图像plt.show()# 摩托车img2 = Image.open(path2)
plt.imshow(img2)          #根据数组绘制图像plt.show()               #显示图像# 货车img3 = Image.open(path3)
plt.imshow(img3)          #根据数组绘制图像plt.show()               #显示图像

#每次生成数据列表前，首先清空train.txt和eval.txtwith open(train_list_path, 'w') as f:
    f.seek(0)
    f.truncate()
with open(eval_list_path, 'w') as f:
    f.seek(0)
    f.truncate()

#生成数据列表   get_data_list(target_path,train_list_path,eval_list_path)#训练数据加载train_dataset = dataset('/home/aistudio/data',mode='train')
train_loader = paddle.io.DataLoader(train_dataset,
                                    batch_size=train_parameters['train_batch_size'],
                                    shuffle=True
                                    )#测试数据加载eval_dataset = dataset('/home/aistudio/data',mode='eval')
eval_loader = paddle.io.DataLoader(eval_dataset,
                                   batch_size=train_parameters['train_batch_size'],
                                   shuffle=False
                                   )

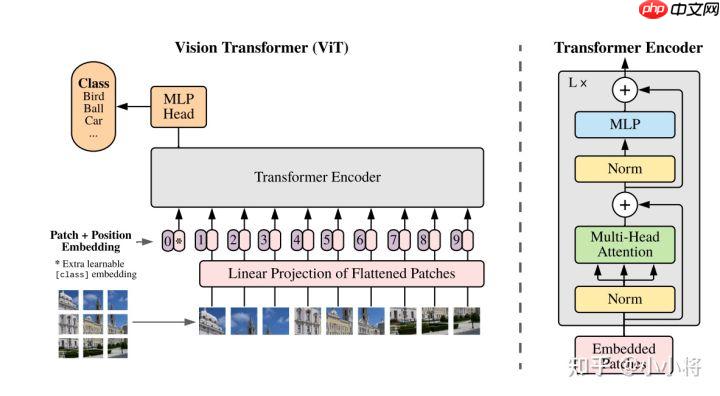

# 定义ViTtrunc_normal_ = TruncatedNormal(std=.02)
zeros_ = Constant(value=0.)
ones_ = Constant(value=1.)
dim =256heads=16patch_size = 8num_layers = 3num_patch = int((120/patch_size) * (120/patch_size))# x[int] -> tuple(x, x)def to_2tuple(x):
    return tuple([x] * 2)# 独立层，即什么操作都没有的网络层class Identity(nn.Layer):
    def __init__(self):
        super(Identity, self).__init__()    def forward(self, input):
        return inputclass PatchEmbed(nn.Layer):
    def __init__(self, img_size=120, patch_size=patch_size, in_chans=3, embed_dim=dim):
        super().__init__()
        img_size = to_2tuple(img_size)
        patch_size = to_2tuple(patch_size)
        num_patches = (img_size[1] // patch_size[1]) * \
            (img_size[0] // patch_size[0])
        self.img_size = img_size
        self.patch_size = patch_size
        self.num_patches = num_patches

        self.proj = nn.Conv2D(in_chans, embed_dim,
                              kernel_size=patch_size, stride=patch_size)    def forward(self, x):
        B, C, H, W = x.shape        # 分块线性变换 + 向量展平 + 维度转置
        x = self.proj(x).flatten(2).transpose((0, 2, 1))        return xclass Attention(nn.Layer):

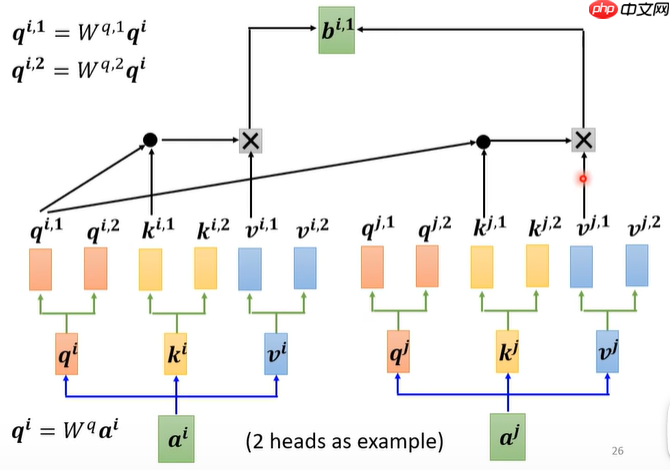

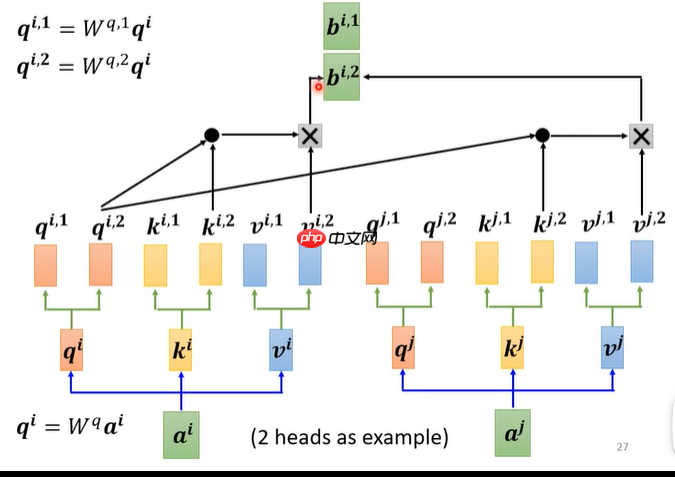

    def __init__(self, dim, num_heads=8, qkv_bias=False, qk_scale=None, attn_drop=0., proj_drop=0.):
        super().__init__()
        self.num_heads = num_heads
        head_dim = dim // num_heads
        self.scale = qk_scale or head_dim ** -0.5

        self.qkv = nn.Linear(dim, dim * 3, bias_attr=qkv_bias)
        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim, dim)
        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):
        B, N, C = x.shape        # 线性变换

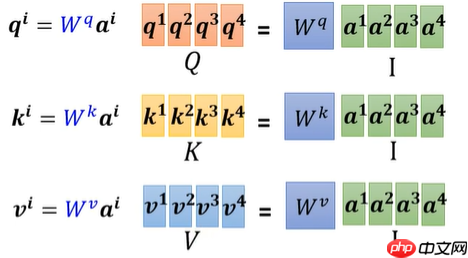

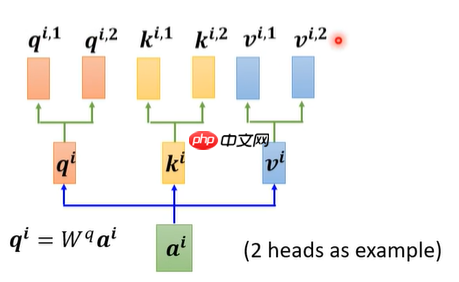

        qkv = self.qkv(x).reshape((B, N, 3, self.num_heads, C //
                                   self.num_heads)).transpose((2, 0, 3, 1, 4))
        # 分割 query key value
        q, k, v = qkv[0], qkv[1], qkv[2]
        # Matmul + Scale

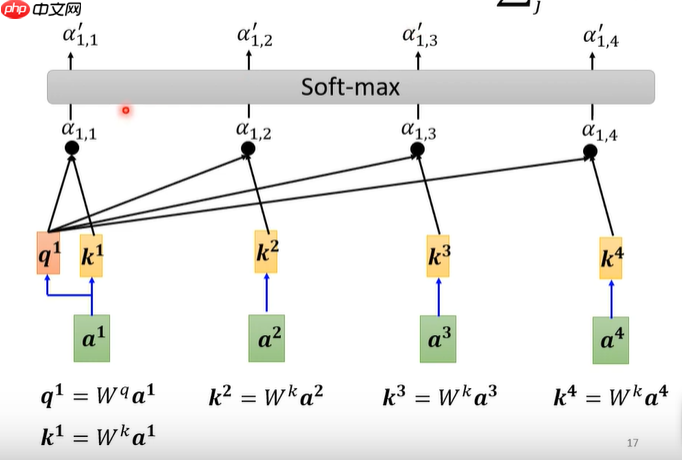

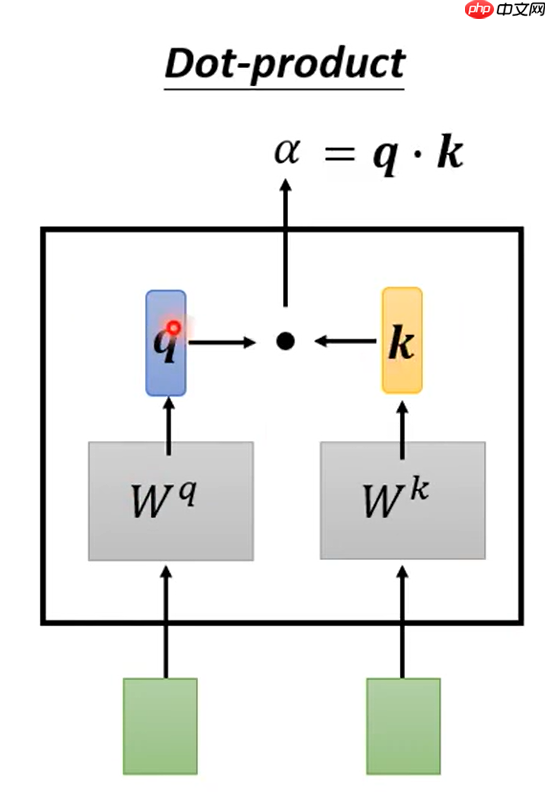

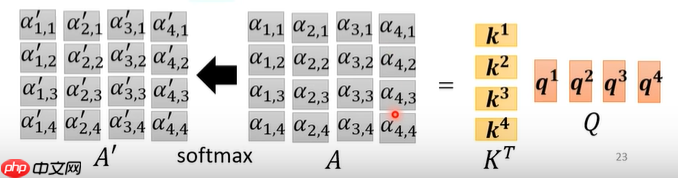

        attn = (q.matmul(k.transpose((0, 1, 3, 2)))) * self.scale        # SoftMax
        attn = nn.functional.softmax(attn, axis=-1)
        # Attention Dropout
        attn = self.attn_drop(attn)
        # Matmul

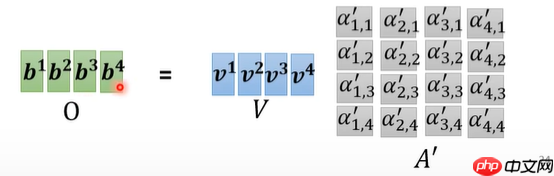

        x = (attn.matmul(v)).transpose((0, 2, 1, 3)).reshape((B, N, C))        # 线性变换
        x = self.proj(x)        # Linear Dropout
        x = self.proj_drop(x)        return xclass Mlp(nn.Layer):
    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.fc1 = nn.Linear(in_features, hidden_features)
        self.act = act_layer()
        self.fc2 = nn.Linear(hidden_features, out_features)
        self.drop = nn.Dropout(drop)    def forward(self, x):
        x = self.fc1(x)
        x = self.act(x)
        x = self.drop(x)
        x = self.fc2(x)
        x = self.drop(x)        return xdef drop_path(x, drop_prob=0., training=False):
    """Drop paths (Stochastic Depth) per sample (when applied in main path of residual blocks).
    the original name is misleading as 'Drop Connect' is a different form of dropout in a separate paper...
    """
    if drop_prob == 0. or not training:        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (x.shape[0],) + (1,) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor) # binarize
    output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):
    """Drop paths (Stochastic Depth) per sample  (when applied in main path of residual blocks).
    """
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)# Block类实现Transformer encoder的一个层class Block(nn.Layer):

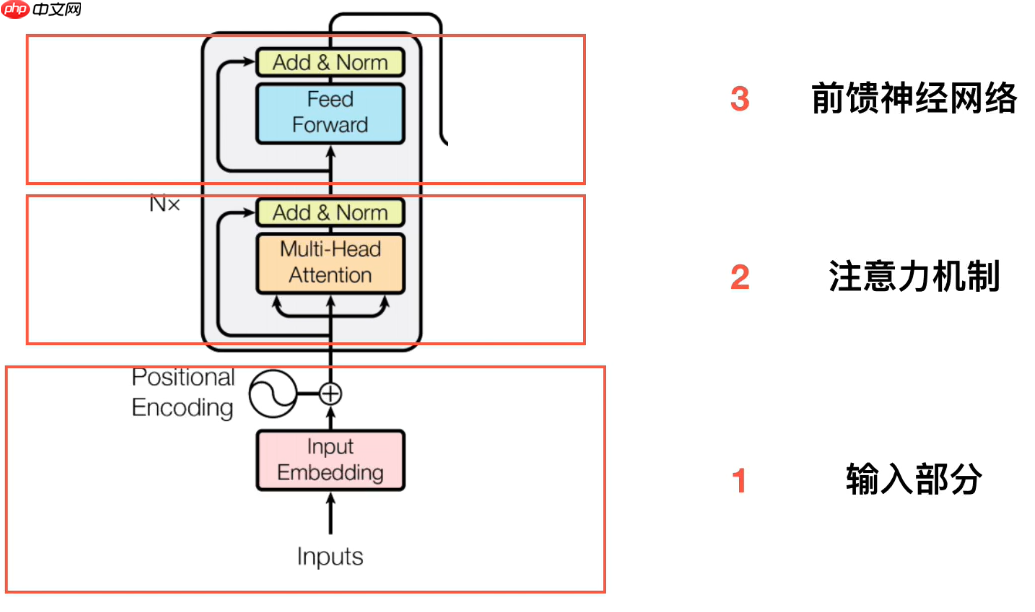

    # 定义Transformer层
    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,
                 drop_path=0., act_layer=nn.GELU, norm_layer='nn.LayerNorm', epsilon=1e-5):
        super().__init__()        # 此处添加代码
        self.norml = eval(norm_layer)(dim, epsilon=epsilon)
        self.attn = Attention(
            dim, num_heads=num_heads, qkv_bias=qkv_bias,
            qk_scale=qk_scale, attn_drop=attn_drop, proj_drop=drop
        )

        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()
        self.norm2 = eval(norm_layer)(dim, epsilon=epsilon)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop)    def forward(self, x):
        # 此处添加代码
        x = x + self.drop_path(self.attn(self.norml(x)))
        x = x + self.drop_path(self.mlp(self.norm2(x)))        return xclass VisionTransformer(nn.Layer):
    def __init__(self, img_size=120, patch_size=patch_size, in_chans=3, class_dim=train_parameters['class_dim'], embed_dim=dim, depth=num_layers,
                 num_heads=heads, mlp_ratio=4, qkv_bias=False, qk_scale=None, drop_rate=0., attn_drop_rate=0.,
                 drop_path_rate=0., norm_layer='nn.LayerNorm', epsilon=1e-5, **args):
        super().__init__()
        self.class_dim = class_dim

        self.num_features = self.embed_dim = embed_dim

        self.patch_embed = PatchEmbed(
            img_size=img_size, patch_size=patch_size, in_chans=in_chans, embed_dim=embed_dim)
        num_patches = self.patch_embed.num_patches

        self.pos_embed = self.create_parameter(
            shape=(1, num_patches + 1, embed_dim), default_initializer=zeros_)
        self.add_parameter("pos_embed", self.pos_embed)
        self.cls_token = self.create_parameter(
            shape=(1, 1, embed_dim), default_initializer=zeros_)
        self.add_parameter("cls_token", self.cls_token)
        self.pos_drop = nn.Dropout(p=drop_rate)

        dpr = [x for x in paddle.linspace(0, drop_path_rate, depth)]

        self.blocks = nn.LayerList([
            Block(
                dim=embed_dim, num_heads=num_heads, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, qk_scale=qk_scale,
                drop=drop_rate, attn_drop=attn_drop_rate, drop_path=dpr[i], norm_layer=norm_layer, epsilon=epsilon)            for i in range(depth)])

        self.norm = eval(norm_layer)(embed_dim, epsilon=epsilon)        # Classifier head
        self.head = nn.Linear(
            embed_dim, class_dim) if class_dim > 0 else Identity()

        trunc_normal_(self.pos_embed)
        trunc_normal_(self.cls_token)
        self.apply(self._init_weights)
    # 参数初始化
    def _init_weights(self, m):
        if isinstance(m, nn.Linear):
            trunc_normal_(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:
                zeros_(m.bias)        elif isinstance(m, nn.LayerNorm):
            zeros_(m.bias)
            ones_(m.weight)
    # 获取图像特征
    def forward_features(self, x):
        B = x.shape[0]
        # Image Patch Embedding
        x = self.patch_embed(x)
        # 分类 tokens
        cls_tokens = self.cls_token.expand((B, -1, -1))
        # 拼接 Embedding 和 分类 tokens
        x = paddle.concat((cls_tokens, x), axis=1)
        # 加入位置嵌入 Position Embedding
        x = x + self.pos_embed
        # Embedding Dropout
        x = self.pos_drop(x)        # Transformer Encoder
        # 由多个基础模块组成
        for blk in self.blocks:
            x = blk(x)
        # Norm
        x = self.norm(x)
        # 提取分类 tokens 的输出
        return x[:, 0]
    def forward(self, x):
        x = paddle.reshape(x, shape=[-1, 3,120,120])        # 获取图像特征
        x = self.forward_features(x)
        # 图像分类
        x = self.head(x)
        return x

def draw_process(title,color,iters,data,label):
    plt.title(title, fontsize=24)
    plt.xlabel("iter", fontsize=20)
    plt.ylabel(label, fontsize=20)
    plt.plot(iters, data,color=color,label=label)
    plt.legend()
    plt.grid()
    plt.show()

model = VisionTransformer()
model.train()
cross_entropy = paddle.nn.CrossEntropyLoss()
optimizer = paddle.optimizer.Adam(learning_rate=0.0001, parameters=model.parameters())

steps = 0Iters, total_loss, total_acc = [], [], []for epo in range(train_parameters['num_epochs']):    for _, data in enumerate(train_loader()):
        steps += 1
        x_data = data[0]
        y_data = data[1]
        predicts = model(x_data)
        loss = cross_entropy(predicts, y_data)
        acc = paddle.metric.accuracy(predicts, y_data)
        loss.backward()
        optimizer.step()
        optimizer.clear_grad()        if steps % train_parameters["skip_steps"] == 0:
            Iters.append(steps)
            total_loss.append(loss.numpy()[0])
            total_acc.append(acc.numpy()[0])            #打印中间过程
            print('epo: {}, step: {}, loss is: {}, acc is: {}'\
                  .format(epo, steps, loss.numpy(), acc.numpy()))        #保存模型参数
        if steps % train_parameters["save_steps"] == 0:
            save_path = train_parameters["checkpoints"]+"/"+"save_dir_" + str(steps) + '.pdparams'
            print('save model to: ' + save_path)
            paddle.save(model.state_dict(),save_path)
paddle.save(model.state_dict(),train_parameters["checkpoints"]+"/"+"save_dir_final.pdparams")
draw_process("trainning loss","red",Iters,total_loss,"trainning loss")
draw_process("trainning acc","green",Iters,total_acc,"trainning acc")

'''
模型评估
'''model__state_dict = paddle.load('work/checkpoints/save_dir_final.pdparams')
model_eval = VisionTransformer()
model_eval.set_state_dict(model__state_dict)
model_eval.eval()

accs = []for _, data in enumerate(eval_loader()):
    x_data = data[0]
    y_data = data[1]
    predicts = model_eval(x_data)
    acc = paddle.metric.accuracy(predicts, y_data)
    accs.append(acc.numpy()[0])print('模型在验证集上的准确率为：',np.mean(accs))
