基于PaddlePaddle搭建儿童X光胸部肺炎分类项目

!unzip -o data/data103760/data.zip -d /home/aistudio/work

label = {'pneumonia_':1,'normal_':0}import osfrom PIL import Imageimport random
random.seed(2021)
dataset_path = '/home/aistudio/work/data'trainf = open(os.path.join(dataset_path, 'train_list.txt'), 'w')
valf = open(os.path.join(dataset_path, 'val_list.txt'), 'w')
testf = open(os.path.join(dataset_path, 'test_list.txt'), 'w')for key,value in label.items():
    img_dir = os.path.join(dataset_path, key)
    imgs_name = os.listdir(img_dir)
    random.shuffle(imgs_name)    for idx, name in enumerate(imgs_name):
        img_path = os.path.join(img_dir, name)        if idx % 10 == 0:
            valf.write((img_path + ' ' + str(value) + '\n'))        elif idx % 9 == 0:
            testf.write((img_path + ' ' + str(value) + '\n'))        else:
            trainf.write((img_path + ' ' + str(value) + '\n'))

trainf.close()
valf.close()
testf.close()print('finished!')

from paddle.vision.transforms import Compose,Transpose, BrightnessTransform,Resize,Normalize,RandomHorizontalFlip,RandomRotation,ContrastTransform,RandomCropfrom paddle.io import DataLoader, Datasetimport cv2import numpy as np
train_transform = Compose([RandomRotation(degrees=10),#随机旋转0到10度
                    RandomHorizontalFlip(),#随机翻转
                    ContrastTransform(0.1),#随机调整图片的对比度
                    BrightnessTransform(0.1),#随机调整图片的亮度
                    Resize(size=(240,240)),#调整图片大小为240,240
                    RandomCrop(size=(224,224)),#从240大小中随机裁剪出224
                    Normalize(mean=[127.5, 127.5, 127.5],std=[127.5, 127.5, 127.5],data_format='HWC'),#归一化
                    Transpose()])#对‘HWC’转换成‘CHW’val_transform = Compose([
                    Resize(size=(224,224)),
                    Normalize(mean=[127.5, 127.5, 127.5],std=[127.5, 127.5, 127.5],data_format='HWC'),
                    Transpose()])# 定义DataSetclass XChestDateset(Dataset):
    def __init__(self, txt_path, transform=None,mode='train'):
        super(XChestDateset, self).__init__()
        self.mode = mode
        self.data_list = []
        self.transform = transform        if mode == 'train':
            self.data_list = np.loadtxt(txt_path, dtype='str')        elif mode == 'valid':
            self.data_list = np.loadtxt(txt_path, dtype='str')        elif mode == 'test':
            self.data_list = np.loadtxt(txt_path, dtype='str')    def __getitem__(self, idx):
        img_path = self.data_list[idx][0]
        img = cv2.imread(img_path)
        img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)        if self.transform:
            img = self.transform(img)        return img, int(self.data_list[idx][1])    def __len__(self):
        return self.data_list.shape[0]

train_txt = 'work/data/train_list.txt'val_txt = 'work/data/val_list.txt'BATCH_SIZE = 16trn_dateset = XChestDateset(train_txt,train_transform, 'train')
train_loader = DataLoader(trn_dateset, shuffle=True, batch_size=BATCH_SIZE  )
val_dateset = XChestDateset(val_txt, val_transform,'valid')
valid_loader = DataLoader(val_dateset, shuffle=False, batch_size=BATCH_SIZE)

#可视化经过 数据增强后的胸片import matplotlib.pyplot as plt
def imshow(img):
    img = np.transpose(img, (1,2,0))
    img = img*127.5 + 127.5  #反归一化，还原图片
    img = img.astype(np.int32)
    plt.imshow(img)

dataiter = iter(train_loader)
images, labels = dataiter.next()
num = images.shape[0]
row = 4fig = plt.figure(figsize=(14,14))for idx in range(num):
    ax = fig.add_subplot(row,int(num/row), idx+1, xticks=[], yticks=[])
    imshow(images[idx])    if labels[idx]:
        ax.set_title('pneumonia')    else:
        ax.set_title('normal')

        """
        以全局池化层为界，self.conv_layer用来存放所有卷积层。self.last_layer 用来全局池化层后面的全连接层
        """
        self.conv_layer = nn.Sequential(self.conv, self.pool2d_max,*self.bottleneck_block_list)
        last_layer = [
            paddle.nn.AdaptiveAvgPool2D(output_size=1),
            nn.Flatten(1, -1),
            nn.Linear(in_features=2048, out_features=class_dim),
        ]
        self.last_layer = nn.Sequential(*last_layer)        """
        这是原来的代码，用以上的代码代替。其实就是单纯组合了一下，没有增加新的层
        """
        # 在c5的输出特征图上使用全局池化
        # self.pool2d_avg = paddle.nn.AdaptiveAvgPool2D(output_size=1)
        # 创建全连接层，输出大小为类别数目，经过残差网络的卷积和全局池化后，
        # 卷积特征的维度是[B,2048,1,1]，故最后一层全连接的输入维度是2048
        # self.out = nn.Linear(in_features=2048, out_features=class_dim)

    def forward(self, inputs):
        # y = self.conv(inputs)
        # y = self.pool2d_max(y)
        # for bottleneck_block in self.bottleneck_block_list:
        #     y = bottleneck_block(y)
        # y = self.pool2d_avg(y)
        # y = paddle.reshape(y, [y.shape[0], -1])
        # y = self.out(y)
        """
        上面是原来的代码，用下面的两行代替(就是上面的代码组装起来而已。。。)
        """
        conv = self.conv_layer(inputs)
        y = self.last_layer(conv)        return y

# -*- coding:utf-8 -*-# ResNet模型代码import numpy as npimport paddleimport paddle.nn as nnimport paddle.nn.functional as F# ResNet中使用了BatchNorm层，在卷积层的后面加上BatchNorm以提升数值稳定性# 定义卷积批归一化块class ConvBNLayer(paddle.nn.Layer):
    def __init__(self,
                 num_channels,
                 num_filters,
                 filter_size,
                 stride=1,
                 groups=1,
                 act=None):

        """
        num_channels, 卷积层的输入通道数
        num_filters, 卷积层的输出通道数
        stride, 卷积层的步幅
        groups, 分组卷积的组数，默认groups=1不使用分组卷积
        """
        super(ConvBNLayer, self).__init__()        # 创建卷积层
        self._conv = nn.Conv2D(
            in_channels=num_channels,
            out_channels=num_filters,
            kernel_size=filter_size,
            stride=stride,
            padding=(filter_size - 1) // 2,
            groups=groups,
            bias_attr=False)        # 创建BatchNorm层
        self._batch_norm = paddle.nn.BatchNorm2D(num_filters)

        self.act = act    def forward(self, inputs):
        y = self._conv(inputs)
        y = self._batch_norm(y)        if self.act == 'leaky':
            y = F.leaky_relu(x=y, negative_slope=0.1)        elif self.act == 'relu':
            y = F.relu(x=y)        return y# 定义残差块# 每个残差块会对输入图片做三次卷积，然后跟输入图片进行短接# 如果残差块中第三次卷积输出特征图的形状与输入不一致，则对输入图片做1x1卷积，将其输出形状调整成一致class BottleneckBlock(paddle.nn.Layer):
    def __init__(self,
                 num_channels,
                 num_filters,
                 stride,
                 shortcut=True):
        super(BottleneckBlock, self).__init__()        # 创建第一个卷积层 1x1
        self.conv0 = ConvBNLayer(
            num_channels=num_channels,
            num_filters=num_filters,
            filter_size=1,
            act='relu')        # 创建第二个卷积层 3x3
        self.conv1 = ConvBNLayer(
            num_channels=num_filters,
            num_filters=num_filters,
            filter_size=3,
            stride=stride,
            act='relu')        # 创建第三个卷积 1x1，但输出通道数乘以4
        self.conv2 = ConvBNLayer(
            num_channels=num_filters,
            num_filters=num_filters * 4,
            filter_size=1,
            act=None)        # 如果conv2的输出跟此残差块的输入数据形状一致，则shortcut=True
        # 否则shortcut = False，添加1个1x1的卷积作用在输入数据上，使其形状变成跟conv2一致
        if not shortcut:
            self.short = ConvBNLayer(
                num_channels=num_channels,
                num_filters=num_filters * 4,
                filter_size=1,
                stride=stride)

        self.shortcut = shortcut

        self._num_channels_out = num_filters * 4

    def forward(self, inputs):
        y = self.conv0(inputs)
        conv1 = self.conv1(y)
        conv2 = self.conv2(conv1)        # 如果shortcut=True，直接将inputs跟conv2的输出相加
        # 否则需要对inputs进行一次卷积，将形状调整成跟conv2输出一致
        if self.shortcut:
            short = inputs        else:
            short = self.short(inputs)

        y = paddle.add(x=short, y=conv2)
        y = F.relu(y)        return y# 定义ResNet模型class ResNet(paddle.nn.Layer):
    def __init__(self, layers=50, class_dim=2):
        """

        layers, 网络层数，可以是50, 101或者152
        class_dim，分类标签的类别数
        """
        super(ResNet, self).__init__()
        self.layers = layers
        supported_layers = [50, 101, 152]        assert layers in supported_layers, \            "supported layers are {} but input layer is {}".format(supported_layers, layers)        if layers == 50:            #ResNet50包含多个模块，其中第2到第5个模块分别包含3、4、6、3个残差块
            depth = [3, 4, 6, 3]        elif layers == 101:            #ResNet101包含多个模块，其中第2到第5个模块分别包含3、4、23、3个残差块
            depth = [3, 4, 23, 3]        elif layers == 152:            #ResNet152包含多个模块，其中第2到第5个模块分别包含3、8、36、3个残差块
            depth = [3, 8, 36, 3]
        # 残差块中使用到的卷积的输出通道数
        num_filters = [64, 128, 256, 512]        # ResNet的第一个模块，包含1个7x7卷积，后面跟着1个最大池化层
        self.conv = ConvBNLayer(
            num_channels=3,
            num_filters=64,
            filter_size=7,
            stride=2,
            act='relu')
        self.pool2d_max = nn.MaxPool2D(
            kernel_size=3,
            stride=2,
            padding=1)        # ResNet的第二到第五个模块c2、c3、c4、c5
        self.bottleneck_block_list = []
        num_channels = 64
        for block in range(len(depth)):
            shortcut = False
            for i in range(depth[block]):
                bottleneck_block = self.add_sublayer(                    'bb_%d_%d' % (block, i),
                    BottleneckBlock(
                        num_channels=num_channels,
                        num_filters=num_filters[block],
                        stride=2 if i == 0 and block != 0 else 1, # c3、c4、c5将会在第一个残差块使用stride=2；其余所有残差块stride=1
                        shortcut=shortcut))
                num_channels = bottleneck_block._num_channels_out
                self.bottleneck_block_list.append(bottleneck_block)
                shortcut = True

        """
        以全局池化层为界，self.conv_layer用来存放所有卷积层。self.last_layer 用来全局池化层后面的全连接层
        """
        self.conv_layer = nn.Sequential(self.conv, self.pool2d_max,*self.bottleneck_block_list)
        last_layer = [
            paddle.nn.AdaptiveAvgPool2D(output_size=1),
            nn.Flatten(1, -1),
            nn.Linear(in_features=2048, out_features=class_dim),
        ]
        self.last_layer = nn.Sequential(*last_layer)        """
        这是原来的代码，用以上的代码代替。其实就是单纯组合了一下，没有增加新的层
        """
        # 在c5的输出特征图上使用全局池化
        # self.pool2d_avg = paddle.nn.AdaptiveAvgPool2D(output_size=1)
        # 创建全连接层，输出大小为类别数目，经过残差网络的卷积和全局池化后，
        # 卷积特征的维度是[B,2048,1,1]，故最后一层全连接的输入维度是2048
        # self.out = nn.Linear(in_features=2048, out_features=class_dim)

    def forward(self, inputs):
        # y = self.conv(inputs)
        # y = self.pool2d_max(y)
        # for bottleneck_block in self.bottleneck_block_list:
        #     y = bottleneck_block(y)
        # y = self.pool2d_avg(y)
        # y = paddle.reshape(y, [y.shape[0], -1])
        # y = self.out(y)
        """
        上面是原来的代码，用下面的两行代替(就是上面的代码组装起来而已。。。)
        """
        conv = self.conv_layer(inputs)
        y = self.last_layer(conv)        return y

from paddle.regularizer import L2Decayfrom paddle.nn import CrossEntropyLossfrom paddle.metric import Accuracy

BATCH_SIZE = 16 EPOCHS = 30 #训练次数decay_steps = int(len(trn_dateset)/BATCH_SIZE * EPOCHS)

train_loader = DataLoader(trn_dateset, shuffle=True, batch_size=BATCH_SIZE  )
valid_loader = DataLoader(val_dateset, shuffle=False, batch_size=BATCH_SIZE)

model = paddle.Model(ResNet( class_dim=2))

base_lr = 0.0125lr = paddle.optimizer.lr.PolynomialDecay(base_lr, power=0.9, decay_steps=decay_steps, end_lr=0.0)# 定义优化器optimizer = paddle.optimizer.Momentum(learning_rate=lr,
                     momentum=0.9,
                     weight_decay=L2Decay(1e-4),
                     parameters=model.parameters())# 进行训练前准备model.prepare(optimizer, CrossEntropyLoss(), Accuracy(topk=(1, 5)))# 启动训练model.fit(train_loader,
          valid_loader,
          epochs=EPOCHS,
          batch_size=BATCH_SIZE,
          eval_freq =5,#多少epoch 进行验证
          save_freq = 5,#多少epoch 进行模型保存
          log_freq =30,#多少steps 打印训练信息
          save_dir='/home/aistudio/checkpoint')

#对验证集进行验证，查看验证集得分model.evaluate(valid_loader, log_freq=30, verbose=2)

import cv2from PIL import Imageimport matplotlib.pyplot as pltimport numpy as npfrom sklearn.preprocessing import label_binarizeimport paddlefrom sklearn.metrics import accuracy_score,recall_score,precision_score,f1_score,confusion_matrix

model_path = 'checkpoint/final.pdparams'model = ResNet( class_dim=2)
para_state_dict = paddle.load(model_path)
model.set_dict(para_state_dict)
model.eval()

test_txt = 'work/data/test_list.txt'test_dataset = XChestDateset(test_txt,val_transform, 'test')
test_loader = DataLoader(test_dataset, shuffle=True, batch_size=1  )
dataiter = iter(test_loader)

y_score = list()
pre_label = list()
true_label = list()for images, labels in dataiter:
    true_label.append(labels.numpy()[0])
    out = model(images)
    y_score.append(out.numpy()[0])
    out = np.argmax(out.numpy())
    pre_label.append(out)

#绘制混淆矩阵from sklearn.metrics import confusion_matrixfrom sklearn.metrics import classification_reportimport seaborn as sns
confusion = confusion_matrix(true_label, pre_label)#计算混淆矩阵plt.figure(figsize=(7,7))
sns.heatmap(confusion,cmap='Blues_r',annot=True,fmt='.20g',annot_kws={'size':20,'weight':'bold', })#绘制混淆矩阵plt.xlabel('Predict')
plt.ylabel('True')
plt.show()print("混淆矩阵为：\n{}".format(confusion))print("\n计算各项指标：")print(classification_report(true_label, pre_label,digits=4))

#绘制ROC曲线from sklearn.metrics import roc_curve, roc_auc_score,auc
plt.figure(figsize=(8,8))
kind = {"normal":0,'pneumonia':1}
y_score = np.array(y_score)
fpr , tpr ,threshold = roc_curve(true_label, y_score[:,kind['normal']], pos_label=kind['normal'])
roc_auc = auc(fpr,tpr) ###计算auc的fpr1 , tpr1 ,threshold = roc_curve(true_label, y_score[:,kind['pneumonia']], pos_label=kind['pneumonia'])
roc_auc1 = auc(fpr1,tpr1) ###计算auc的plt.plot(fpr, tpr,marker='o', markersize=5,label='Normal')
plt.plot(fpr1, tpr1,marker='*', markersize=5,label='Pneumonia')
plt.title("Normal AUC:{:.4f}, Pneumonia AUC:{:.4f}".format(
    roc_auc,roc_auc1))
plt.xlabel('FPR')
plt.ylabel('TPR')
plt.legend(loc=4)
plt.show()

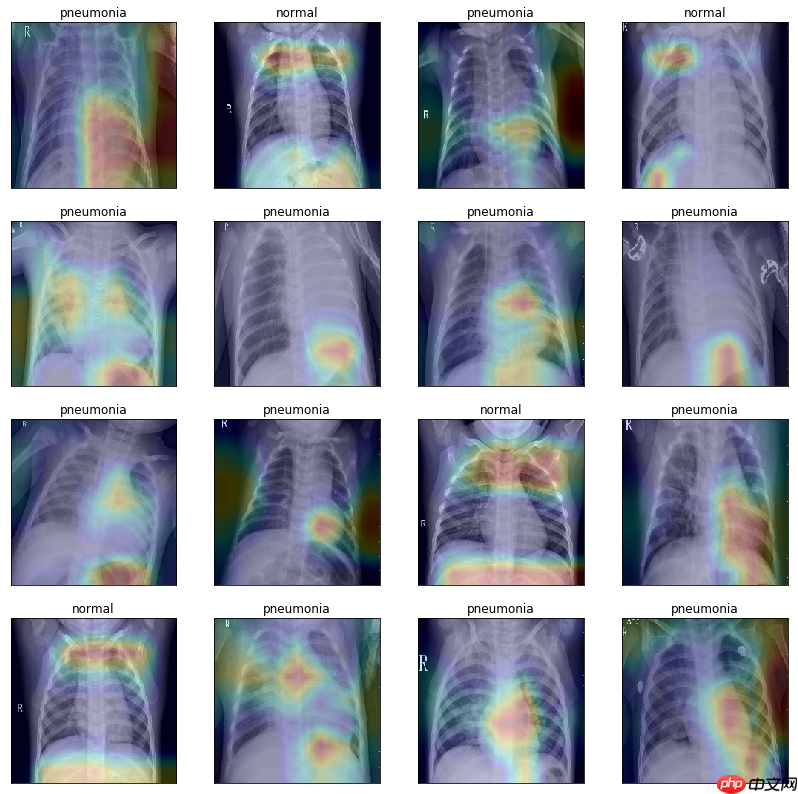

# 获取 Grad-CAM 类激活热图def get_gradcam(model, data, label, class_dim=2):
    conv = model.conv_layer(data) # 得到模型最后一个卷积层的特征图
    predict = model.last_layer(conv) # 得到前向计算的结果
    label = paddle.reshape(label, [-1])
    predict_one_hot = paddle.nn.functional.one_hot(label, class_dim) * predict # 将模型输出转化为one-hot向量
    score = paddle.mean(predict_one_hot) # 得到预测结果中概率最高的那个分类的值
    score.backward() # 反向传播计算梯度

    grad_map = conv.grad # 得到目标类别的loss对最后一个卷积层输出的特征图的梯度
    grad = paddle.mean(paddle.to_tensor(grad_map), (2, 3), keepdim=True) # 对特征图的梯度进行GAP（全局平局池化）
    gradcam = paddle.sum(grad * conv, axis=1) # 将最后一个卷积层输出的特征图乘上从梯度求得权重进行各个通道的加和
    gradcam = paddle.maximum(gradcam, paddle.to_tensor(0.)) # 进行ReLU操作，小于0的值设为0
    for j in range(gradcam.shape[0]):
        gradcam[j] = gradcam[j] / paddle.max(gradcam[j]) # 分别归一化至[0, 1]
    return gradcam# 将 Grad-CAM 叠加在原图片上显示激活热图的效果def show_gradcam(model, data, label, class_dim=2, pic_size=224):
    gradcams = get_gradcam(model, data, label,class_dim=class_dim)    for i in range(data.shape[0]):
        img = (data[i].numpy() *127.5 +127.5).astype('uint8').transpose([1, 2, 0]) # 归一化至[0,255]区间，形状：[h,w,c]
        heatmap = cv2.resize(gradcams[i].numpy() * 255., (data.shape[2], data.shape[3])).astype('uint8') # 调整热图尺寸与图片一致、归一化
        heatmap = cv2.applyColorMap(heatmap, cv2.COLORMAP_JET) # 将热图转化为“伪彩热图”显示模式
        superimposed_img = cv2.addWeighted(heatmap, .2, img, .8, 1.) # 将特图叠加到原图片上
    return superimposed_img

model_path = 'checkpoint/final.pdparams'model = ResNet( class_dim=2)
para_state_dict = paddle.load(model_path)
model.set_dict(para_state_dict)
model.eval()

test_txt = 'work/data/test_list.txt'test_dataset = XChestDateset(test_txt,val_transform, 'test')
test_loader = DataLoader(test_dataset, shuffle=True, batch_size=16  )
dataiter = iter(test_loader)
images, labels = dataiter.next()

num = images.shape[0]
row = 4fig = plt.figure(figsize=(14,14))for idx in range(num):
    ax = fig.add_subplot(row,int(num/row), idx+1, xticks=[], yticks=[])
    image = paddle.unsqueeze(images[idx], axis=0)
    heat_map = show_gradcam(model, image, labels[idx], class_dim=2)
    heat_map = cv2.cvtColor(heat_map, cv2.COLOR_BGR2RGB)
    plt.imshow(heat_map)    if labels[idx]:
        ax.set_title('pneumonia')    else:
        ax.set_title('normal')
