本文介绍SINet和ExtremeC3Net两个轻量级人像分割模型，二者参数分别为0.087M、0.038M，Flop为0.064G、0.128G。可通过PaddleHub快速调用，也能基于PaddleInference推理部署，并给出了Paddle2.0上的实现代码。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜
| model | Param | Flop |
|---|---|---|
| SINet | 0.087 M | 0.064 G |
| ExtremeC3 | 0.038 M | 0.128 G |
!pip install paddlehub==2.0.0b2
# 导入PaddleHubimport paddlehub as hub# 加载模型# 模型可选：SINet_Portrait_Segmentation 和 ExtremeC3_Portrait_Segmentationmodel = hub.Module(directory='SINet_Portrait_Segmentation')# 人像分割outputs = model.Segmentation(images=None,
paths=['00001.jpg'],
batch_size=1,
output_dir='output',

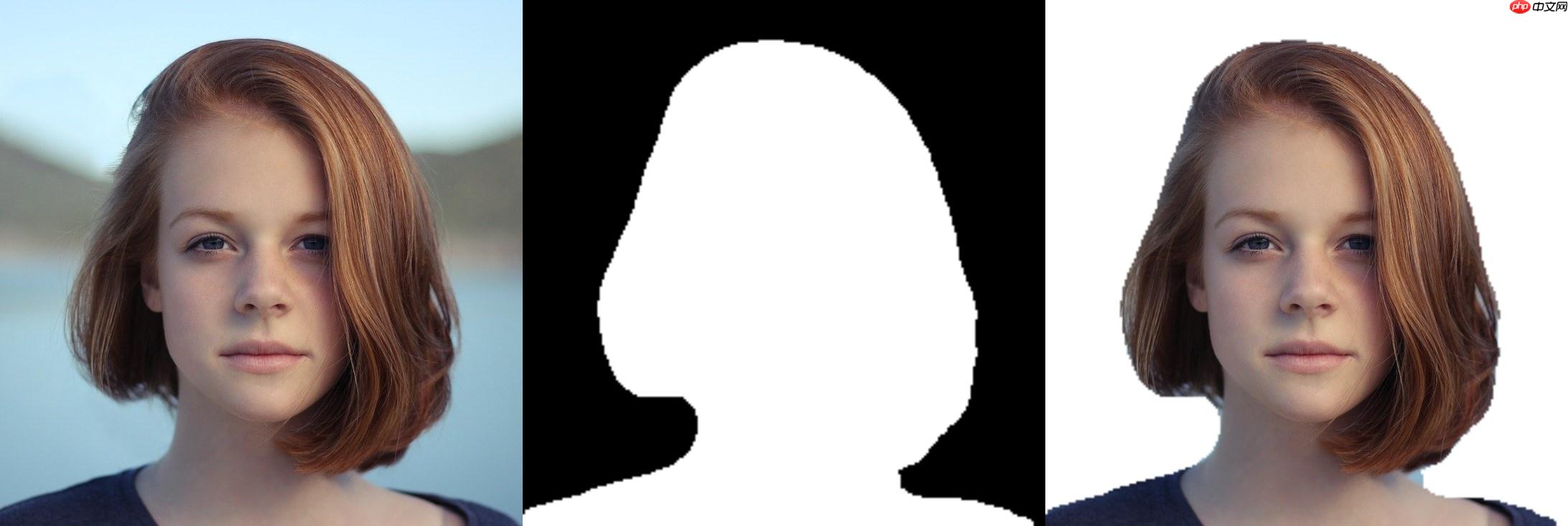

visualization=True)# 结果显示%matplotlib inlineimport cv2import numpy as npimport matplotlib.pyplot as plt
img = np.concatenate([
cv2.imread('00001.jpg'),
cv2.cvtColor(outputs[0]['mask'], cv2.COLOR_GRAY2BGR),
outputs[0]['result']
], 1)
plt.axis('off')
plt.imshow(cv2.cvtColor(img, cv2.COLOR_BGR2RGB))
plt.show()<Figure size 432x288 with 1 Axes>
# 导入PaddleHubimport paddlehub as hub# 加载模型# 模型可选：SINet_Portrait_Segmentation 和 ExtremeC3_Portrait_Segmentationmodel = hub.Module(directory='ExtremeC3_Portrait_Segmentation')# 人像分割outputs = model.Segmentation(images=None,
paths=['00001.jpg'],
batch_size=1,
output_dir='output',
visualization=True)# 结果显示%matplotlib inlineimport cv2import numpy as npimport matplotlib.pyplot as plt
img = np.concatenate([
cv2.imread('00001.jpg'),
cv2.cvtColor(outputs[0]['mask'], cv2.COLOR_GRAY2BGR),
outputs[0]['result']
], 1)
plt.axis('off')
plt.imshow(cv2.cvtColor(img, cv2.COLOR_BGR2RGB))
plt.show()<Figure size 432x288 with 1 Axes>
# 安装PaddleQuickInference!pip install ppqi -i https://pypi.python.org/simple
from ppqi import InferenceModelfrom SINet.processor import preprocess, postprocess# 参数配置configs = { 'img_path': '00001.jpg', 'save_dir': 'save_img', 'model_name': 'SINet_Portrait_Segmentation', 'use_gpu': False, 'use_mkldnn': False}# 第一步：数据预处理input_data = preprocess(configs['img_path'])# 第二步：加载模型model = InferenceModel(
modelpath='SINet/'+configs['model_name'],
use_gpu=configs['use_gpu'],
use_mkldnn=configs['use_mkldnn']
)
model.eval()# 第三步：模型推理output = model(input_data)# 第四步：结果后处理postprocess(
output,
configs['save_dir'],
configs['img_path'],
configs['model_name']
)from ppqi import InferenceModelfrom ExtremeC3Net.processor import preprocess, postprocess# 参数配置configs = { 'img_path': '00001.jpg', 'save_dir': 'save_img', 'model_name': 'ExtremeC3_Portrait_Segmentation', 'use_gpu': False, 'use_mkldnn': False}# 第一步：数据预处理input_data = preprocess(configs['img_path'])# 第二步：加载模型model = InferenceModel(
modelpath='ExtremeC3Net/'+configs['model_name'],
use_gpu=configs['use_gpu'],
use_mkldnn=configs['use_mkldnn']
)
model.eval()# 第三步：模型推理output = model(input_data)# 第四步：结果后处理postprocess(
output,
configs['save_dir'],
configs['img_path'],
configs['model_name']
)# model/sinet.py'''
ExtPortraitSeg
Copyright (c) 2019-present NAVER Corp.
MIT license
'''import paddleimport paddle.nn as nn
BN_moment = 0.1def channel_shuffle(x, groups):
batchsize, num_channels, height, width = x.shape
channels_per_group = num_channels // groups # reshape
x = x.reshape([batchsize, groups,
channels_per_group, height, width]) # transpose
x = paddle.transpose(x, [0, 2, 1, 3, 4])
# flatten
x = x.reshape([batchsize, groups*channels_per_group, height, width]) return xclass CBR(nn.Layer):
'''
This class defines the convolution layer with batch normalization and PReLU activation
'''
def __init__(self, nIn, nOut, kSize, stride=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: stride rate for down-sampling. Default is 1
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Conv2D(nIn, nOut, (kSize, kSize), stride=stride, padding=(padding, padding), bias_attr=False)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03, momentum=BN_moment)
self.act = nn.PReLU(nOut) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input)
output = self.bn(output)
output = self.act(output) return outputclass separableCBR(nn.Layer):
'''
This class defines the convolution layer with batch normalization and PReLU activation
'''
def __init__(self, nIn, nOut, kSize, stride=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: stride rate for down-sampling. Default is 1
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Sequential(
nn.Conv2D(nIn, nIn, (kSize, kSize), stride=stride, padding=(padding, padding), groups=nIn, bias_attr=False),
nn.Conv2D(nIn, nOut, kernel_size=1, stride=1, bias_attr=False),
)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03, momentum= BN_moment)
self.act = nn.PReLU(nOut) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input)
output = self.bn(output)
output = self.act(output) return outputclass SqueezeBlock(nn.Layer):
def __init__(self, exp_size, divide=4.0):
super(SqueezeBlock, self).__init__() if divide > 1:
self.dense = nn.Sequential(
nn.Linear(exp_size, int(exp_size / divide)),
nn.PReLU(int(exp_size / divide)),
nn.Linear(int(exp_size / divide), exp_size),
nn.PReLU(exp_size),
) else:
self.dense = nn.Sequential(
nn.Linear(exp_size, exp_size),
nn.PReLU(exp_size)
) def forward(self, x):
batch, channels, height, width = x.shape
out = paddle.nn.functional.avg_pool2d(x, kernel_size=[height, width]).reshape([batch, channels])
out = self.dense(out)
out = out.reshape([batch, channels, 1, 1]) return paddle.multiply(out, x)class SEseparableCBR(nn.Layer):
'''
This class defines the convolution layer with batch normalization and PReLU activation
'''
def __init__(self, nIn, nOut, kSize, stride=1, divide=2.0):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: stride rate for down-sampling. Default is 1
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Sequential(
nn.Conv2D(nIn, nIn, (kSize, kSize), stride=stride, padding=(padding, padding), groups=nIn, bias_attr=False),
SqueezeBlock(nIn, divide=divide),
nn.Conv2D(nIn, nOut, kernel_size=1, stride=1, bias_attr=False),
)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03, momentum= BN_moment)
self.act = nn.PReLU(nOut) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input)
output = self.bn(output)
output = self.act(output) return outputclass BR(nn.Layer):
'''
This class groups the batch normalization and PReLU activation
'''
def __init__(self, nOut):
'''
:param nOut: output feature maps
'''
super().__init__()
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03, momentum= BN_moment)
self.act = nn.PReLU(nOut) def forward(self, input):
'''
:param input: input feature map
:return: normalized and thresholded feature map
'''
output = self.bn(input)
output = self.act(output) return outputclass CB(nn.Layer):
'''
This class groups the convolution and batch normalization
'''
def __init__(self, nIn, nOut, kSize, stride=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: optinal stide for down-sampling
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Conv2D(nIn, nOut, (kSize, kSize), stride=stride, padding=(padding, padding), bias_attr=False)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03, momentum= BN_moment) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input)
output = self.bn(output) return outputclass C(nn.Layer):
'''
This class is for a convolutional layer.
'''
def __init__(self, nIn, nOut, kSize, stride=1,group=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: optional stride rate for down-sampling
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Conv2D(nIn, nOut, (kSize, kSize), stride=stride,
padding=(padding, padding), bias_attr=False, groups=group) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input) return outputclass S2block(nn.Layer):
'''
This class defines the dilated convolution.
'''
def __init__(self, nIn, nOut, config):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: optional stride rate for down-sampling
:param d: optional dilation rate
'''
super().__init__()
kSize = config[0]
avgsize = config[1]
self.resolution_down = False
if avgsize >1:
self.resolution_down = True
self.down_res = nn.AvgPool2D(avgsize, avgsize)
self.up_res = nn.Upsample(mode='bilinear', align_corners=True, align_mode=0, scale_factor=avgsize)
self.avgsize = avgsize
padding = int((kSize - 1) / 2 )
self.conv = nn.Sequential(
nn.Conv2D(nIn, nIn, kernel_size=(kSize, kSize), stride=1,
padding=(padding, padding), groups=nIn, bias_attr=False),
nn.BatchNorm2D(nIn, epsilon=1e-03, momentum=BN_moment))
self.act_conv1x1 = nn.Sequential(
nn.PReLU(nIn),
nn.Conv2D(nIn, nOut, kernel_size=1, stride=1, bias_attr=False),
)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03, momentum=BN_moment) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
if self.resolution_down: input = self.down_res(input)
output = self.conv(input)
output = self.act_conv1x1(output) if self.resolution_down:
output = self.up_res(output) return self.bn(output)class S2module(nn.Layer):
'''
This class defines the ESP block, which is based on the following principle
Reduce ---> Split ---> Transform --> Merge
'''
def __init__(self, nIn, nOut, add=True, config= [[3,1],[5,1]]):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param add: if true, add a residual connection through identity operation. You can use projection too as
in ResNet paper, but we avoid to use it if the dimensions are not the same because we do not want to
increase the module complexity
'''
super().__init__()
group_n = len(config)
n = int(nOut / group_n)
n1 = nOut - group_n * n
self.c1 = C(nIn, n, 1, 1, group=group_n) for i in range(group_n):
var_name = 'd{}'.format(i + 1) if i == 0:
self.__dict__["_sub_layers"][var_name] = S2block(n, n + n1, config[i]) else:
self.__dict__["_sub_layers"][var_name] = S2block(n, n, config[i])
self.BR = BR(nOut)
self.add = add
self.group_n = group_n def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
# reduce
output1 = self.c1(input)
output1= channel_shuffle(output1, self.group_n) for i in range(self.group_n):
var_name = 'd{}'.format(i + 1)
result_d = self.__dict__["_sub_layers"][var_name](output1) if i == 0:
combine = result_d else:
combine = paddle.concat([combine, result_d], 1) # if residual version
if self.add:
combine = paddle.add(input, combine)
output = self.BR(combine) return outputclass InputProjectionA(nn.Layer):
'''
This class projects the input image to the same spatial dimensions as the feature map.
For example, if the input image is 512 x512 x3 and spatial dimensions of feature map size are 56x56xF, then
this class will generate an output of 56x56x3
'''
def __init__(self, samplingTimes):
'''
:param samplingTimes: The rate at which you want to down-sample the image
'''
super().__init__()
self.pool = nn.LayerList() for i in range(0, samplingTimes):
self.pool.append(nn.AvgPool2D(2, stride=2)) def forward(self, input):
'''
:param input: Input RGB Image
:return: down-sampled image (pyramid-based approach)
'''
for pool in self.pool: input = pool(input) return inputclass SINet_Encoder(nn.Layer):
def __init__(self, config,classes=20, p=5, q=3, chnn=1.0):
'''
:param classes: number of classes in the dataset. Default is 20 for the cityscapes
:param p: depth multiplier
:param q: depth multiplier
'''
super().__init__()
dim1 = 16
dim2 = 48 + 4 * (chnn - 1)
dim3 = 96 + 4 * (chnn - 1)
self.level1 = CBR(3, 12, 3, 2)
self.level2_0 = SEseparableCBR(12,dim1, 3,2, divide=1)
self.level2 = nn.LayerList() for i in range(0, p): if i ==0:
self.level2.append(S2module(dim1, dim2, config=config[i], add=False)) else:
self.level2.append(S2module(dim2, dim2,config=config[i]))
self.BR2 = BR(dim2+dim1)
self.level3_0 =SEseparableCBR(dim2+dim1,dim2, 3,2, divide=2)
self.level3 = nn.LayerList() for i in range(0, q): if i==0:
self.level3.append(S2module(dim2, dim3, config=config[2 + i], add=False)) else:
self.level3.append(S2module(dim3, dim3,config=config[2+i]))
self.BR3 = BR(dim3+dim2)
self.classifier = C(dim3+dim2, classes, 1, 1) def forward(self, input):
'''
:param input: Receives the input RGB image
:return: the transformed feature map with spatial dimensions 1/8th of the input image
'''
output1 = self.level1(input) #8h 8w
output2_0 = self.level2_0(output1) # 4h 4w
for i, layer in enumerate(self.level2): if i == 0:
output2 = layer(output2_0) else:
output2 = layer(output2) # 2h 2w
output3_0 = self.level3_0(self.BR2(paddle.concat([output2_0, output2],1))) # h w
for i, layer in enumerate(self.level3): if i == 0:
output3 = layer(output3_0) else:
output3 = layer(output3)
output3_cat = self.BR3(paddle.concat([output3_0, output3], 1))
classifier = self.classifier(output3_cat) return classifierclass SINet(nn.Layer):
def __init__(self,config, classes=20, p=2, q=3, chnn=1.0):
'''
:param classes: number of classes in the dataset. Default is 20 for the cityscapes
:param p: depth multiplier
:param q: depth multiplier
'''
super().__init__()
dim2 = 48 + 4 * (chnn - 1)
self.encoder = SINet_Encoder(config, classes, p, q, chnn)
self.up = nn.Upsample(mode='bilinear', align_corners=True, align_mode=0, scale_factor=2)
self.bn_3 = nn.BatchNorm2D(classes, epsilon=1e-03)
self.level2_C = CBR(dim2, classes, 1, 1)
self.bn_2 = nn.BatchNorm2D(classes, epsilon=1e-03)
self.classifier = nn.Sequential(
nn.Upsample(mode='bilinear', align_corners=True, align_mode=0, scale_factor=2),
nn.Conv2D(classes, classes, 3, 1, 1, bias_attr=False)) def forward(self, input):
'''
:param input: RGB image
:return: transformed feature map
'''
output1 = self.encoder.level1(input) # 8h 8w
output2_0 = self.encoder.level2_0(output1) # 4h 4w
for i, layer in enumerate(self.encoder.level2): if i == 0:
output2 = layer(output2_0) else:
output2 = layer(output2) # 2h 2w
output3_0 = self.encoder.level3_0(self.encoder.BR2(paddle.concat([output2_0, output2], 1))) # h w
for i, layer in enumerate(self.encoder.level3): if i == 0:
output3 = layer(output3_0) else:
output3 = layer(output3)
output3_cat = self.encoder.BR3(paddle.concat([output3_0, output3], 1))
Enc_final = self.encoder.classifier(output3_cat) #1/8
Dnc_stage1 = self.bn_3(self.up(Enc_final)) # 1/4
stage1_confidence = paddle.max(nn.functional.softmax(Dnc_stage1, 1), axis=1)
b, c, h, w = Dnc_stage1.shape
stage1_gate = (1-stage1_confidence).unsqueeze(1).expand([b, c, h, w])
Dnc_stage2_0 = self.level2_C(output2) # 2h 2w
Dnc_stage2 = self.bn_2(self.up(paddle.add(paddle.multiply(Dnc_stage2_0, stage1_gate), (Dnc_stage1)))) # 4h 4w
classifier = self.classifier(Dnc_stage2) return classifier# model/extremeC3.py'''
ExtPortraitSeg
Copyright (c) 2019-present NAVER Corp.
MIT license
'''import paddleimport paddle.nn as nn
basic_0 = 24basic_1 = 48basic_2 = 56basic_3 = 24class CBR(nn.Layer):
'''
This class defines the convolution layer with batch normalization and PReLU activation
'''
def __init__(self, nIn, nOut, kSize, stride=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: stride rate for down-sampling. Default is 1
'''
super().__init__()
padding = int((kSize - 1) / 2) # self.conv = nn.Conv2D(nIn, nOut, kSize, stride=stride, padding=padding, bias_attr=False)
self.conv = nn.Conv2D(nIn, nOut, (kSize, kSize), stride=stride, padding=(padding, padding), bias_attr=False) # self.conv1 = nn.Conv2D(nOut, nOut, (1, kSize), stride=1, padding=(0, padding), bias_attr=False)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03)
self.act = nn.PReLU(nOut) # self.act = nn.ReLU()
def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input) # output = self.conv1(output)
output = self.bn(output)
output = self.act(output) return outputclass BR(nn.Layer):
'''
This class groups the batch normalization and PReLU activation
'''
def __init__(self, nOut):
'''
:param nOut: output feature maps
'''
super().__init__()
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03)
self.act = nn.PReLU(nOut) # self.act = nn.ReLU()
def forward(self, input):
'''
:param input: input feature map
:return: normalized and thresholded feature map
'''
output = self.bn(input)
output = self.act(output) return outputclass CB(nn.Layer):
'''
This class groups the convolution and batch normalization
'''
def __init__(self, nIn, nOut, kSize, stride=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: optinal stide for down-sampling
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Conv2D(nIn, nOut, (kSize, kSize), stride=stride, padding=(padding, padding), bias_attr=False)
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-03) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input)
output = self.bn(output) return outputclass C(nn.Layer):
'''
This class is for a convolutional layer.
'''
def __init__(self, nIn, nOut, kSize, stride=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: optional stride rate for down-sampling
'''
super().__init__()
padding = int((kSize - 1) / 2)
self.conv = nn.Conv2D(nIn, nOut, (kSize, kSize), stride=stride, padding=(padding, padding), bias_attr=False) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input) return outputclass C3block(nn.Layer):
'''
This class defines the dilated convolution.
'''
def __init__(self, nIn, nOut, kSize, stride=1, d=1):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param kSize: kernel size
:param stride: optional stride rate for down-sampling
:param d: optional dilation rate
'''
super().__init__()
padding = int((kSize - 1) / 2) * d if d == 1:
self.conv =nn.Sequential(
nn.Conv2D(nIn, nIn, (kSize, kSize), stride=stride, padding=(padding, padding), groups=nIn, bias_attr=False,
dilation=d),
nn.Conv2D(nIn, nOut, kernel_size=1, stride=1, bias_attr=False)
) else:
combine_kernel = 2 * d - 1
self.conv = nn.Sequential(
nn.Conv2D(nIn, nIn, kernel_size=(combine_kernel, 1), stride=stride, padding=(padding - 1, 0),
groups=nIn, bias_attr=False),
nn.BatchNorm2D(nIn),
nn.PReLU(nIn),
nn.Conv2D(nIn, nIn, kernel_size=(1, combine_kernel), stride=stride, padding=(0, padding - 1),
groups=nIn, bias_attr=False),
nn.BatchNorm2D(nIn),
nn.Conv2D(nIn, nIn, (kSize, kSize), stride=stride, padding=(padding, padding), groups=nIn, bias_attr=False,
dilation=d),
nn.Conv2D(nIn, nOut, kernel_size=1, stride=1, bias_attr=False)) def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
output = self.conv(input) return outputclass Down_advancedC3(nn.Layer):
def __init__(self, nIn, nOut, ratio=[2,4,8]):
super().__init__()
n = int(nOut // 3)
n1 = nOut - 3 * n
self.c1 = C(nIn, n, 3, 2)
self.d1 = C3block(n, n+n1, 3, 1, ratio[0])
self.d2 = C3block(n, n, 3, 1, ratio[1])
self.d3 = C3block(n, n, 3, 1, ratio[2])
self.bn = nn.BatchNorm2D(nOut, epsilon=1e-3)
self.act = nn.PReLU(nOut) def forward(self, input):
output1 = self.c1(input)
d1 = self.d1(output1)
d2 = self.d2(output1)
d3 = self.d3(output1)
combine = paddle.concat([d1, d2, d3], 1)
output = self.bn(combine)
output = self.act(output) return outputclass AdvancedC3(nn.Layer):
'''
This class defines the ESP block, which is based on the following principle
Reduce ---> Split ---> Transform --> Merge
'''
def __init__(self, nIn, nOut, add=True, ratio=[2,4,8]):
'''
:param nIn: number of input channels
:param nOut: number of output channels
:param add: if true, add a residual connection through identity operation. You can use projection too as
in ResNet paper, but we avoid to use it if the dimensions are not the same because we do not want to
increase the module complexity
'''
super().__init__()
n = int(nOut // 3)
n1 = nOut - 3 * n
self.c1 = C(nIn, n, 1, 1)
self.d1 = C3block(n, n + n1, 3, 1, ratio[0])
self.d2 = C3block(n, n, 3, 1, ratio[1])
self.d3 = C3block(n, n, 3, 1, ratio[2]) # self.d4 = Double_CDilated(n, n, 3, 1, 12)
# self.conv =C(nOut, nOut, 1,1)
self.bn = BR(nOut)
self.add = add def forward(self, input):
'''
:param input: input feature map
:return: transformed feature map
'''
# reduce
output1 = self.c1(input)
d1 = self.d1(output1)
d2 = self.d2(output1)
d3 = self.d3(output1)
combine = paddle.concat([d1, d2, d3], 1) if self.add:
combine = paddle.add(input, combine)
output = self.bn(combine) return outputclass InputProjectionA(nn.Layer):
'''
This class projects the input image to the same spatial dimensions as the feature map.
For example, if the input image is 512 x512 x3 and spatial dimensions of feature map size are 56x56xF, then
this class will generate an output of 56x56x3
'''
def __init__(self, samplingTimes):
'''
:param samplingTimes: The rate at which you want to down-sample the image
'''
super().__init__()
self.pool = nn.LayerList() for i in range(0, samplingTimes): # pyramid-based approach for down-sampling
self.pool.append(nn.AvgPool2D(2, stride=2, padding=0)) def forward(self, input):
'''
:param input: Input RGB Image
:return: down-sampled image (pyramid-based approach)
'''
for pool in self.pool: input = pool(input) return inputclass ExtremeC3NetCoarse(nn.Layer):
'''
This class defines the ESPNet-C network in the paper
'''
def __init__(self, classes=20, p=5, q=3):
'''
:param classes: number of classes in the dataset. Default is 20 for the cityscapes
:param p: depth multiplier
:param q: depth multiplier
'''
super().__init__()
self.level1 = CBR(3, basic_0, 3, 2)
self.sample1 = InputProjectionA(1)
self.sample2 = InputProjectionA(2)
self.b1 = BR(basic_0 + 3)
self.level2_0 = Down_advancedC3(basic_0 + 3, basic_1, ratio=[1, 2, 3]) # , ratio=[1,2,3]
self.level2 = nn.LayerList() for i in range(0, p):
self.level2.append(
AdvancedC3(basic_1, basic_1, ratio=[1, 3, 4])) # , ratio=[1,3,4]
self.b2 = BR(basic_1 * 2 + 3)
self.level3_0 = AdvancedC3(basic_1 * 2 + 3, basic_2, add=False,
ratio=[1, 3, 5]) # , ratio=[1,3,5]
self.level3 = nn.LayerList() for i in range(0, q):
self.level3.append(AdvancedC3(basic_2, basic_2))
self.b3 = BR(basic_2 * 2)
self.Coarseclassifier = C(basic_2*2, classes, 1, 1) def forward(self, input):
'''
:param input: Receives the input RGB image
:return: the transformed feature map with spatial dimensions 1/8th of the input image
'''
output0 = self.level1(input)
inp1 = self.sample1(input)
inp2 = self.sample2(input)
output0_cat = self.b1(paddle.concat([output0, inp1], 1))
output1_0 = self.level2_0(output0_cat) # down-sampled
for i, layer in enumerate(self.level2): if i == 0:
output1 = layer(output1_0) else:
output1 = layer(output1)
output1_cat = self.b2(paddle.concat([output1, output1_0, inp2], 1))
output2_0 = self.level3_0(output1_cat) # down-sampled
for i, layer in enumerate(self.level3): if i == 0:
output2 = layer(output2_0) else:
output2 = layer(output2)
output2_cat = self.b3(paddle.concat([output2_0, output2], 1))
classifier = self.Coarseclassifier(output2_cat) return classifierclass ExtremeC3Net(nn.Layer):
'''
This class defines the ESPNet-C network in the paper
'''
def __init__(self, classes=20, p=5, q=3):
'''
:param classes: number of classes in the dataset. Default is 20 for the cityscapes
:param p: depth multiplier
:param q: depth multiplier
'''
super().__init__()
self.encoder = ExtremeC3NetCoarse(classes, p, q) # # load the encoder modules
del self.encoder.Coarseclassifier
self.upsample = nn.Sequential(
nn.Conv2D(kernel_size=(1, 1), in_channels=basic_2*2, out_channels=basic_3,bias_attr=False),
nn.BatchNorm2D(basic_3),
nn.Upsample(mode='bilinear', align_corners=True, align_mode=0, scale_factor=2)
)
self.Fine = nn.Sequential( # nn.Conv2D(kernel_size=3, stride=2, padding=1, in_channels=3, out_channels=basic_3,bias_attr=False),
C(3, basic_3, 3, 2),
AdvancedC3(basic_3, basic_3, add=True), # nn.BatchNorm2D(basic_3, epsilon=1e-03),
)
self.classifier = nn.Sequential(
BR(basic_3),
nn.Upsample(mode='bilinear', align_corners=True, align_mode=0, scale_factor=2),
nn.Conv2D(kernel_size=(1, 1), in_channels=basic_3, out_channels=classes, bias_attr=False),
) def forward(self, input):
'''
:param input: Receives the input RGB image
:return: the transformed feature map with spatial dimensions 1/8th of the input image
'''
output0 = self.encoder.level1(input)
inp1 = self.encoder.sample1(input)
inp2 = self.encoder.sample2(input)
output0_cat = self.encoder.b1(paddle.concat([output0, inp1], 1))
output1_0 = self.encoder.level2_0(output0_cat) # down-sampled
for i, layer in enumerate(self.encoder.level2): if i == 0:
output1 = layer(output1_0) else:
output1 = layer(output1)
output1_cat = self.encoder.b2(paddle.concat([output1, output1_0, inp2], 1))
output2_0 = self.encoder.level3_0(output1_cat) # down-sampled
for i, layer in enumerate(self.encoder.level3): if i == 0:
output2 = layer(output2_0) else:
output2 = layer(output2)
output2_cat = self.encoder.b3(paddle.concat([output2_0, output2], 1))
Coarse = self.upsample(output2_cat)
Fine = self.Fine(input)
classifier = self.classifier(paddle.add(Coarse, Fine))
return classifier以上就是轻量级人像分割模型：SINet 和 ExtremeC3Net的详细内容，更多请关注php中文网其它相关文章！
每个人都需要一台速度更快、更稳定的 PC。随着时间的推移，垃圾文件、旧注册表数据和不必要的后台进程会占用资源并降低性能。幸运的是，许多工具可以让 Windows 保持平稳运行。
Copyright 2014-2025 https://www.php.cn/ All Rights Reserved | php.cn | 湘ICP备2023035733号
417
收藏
