该内容围绕蛇类识别模型展开,先安装PaddleX,解压数据集并划分,设置GPU后进行图像预处理与增强,定义数据迭代器,用ResNet50_vd_ssld模型训练,接着导出并转换模型为PaddleHub模块,测试单张和多张图片识别效果,最后介绍在GitHub提pr的步骤。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜

原项目使用PaddleX开发,因此这里先安装PaddleX:
!pip install paddlex
!unzip data/data44587/snake_data.zip -d /home/aistudio/
!paddlex --split_dataset --format ImageNet --dataset_dir '/home/aistudio/snake_data' --val_value 0.2 --test_value 0.1
import matplotlib
matplotlib.use('Agg')
import os
os.environ['CUDA_VISIBLE_DEVICES'] = '0'import paddlex as pdxfrom paddlex.cls import transforms
train_transforms = transforms.Compose([
transforms.RandomCrop(crop_size=224),
transforms.RandomHorizontalFlip(),
transforms.Normalize()
])
eval_transforms = transforms.Compose([
transforms.ResizeByShort(short_size=256),
transforms.CenterCrop(crop_size=224),
transforms.Normalize()
])train_dataset = pdx.datasets.ImageNet(
data_dir='snake_data',
file_list='snake_data/train_list.txt',
label_list='snake_data/labels.txt',
transforms=train_transforms,
shuffle=True)
eval_dataset = pdx.datasets.ImageNet(
data_dir='snake_data',
file_list='snake_data/val_list.txt',
label_list='snake_data/labels.txt',
transforms=eval_transforms)2020-07-19 11:49:17 [INFO] Starting to read file list from dataset... 2020-07-19 11:49:17 [INFO] 17364 samples in file snake_data/train_list.txt 2020-07-19 11:49:17 [INFO] Starting to read file list from dataset... 2020-07-19 11:49:17 [INFO] 25 samples in file snake_data/val_list.txt
num_classes = len(train_dataset.labels)
model = pdx.cls.ResNet50_vd_ssld(num_classes=num_classes)
model.train(num_epochs = 60,
save_interval_epochs = 10,
train_dataset = train_dataset,
train_batch_size = 64,
eval_dataset = eval_dataset,
learning_rate = 0.025,
warmup_steps = 1084,
warmup_start_lr = 0.0001,
lr_decay_epochs=[20, 40],
lr_decay_gamma = 0.025,
save_dir='/home/aistudio',
use_vdl=True)import cv2import matplotlib.pyplot as plt# 加载模型print('**************************************加载模型*****************************************')
model = pdx.load_model('best_model')# 显示图片img = cv2.imread('test.jpg')
b,g,r = cv2.split(img)
img = cv2.merge([r,g,b])
%matplotlib inline
plt.imshow(img)# 预测result = model.predict('test.jpg', topk=3)print('**************************************预测*****************************************')print(result[0])**************************************加载模型*****************************************
2020-07-19 14:21:06 [INFO] Model[ResNet50_vd_ssld] loaded.
**************************************预测*****************************************
{'category_id': 4, 'category': '西部菱斑响尾蛇', 'score': 0.9999999}<Figure size 432x288 with 1 Axes>
| 参数 | 说明 |
|---|---|
| --model_dir | inference模型所在的文件地址,文件包括:.pdparams、.pdopt、.pdmodel、.json和.yml |
| --save_dir | 导出inference模型,文件将包括:__model__、__params__和model.yml |
!paddlex --export_inference --model_dir=best_model --save_dir=./inference_model/ResNet50_vd_ssld
W0717 23:24:19.157521 13809 device_context.cc:252] Please NOTE: device: 0, CUDA Capability: 70, Driver API Version: 9.2, Runtime API Version: 9.0 W0717 23:24:19.161340 13809 device_context.cc:260] device: 0, cuDNN Version: 7.3. 2020-07-17 23:24:22 [INFO] Model[ResNet50_vd_ssld] loaded. 2020-07-17 23:24:22 [INFO] Model for inference deploy saved in ./inference_model/ResNet50_vd_ssld.
PaddleX模型可以快速转换成PaddleHub模型,只需要用下面这一句命令即可:
!hub convert --model_dir inference_model/ResNet50_vd_ssld \
--module_name SnakeIdentification \
--module_version 1.0.0 \
--output_dir outputs转换成功后的模型保存在outputs文件夹下,我们解压一下:
!gzip -dfq /home/aistudio/outputs/SnakeIdentification.tar.gz !tar -xf /home/aistudio/outputs/SnakeIdentification.tar
安装我们刚刚转换的模型:
!hub install SnakeIdentification
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/setuptools/depends.py:2: DeprecationWarning: the imp module is deprecated in favour of importlib; see the module's documentation for alternative uses import imp /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import MutableMapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Iterable, Mapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Sized[2021-03-12 10:45:54,828] [ INFO] - Successfully uninstalled SnakeIdentification[2021-03-12 10:45:55,105] [ INFO] - Successfully installed SnakeIdentification-1.0.0
import cv2import paddlehub as hub
module = hub.Module(name="SnakeIdentification")
images = [cv2.imread('snake_data/class_1/2421.jpg')]# execute predict and print the resultresults = module.predict(images=images)for result in results: print(result)[2021-03-12 10:55:05,972] [ WARNING] - The _initialize method in HubModule will soon be deprecated, you can use the __init__() to handle the initialization of the object
[{'category_id': 0, 'category': '水蛇', 'score': 0.9999205}]选取5张图片,每张图片对应一个类别:
import cv2import paddlehub as hub
module = hub.Module(name="SnakeIdentification")
images = [cv2.imread('snake_data/class_1/2421.jpg'), cv2.imread('snake_data/class_2/113.jpg'), cv2.imread('snake_data/class_3/757.jpg'),
cv2.imread('snake_data/class_4/1101.jpg'), cv2.imread('snake_data/class_5/2566.jpg')]# execute predict and print the resultresults = module.predict(images=images)for result in results: print(result)[2021-03-12 11:00:07,036] [ WARNING] - The _initialize method in HubModule will soon be deprecated, you can use the __init__() to handle the initialization of the object
[{'category_id': 0, 'category': '水蛇', 'score': 0.9999205}]
[{'category_id': 1, 'category': '剑纹带蛇', 'score': 0.9988399}]
[{'category_id': 2, 'category': '德凯斯氏蛇', 'score': 0.9867851}]
[{'category_id': 3, 'category': '黑鼠蛇', 'score': 0.9468411}]

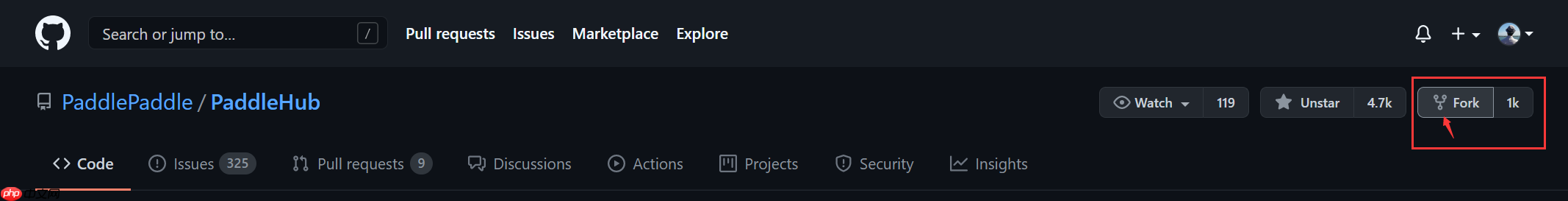

[{'category_id': 4, 'category': '西部菱斑响尾蛇', 'score': 1.0}]pr就是Pull Request(翻译过来就是:拉取请求)的简称

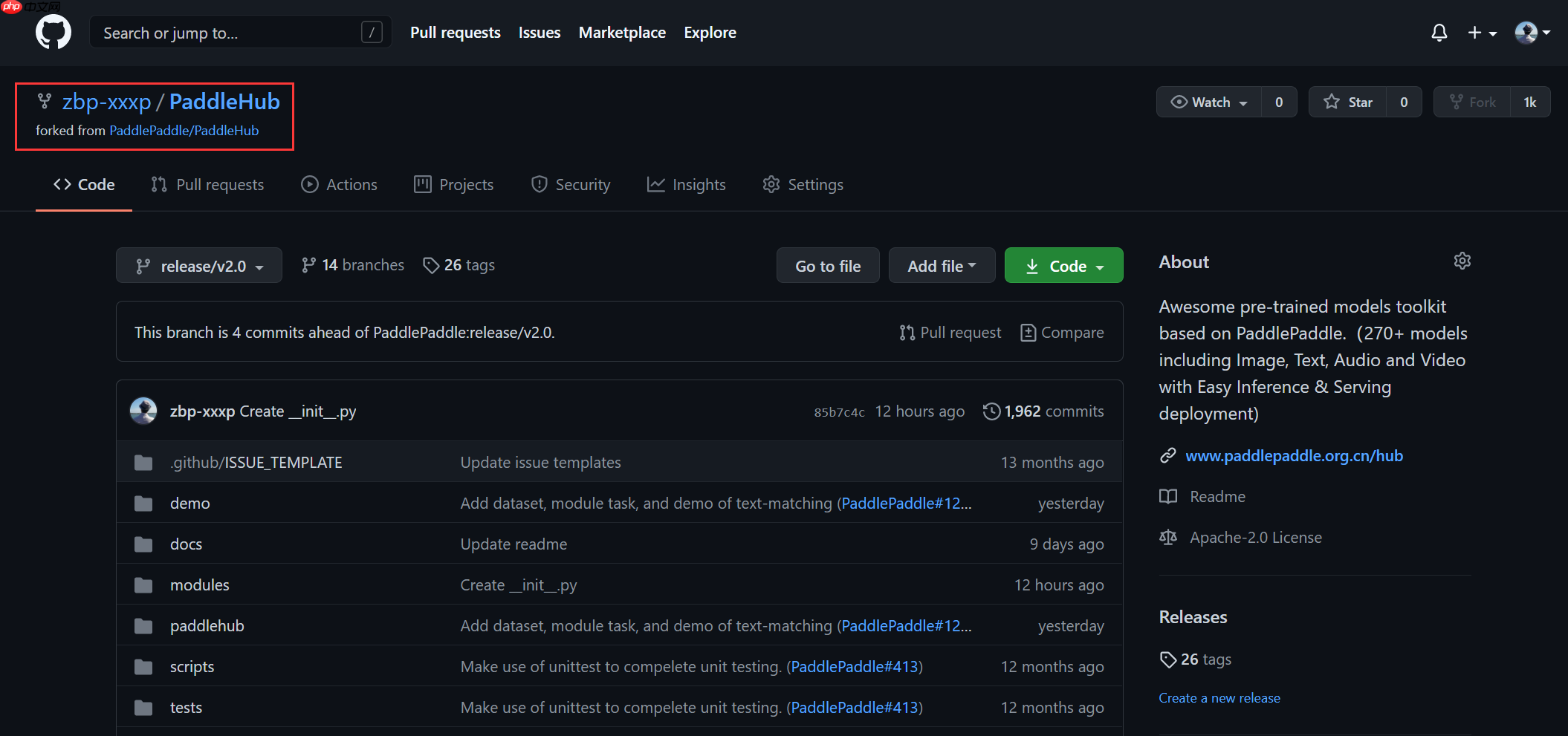

本项目是图像分类的项目,所以进入到图像分类的目录下:
PaddleHub/modules/image/classification/

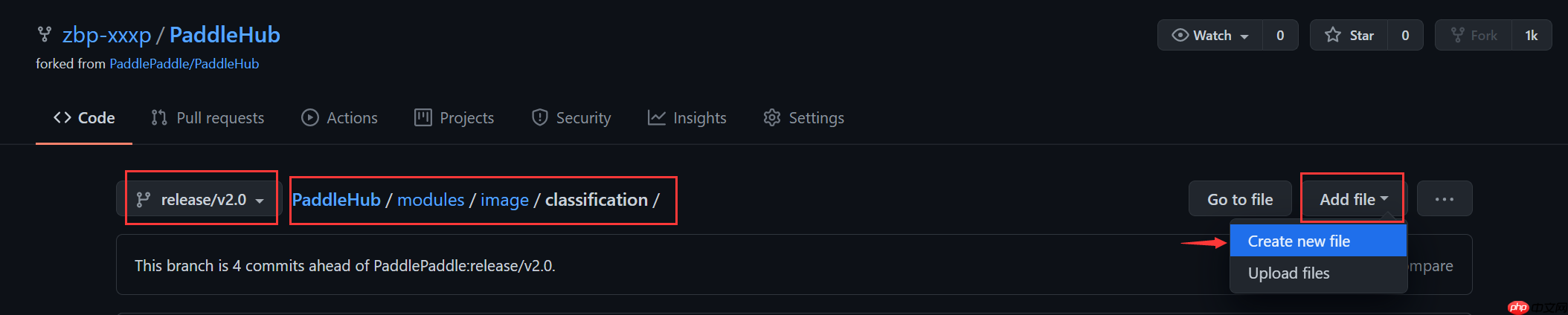

点击Add file:

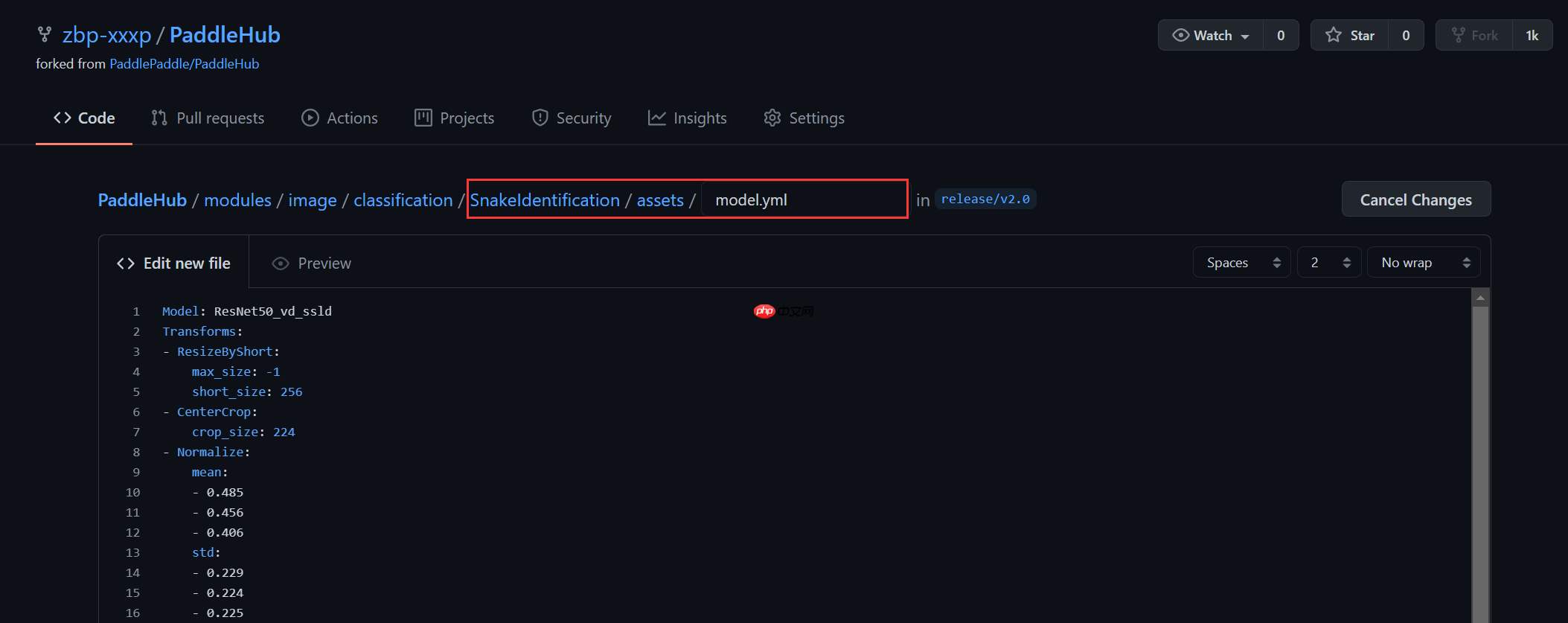

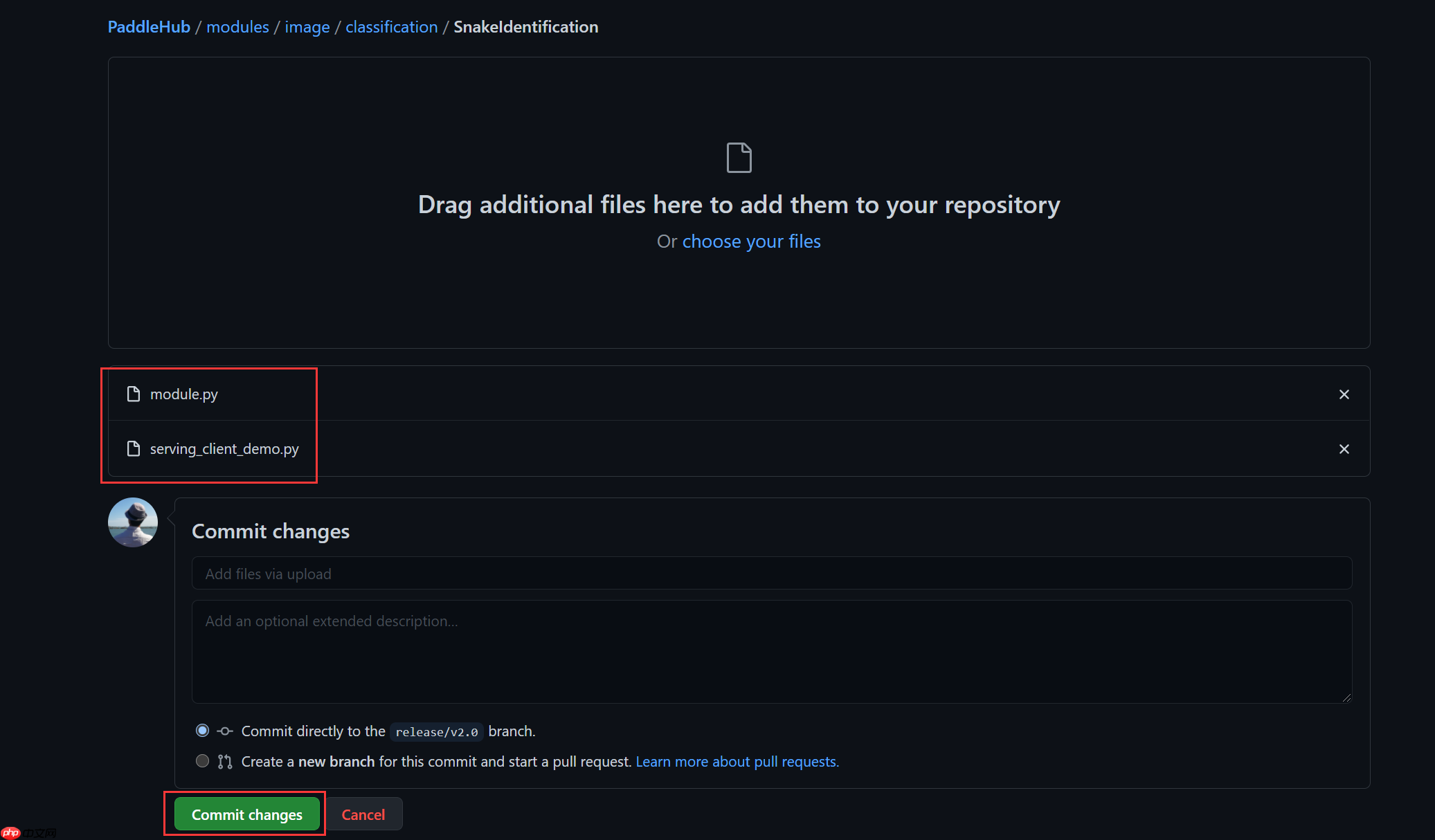

先输入您上传的Module名称,这里我的Module名称命名为SnakeIdentification,将它变成一个文件夹,只需要在后面加一个‘/’,创建好文件夹以后,把Module里的文件上传上去即可:
上传成功后,点击Commit,文件就会自动上传到你自己的代码仓库里

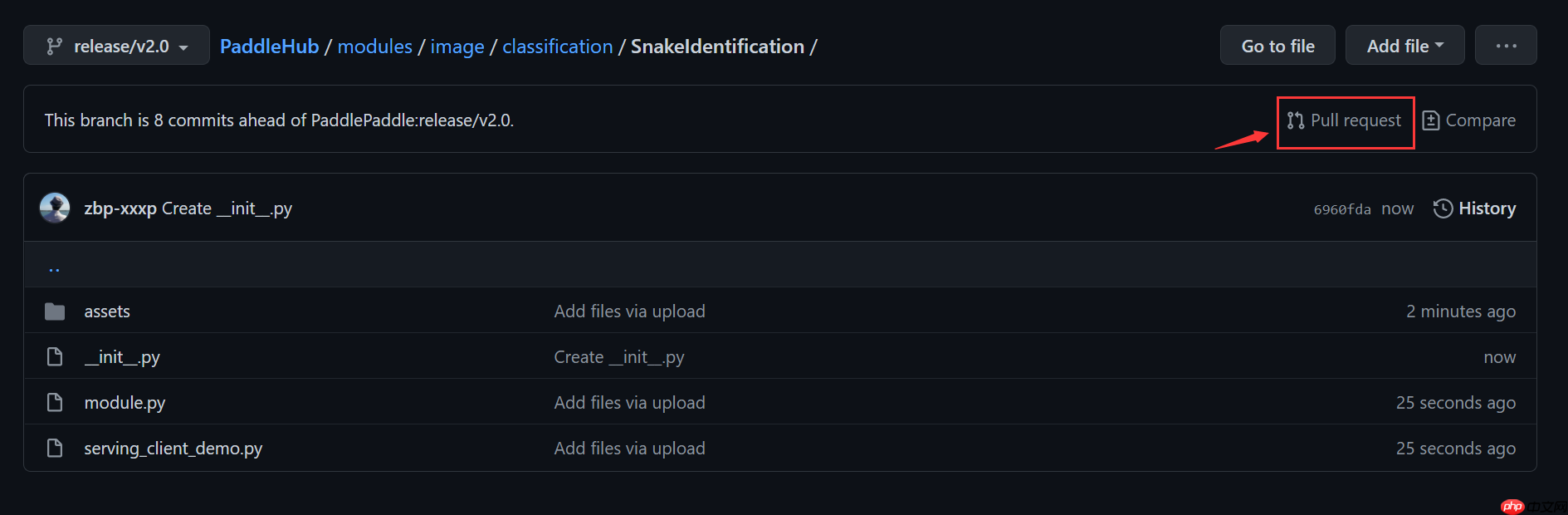

最后一步,拉取请求:

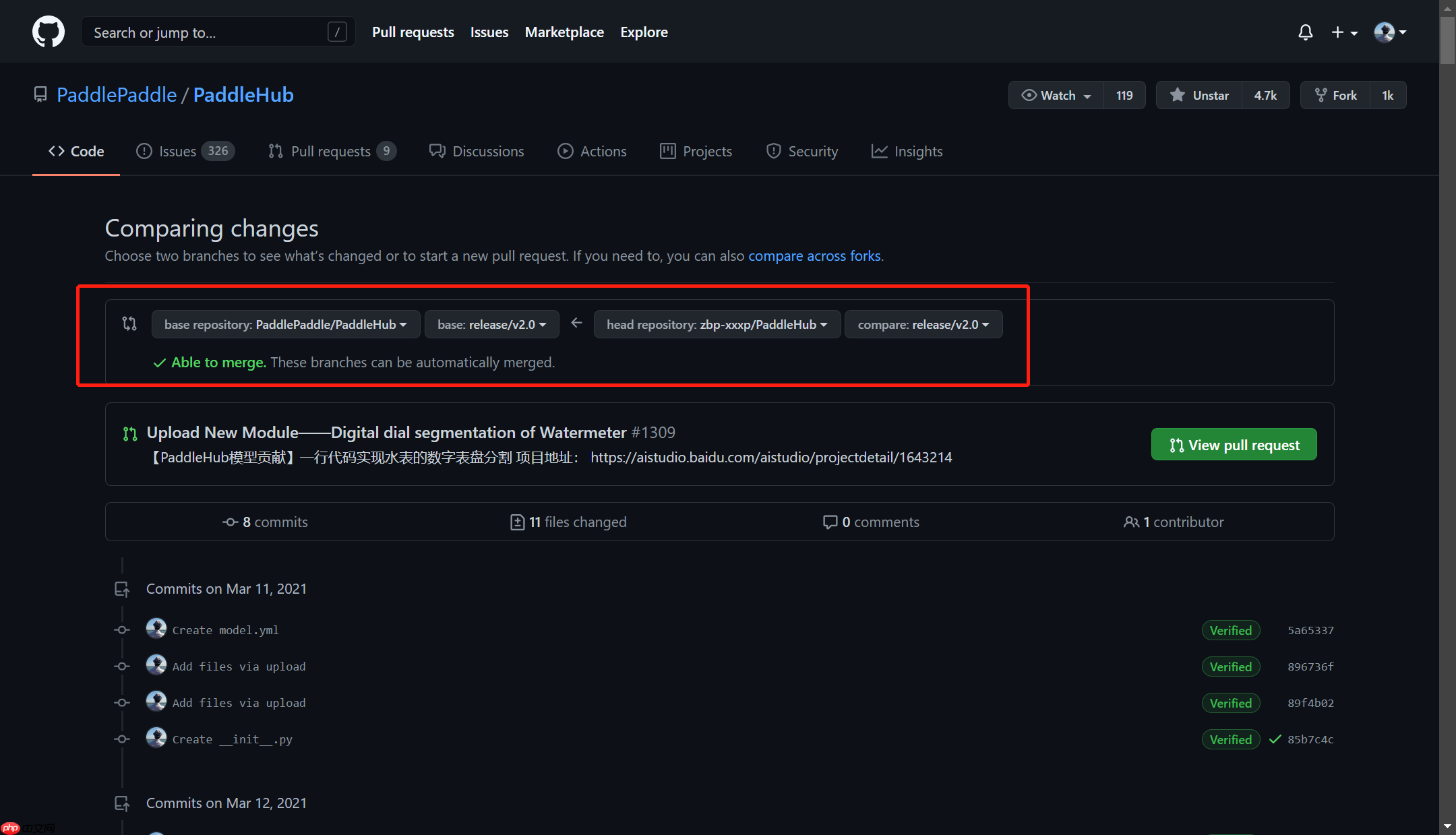

确认无误后点击提交即可:
以上就是【PaddleHub模型贡献】一行代码实现蛇种识别的详细内容,更多请关注php中文网其它相关文章!
