本文提出递归门控卷积(gnConv)，它通过门控卷积核递归设计执行高效、可扩展和平移等变的高阶空间交互，即插即用来改进各种视觉Transformer和基于CNN的模型，并提出新的视觉骨干网络家族：HorNet
1、利用点乘积的自我注意在视觉任务中的有效性尚未从高阶空间交互的方面进行分析；
2、由于非线性的原因，深度模型存在复杂的计算和经常高阶两个空间位置之间的交互，自注意力和其他动态网络的成功表明，显式和高阶空间交互引入的设计有利于提高视觉模型的建模能力。

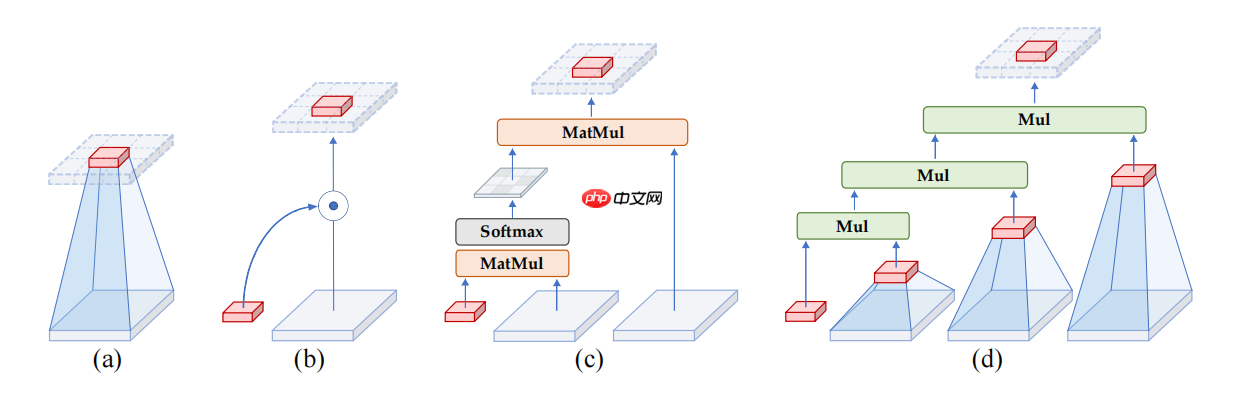

3、视觉建模的基本操作(例如自注意力中的点乘)趋势表明，可以通过增加空间交互的次数来提高网络容量。下图展示了普通卷积、注意力卷积、Transformer block以及本文的递归模块。顺序依次为a、b、c、d。

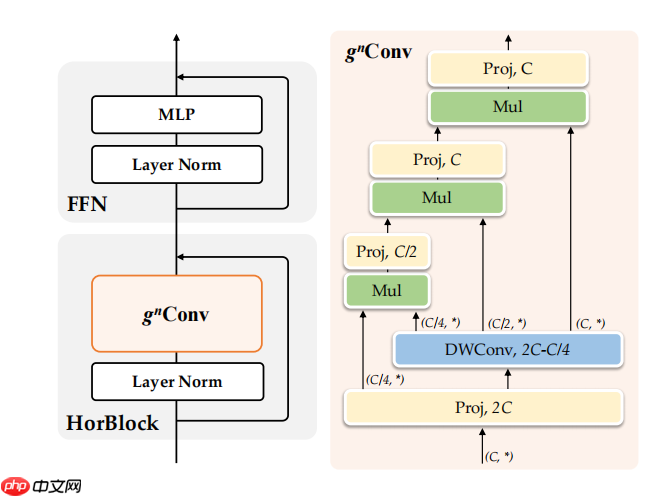

门控卷积结构如下图所示，括号中表示输出通道数。从图中可以看出，门控卷积就是首先通过两个卷积层来调整特征通道数。接着，将深度可分离卷积的输出特征沿着特征分成多块，每一块与前一块交互的特征进一步进行逐元素相乘的方式进行交互，最终得到输出特征。这里递归就是不断地进行逐元素相乘操作，通过这种递归方式特征越在后面的特征高阶信息保存越多，这样在高阶中特征交互就会足够多。
核心代码展示(gnConv部分)
class gnconv(nn.Layer):
def __init__(self, dim, order=5, gflayer=None, h=14, w=8, s=1.0):
super().__init__()
self.order = order
self.dims = [dim // 2 ** i for i in range(order)]
self.dims.reverse()
self.proj_in = nn.Conv2D(dim, 2*dim, 1) if gflayer is None: #这里就是定义上图中的深度可分离卷积
self.dwconv = get_dwconv(sum(self.dims), 7, True)
else:
self.dwconv = gflayer(sum(self.dims), h=h, w=w)
self.proj_out = nn.Conv2D(dim, dim, 1) #这里就是第一个映射层
self.pws = nn.LayerList(
[nn.Conv2D(self.dims[i], self.dims[i+1], 1) for i in range(order-1)]
)
self.scale = s #print('[gnconv]', order, 'order with dims=', self.dims, 'scale=%.4f'%self.scale)
def forward(self, x, mask=None, dummy=False):
B, C, H, W = x.shape
fused_x = self.proj_in(x)
pwa, abc = paddle.split(fused_x, (self.dims[0], sum(self.dims)), axis=1) #第一个分离部分
dw_abc = self.dwconv(abc) * self.scale
dw_list = paddle.split(dw_abc, self.dims, axis=1) #将特征分成对应的几个部分，也就是第二个split
x = pwa * dw_list[0] for i in range(self.order -1):
x = self.pws[i](x) * dw_list[i+1] #这里就是逐元素相乘操作
x = self.proj_out(x) return x其余部分和ConNeXt类似，这里就不进行详细的展示
下面我们对模型在ImageNet验证集上效果进行展示。
#解压数据集!mkdir data/ILSVRC2012 !tar -xf ~/data/data105740/ILSVRC2012_val.tar -C ~/data/ILSVRC2012
#导入必要的库import osimport cv2import numpy as npimport warningsimport paddleimport paddle.vision.transforms as Tfrom PIL import Image
warnings.filterwarnings('ignore')# 构建数据集class ILSVRC2012(paddle.io.Dataset):
def __init__(self, root, label_list, transform, backend='pil'):
self.transform = transform
self.root = root
self.label_list = label_list
self.backend = backend
self.load_datas() def load_datas(self):
self.imgs = []
self.labels = [] with open(self.label_list, 'r') as f: for line in f:
img, label = line[:-1].split(' ')
self.imgs.append(os.path.join(self.root, img))
self.labels.append(int(label)) def __getitem__(self, idx):
label = self.labels[idx]
image = self.imgs[idx] if self.backend=='cv2':
image = cv2.imread(image) else:
image = Image.open(image).convert('RGB')
image = self.transform(image) return image.astype('float32'), np.array(label).astype('int64') def __len__(self):
return len(self.imgs)
val_transforms = T.Compose([
T.Resize(int(224 / 0.96), interpolation='bicubic'),
T.CenterCrop(224),
T.ToTensor(),
T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])
val_transform_384 = T.Compose([
T.Resize(int(384 / 0.96), interpolation='bicubic'),
T.CenterCrop(384),
T.ToTensor(),
T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])%cd /home/aistudio/
/home/aistudio
#创建模型，这里我们复现三个不同体量模型from Hornet import hornet_tiny_7x7,hornet_small_7x7,hornet_base_gf model = hornet_tiny_7x7(drop_path_rate = 0.,layer_scale_init_value = 1e-6) model_small = hornet_small_7x7(drop_path_rate = 0.,layer_scale_init_value = 1e-6) model_base_gf = hornet_base_gf(drop_path_rate = 0.,layer_scale_init_value = 1e-6)
W0801 16:01:38.262773 286 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1 W0801 16:01:38.267696 286 gpu_resources.cc:91] device: 0, cuDNN Version: 7.6.
#导入权重model.load_dict(paddle.load('/home/aistudio/hornet_tiny_7x7.pdparams'))
model = paddle.Model(model)
model_small.load_dict(paddle.load('/home/aistudio/hornet_small_7x7.pdparams'))
model_small = paddle.Model(model_small)
model_base_gf.load_dict(paddle.load("/home/aistudio/hornet_base_gf.pdparams"))
model_base_gf = paddle.Model(model_base_gf)#模型结构model.summary((1, 3, 224, 224))
---------------------------------------------------------------------------
Layer (type) Input Shape Output Shape Param #
===========================================================================
Conv2D-1 [[1, 3, 224, 224]] [1, 64, 56, 56] 3,136
LayerNorm-1 [[1, 64, 56, 56]] [1, 64, 56, 56] 128
LayerNorm-5 [[1, 64, 56, 56]] [1, 64, 56, 56] 128
Conv2D-5 [[1, 64, 56, 56]] [1, 128, 56, 56] 8,320
Conv2D-6 [[1, 96, 56, 56]] [1, 96, 56, 56] 4,800
Conv2D-8 [[1, 32, 56, 56]] [1, 64, 56, 56] 2,112
Conv2D-7 [[1, 64, 56, 56]] [1, 64, 56, 56] 4,160
gnconv-1 [[1, 64, 56, 56]] [1, 64, 56, 56] 0
Identity-1 [[1, 64, 56, 56]] [1, 64, 56, 56] 0
LayerNorm-6 [[1, 56, 56, 64]] [1, 56, 56, 64] 128
Linear-1 [[1, 56, 56, 64]] [1, 56, 56, 256] 16,640
GELU-1 [[1, 56, 56, 256]] [1, 56, 56, 256] 0
Linear-2 [[1, 56, 56, 256]] [1, 56, 56, 64] 16,448
Block-1 [[1, 64, 56, 56]] [1, 64, 56, 56] 128
LayerNorm-7 [[1, 64, 56, 56]] [1, 64, 56, 56] 128
Conv2D-9 [[1, 64, 56, 56]] [1, 128, 56, 56] 8,320
Conv2D-10 [[1, 96, 56, 56]] [1, 96, 56, 56] 4,800
Conv2D-12 [[1, 32, 56, 56]] [1, 64, 56, 56] 2,112
Conv2D-11 [[1, 64, 56, 56]] [1, 64, 56, 56] 4,160
gnconv-2 [[1, 64, 56, 56]] [1, 64, 56, 56] 0
Identity-2 [[1, 64, 56, 56]] [1, 64, 56, 56] 0
LayerNorm-8 [[1, 56, 56, 64]] [1, 56, 56, 64] 128
Linear-3 [[1, 56, 56, 64]] [1, 56, 56, 256] 16,640
GELU-2 [[1, 56, 56, 256]] [1, 56, 56, 256] 0
Linear-4 [[1, 56, 56, 256]] [1, 56, 56, 64] 16,448
Block-2 [[1, 64, 56, 56]] [1, 64, 56, 56] 128
LayerNorm-2 [[1, 64, 56, 56]] [1, 64, 56, 56] 128
Conv2D-2 [[1, 64, 56, 56]] [1, 128, 28, 28] 32,896
LayerNorm-9 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
Conv2D-13 [[1, 128, 28, 28]] [1, 256, 28, 28] 33,024
Conv2D-14 [[1, 224, 28, 28]] [1, 224, 28, 28] 11,200
Conv2D-16 [[1, 32, 28, 28]] [1, 64, 28, 28] 2,112
Conv2D-17 [[1, 64, 28, 28]] [1, 128, 28, 28] 8,320
Conv2D-15 [[1, 128, 28, 28]] [1, 128, 28, 28] 16,512
gnconv-3 [[1, 128, 28, 28]] [1, 128, 28, 28] 0
Identity-3 [[1, 128, 28, 28]] [1, 128, 28, 28] 0
LayerNorm-10 [[1, 28, 28, 128]] [1, 28, 28, 128] 256
Linear-5 [[1, 28, 28, 128]] [1, 28, 28, 512] 66,048
GELU-3 [[1, 28, 28, 512]] [1, 28, 28, 512] 0
Linear-6 [[1, 28, 28, 512]] [1, 28, 28, 128] 65,664
Block-3 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
LayerNorm-11 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
Conv2D-18 [[1, 128, 28, 28]] [1, 256, 28, 28] 33,024
Conv2D-19 [[1, 224, 28, 28]] [1, 224, 28, 28] 11,200
Conv2D-21 [[1, 32, 28, 28]] [1, 64, 28, 28] 2,112
Conv2D-22 [[1, 64, 28, 28]] [1, 128, 28, 28] 8,320
Conv2D-20 [[1, 128, 28, 28]] [1, 128, 28, 28] 16,512
gnconv-4 [[1, 128, 28, 28]] [1, 128, 28, 28] 0
Identity-4 [[1, 128, 28, 28]] [1, 128, 28, 28] 0
LayerNorm-12 [[1, 28, 28, 128]] [1, 28, 28, 128] 256
Linear-7 [[1, 28, 28, 128]] [1, 28, 28, 512] 66,048
GELU-4 [[1, 28, 28, 512]] [1, 28, 28, 512] 0
Linear-8 [[1, 28, 28, 512]] [1, 28, 28, 128] 65,664
Block-4 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
LayerNorm-13 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
Conv2D-23 [[1, 128, 28, 28]] [1, 256, 28, 28] 33,024
Conv2D-24 [[1, 224, 28, 28]] [1, 224, 28, 28] 11,200
Conv2D-26 [[1, 32, 28, 28]] [1, 64, 28, 28] 2,112
Conv2D-27 [[1, 64, 28, 28]] [1, 128, 28, 28] 8,320
Conv2D-25 [[1, 128, 28, 28]] [1, 128, 28, 28] 16,512
gnconv-5 [[1, 128, 28, 28]] [1, 128, 28, 28] 0
Identity-5 [[1, 128, 28, 28]] [1, 128, 28, 28] 0
LayerNorm-14 [[1, 28, 28, 128]] [1, 28, 28, 128] 256
Linear-9 [[1, 28, 28, 128]] [1, 28, 28, 512] 66,048
GELU-5 [[1, 28, 28, 512]] [1, 28, 28, 512] 0
Linear-10 [[1, 28, 28, 512]] [1, 28, 28, 128] 65,664
Block-5 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
LayerNorm-3 [[1, 128, 28, 28]] [1, 128, 28, 28] 256
Conv2D-3 [[1, 128, 28, 28]] [1, 256, 14, 14] 131,328
LayerNorm-15 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-28 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-29 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-31 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-32 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-33 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-30 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-6 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-6 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-16 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-11 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-6 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-12 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-6 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-17 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-34 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-35 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-37 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-38 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-39 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-36 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-7 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-7 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-18 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-13 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-7 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-14 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-7 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-19 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-40 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-41 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-43 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-44 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-45 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-42 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-8 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-8 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-20 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-15 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-8 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-16 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-8 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-21 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-46 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-47 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-49 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-50 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-51 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-48 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-9 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-9 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-22 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-17 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-9 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-18 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-9 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-23 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-52 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-53 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-55 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-56 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-57 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-54 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-10 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-10 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-24 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-19 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-10 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-20 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-10 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-25 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-58 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-59 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-61 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-62 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-63 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-60 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-11 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-11 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-26 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-21 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-11 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-22 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-11 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-27 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-64 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-65 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-67 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-68 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-69 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-66 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-12 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-12 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-28 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-23 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-12 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-24 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-12 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-29 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-70 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-71 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-73 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-74 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-75 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-72 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-13 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-13 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-30 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-25 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-13 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-26 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-13 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-31 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-76 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-77 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-79 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-80 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-81 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-78 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-14 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-14 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-32 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-27 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-14 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-28 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-14 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-33 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-82 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-83 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-85 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-86 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-87 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-84 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-15 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-15 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-34 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-29 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-15 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-30 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-15 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-35 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-88 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-89 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-91 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-92 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-93 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-90 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-16 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-16 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-36 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-31 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-16 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-32 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-16 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-37 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-94 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-95 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-97 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-98 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-99 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-96 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-17 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-17 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-38 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-33 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-17 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-34 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-17 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-39 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-100 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-101 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-103 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-104 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-105 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-102 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-18 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-18 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-40 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-35 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-18 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-36 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-18 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-41 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-106 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-107 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-109 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-110 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-111 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-108 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-19 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-19 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-42 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-37 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-19 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-38 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-19 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-43 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-112 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-113 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-115 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-116 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-117 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-114 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-20 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-20 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-44 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-39 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-20 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-40 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-20 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-45 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-118 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-119 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-121 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-122 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-123 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-120 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-21 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-21 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-46 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-41 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-21 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-42 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-21 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-47 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-124 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-125 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-127 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-128 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-129 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-126 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-22 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-22 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-48 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-43 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-22 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-44 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-22 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-49 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-130 [[1, 256, 14, 14]] [1, 512, 14, 14] 131,584
Conv2D-131 [[1, 480, 14, 14]] [1, 480, 14, 14] 24,000
Conv2D-133 [[1, 32, 14, 14]] [1, 64, 14, 14] 2,112
Conv2D-134 [[1, 64, 14, 14]] [1, 128, 14, 14] 8,320
Conv2D-135 [[1, 128, 14, 14]] [1, 256, 14, 14] 33,024
Conv2D-132 [[1, 256, 14, 14]] [1, 256, 14, 14] 65,792
gnconv-23 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
Identity-23 [[1, 256, 14, 14]] [1, 256, 14, 14] 0
LayerNorm-50 [[1, 14, 14, 256]] [1, 14, 14, 256] 512
Linear-45 [[1, 14, 14, 256]] [1, 14, 14, 1024] 263,168
GELU-23 [[1, 14, 14, 1024]] [1, 14, 14, 1024] 0
Linear-46 [[1, 14, 14, 1024]] [1, 14, 14, 256] 262,400
Block-23 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
LayerNorm-4 [[1, 256, 14, 14]] [1, 256, 14, 14] 512
Conv2D-4 [[1, 256, 14, 14]] [1, 512, 7, 7] 524,800
LayerNorm-51 [[1, 512, 7, 7]] [1, 512, 7, 7] 1,024
Conv2D-136 [[1, 512, 7, 7]] [1, 1024, 7, 7] 525,312
Conv2D-137 [[1, 992, 7, 7]] [1, 992, 7, 7] 49,600
Conv2D-139 [[1, 32, 7, 7]] [1, 64, 7, 7] 2,112
Conv2D-140 [[1, 64, 7, 7]] [1, 128, 7, 7] 8,320
Conv2D-141 [[1, 128, 7, 7]] [1, 256, 7, 7] 33,024
Conv2D-142 [[1, 256, 7, 7]] [1, 512, 7, 7] 131,584
Conv2D-138 [[1, 512, 7, 7]] [1, 512, 7, 7] 262,656
gnconv-24 [[1, 512, 7, 7]] [1, 512, 7, 7] 0
Identity-24 [[1, 512, 7, 7]] [1, 512, 7, 7] 0
LayerNorm-52 [[1, 7, 7, 512]] [1, 7, 7, 512] 1,024
Linear-47 [[1, 7, 7, 512]] [1, 7, 7, 2048] 1,050,624
GELU-24 [[1, 7, 7, 2048]] [1, 7, 7, 2048] 0
Linear-48 [[1, 7, 7, 2048]] [1, 7, 7, 512] 1,049,088
Block-24 [[1, 512, 7, 7]] [1, 512, 7, 7] 1,024
LayerNorm-53 [[1, 512, 7, 7]] [1, 512, 7, 7] 1,024
Conv2D-143 [[1, 512, 7, 7]] [1, 1024, 7, 7] 525,312
Conv2D-144 [[1, 992, 7, 7]] [1, 992, 7, 7] 49,600
Conv2D-146 [[1, 32, 7, 7]] [1, 64, 7, 7] 2,112
Conv2D-147 [[1, 64, 7, 7]] [1, 128, 7, 7] 8,320
Conv2D-148 [[1, 128, 7, 7]] [1, 256, 7, 7] 33,024
Conv2D-149 [[1, 256, 7, 7]] [1, 512, 7, 7] 131,584
Conv2D-145 [[1, 512, 7, 7]] [1, 512, 7, 7] 262,656
gnconv-25 [[1, 512, 7, 7]] [1, 512, 7, 7] 0
Identity-25 [[1, 512, 7, 7]] [1, 512, 7, 7] 0
LayerNorm-54 [[1, 7, 7, 512]] [1, 7, 7, 512] 1,024
Linear-49 [[1, 7, 7, 512]] [1, 7, 7, 2048] 1,050,624
GELU-25 [[1, 7, 7, 2048]] [1, 7, 7, 2048] 0
Linear-50 [[1, 7, 7, 2048]] [1, 7, 7, 512] 1,049,088
Block-25 [[1, 512, 7, 7]] [1, 512, 7, 7] 1,024
LayerNorm-55 [[1, 512]] [1, 512] 1,024
Linear-51 [[1, 512]] [1, 1000] 513,000
===========================================================================
Total params: 22,409,512
Trainable params: 22,409,512
Non-trainable params: 0
---------------------------------------------------------------------------
Input size (MB): 0.57
Forward/backward pass size (MB): 263.41
Params size (MB): 85.49
Estimated Total Size (MB): 349.47
---------------------------------------------------------------------------{'total_params': 22409512, 'trainable_params': 22409512}#tiny模型结果model.prepare(metrics=paddle.metric.Accuracy(topk=(1, 5)))
val_dataset = ILSVRC2012('/home/aistudio/data/ILSVRC2012/ILSVRC2012_val', transform=val_transforms, label_list='/home/aistudio/data/ILSVRC2012/ILSVRC2012_val/val_list.txt', backend='pil')
acc = model.evaluate(val_dataset, batch_size=32, num_workers=4, verbose=1)print(acc)Eval begin...
step 1563/1563 [==============================] - acc_top1: 0.8270 - acc_top5: 0.9637 - 98ms/step
Eval samples: 50000
{'acc_top1': 0.82698, 'acc_top5': 0.96374}#small模型结果model_small.prepare(metrics=paddle.metric.Accuracy(topk=(1, 5)))
val_dataset = ILSVRC2012('/home/aistudio/data/ILSVRC2012/ILSVRC2012_val', transform=val_transforms, label_list='/home/aistudio/data/ILSVRC2012/ILSVRC2012_val/val_list.txt', backend='pil')
acc = model_small.evaluate(val_dataset, batch_size=32, num_workers=4, verbose=1)print(acc)Eval begin...
step 1563/1563 [==============================] - acc_top1: 0.8390 - acc_top5: 0.9681 - 111ms/step
Eval samples: 50000
{'acc_top1': 0.83898, 'acc_top5': 0.96814}#base模型结果model_base_gf.prepare(metrics=paddle.metric.Accuracy(topk=(1, 5)))
val_dataset = ILSVRC2012('/home/aistudio/data/ILSVRC2012/ILSVRC2012_val', transform=val_transforms, label_list='/home/aistudio/data/ILSVRC2012/ILSVRC2012_val/val_list.txt', backend='pil')
acc = model_base_gf.evaluate(val_dataset, batch_size=32, num_workers=4, verbose=1)print(acc)Eval begin...
step 1563/1563 [==============================] - acc_top1: 0.8448 - acc_top5: 0.9701 - 183ms/step
Eval samples: 50000
{'acc_top1': 0.84476, 'acc_top5': 0.97008}为了公平比较CNN、Transformer与HorNet，本文借助Paddleclas在Flowers102数据集上对ResNet50vd、Swin、HorNet进行对比
#解压数据集!mkdir data/flowers !tar -xf ~/data/data19852/flowers102.tar -C ~/data/flowers
[]
%cd PaddleClas/
/home/aistudio/PaddleClas
#安装必要库!pip install -r requirements.txt
!python -m paddle.distributed.launch --gpus 0 tools/train.py -c ppcls/configs/hornet_tiny_7x7.yaml \
-o Global.pretrained_model=/home/aistudio/hornet_tiny_7x7!python tools/eval.py -c ppcls/configs/hornet_tiny_7x7.yaml -o Global.pretrained_model=output/hornet_tiny_7x7/best_model
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import MutableMapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Iterable, Mapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Sized [2022/08/01 17:19:29] ppcls INFO: =========================================================== == PaddleClas is powered by PaddlePaddle ! == =========================================================== == == == For more info please go to the following website. == == == == https://github.com/PaddlePaddle/PaddleClas == =========================================================== [2022/08/01 17:19:29] ppcls INFO: Arch : [2022/08/01 17:19:29] ppcls INFO: class_num : 102 [2022/08/01 17:19:29] ppcls INFO: drop_path_rate : 0.2 [2022/08/01 17:19:29] ppcls INFO: head_init_scale : 1.0 [2022/08/01 17:19:29] ppcls INFO: layer_scale_init_value : 1e-06 [2022/08/01 17:19:29] ppcls INFO: name : hornet_tiny_7x7 [2022/08/01 17:19:29] ppcls INFO: DataLoader : [2022/08/01 17:19:29] ppcls INFO: Eval : [2022/08/01 17:19:29] ppcls INFO: dataset : [2022/08/01 17:19:29] ppcls INFO: cls_label_path : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers/valid.txt [2022/08/01 17:19:29] ppcls INFO: image_root : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers [2022/08/01 17:19:29] ppcls INFO: name : ImageNetDataset [2022/08/01 17:19:29] ppcls INFO: transform_ops : [2022/08/01 17:19:29] ppcls INFO: DecodeImage : [2022/08/01 17:19:29] ppcls INFO: channel_first : False [2022/08/01 17:19:29] ppcls INFO: to_rgb : True [2022/08/01 17:19:29] ppcls INFO: ResizeImage : [2022/08/01 17:19:29] ppcls INFO: backend : pil [2022/08/01 17:19:29] ppcls INFO: interpolation : bicubic [2022/08/01 17:19:29] ppcls INFO: resize_short : 256 [2022/08/01 17:19:29] ppcls INFO: CropImage : [2022/08/01 17:19:29] ppcls INFO: size : 224 [2022/08/01 17:19:29] ppcls INFO: NormalizeImage : [2022/08/01 17:19:29] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:19:29] ppcls INFO: order : [2022/08/01 17:19:29] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:19:29] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:19:29] ppcls INFO: loader : [2022/08/01 17:19:29] ppcls INFO: num_workers : 4 [2022/08/01 17:19:29] ppcls INFO: use_shared_memory : True [2022/08/01 17:19:29] ppcls INFO: sampler : [2022/08/01 17:19:29] ppcls INFO: batch_size : 128 [2022/08/01 17:19:29] ppcls INFO: drop_last : False [2022/08/01 17:19:29] ppcls INFO: name : DistributedBatchSampler [2022/08/01 17:19:29] ppcls INFO: shuffle : False [2022/08/01 17:19:29] ppcls INFO: Train : [2022/08/01 17:19:29] ppcls INFO: dataset : [2022/08/01 17:19:29] ppcls INFO: batch_transform_ops : [2022/08/01 17:19:29] ppcls INFO: OpSampler : [2022/08/01 17:19:29] ppcls INFO: CutmixOperator : [2022/08/01 17:19:29] ppcls INFO: alpha : 1.0 [2022/08/01 17:19:29] ppcls INFO: prob : 0.5 [2022/08/01 17:19:29] ppcls INFO: MixupOperator : [2022/08/01 17:19:29] ppcls INFO: alpha : 0.8 [2022/08/01 17:19:29] ppcls INFO: prob : 0.5 [2022/08/01 17:19:29] ppcls INFO: cls_label_path : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers/train.txt [2022/08/01 17:19:29] ppcls INFO: image_root : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers [2022/08/01 17:19:29] ppcls INFO: name : ImageNetDataset [2022/08/01 17:19:29] ppcls INFO: transform_ops : [2022/08/01 17:19:29] ppcls INFO: DecodeImage : [2022/08/01 17:19:29] ppcls INFO: channel_first : False [2022/08/01 17:19:29] ppcls INFO: to_rgb : True [2022/08/01 17:19:29] ppcls INFO: RandCropImage : [2022/08/01 17:19:29] ppcls INFO: backend : pil [2022/08/01 17:19:29] ppcls INFO: interpolation : bicubic [2022/08/01 17:19:29] ppcls INFO: size : 224 [2022/08/01 17:19:29] ppcls INFO: RandFlipImage : [2022/08/01 17:19:29] ppcls INFO: flip_code : 1 [2022/08/01 17:19:29] ppcls INFO: TimmAutoAugment : [2022/08/01 17:19:29] ppcls INFO: config_str : rand-m9-mstd0.5-inc1 [2022/08/01 17:19:29] ppcls INFO: img_size : 224 [2022/08/01 17:19:29] ppcls INFO: interpolation : bicubic [2022/08/01 17:19:29] ppcls INFO: NormalizeImage : [2022/08/01 17:19:29] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:19:29] ppcls INFO: order : [2022/08/01 17:19:29] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:19:29] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:19:29] ppcls INFO: RandomErasing : [2022/08/01 17:19:29] ppcls INFO: EPSILON : 0.25 [2022/08/01 17:19:29] ppcls INFO: ------------------------------------------------------------ [2022/08/01 17:19:29] ppcls INFO: attempt : 10 [2022/08/01 17:19:29] ppcls INFO: mode : pixel [2022/08/01 17:19:29] ppcls INFO: r1 : 0.3 [2022/08/01 17:19:29] ppcls INFO: sh : 1.0/3.0 [2022/08/01 17:19:29] ppcls INFO: sl : 0.02 [2022/08/01 17:19:29] ppcls INFO: use_log_aspect : True [2022/08/01 17:19:29] ppcls INFO: loader : [2022/08/01 17:19:29] ppcls INFO: num_workers : 4 [2022/08/01 17:19:29] ppcls INFO: use_shared_memory : True [2022/08/01 17:19:29] ppcls INFO: sampler : [2022/08/01 17:19:29] ppcls INFO: batch_size : 32 [2022/08/01 17:19:29] ppcls INFO: drop_last : False [2022/08/01 17:19:29] ppcls INFO: name : DistributedBatchSampler [2022/08/01 17:19:29] ppcls INFO: shuffle : True [2022/08/01 17:19:29] ppcls INFO: EMA : [2022/08/01 17:19:29] ppcls INFO: decay : 0.9999 [2022/08/01 17:19:29] ppcls INFO: ------------------------------------------------------------ [2022/08/01 17:19:29] ppcls INFO: Global : [2022/08/01 17:19:29] ppcls INFO: checkpoints : None [2022/08/01 17:19:29] ppcls INFO: device : gpu [2022/08/01 17:19:29] ppcls INFO: epochs : 50 [2022/08/01 17:19:29] ppcls INFO: eval_during_train : True [2022/08/01 17:19:29] ppcls INFO: eval_interval : 1 [2022/08/01 17:19:29] ppcls INFO: image_shape : [3, 224, 224] [2022/08/01 17:19:29] ppcls INFO: output_dir : ./output/ [2022/08/01 17:19:29] ppcls INFO: pretrained_model : output/hornet_tiny_7x7/best_model [2022/08/01 17:19:29] ppcls INFO: print_batch_step : 10 [2022/08/01 17:19:29] ppcls INFO: save_inference_dir : ./inference [2022/08/01 17:19:29] ppcls INFO: save_interval : 1 [2022/08/01 17:19:29] ppcls INFO: update_freq : 4 [2022/08/01 17:19:29] ppcls INFO: use_visualdl : False [2022/08/01 17:19:29] ppcls INFO: Infer : [2022/08/01 17:19:29] ppcls INFO: PostProcess : [2022/08/01 17:19:29] ppcls INFO: class_id_map_file : ./dataset/flowers102/flowers102_label_list.txt [2022/08/01 17:19:29] ppcls INFO: name : Topk [2022/08/01 17:19:29] ppcls INFO: topk : 5 [2022/08/01 17:19:29] ppcls INFO: batch_size : 10 [2022/08/01 17:19:29] ppcls INFO: infer_imgs : docs/images/inference_deployment/whl_demo.jpg [2022/08/01 17:19:29] ppcls INFO: transforms : [2022/08/01 17:19:29] ppcls INFO: DecodeImage : [2022/08/01 17:19:29] ppcls INFO: channel_first : False [2022/08/01 17:19:29] ppcls INFO: to_rgb : True [2022/08/01 17:19:29] ppcls INFO: ResizeImage : [2022/08/01 17:19:29] ppcls INFO: resize_short : 256 [2022/08/01 17:19:29] ppcls INFO: CropImage : [2022/08/01 17:19:29] ppcls INFO: size : 224 [2022/08/01 17:19:29] ppcls INFO: NormalizeImage : [2022/08/01 17:19:29] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:19:29] ppcls INFO: order : [2022/08/01 17:19:29] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:19:29] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:19:29] ppcls INFO: ToCHWImage : None [2022/08/01 17:19:29] ppcls INFO: Loss : [2022/08/01 17:19:29] ppcls INFO: Eval : [2022/08/01 17:19:29] ppcls INFO: CELoss : [2022/08/01 17:19:29] ppcls INFO: weight : 1.0 [2022/08/01 17:19:29] ppcls INFO: Train : [2022/08/01 17:19:29] ppcls INFO: CELoss : [2022/08/01 17:19:29] ppcls INFO: weight : 1.0 [2022/08/01 17:19:29] ppcls INFO: Metric : [2022/08/01 17:19:29] ppcls INFO: Eval : [2022/08/01 17:19:29] ppcls INFO: TopkAcc : [2022/08/01 17:19:29] ppcls INFO: topk : [1, 5] [2022/08/01 17:19:29] ppcls INFO: Train : [2022/08/01 17:19:29] ppcls INFO: TopkAcc : [2022/08/01 17:19:29] ppcls INFO: topk : [1, 5] [2022/08/01 17:19:29] ppcls INFO: Optimizer : [2022/08/01 17:19:29] ppcls INFO: beta1 : 0.9 [2022/08/01 17:19:29] ppcls INFO: beta2 : 0.999 [2022/08/01 17:19:29] ppcls INFO: epsilon : 1e-08 [2022/08/01 17:19:29] ppcls INFO: lr : [2022/08/01 17:19:29] ppcls INFO: eta_min : 1e-06 [2022/08/01 17:19:29] ppcls INFO: learning_rate : 0.0005 [2022/08/01 17:19:29] ppcls INFO: name : Cosine [2022/08/01 17:19:29] ppcls INFO: warmup_epoch : 5 [2022/08/01 17:19:29] ppcls INFO: warmup_start_lr : 0 [2022/08/01 17:19:29] ppcls INFO: name : AdamW [2022/08/01 17:19:29] ppcls INFO: one_dim_param_no_weight_decay : True [2022/08/01 17:19:29] ppcls INFO: weight_decay : 0.05 [2022/08/01 17:19:29] ppcls INFO: train with paddle 2.3.1 and device Place(gpu:0) W0801 17:19:29.716073 14503 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1 W0801 17:19:29.721376 14503 gpu_resources.cc:91] device: 0, cuDNN Version: 7.6. +++++++ [2022/08/01 17:19:36] ppcls INFO: [Eval][Epoch 0][Iter: 0/8]CELoss: 3.77862, loss: 3.77862, top1: 0.95312, top5: 0.99219, batch_cost: 5.59765s, reader_cost: 3.28722, ips: 22.86673 images/sec [2022/08/01 17:19:38] ppcls INFO: [Eval][Epoch 0][Avg]CELoss: 3.75967, loss: 3.75967, top1: 0.96961, top5: 0.99314
!python -m paddle.distributed.launch --gpus 0 tools/train.py -c ppcls/configs/resnet50.yaml \
-o Global.pretrained_model=https://paddle-imagenet-models-name.bj.bcebos.com/dygraph/legendary_models/ResNet50_vd_pretrained.pdparams!python tools/eval.py -c ppcls/configs/resnet50.yaml -o Global.pretrained_model=output/ResNet50_vd/best_model
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import MutableMapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Iterable, Mapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Sized [2022/08/01 17:29:21] ppcls INFO: =========================================================== == PaddleClas is powered by PaddlePaddle ! == =========================================================== == == == For more info please go to the following website. == == == == https://github.com/PaddlePaddle/PaddleClas == =========================================================== [2022/08/01 17:29:21] ppcls INFO: Arch : [2022/08/01 17:29:21] ppcls INFO: class_num : 102 [2022/08/01 17:29:21] ppcls INFO: name : ResNet50_vd [2022/08/01 17:29:21] ppcls INFO: DataLoader : [2022/08/01 17:29:21] ppcls INFO: Eval : [2022/08/01 17:29:21] ppcls INFO: dataset : [2022/08/01 17:29:21] ppcls INFO: cls_label_path : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers/valid.txt [2022/08/01 17:29:21] ppcls INFO: image_root : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers [2022/08/01 17:29:21] ppcls INFO: name : ImageNetDataset [2022/08/01 17:29:21] ppcls INFO: transform_ops : [2022/08/01 17:29:21] ppcls INFO: DecodeImage : [2022/08/01 17:29:21] ppcls INFO: channel_first : False [2022/08/01 17:29:21] ppcls INFO: to_rgb : True [2022/08/01 17:29:21] ppcls INFO: ResizeImage : [2022/08/01 17:29:21] ppcls INFO: resize_short : 256 [2022/08/01 17:29:21] ppcls INFO: CropImage : [2022/08/01 17:29:21] ppcls INFO: size : 224 [2022/08/01 17:29:21] ppcls INFO: NormalizeImage : [2022/08/01 17:29:21] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:29:21] ppcls INFO: order : [2022/08/01 17:29:21] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:29:21] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:29:21] ppcls INFO: loader : [2022/08/01 17:29:21] ppcls INFO: num_workers : 4 [2022/08/01 17:29:21] ppcls INFO: use_shared_memory : True [2022/08/01 17:29:21] ppcls INFO: sampler : [2022/08/01 17:29:21] ppcls INFO: batch_size : 128 [2022/08/01 17:29:21] ppcls INFO: drop_last : False [2022/08/01 17:29:21] ppcls INFO: name : DistributedBatchSampler [2022/08/01 17:29:21] ppcls INFO: shuffle : False [2022/08/01 17:29:21] ppcls INFO: Train : [2022/08/01 17:29:21] ppcls INFO: dataset : [2022/08/01 17:29:21] ppcls INFO: cls_label_path : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers/train.txt [2022/08/01 17:29:21] ppcls INFO: image_root : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers [2022/08/01 17:29:21] ppcls INFO: name : ImageNetDataset [2022/08/01 17:29:21] ppcls INFO: transform_ops : [2022/08/01 17:29:21] ppcls INFO: DecodeImage : [2022/08/01 17:29:21] ppcls INFO: channel_first : False [2022/08/01 17:29:21] ppcls INFO: to_rgb : True [2022/08/01 17:29:21] ppcls INFO: RandCropImage : [2022/08/01 17:29:21] ppcls INFO: size : 224 [2022/08/01 17:29:21] ppcls INFO: RandFlipImage : [2022/08/01 17:29:21] ppcls INFO: flip_code : 1 [2022/08/01 17:29:21] ppcls INFO: NormalizeImage : [2022/08/01 17:29:21] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:29:21] ppcls INFO: order : [2022/08/01 17:29:21] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:29:21] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:29:21] ppcls INFO: loader : [2022/08/01 17:29:21] ppcls INFO: num_workers : 4 [2022/08/01 17:29:21] ppcls INFO: use_shared_memory : True [2022/08/01 17:29:21] ppcls INFO: sampler : [2022/08/01 17:29:21] ppcls INFO: batch_size : 32 [2022/08/01 17:29:21] ppcls INFO: drop_last : False [2022/08/01 17:29:21] ppcls INFO: name : DistributedBatchSampler [2022/08/01 17:29:21] ppcls INFO: shuffle : True [2022/08/01 17:29:21] ppcls INFO: Global : [2022/08/01 17:29:21] ppcls INFO: checkpoints : None [2022/08/01 17:29:21] ppcls INFO: device : gpu [2022/08/01 17:29:21] ppcls INFO: epochs : 50 [2022/08/01 17:29:21] ppcls INFO: eval_during_train : True [2022/08/01 17:29:21] ppcls INFO: eval_interval : 1 [2022/08/01 17:29:21] ppcls INFO: image_shape : [3, 224, 224] [2022/08/01 17:29:21] ppcls INFO: output_dir : ./output/ [2022/08/01 17:29:21] ppcls INFO: pretrained_model : output/ResNet50_vd/best_model [2022/08/01 17:29:21] ppcls INFO: print_batch_step : 10 [2022/08/01 17:29:21] ppcls INFO: save_inference_dir : ./inference [2022/08/01 17:29:21] ppcls INFO: save_interval : 1 [2022/08/01 17:29:21] ppcls INFO: use_visualdl : False [2022/08/01 17:29:21] ppcls INFO: Infer : [2022/08/01 17:29:21] ppcls INFO: PostProcess : [2022/08/01 17:29:21] ppcls INFO: class_id_map_file : ./dataset/flowers102/flowers102_label_list.txt [2022/08/01 17:29:21] ppcls INFO: name : Topk [2022/08/01 17:29:21] ppcls INFO: topk : 5 [2022/08/01 17:29:21] ppcls INFO: batch_size : 10 [2022/08/01 17:29:21] ppcls INFO: infer_imgs : docs/images/inference_deployment/whl_demo.jpg [2022/08/01 17:29:21] ppcls INFO: transforms : [2022/08/01 17:29:21] ppcls INFO: DecodeImage : [2022/08/01 17:29:21] ppcls INFO: channel_first : False [2022/08/01 17:29:21] ppcls INFO: to_rgb : True [2022/08/01 17:29:21] ppcls INFO: ResizeImage : [2022/08/01 17:29:21] ppcls INFO: resize_short : 256 [2022/08/01 17:29:21] ppcls INFO: CropImage : [2022/08/01 17:29:21] ppcls INFO: size : 224 [2022/08/01 17:29:21] ppcls INFO: NormalizeImage : [2022/08/01 17:29:21] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:29:21] ppcls INFO: order : [2022/08/01 17:29:21] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:29:21] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:29:21] ppcls INFO: ToCHWImage : None [2022/08/01 17:29:21] ppcls INFO: Loss : [2022/08/01 17:29:21] ppcls INFO: Eval : [2022/08/01 17:29:21] ppcls INFO: CELoss : [2022/08/01 17:29:21] ppcls INFO: weight : 1.0 [2022/08/01 17:29:21] ppcls INFO: Train : [2022/08/01 17:29:21] ppcls INFO: CELoss : [2022/08/01 17:29:21] ppcls INFO: weight : 1.0 [2022/08/01 17:29:21] ppcls INFO: Metric : [2022/08/01 17:29:21] ppcls INFO: Eval : [2022/08/01 17:29:21] ppcls INFO: TopkAcc : [2022/08/01 17:29:21] ppcls INFO: topk : [1, 5] [2022/08/01 17:29:21] ppcls INFO: Train : [2022/08/01 17:29:21] ppcls INFO: TopkAcc : [2022/08/01 17:29:21] ppcls INFO: topk : [1, 5] [2022/08/01 17:29:21] ppcls INFO: Optimizer : [2022/08/01 17:29:21] ppcls INFO: lr : [2022/08/01 17:29:21] ppcls INFO: learning_rate : 0.0125 [2022/08/01 17:29:21] ppcls INFO: name : Cosine [2022/08/01 17:29:21] ppcls INFO: warmup_epoch : 5 [2022/08/01 17:29:21] ppcls INFO: momentum : 0.9 [2022/08/01 17:29:21] ppcls INFO: name : Momentum [2022/08/01 17:29:21] ppcls INFO: regularizer : [2022/08/01 17:29:21] ppcls INFO: coeff : 1e-05 [2022/08/01 17:29:21] ppcls INFO: name : L2 [2022/08/01 17:29:21] ppcls INFO: train with paddle 2.3.1 and device Place(gpu:0) W0801 17:29:21.801292 22024 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1 W0801 17:29:21.806051 22024 gpu_resources.cc:91] device: 0, cuDNN Version: 7.6. +++++++ [2022/08/01 17:29:26] ppcls INFO: [Eval][Epoch 0][Iter: 0/8]CELoss: 0.32419, loss: 0.32419, top1: 0.92188, top5: 0.96875, batch_cost: 3.66914s, reader_cost: 1.63267, ips: 34.88556 images/sec [2022/08/01 17:29:27] ppcls INFO: [Eval][Epoch 0][Avg]CELoss: 0.21094, loss: 0.21094, top1: 0.95588, top5: 0.98529
!python -m paddle.distributed.launch --gpus 0 tools/train.py -c ppcls/configs/swin.yaml \
-o Global.pretrained_model=https://paddle-imagenet-models-name.bj.bcebos.com/dygraph/SwinTransformer_tiny_patch4_window7_224_pretrained.pdparams!python tools/eval.py -c ppcls/configs/swin.yaml -o Global.pretrained_model=output/SwinTransformer_tiny_patch4_window7_224/best_model
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import MutableMapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Iterable, Mapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Sized [2022/08/01 17:51:34] ppcls INFO: =========================================================== == PaddleClas is powered by PaddlePaddle ! == =========================================================== == == == For more info please go to the following website. == == == == https://github.com/PaddlePaddle/PaddleClas == =========================================================== [2022/08/01 17:51:34] ppcls INFO: Arch : [2022/08/01 17:51:34] ppcls INFO: class_num : 102 [2022/08/01 17:51:34] ppcls INFO: name : SwinTransformer_tiny_patch4_window7_224 [2022/08/01 17:51:34] ppcls INFO: DataLoader : [2022/08/01 17:51:34] ppcls INFO: Eval : [2022/08/01 17:51:34] ppcls INFO: dataset : [2022/08/01 17:51:34] ppcls INFO: cls_label_path : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers/valid.txt [2022/08/01 17:51:34] ppcls INFO: image_root : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers [2022/08/01 17:51:34] ppcls INFO: name : ImageNetDataset [2022/08/01 17:51:34] ppcls INFO: transform_ops : [2022/08/01 17:51:34] ppcls INFO: DecodeImage : [2022/08/01 17:51:34] ppcls INFO: channel_first : False [2022/08/01 17:51:34] ppcls INFO: to_rgb : True [2022/08/01 17:51:34] ppcls INFO: ResizeImage : [2022/08/01 17:51:34] ppcls INFO: backend : pil [2022/08/01 17:51:34] ppcls INFO: interpolation : bicubic [2022/08/01 17:51:34] ppcls INFO: resize_short : 256 [2022/08/01 17:51:34] ppcls INFO: CropImage : [2022/08/01 17:51:34] ppcls INFO: size : 224 [2022/08/01 17:51:34] ppcls INFO: NormalizeImage : [2022/08/01 17:51:34] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:51:34] ppcls INFO: order : [2022/08/01 17:51:34] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:51:34] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:51:34] ppcls INFO: loader : [2022/08/01 17:51:34] ppcls INFO: num_workers : 4 [2022/08/01 17:51:34] ppcls INFO: use_shared_memory : True [2022/08/01 17:51:34] ppcls INFO: sampler : [2022/08/01 17:51:34] ppcls INFO: batch_size : 128 [2022/08/01 17:51:34] ppcls INFO: drop_last : False [2022/08/01 17:51:34] ppcls INFO: name : DistributedBatchSampler [2022/08/01 17:51:34] ppcls INFO: shuffle : False [2022/08/01 17:51:34] ppcls INFO: Train : [2022/08/01 17:51:34] ppcls INFO: dataset : [2022/08/01 17:51:34] ppcls INFO: batch_transform_ops : [2022/08/01 17:51:34] ppcls INFO: OpSampler : [2022/08/01 17:51:34] ppcls INFO: CutmixOperator : [2022/08/01 17:51:34] ppcls INFO: alpha : 1.0 [2022/08/01 17:51:34] ppcls INFO: prob : 0.5 [2022/08/01 17:51:34] ppcls INFO: MixupOperator : [2022/08/01 17:51:34] ppcls INFO: alpha : 0.8 [2022/08/01 17:51:34] ppcls INFO: prob : 0.5 [2022/08/01 17:51:34] ppcls INFO: cls_label_path : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers/train.txt [2022/08/01 17:51:34] ppcls INFO: image_root : /home/aistudio/data/flowers/oxford-102-flowers/oxford-102-flowers [2022/08/01 17:51:34] ppcls INFO: name : ImageNetDataset [2022/08/01 17:51:34] ppcls INFO: transform_ops : [2022/08/01 17:51:34] ppcls INFO: DecodeImage : [2022/08/01 17:51:34] ppcls INFO: channel_first : False [2022/08/01 17:51:34] ppcls INFO: to_rgb : True [2022/08/01 17:51:34] ppcls INFO: RandCropImage : [2022/08/01 17:51:34] ppcls INFO: backend : pil [2022/08/01 17:51:34] ppcls INFO: interpolation : bicubic [2022/08/01 17:51:34] ppcls INFO: size : 224 [2022/08/01 17:51:34] ppcls INFO: RandFlipImage : [2022/08/01 17:51:34] ppcls INFO: flip_code : 1 [2022/08/01 17:51:34] ppcls INFO: TimmAutoAugment : [2022/08/01 17:51:34] ppcls INFO: config_str : rand-m9-mstd0.5-inc1 [2022/08/01 17:51:34] ppcls INFO: img_size : 224 [2022/08/01 17:51:34] ppcls INFO: interpolation : bicubic [2022/08/01 17:51:34] ppcls INFO: NormalizeImage : [2022/08/01 17:51:34] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:51:34] ppcls INFO: order : [2022/08/01 17:51:34] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:51:34] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:51:34] ppcls INFO: RandomErasing : [2022/08/01 17:51:34] ppcls INFO: EPSILON : 0.25 [2022/08/01 17:51:34] ppcls INFO: ------------------------------------------------------------ [2022/08/01 17:51:34] ppcls INFO: attempt : 10 [2022/08/01 17:51:34] ppcls INFO: mode : pixel [2022/08/01 17:51:34] ppcls INFO: r1 : 0.3 [2022/08/01 17:51:34] ppcls INFO: sh : 1.0/3.0 [2022/08/01 17:51:34] ppcls INFO: sl : 0.02 [2022/08/01 17:51:34] ppcls INFO: use_log_aspect : True [2022/08/01 17:51:34] ppcls INFO: loader : [2022/08/01 17:51:34] ppcls INFO: num_workers : 4 [2022/08/01 17:51:34] ppcls INFO: use_shared_memory : True [2022/08/01 17:51:34] ppcls INFO: sampler : [2022/08/01 17:51:34] ppcls INFO: batch_size : 32 [2022/08/01 17:51:34] ppcls INFO: drop_last : False [2022/08/01 17:51:34] ppcls INFO: name : DistributedBatchSampler [2022/08/01 17:51:34] ppcls INFO: shuffle : True [2022/08/01 17:51:34] ppcls INFO: Global : [2022/08/01 17:51:34] ppcls INFO: checkpoints : None [2022/08/01 17:51:34] ppcls INFO: device : gpu [2022/08/01 17:51:34] ppcls INFO: epochs : 50 [2022/08/01 17:51:34] ppcls INFO: eval_during_train : True [2022/08/01 17:51:34] ppcls INFO: eval_interval : 1 [2022/08/01 17:51:34] ppcls INFO: image_shape : [3, 224, 224] [2022/08/01 17:51:34] ppcls INFO: output_dir : ./output/ [2022/08/01 17:51:34] ppcls INFO: pretrained_model : output/SwinTransformer_tiny_patch4_window7_224/best_model [2022/08/01 17:51:34] ppcls INFO: print_batch_step : 10 [2022/08/01 17:51:34] ppcls INFO: save_inference_dir : ./inference [2022/08/01 17:51:34] ppcls INFO: save_interval : 1 [2022/08/01 17:51:34] ppcls INFO: to_static : False [2022/08/01 17:51:34] ppcls INFO: use_visualdl : False [2022/08/01 17:51:34] ppcls INFO: Infer : [2022/08/01 17:51:34] ppcls INFO: PostProcess : [2022/08/01 17:51:34] ppcls INFO: class_id_map_file : ppcls/utils/imagenet1k_label_list.txt [2022/08/01 17:51:34] ppcls INFO: name : Topk [2022/08/01 17:51:34] ppcls INFO: topk : 5 [2022/08/01 17:51:34] ppcls INFO: batch_size : 10 [2022/08/01 17:51:34] ppcls INFO: infer_imgs : docs/images/inference_deployment/whl_demo.jpg [2022/08/01 17:51:34] ppcls INFO: transforms : [2022/08/01 17:51:34] ppcls INFO: DecodeImage : [2022/08/01 17:51:34] ppcls INFO: channel_first : False [2022/08/01 17:51:34] ppcls INFO: to_rgb : True [2022/08/01 17:51:34] ppcls INFO: ResizeImage : [2022/08/01 17:51:34] ppcls INFO: backend : pil [2022/08/01 17:51:34] ppcls INFO: interpolation : bicubic [2022/08/01 17:51:34] ppcls INFO: resize_short : 256 [2022/08/01 17:51:34] ppcls INFO: CropImage : [2022/08/01 17:51:34] ppcls INFO: size : 224 [2022/08/01 17:51:34] ppcls INFO: NormalizeImage : [2022/08/01 17:51:34] ppcls INFO: mean : [0.485, 0.456, 0.406] [2022/08/01 17:51:34] ppcls INFO: order : [2022/08/01 17:51:34] ppcls INFO: scale : 1.0/255.0 [2022/08/01 17:51:34] ppcls INFO: std : [0.229, 0.224, 0.225] [2022/08/01 17:51:34] ppcls INFO: ToCHWImage : None [2022/08/01 17:51:34] ppcls INFO: Loss : [2022/08/01 17:51:34] ppcls INFO: Eval : [2022/08/01 17:51:34] ppcls INFO: CELoss : [2022/08/01 17:51:34] ppcls INFO: weight : 1.0 [2022/08/01 17:51:34] ppcls INFO: Train : [2022/08/01 17:51:34] ppcls INFO: CELoss : [2022/08/01 17:51:34] ppcls INFO: epsilon : 0.1 [2022/08/01 17:51:34] ppcls INFO: weight : 1.0 [2022/08/01 17:51:34] ppcls INFO: Metric : [2022/08/01 17:51:34] ppcls INFO: Eval : [2022/08/01 17:51:34] ppcls INFO: TopkAcc : [2022/08/01 17:51:34] ppcls INFO: topk : [1, 5] [2022/08/01 17:51:34] ppcls INFO: Optimizer : [2022/08/01 17:51:34] ppcls INFO: beta1 : 0.9 [2022/08/01 17:51:34] ppcls INFO: beta2 : 0.999 [2022/08/01 17:51:34] ppcls INFO: epsilon : 1e-08 [2022/08/01 17:51:34] ppcls INFO: lr : [2022/08/01 17:51:34] ppcls INFO: eta_min : 2e-05 [2022/08/01 17:51:34] ppcls INFO: learning_rate : 1.25e-05 [2022/08/01 17:51:34] ppcls INFO: name : Cosine [2022/08/01 17:51:34] ppcls INFO: warmup_epoch : 5 [2022/08/01 17:51:34] ppcls INFO: warmup_start_lr : 2e-06 [2022/08/01 17:51:34] ppcls INFO: name : AdamW [2022/08/01 17:51:34] ppcls INFO: no_weight_decay_name : absolute_pos_embed relative_position_bias_table .bias norm [2022/08/01 17:51:34] ppcls INFO: one_dim_param_no_weight_decay : True [2022/08/01 17:51:34] ppcls INFO: weight_decay : 0.05 [2022/08/01 17:51:34] ppcls INFO: train with paddle 2.3.1 and device Place(gpu:0) W0801 17:51:34.209131 26352 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1 W0801 17:51:34.214239 26352 gpu_resources.cc:91] device: 0, cuDNN Version: 7.6. +++++++ [2022/08/01 17:51:41] ppcls INFO: [Eval][Epoch 0][Iter: 0/8]CELoss: 0.49065, loss: 0.49065, top1: 0.89844, top5: 0.97656, batch_cost: 5.42404s, reader_cost: 2.71487, ips: 23.59865 images/sec [2022/08/01 17:51:42] ppcls INFO: [Eval][Epoch 0][Avg]CELoss: 0.39882, loss: 0.39882, top1: 0.94510, top5: 0.98529
| model | Val Acc |
|---|---|
| ResNet50vd | 0.95588 |
| Swin-Transformer | 0.94510 |
| HorNet | 0.96961 |
从实验结果可以看出，HorNet优势还是很明显的，这也表明HorNet中模块的有效性
以上就是HorNet: 高效的空间交互模块的详细内容，更多请关注php中文网其它相关文章！
每个人都需要一台速度更快、更稳定的 PC。随着时间的推移，垃圾文件、旧注册表数据和不必要的后台进程会占用资源并降低性能。幸运的是，许多工具可以让 Windows 保持平稳运行。
Copyright 2014-2025 https://www.php.cn/ All Rights Reserved | php.cn | 湘ICP备2023035733号
862
收藏
