【ICLR 2022】自适应傅里叶神经算子：Transfomer的有效令牌混合器

%matplotlib inlineimport paddleimport numpy as npimport matplotlib.pyplot as pltfrom paddle.vision.datasets import Cifar10from paddle.vision.transforms import Transposefrom paddle.io import Dataset, DataLoaderfrom paddle import nnimport paddle.nn.functional as Fimport paddle.vision.transforms as transformsimport osimport matplotlib.pyplot as pltfrom matplotlib.pyplot import figureimport itertoolsfrom functools import partialimport math

train_tfm = transforms.Compose([
    transforms.RandomResizedCrop(224, scale=(0.6, 1.0)),
    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),
    transforms.RandomHorizontalFlip(0.5),
    transforms.RandomRotation(20),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

test_tfm = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

paddle.vision.set_image_backend('cv2')# 使用Cifar10数据集train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )
val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)print("train_dataset: %d" % len(train_dataset))print("val_dataset: %d" % len(val_dataset))

batch_size=256

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

class LabelSmoothingCrossEntropy(nn.Layer):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing    def forward(self, pred, target):

        confidence = 1. - self.smoothing
        log_probs = F.log_softmax(pred, axis=-1)
        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)
        nll_loss = paddle.gather_nd(-log_probs, index=idx)
        smooth_loss = paddle.mean(-log_probs, axis=-1)
        loss = confidence * nll_loss + self.smoothing * smooth_loss        return loss.mean()

def drop_path(x, drop_prob=0.0, training=False):
    """
    Drop paths (Stochastic Depth) per sample (when applied in main path of residual blocks).
    the original name is misleading as 'Drop Connect' is a different form of dropout in a separate paper...
    See discussion: https://github.com/tensorflow/tpu/issues/494#issuecomment-532968956 ...
    """
    if drop_prob == 0.0 or not training:        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (paddle.shape(x)[0],) + (1,) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor)  # binarize
    output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)

class AFNO2D(nn.Layer):
    """
    hidden_size: channel dimension size
    num_blocks: how many blocks to use in the block diagonal weight matrices (higher => less complexity but less parameters)
    sparsity_threshold: lambda for softshrink
    hard_thresholding_fraction: how many frequencies you want to completely mask out (lower => hard_thresholding_fraction^2 less FLOPs)
    """
    def __init__(self, hidden_size, num_blocks=8, sparsity_threshold=0.01, hard_thresholding_fraction=1, hidden_size_factor=1):
        super().__init__()        assert hidden_size % num_blocks == 0, f"hidden_size {hidden_size} should be divisble by num_blocks {num_blocks}"

        self.hidden_size = hidden_size
        self.sparsity_threshold = sparsity_threshold
        self.num_blocks = num_blocks
        self.block_size = self.hidden_size // self.num_blocks
        self.hard_thresholding_fraction = hard_thresholding_fraction
        self.hidden_size_factor = hidden_size_factor
        self.scale = 0.02

        self.w1 = self.create_parameter(shape=(2, self.num_blocks, self.block_size, self.block_size * self.hidden_size_factor), default_initializer=nn.initializer.TruncatedNormal(std=.02))
        self.b1 = self.create_parameter(shape=(2, self.num_blocks, self.block_size * self.hidden_size_factor), default_initializer=nn.initializer.TruncatedNormal(std=.02))
        self.w2 = self.create_parameter(shape=(2, self.num_blocks, self.block_size * self.hidden_size_factor, self.block_size), default_initializer=nn.initializer.TruncatedNormal(std=.02))
        self.b2 = self.create_parameter(shape=(2, self.num_blocks, self.block_size), default_initializer=nn.initializer.TruncatedNormal(std=.02))    def forward(self, x, spatial_size=None):
        bias = x

        B, N, C = x.shape        if spatial_size == None:
            H = W = int(math.sqrt(N))        else:
            H, W = spatial_size

        x = x.reshape((B, H, W, C))
        x = paddle.fft.rfft2(x, axes=(1, 2), norm="ortho")
        x = x.reshape((B, x.shape[1], x.shape[2], self.num_blocks, self.block_size))

        o1_real = paddle.zeros([B, x.shape[1], x.shape[2], self.num_blocks, self.block_size * self.hidden_size_factor])
        o1_imag = paddle.zeros([B, x.shape[1], x.shape[2], self.num_blocks, self.block_size * self.hidden_size_factor])
        o2_real = paddle.zeros(x.shape)
        o2_imag = paddle.zeros(x.shape)

        total_modes = N // 2 + 1
        kept_modes = int(total_modes * self.hard_thresholding_fraction)

        o1_real[:, :, :kept_modes] = F.relu(
            paddle.einsum('bhwnc, ncd->bhwnd', x[:, :, :kept_modes].real(), self.w1[0]) -
            paddle.einsum('bhwnc, ncd->bhwnd', x[:, :, :kept_modes].imag(), self.w1[1]) +
            self.b1[0]
        )

        o1_imag[:, :, :kept_modes] = F.relu(
            paddle.einsum('bhwnc, ncd->bhwnd', x[:, :, :kept_modes].imag(), self.w1[0]) +
            paddle.einsum('bhwnc, ncd->bhwnd', x[:, :, :kept_modes].real(), self.w1[1]) +
            self.b1[1]
        )

        o2_real[:, :, :kept_modes] = (
            paddle.einsum('bhwnc, ncd->bhwnd', o1_real[:, :, :kept_modes], self.w2[0]) -
            paddle.einsum('bhwnc, ncd->bhwnd', o1_imag[:, :, :kept_modes], self.w2[1]) +
            self.b2[0]
        )

        o2_imag[:, :, :kept_modes] = (
            paddle.einsum('bhwnc, ncd->bhwnd', o1_imag[:, :, :kept_modes], self.w2[0]) +
            paddle.einsum('bhwnc, ncd->bhwnd', o1_real[:, :, :kept_modes], self.w2[1]) +
            self.b2[1]
        )

        x = paddle.stack([o2_real, o2_imag], axis=-1)
        x = F.softshrink(x, threshold=self.sparsity_threshold)
        x = paddle.as_complex(x)
        x = x.reshape((B, x.shape[1], x.shape[2], C))
        x = paddle.fft.irfft2(x, s=(H, W), axes=(1, 2), norm="ortho")
        x = x.reshape((B, N, C))        return x + bias

class Mlp(nn.Layer):
    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.fc1 = nn.Linear(in_features, hidden_features)
        self.act = act_layer()
        self.fc2 = nn.Linear(hidden_features, out_features)
        self.drop = nn.Dropout(drop)    def forward(self, x):
        x = self.fc1(x)
        x = self.act(x)
        x = self.drop(x)
        x = self.fc2(x)
        x = self.drop(x)        return x

class Block(nn.Layer):
    def __init__(self, dim, hidden_size, fno_blocks, mlp_ratio=4., drop=0., drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, h=14, w=8, use_fno=False, use_blocks=False):
        super().__init__()
        self.norm1 = norm_layer(dim)

        self.filter = AFNO2D(hidden_size=hidden_size, num_blocks=fno_blocks, sparsity_threshold=0.01, hard_thresholding_fraction=1, hidden_size_factor=1)

        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()
        self.norm2 = norm_layer(dim)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop)    def forward(self, x):
        residual = x
        x = self.norm1(x)
        x = self.filter(x)

        x = x + residual
        residual = x

        x = self.norm2(x)
        x = self.mlp(x)
        x = self.drop_path(x)
        x = x + residual        return x

def to_2tuple(x):
    return (x, x)class PatchEmbed(nn.Layer):
    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768):
        super().__init__()
        img_size = to_2tuple(img_size)
        patch_size = to_2tuple(patch_size)
        num_patches = (img_size[1] // patch_size[1]) * (img_size[0] // patch_size[0])
        self.img_size = img_size
        self.patch_size = patch_size
        self.num_patches = num_patches

        self.proj = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size)    def forward(self, x):
        B, C, H, W = x.shape        # FIXME look at relaxing size constraints
        assert H == self.img_size[0] and W == self.img_size[1],             f"Input image size ({H}*{W}) doesn't match model ({self.img_size[0]}*{self.img_size[1]})."
        x = self.proj(x).flatten(2).transpose([0, 2, 1])        return x

class DownLayer(nn.Layer):
    def __init__(self, img_size=56, dim_in=64, dim_out=128):
        super().__init__()
        self.img_size = img_size
        self.dim_in = dim_in
        self.dim_out = dim_out
        self.proj = nn.Conv2D(dim_in, dim_out, kernel_size=2, stride=2)
        self.num_patches = img_size * img_size // 4

    def forward(self, x):
        B, N, C = x.size()
        x = x.reshape((B, self.img_size, self.img_size, C)).transpose([0, 3, 1, 2])
        x = self.proj(x).transpose([0, 2, 3, 1])
        x = x.reshape((B, -1, self.dim_out))        return x

class AFNONet(nn.Layer):
    def __init__(self, img_size=224, patch_size=16, in_chans=3, num_classes=1000, embed_dim=384, depth=12,
                 mlp_ratio=4., representation_size=None, uniform_drop=False,
                 drop_rate=0., drop_path_rate=0., norm_layer=None,
                 dropcls=0, use_fno=False, use_blocks=False, hidden_size=384, fno_blocks=2):

        super().__init__()

        self.num_classes = num_classes
        self.num_features = self.embed_dim = embed_dim  # num_features for consistency with other models
        norm_layer = norm_layer or partial(nn.LayerNorm, epsilon=1e-6)

        self.patch_embed = PatchEmbed(
                img_size=img_size, patch_size=patch_size, in_chans=in_chans, embed_dim=embed_dim)
        num_patches = self.patch_embed.num_patches

        self.pos_embed = self.create_parameter(shape=(1, num_patches, embed_dim), default_initializer=nn.initializer.TruncatedNormal(std=.02))
        self.pos_drop = nn.Dropout(p=drop_rate)

        h = img_size // patch_size
        w = h // 2 + 1

        if uniform_drop:            # print('using uniform droppath with expect rate', drop_path_rate)
            dpr = [drop_path_rate for _ in range(depth)]  # stochastic depth decay rule
        else:            # print('using linear droppath with expect rate', drop_path_rate * 0.5)
            dpr = [x.item() for x in paddle.linspace(0, drop_path_rate, depth)]  # stochastic depth decay rule
        # dpr = [drop_path_rate for _ in range(depth)]  # stochastic depth decay rule

        self.blocks = nn.LayerList([
            Block(
                dim=embed_dim, hidden_size=hidden_size, fno_blocks=fno_blocks, mlp_ratio=mlp_ratio,
                drop=drop_rate, drop_path=dpr[i], norm_layer=norm_layer, h=h, w=w, use_fno=use_fno, use_blocks=use_blocks)            for i in range(depth)])

        self.norm = norm_layer(embed_dim)        # Representation layer
        if representation_size:
            self.num_features = representation_size
            self.pre_logits = nn.Sequential(OrderedDict([
                ('fc', nn.Linear(embed_dim, representation_size)),
                ('act', nn.Tanh())
            ]))        else:
            self.pre_logits = nn.Identity()        # Classifier head
        self.head = nn.Linear(self.num_features, num_classes) if num_classes > 0 else nn.Identity()        if dropcls > 0:            print('dropout %.2f before classifier' % dropcls)
            self.final_dropout = nn.Dropout(p=dropcls)        else:
            self.final_dropout = nn.Identity()

        self.apply(self._init_weights)    def _init_weights(self, m):
        tn = nn.initializer.TruncatedNormal(std=.02)
        zero = nn.initializer.Constant(0.0)
        one = nn.initializer.Constant(1.0)        if isinstance(m, nn.Linear):
            tn(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:
                zero(m.bias)        elif isinstance(m, nn.LayerNorm):
            zero(m.bias)
            one(m.weight)    def forward_features(self, x):
        B = x.shape[0]
        x = self.patch_embed(x)
        x = x + self.pos_embed
        x = self.pos_drop(x)        for blk in self.blocks:
            x = blk(x)

        x = self.norm(x).mean(1)        return x    def forward(self, x):
        x = self.forward_features(x)
        x = self.final_dropout(x)
        x = self.head(x)        return x

model = AFNONet(num_classes=10)

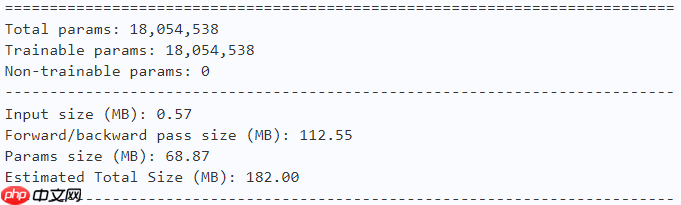

paddle.summary(model, (1, 3, 224, 224))

learning_rate = 0.001n_epochs = 100paddle.seed(42)
np.random.seed(42)

work_path = 'work/model'# AFNONetmodel = AFNONet(num_classes=10)

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0threshold = 0.0best_acc = 0.0val_acc = 0.0loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording lossacc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracyloss_iter = 0acc_iter = 0for epoch in range(n_epochs):    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = accuracy_manager.compute(logits, labels)
        accuracy_manager.update(acc)        if batch_id % 10 == 0:
            loss_record['train']['loss'].append(loss.numpy())
            loss_record['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record['train']['acc'].append(train_acc)
    acc_record['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.

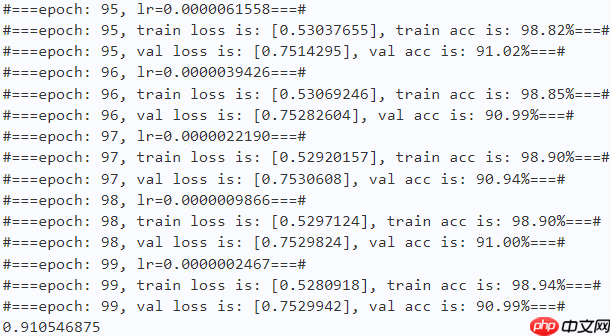

    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))    # ---------- Validation ----------
    model.eval()    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = val_accuracy_manager.compute(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record['val']['loss'].append(total_val_loss.numpy())
    loss_record['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record['val']['acc'].append(val_acc)
    acc_record['val']['iter'].append(acc_iter)    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):
    ''' Plot learning curve of your CNN '''
    maxtrain = max(map(float, record['train'][title]))
    maxval = max(map(float, record['val'][title]))
    ymax = max(maxtrain, maxval) * 1.1
    mintrain = min(map(float, record['train'][title]))
    minval = min(map(float, record['val'][title]))
    ymin = min(mintrain, minval) * 0.9

    total_steps = len(record['train'][title])
    x_1 = list(map(int, record['train']['iter']))
    x_2 = list(map(int, record['val']['iter']))
    figure(figsize=(10, 6))
    plt.plot(x_1, record['train'][title], c='tab:red', label='train')
    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')
    plt.ylim(ymin, ymax)
    plt.xlabel('Training steps')
    plt.ylabel(ylabel)
    plt.title('Learning curve of {}'.format(title))
    plt.legend()
    plt.show()

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

import time
work_path = 'work/model'model = AFNONet(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

def get_cifar10_labels(labels):
    """返回CIFAR10数据集的文本标签。"""
    text_labels = [        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',        'horse', 'ship', 'truck']    return [text_labels[int(i)] for i in labels]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):
    """Plot a list of images."""
    figsize = (num_cols * scale, num_rows * scale)
    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)
    axes = axes.flatten()    for i, (ax, img) in enumerate(zip(axes, imgs)):        if paddle.is_tensor(img):
            ax.imshow(img.numpy())        else:
            ax.imshow(img)
        ax.axes.get_xaxis().set_visible(False)
        ax.axes.get_yaxis().set_visible(False)        if pred or gt:
            ax.set_title("pt: " + pred[i] + "
gt: " + gt[i])    return axes

work_path = 'work/model'X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = AFNONet(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 224, 224, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()
