本文复现了CVPR 2020的GSM视频分类模型，用Paddle2.0在Diving48数据集实现。该模型通过分解3D卷积核实现时空域视频理解，参数量小。项目处理了数据集，将视频转帧、生成训练测试文件，经训练测试，最佳模型在测试集准确率达0.223。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜
本项目使用paddle2.0实现了视频动作分类GSM模型，并在Diving48数据集上进行了训练和验证。
Diving48数据集的划分是按数据集官方网站的划分方法进行划分的。
Gate-Shift Networks for Video Action Recognition (GSM) 的核心是对进行时空域视频理解的3D卷积核进行分解的一种方法。该方法和已有方法的比较如下图所示。从图中可以看出，该模型跟其它网络模块相比具有参数量小的优点。

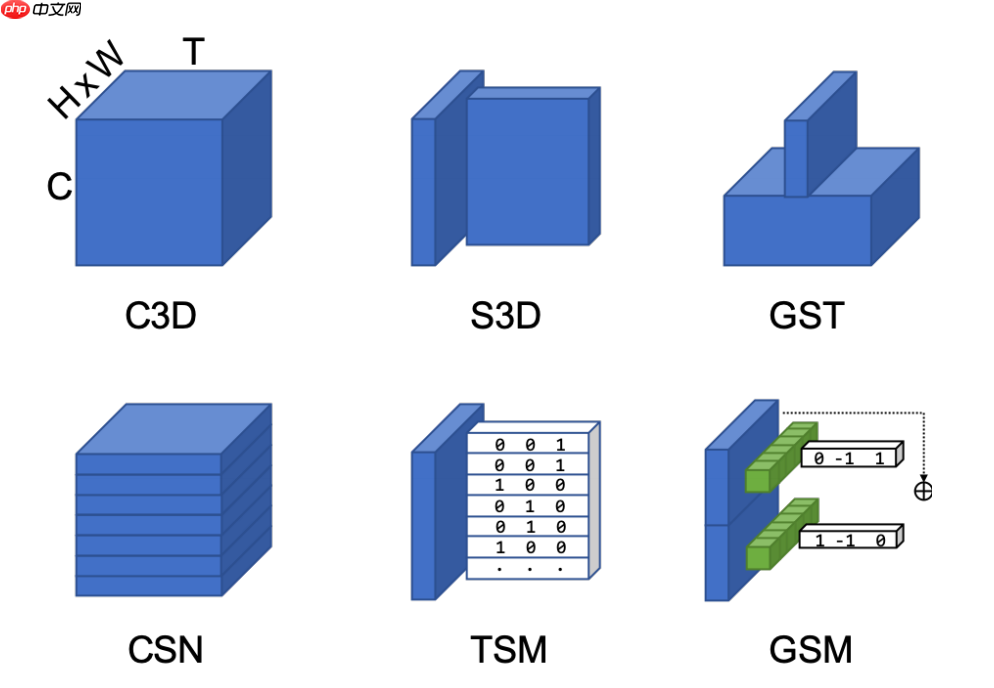

图1 GSM和其它网络结构比较图
模型实现细节如下图所示。

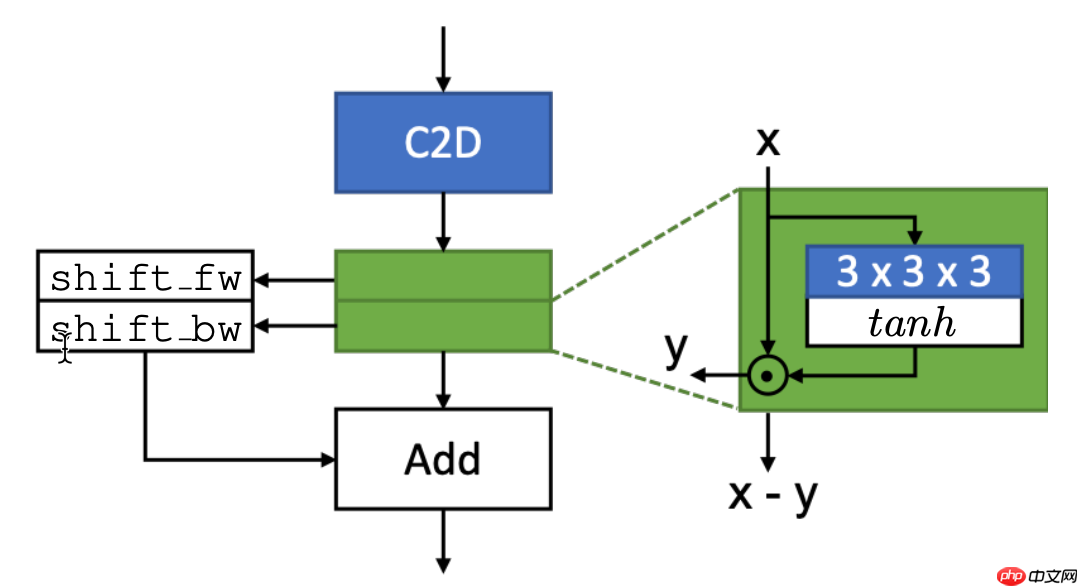

图2 GSM实现细节图
GSM模块可以加在已有网络的不同部分，论文作者通过实验得出，将GSM模块加在下图所示的网络分支示例中具有较好的效果，即卷积核尺寸较小的分支中。

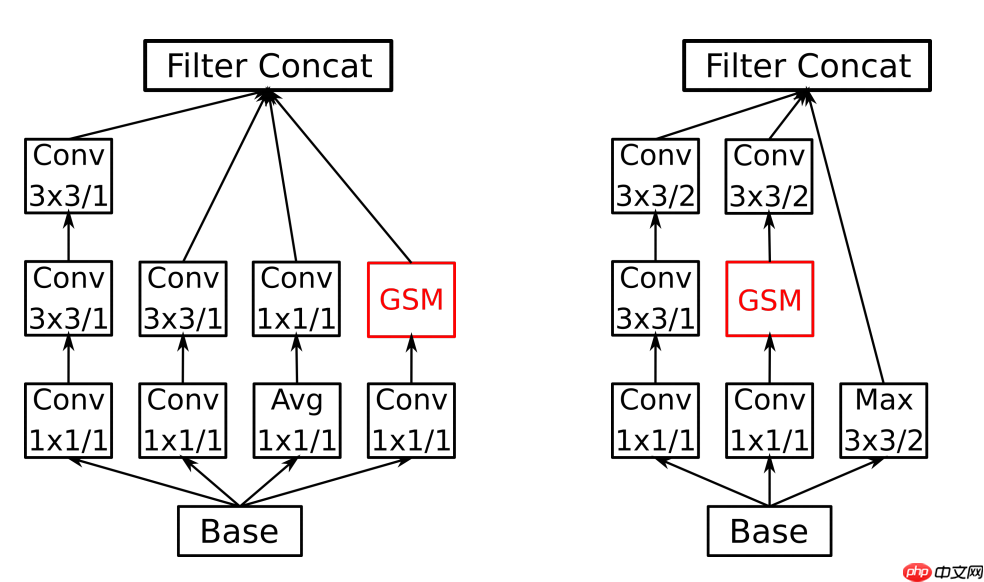

图3 GSM的plug-and-play示意图
论文原文：GSM: Gate-Shift Networks for Video Action Recognition
本项目使用Diving48数据集进行训练和测试. 数据集官方网站为Diving48数据集
Diving48是跳水竞赛不同动作的细粒度视频数据集。该数据集包含48类不同的跳水标准动作，共18k左右个视频片段。由于不同的跳水动作可能在起跳、腾空和入水的三个不同阶段中的任一个阶段发生不同，需要模型学习视频中的长时间段间的特征关系。动作示例如下图所示：

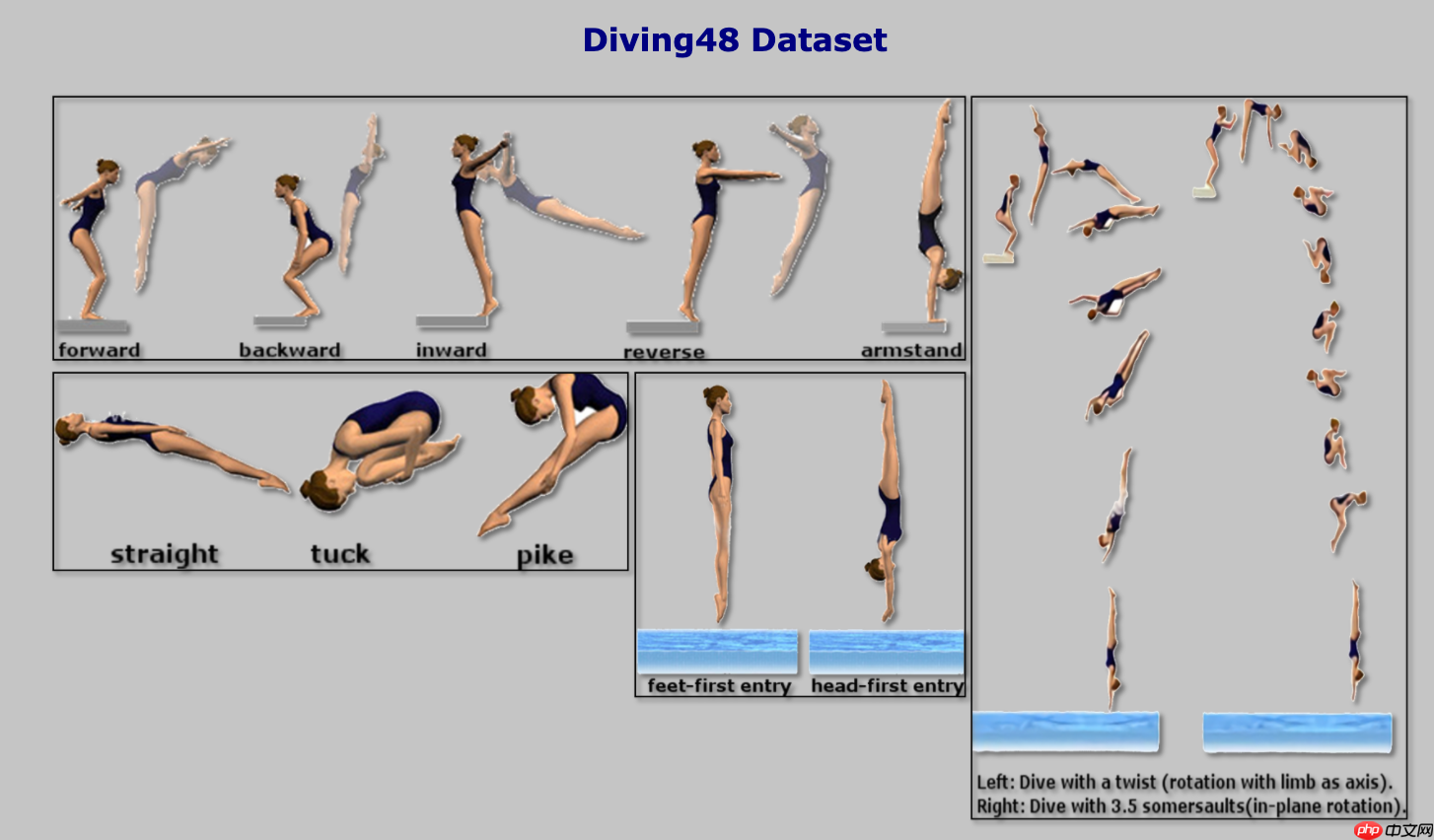

图4 Diving48动作示意图
这48个类别中的每一个都是由三个不同的动作构成的，分别是起跳动作 (dive groups), 空中动作(somersaults and/or twists), 入水动作 (dive positions)。 下图展示了这48个类别的不同动作组成与互相间的关系：

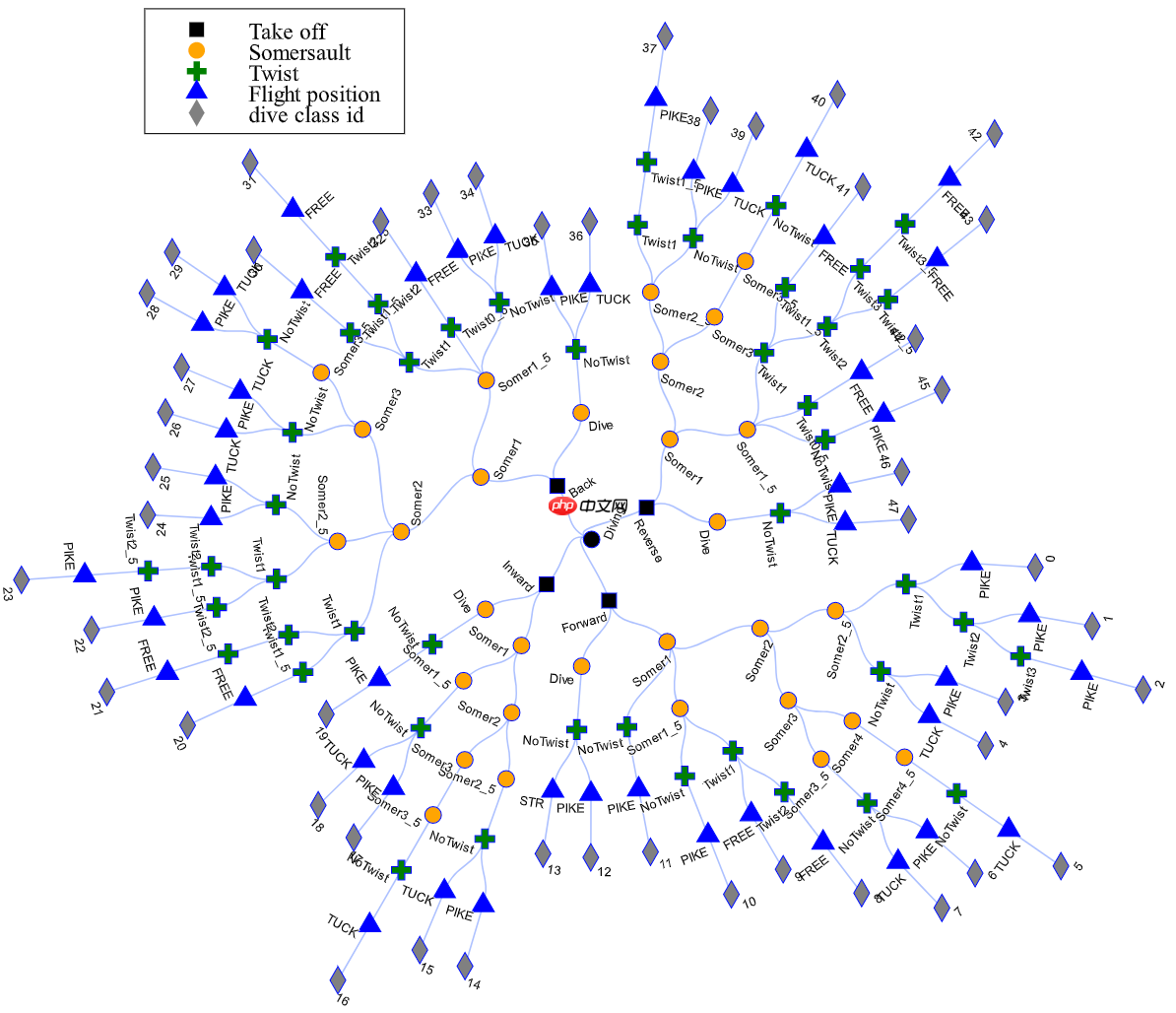

图5 Diving48中不同动作间关系示意图
| 文件名或文件夹名 | 功能 |
|---|---|
| model | 模型 |
| best_model | 训练好的模型 |
| result | 训练过程中的数据 |
| dataset | 数据文件夹 |
| checkpoints_models | 模型文件 |
| pretrained_model | 预训练模型 |
| extract_frames_diving48.py | 从视频中抽帧 |
| process_dataset_diving.py | 生成训练与测试的数据文件 |
| dataset.py | 自定义数据 |
| datasets_video.py | 读取数据 |
| transforms.py | 数据增强 |
| train.py | 模型训练 |
| test.py | 模型测试 |
import osif not os.path.exists('dataset/Diving48'):
os.makedirs('dataset/Diving48')!tar -xzf data/data56350/Diving48_rgb.tar.gz -C dataset/Diving48
仅在预测时使用
import jsonimport numpy as np
label_dir = {}
i = 0with open('data/data56350/Diving48_vocab.json', 'r') as f:
vocab_list = json.load(f)
for vocab in vocab_list:
label_dir['_'.join(vocab)] = i
i += 1np.save('work/label_dir.npy', label_dir)print(label_dir){'Back_15som_05Twis_FREE': 0, 'Back_15som_15Twis_FREE': 1, 'Back_15som_25Twis_FREE': 2, 'Back_15som_NoTwis_PIKE': 3, 'Back_15som_NoTwis_TUCK': 4, 'Back_25som_15Twis_PIKE': 5, 'Back_25som_25Twis_PIKE': 6, 'Back_25som_NoTwis_PIKE': 7, 'Back_25som_NoTwis_TUCK': 8, 'Back_2som_15Twis_FREE': 9, 'Back_2som_25Twis_FREE': 10, 'Back_35som_NoTwis_PIKE': 11, 'Back_35som_NoTwis_TUCK': 12, 'Back_3som_NoTwis_PIKE': 13, 'Back_3som_NoTwis_TUCK': 14, 'Back_Dive_NoTwis_PIKE': 15, 'Back_Dive_NoTwis_TUCK': 16, 'Forward_15som_1Twis_FREE': 17, 'Forward_15som_2Twis_FREE': 18, 'Forward_15som_NoTwis_PIKE': 19, 'Forward_1som_NoTwis_PIKE': 20, 'Forward_25som_1Twis_PIKE': 21, 'Forward_25som_2Twis_PIKE': 22, 'Forward_25som_3Twis_PIKE': 23, 'Forward_25som_NoTwis_PIKE': 24, 'Forward_25som_NoTwis_TUCK': 25, 'Forward_35som_NoTwis_PIKE': 26, 'Forward_35som_NoTwis_TUCK': 27, 'Forward_45som_NoTwis_TUCK': 28, 'Forward_Dive_NoTwis_PIKE': 29, 'Forward_Dive_NoTwis_STR': 30, 'Inward_15som_NoTwis_PIKE': 31, 'Inward_15som_NoTwis_TUCK': 32, 'Inward_25som_NoTwis_PIKE': 33, 'Inward_25som_NoTwis_TUCK': 34, 'Inward_35som_NoTwis_TUCK': 35, 'Inward_Dive_NoTwis_PIKE': 36, 'Reverse_15som_05Twis_FREE': 37, 'Reverse_15som_15Twis_FREE': 38, 'Reverse_15som_25Twis_FREE': 39, 'Reverse_15som_35Twis_FREE': 40, 'Reverse_15som_NoTwis_PIKE': 41, 'Reverse_25som_15Twis_PIKE': 42, 'Reverse_25som_NoTwis_PIKE': 43, 'Reverse_25som_NoTwis_TUCK': 44, 'Reverse_35som_NoTwis_TUCK': 45, 'Reverse_Dive_NoTwis_PIKE': 46, 'Reverse_Dive_NoTwis_TUCK': 47}视频转换需要较长时间，不低于1个小时，建议转换到非data文件夹以便后续启动项目后可以直接使用。
!python work/extract_frames_diving48.py
