基于飞桨框架2.1实现U-Net与PSPNet图像分割算法对路面分割

# 解压文件到数据集的文件夹!mkdir work/dataset
!unzip -q  data/data71331/RTK_Segmentation.zip -d work/dataset/
!unzip -q  data/data71331/tests.zip -d work/dataset/

# 新建验证集的文件夹!mkdir work/dataset/val_frames
!mkdir work/dataset/val_colors
!mkdir work/dataset/val_masks

# 将数据随机抽50张移动到作为验证集import osimport shutilimport redef moveImgDir(color_dir, newcolor_dir, mask_dir, newmask_dir, frames_dir, newframes_dir):
    filenames = os.listdir(color_dir)
    filenames.sort()
    for index, filename in enumerate(filenames):
        src = os.path.join(color_dir,filename)
        dst = os.path.join(newcolor_dir,filename)
        shutil.move(src, dst)        # colors 文件夹中的文件名多了GT，所以要去掉
        new_filename = re.sub('GT', '', filename)
        src = os.path.join(mask_dir, new_filename)
        dst = os.path.join(newmask_dir, new_filename)
        shutil.move(src, dst)
        src = os.path.join(frames_dir, new_filename)
        dst = os.path.join(newframes_dir, new_filename)
        shutil.move(src, dst)        if index == 50:            breakmoveImgDir(r"work/dataset/colors", r"work/dataset/val_colors",r"work/dataset/masks", r"work/dataset/val_masks",r"work/dataset/frames", r"work/dataset/val_frames")

# 查看mask图像和color图像之间的标签映射, 并保存成json文件import osimport cv2import numpy as npimport reimport json

labels = ['Background', 'Asphalt', 'Paved', 'Unpaved',
        'Markings', 'Speed-Bump', 'Cats-Eye', 'Storm-Drain',
        'Patch', 'Water-Puddle', 'Pothole', 'Cracks']

label_color_dict = {}
mask_dir = r"work/dataset/masks"color_dir = r"work/dataset/colors"mask_names = [f for f in os.listdir(mask_dir) if f.endswith('png')]
color_names = [f for f in os.listdir(color_dir) if f.endswith('png')]for index, label in enumerate(labels):    if index>=8:
        index += 1

    for color_name in color_names:
        color = cv2.imread(os.path.join(color_dir, color_name), -1)
        color = cv2.cvtColor(color, cv2.COLOR_BGR2RGB)
        mask_name = re.sub('GT', '', color_name)
        mask = cv2.imread(os.path.join(mask_dir, mask_name), -1)
        mask_color = color[np.where(mask == index)]        if len(mask_color)!= 0:
            label_color_dict[label] = list(mask_color[0].astype(float))            breakwith open(r"work/dataset/mask2color.json", "w", encoding='utf-8') as f:        # json.dump(dict_, f)  # 写为一行
        json.dump(label_color_dict, f, indent=2, sort_keys=True, ensure_ascii=False)  # 写为多行

# 数据集类定义前置工作import osimport numpy as npimport cv2import paddlefrom paddle.io import Dataset, DataLoaderfrom work.Class3.data_transform import Compose, Normalize, RandomSacle, RandomFlip,ConvertDataType,Resize

IMG_EXTENSIONS = ['.jpg', '.JPG', '.jpeg', '.JPEG', '.png', '.PNG', '.ppm', '.PPM', '.bmp', '.BMP']def is_image_file(filename):
    return any(filename.endswith(extension) for extension in IMG_EXTENSIONS)def get_paths_from_images(path):
    """get image path list from image folder"""
    assert os.path.isdir(path), '{:s} is not a valid directory'.format(path)
    images = []    for dirpath, _, fnames in sorted(os.walk(path)):        for fname in sorted(fnames):            if is_image_file(fname):
                img_path = os.path.join(dirpath, fname)
                images.append(img_path)    assert images, '{:s} has no valid image file'.format(path)    return images

# 训练集类class BasicDataset(Dataset):
    '''
    '''
    def __init__(self, image_folder, label_folder, size):
        super(BasicDataset, self).__init__()
        self.image_folder = image_folder
        self.label_folder = label_folder
        self.path_Img = get_paths_from_images(image_folder)        if label_folder is not None:
            self.path_Label = get_paths_from_images(label_folder)
        self.size = size
        self.transform = Compose(
            [RandomSacle(),
            RandomFlip(),
            Resize(self.size),
            ConvertDataType(),
            Normalize(0,1)
           ]
        )    def preprocess(self, data, label):
        h,w,c=data.shape
        h_gt, w_gt=label.shape        assert h==h_gt, "error"
        assert w==w_gt, "error"
        data, label=self.transform(data, label)
        label=label[:,:,np.newaxis]        return data, label

    def __getitem__(self,index):
        Img_path, Label_path = None, None
        Img_path = self.path_Img[index]
        Label_path = self.path_Label[index]

        data = cv2.imread(Img_path , cv2.IMREAD_COLOR)
        data = cv2.cvtColor(data, cv2.COLOR_BGR2RGB)
        label = cv2.imread(Label_path, cv2.IMREAD_GRAYSCALE)
        data,label = self.preprocess(data, label)        return {'Image': data, 'Label': label}    def __len__(self):
        return len(self.path_Img)

# 测试集类定义class Basic_ValDataset(Dataset):
    '''
    需要读取数据并返回转换过的数据、标签以及图像数据的路径
    '''
    def __init__(self, image_folder, label_folder, size):
        super(Basic_ValDataset, self).__init__()
        self.image_folder = image_folder
        self.label_folder = label_folder
        self.path_Img = get_paths_from_images(image_folder)        if label_folder is not None:
            self.path_Label = get_paths_from_images(label_folder)
        self.size = size
        self.transform = Compose(
            [Resize(size),
            ConvertDataType(),
            Normalize(0,1)
           ]
        )    def preprocess(self, data, label):
        h,w,c=data.shape
        h_gt, w_gt=label.shape        assert h==h_gt, "error"
        assert w==w_gt, "error"
        data, label=self.transform(data, label)
        label=label[:,:,np.newaxis]        return data, label

    def __getitem__(self,index):
        Img_path, Label_path = None, None
        Img_path = self.path_Img[index]
        Label_path = self.path_Label[index]

        data = cv2.imread(Img_path , cv2.IMREAD_COLOR)
        data = cv2.cvtColor(data, cv2.COLOR_BGR2RGB)
        label = cv2.imread(Label_path, cv2.IMREAD_GRAYSCALE)
        data,label = self.preprocess(data, label)        return {'Image': data, 'Label': label, 'Path':Img_path}    def __len__(self):
        return len(self.path_Img)

# 数据集类的测试，看是否能正常工作%matplotlib inlineimport matplotlib.pyplot as plt

paddle.device.set_device("cpu")with paddle.no_grad():
    dataset = BasicDataset("work/dataset/frames", "work/dataset/masks", 256)
    dataloader = DataLoader(dataset, batch_size = 1, shuffle = True, num_workers = 0)    for index, traindata in enumerate(dataloader):
        image = traindata["Image"]
        image = np.asarray(image)[0]
        label = traindata["Label"]
        label = np.asarray(label)[0]
        print(image.shape, label.shape)

        plt.subplot(1,2,1), plt.title('frames')
        plt.imshow(image), plt.axis('off')
        plt.subplot(1,2,2), plt.title('label')
        plt.imshow(label.squeeze()), plt.axis('off')
        plt.show()        print(50*'*')        if index == 5:            break

import paddleimport paddle.nn as nnfrom paddle.nn import functional as Fimport numpy as npclass SeparableConv2D(paddle.nn.Layer):
    def __init__(self,
                 in_channels,
                 out_channels,
                 kernel_size,
                 stride=1,
                 padding=0,
                 dilation=1,
                 groups=None,
                 weight_attr=None,
                 bias_attr=None,
                 data_format="NCHW"):
        super(SeparableConv2D, self).__init__()

        self._padding = padding
        self._stride = stride
        self._dilation = dilation
        self._in_channels = in_channels
        self._data_format = data_format        # 第一次卷积参数，没有偏置参数
        filter_shape = [in_channels, 1] + self.convert_to_list(kernel_size, 2, 'kernel_size')
        self.weight_conv = self.create_parameter(shape=filter_shape, attr=weight_attr)        # 第二次卷积参数
        filter_shape = [out_channels, in_channels] + self.convert_to_list(1, 2, 'kernel_size')
        self.weight_pointwise = self.create_parameter(shape=filter_shape, attr=weight_attr)
        self.bias_pointwise = self.create_parameter(shape=[out_channels],
                                                    attr=bias_attr,
                                                    is_bias=True)
    def convert_to_list(self, value, n, name, dtype=np.int):
        if isinstance(value, dtype):            return [value, ] * n        else:            try:
                value_list = list(value)            except TypeError:                raise ValueError("The " + name +                                "'s type must be list or tuple. Received: " + str(
                                    value))            if len(value_list) != n:                raise ValueError("The " + name + "'s length must be " + str(n) +                                ". Received: " + str(value))            for single_value in value_list:                try:
                    dtype(single_value)                except (ValueError, TypeError):                    raise ValueError(                        "The " + name + "'s type must be a list or tuple of " + str(
                            n) + " " + str(dtype) + " . Received: " + str(
                                value) + " "
                        "including element " + str(single_value) + " of type" + " "
                        + str(type(single_value)))            return value_list
    def forward(self, inputs):
        conv_out = F.conv2d(inputs,
                            self.weight_conv,
                            padding=self._padding,
                            stride=self._stride,
                            dilation=self._dilation,
                            groups=self._in_channels,
                            data_format=self._data_format)
        out = F.conv2d(conv_out,
                       self.weight_pointwise,
                       bias=self.bias_pointwise,
                       padding=0,
                       stride=1,
                       dilation=1,
                       groups=1,
                       data_format=self._data_format)        print('out:{}'.format(out.shape))        return out

class Encoder(paddle.nn.Layer):
    def __init__(self, in_channels, out_channels):
        super(Encoder, self).__init__()

        self.relus = paddle.nn.LayerList(
            [paddle.nn.ReLU() for i in range(2)])
        self.separable_conv_01 = SeparableConv2D(in_channels,
                                                 out_channels,
                                                 kernel_size=3,
                                                 padding='same')
        self.bns = paddle.nn.LayerList(
            [paddle.nn.BatchNorm2D(out_channels) for i in range(2)])

        self.separable_conv_02 = SeparableConv2D(out_channels,
                                                 out_channels,
                                                 kernel_size=3,
                                                 padding='same')
        self.pool = paddle.nn.MaxPool2D(kernel_size=3, stride=2, padding=1)
        self.residual_conv = paddle.nn.Conv2D(in_channels,
                                              out_channels,
                                              kernel_size=1,
                                              stride=2,
                                              padding='same')    def forward(self, inputs):
        previous_block_activation = inputs

        y = self.relus[0](inputs)
        y = self.separable_conv_01(y)
        y = self.bns[0](y)
        y = self.relus[1](y)
        y = self.separable_conv_02(y)
        y = self.bns[1](y)
        y = self.pool(y)

        residual = self.residual_conv(previous_block_activation)
        y = paddle.add(y, residual)        return y

class Decoder(paddle.nn.Layer):
    def __init__(self, in_channels, out_channels):
        super(Decoder, self).__init__()

        self.relus = paddle.nn.LayerList(
            [paddle.nn.ReLU() for i in range(2)])
        self.conv_transpose_01 = paddle.nn.Conv2DTranspose(in_channels,
                                                           out_channels,
                                                           kernel_size=3,
                                                           padding=1)
        self.conv_transpose_02 = paddle.nn.Conv2DTranspose(out_channels,
                                                           out_channels,
                                                           kernel_size=3,
                                                           padding=1)
        self.bns = paddle.nn.LayerList(
            [paddle.nn.BatchNorm2D(out_channels) for i in range(2)]
        )
        self.upsamples = paddle.nn.LayerList(
            [paddle.nn.Upsample(scale_factor=2.0) for i in range(2)]
        )
        self.residual_conv = paddle.nn.Conv2D(in_channels,
                                              out_channels,
                                              kernel_size=1,
                                              padding='same')    def forward(self, inputs):
        previous_block_activation = inputs

        y = self.relus[0](inputs)
        y = self.conv_transpose_01(y)
        y = self.bns[0](y)
        y = self.relus[1](y)
        y = self.conv_transpose_02(y)
        y = self.bns[1](y)
        y = self.upsamples[0](y)

        residual = self.upsamples[1](previous_block_activation)
        residual = self.residual_conv(residual)

        y = paddle.add(y, residual)
        return y

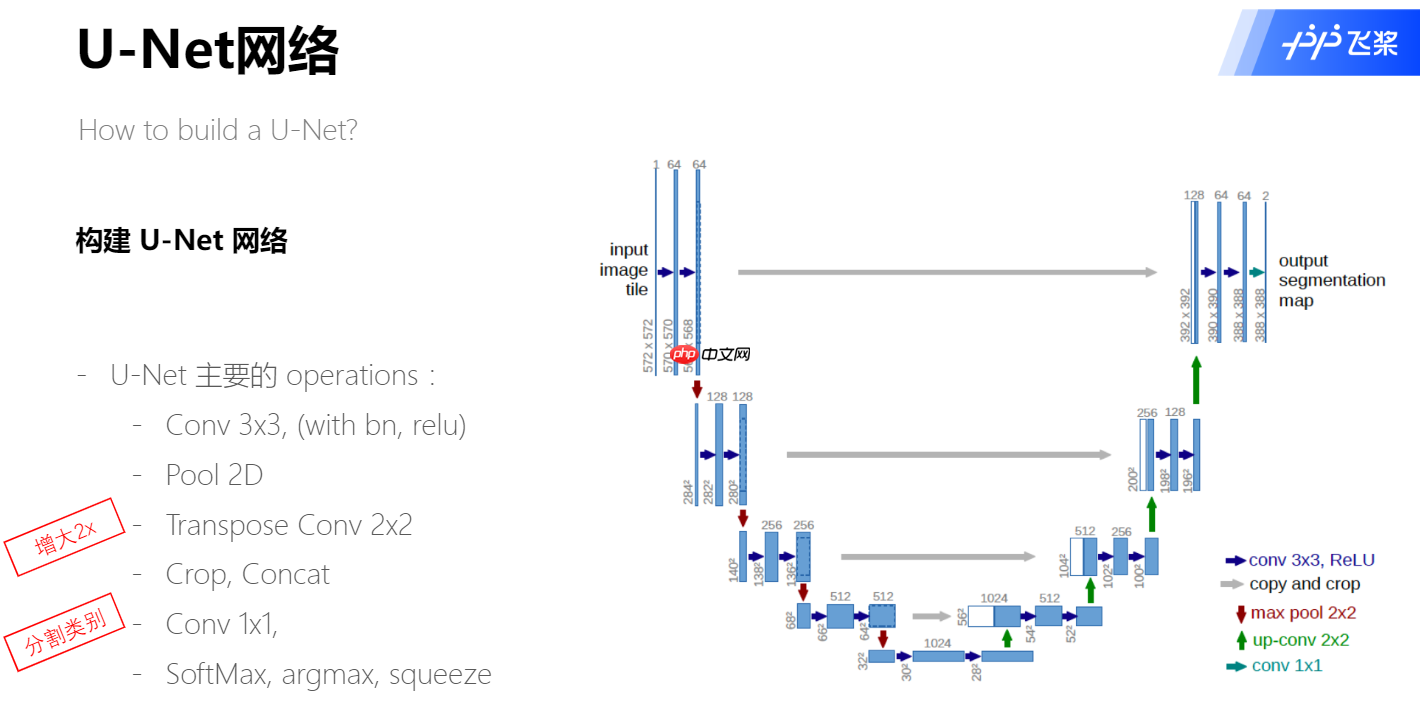

class UNet(paddle.nn.Layer):
    def __init__(self, num_classes):
        super(UNet, self).__init__()

        self.conv_1 = paddle.nn.Conv2D(3, 32,
                                       kernel_size=3,
                                       stride=2,
                                       padding='same')
        self.bn = paddle.nn.BatchNorm2D(32)
        self.relu = paddle.nn.ReLU()

        in_channels = 32
        self.encoders = []
        self.encoder_list = [64, 128, 256]
        self.decoder_list = [256, 128, 64, 32]        # 根据下采样个数和配置循环定义子Layer，避免重复写一样的程序
        for out_channels in self.encoder_list:
            block = self.add_sublayer('encoder_{}'.format(out_channels),
                                      Encoder(in_channels, out_channels))
            self.encoders.append(block)
            in_channels = out_channels

        self.decoders = []        # 根据上采样个数和配置循环定义子Layer，避免重复写一样的程序
        for out_channels in self.decoder_list:
            block = self.add_sublayer('decoder_{}'.format(out_channels),
                                      Decoder(in_channels, out_channels))
            self.decoders.append(block)
            in_channels = out_channels

        self.output_conv = paddle.nn.Conv2D(in_channels,
                                            num_classes,
                                            kernel_size=3,
                                            padding='same')
    def forward(self, inputs):
        y = self.conv_1(inputs)
        y = self.bn(y)
        y = self.relu(y)
        for encoder in self.encoders:
            y = encoder(y)        for decoder in self.decoders:
            y = decoder(y)

        y = self.output_conv(y)        return y

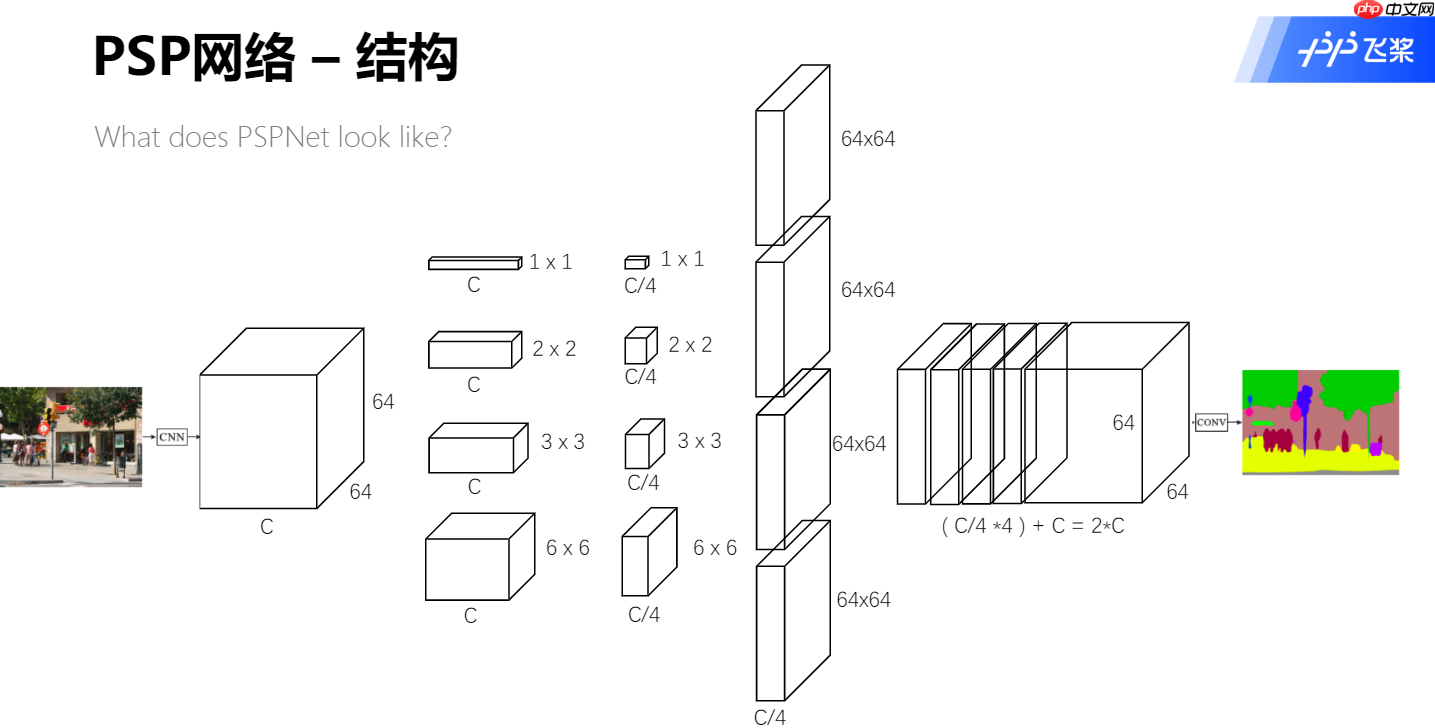

import paddle
import paddle.nn as nnimport paddle.nn.functional as Ffrom paddle.vision.models import resnet50, resnet101class PSPNet(nn.Layer):
    def __init__(self, num_classes=13, backbone_name = "resnet50"):
        super(PSPNet, self).__init__()        if backbone_name == "resnet50":
            backbone = resnet50(pretrained=True)        if backbone_name == "resnet101":
            backbone = resnet101(pretrained=True)
        #self.layer0 = nn.Sequential(*[backbone.conv1, backbone.bn1, backbone.relu, backbone.maxpool])
        self.layer0 = nn.Sequential(*[backbone.conv1, backbone.maxpool])
        self.layer1 = backbone.layer1
        self.layer2 = backbone.layer2
        self.layer3 = backbone.layer3
        self.layer4 = backbone.layer4

        num_channels = 2048

        self.pspmodule = PSPModule(num_channels, [1, 2, 3, 6])

        num_channels *= 2

        self.classifier = nn.Sequential(*[
            nn.Conv2D(num_channels, 512, 3, padding = 1),
            nn.BatchNorm2D(512),
            nn.ReLU(),
            nn.Dropout2D(0.1),
            nn.Conv2D(512, num_classes, 1)
        ])    def forward(self, inputs):
        x = self.layer0(inputs)
        x = self.layer1(x)
        x = self.layer2(x)
        x = self.layer3(x)
        x = self.layer4(x)
        x = self.pspmodule(x)
        x = self.classifier(x)
        out = F.interpolate(
                x,
                paddle.shape(inputs)[2:],
                mode='bilinear',
                align_corners=True)
        return out

class PSPModule(nn.Layer):
    def __init__(self, num_channels, bin_size_list):
        super(PSPModule, self).__init__()
        self.bin_size_list = bin_size_list
        num_filters = num_channels // len(bin_size_list)
        self.features = []        for i in range(len(bin_size_list)):
            self.features.append(nn.Sequential(*[
                nn.Conv2D(num_channels, num_filters, 1),
                nn.BatchNorm2D(num_filters),
                nn.ReLU()
            ]))    def forward(self, inputs):
        out = [inputs]        for idx, f in enumerate(self.features):
            pool = paddle.nn.AdaptiveAvgPool2D(self.bin_size_list[idx])
            x = pool(inputs)
            x = f(x)
            x = F.interpolate(x, paddle.shape(inputs)[2:], mode="bilinear", align_corners=True)
            out.append(x)

        out = paddle.concat(out, axis=1)        return out

# 训练模型, 记得修改train.py中的use_gpu参数为True!python work/Class3/train.py

import paddlefrom paddle.io import DataLoaderimport work.Class3.utils as utilsimport cv2import numpy as npimport osfrom work.Class3.unet import UNetfrom work.Class3.pspnet import PSPNet

# 加载模型函数def loadModel(net, model_path):
    if net == 'unet':
        model = UNet(13)    if net == 'pspnet':
        model = PSPNet()
    params_dict = paddle.load(model_path)
    model.set_state_dict(params_dict)    return model

# 验证函数，修改参数来选择要验证的模型def Val(net = 'unet'):
    image_folder = r"work/dataset/val_frames"
    label_folder = r"work/dataset/val_masks"
    model_path = r"work/Class3/output/{}_epoch200.pdparams".format(net)
    output_dir = r"work/Class3/val_result"
    if not os.path.isdir(output_dir):
        os.mkdir(output_dir)

    model = loadModel(net, model_path)
    model.eval()
    dataset = Basic_ValDataset(image_folder, label_folder, 256) # size为256
    dataloader = DataLoader(dataset, batch_size = 1, shuffle = False, num_workers = 1)

    result_dict = {}
    val_acc_list = []
    val_iou_list = []    for index, data in enumerate(dataloader):
        image = data["Image"]
        label = data["Label"]
        imgPath = data["Path"][0]
        image = paddle.transpose(image, [0, 3, 1, 2])
        pred = model(image)
        label_pred = np.argmax(pred.numpy(), 1)        # 计算acc和iou指标
        label_true = label.numpy()
        acc, acc_cls, mean_iu, fwavacc = utils.label_accuracy_score(label_true, label_pred, n_class=13)
        filename = imgPath.split('/')[-1]        print('{}, acc:{}, iou:{}, acc_cls{}'.format(filename, acc, mean_iu, acc_cls))
        val_acc_list.append(acc)
        val_iou_list.append(mean_iu)
        result = label_pred[0]
        cv2.imwrite(os.path.join(output_dir, filename), result)

    val_acc, val_iou = np.mean(val_acc_list), np.mean(val_iou_list)    print('val_acc:{}, val_iou{}'.format(val_acc, val_iou))

Val(net = 'unet') #验证U-Net

Val(net='pspnet') #验证PSPNet

# 预测结果转为color图像import jsonimport numpy as npfrom PIL import Image
import cv2import os

labels = ['Background', 'Asphalt', 'Paved', 'Unpaved',
        'Markings', 'Speed-Bump', 'Cats-Eye', 'Storm-Drain',
        'Patch', 'Water-Puddle', 'Pothole', 'Cracks']# 将标签影像转为color图像def mask2color(mask, labels):
    jsonfile = json.load(open(r"work/dataset/mask2color.json"))
    h, w = mask.shape[:2]
    color = np.zeros([h, w, 3])    for index in range(len(labels)):        if index>=8:
            mask_index = index+1 # mask标签需要改变
        else:
            mask_index = index        if mask_index in mask:
            color[np.where(mask == mask_index)] = np.asarray(jsonfile[labels[index]])        else:
            continue
    return color# 将转换好的color图保存在Class2文件夹下的val_color_result文件夹def save_color(net):
    save_dir = r"work/Class3/{}_color_result".format(net)    if not os.path.isdir(save_dir):
        os.mkdir(save_dir)

    mask_dir = r"work/Class3/val_result"
    mask_names = [f for f in os.listdir(mask_dir) if f.endswith('.png')]    for maskname in mask_names:
        mask = cv2.imread(os.path.join(mask_dir, maskname), -1)
        color = mask2color(mask, labels)
        result = Image.fromarray(np.uint8(color))
        result.save(os.path.join(save_dir, maskname))

save_color('pspnet')  #保存pspnet的预测结果转色彩图像

save_color('unet')  #保存unet的预测结果转色彩图像

import matplotlib.pyplot as pltfrom PIL import Imageimport os# 展示所用图片在example文件夹中newsize = (256, 256)
gt_color1 = Image.open(r"work/dataset/val_colors/000000000GT.png").resize(newsize)
frames1 = Image.open(r"work/dataset/val_frames/000000000.png").resize(newsize)
unet1 = Image.open(r"work/Class3/unet_color_result/000000000.png")
pspnet1 = Image.open(r"work/Class3/pspnet_color_result/000000000.png")

gt_color2 = Image.open(r"work/dataset/val_colors/000000032GT.png").resize(newsize)
frames2 = Image.open(r"work/dataset/val_frames/000000032.png").resize(newsize)
unet2 = Image.open(r"work/Class3/unet_color_result/000000032.png")
pspnet2 = Image.open(r"work/Class3/pspnet_color_result/000000032.png")

gt_color3 = Image.open(r"work/dataset/val_colors/000000041GT.png").resize(newsize)
frames3 = Image.open(r"work/dataset/val_frames/000000041.png").resize(newsize)
unet3 = Image.open(r"work/Class3/unet_color_result/000000041.png")
pspnet3 = Image.open(r"work/Class3/pspnet_color_result/000000041.png")

plt.figure(figsize=(20,24))#设置窗口大小plt.subplot(3,4,1), plt.title('frames')
plt.imshow(frames1), plt.axis('off')
plt.subplot(3,4,2), plt.title('GT')
plt.imshow(gt_color1), plt.axis('off')
plt.subplot(3,4,3), plt.title('unet')
plt.imshow(unet1), plt.axis('off')
plt.subplot(3,4,4), plt.title('pspnet')
plt.imshow(pspnet1), plt.axis('off')

plt.subplot(3,4,5), plt.title('frames')
plt.imshow(frames2), plt.axis('off')
plt.subplot(3,4,6), plt.title('GT')
plt.imshow(gt_color2), plt.axis('off')
plt.subplot(3,4,7), plt.title('unet')
plt.imshow(unet2), plt.axis('off')
plt.subplot(3,4,8), plt.title('pspnet')
plt.imshow(pspnet2), plt.axis('off')

plt.subplot(3,4,9), plt.title('frames')
plt.imshow(frames3), plt.axis('off')
plt.subplot(3,4,10), plt.title('GT')
plt.imshow(gt_color3), plt.axis('off')
plt.subplot(3,4,11), plt.title('unet')
plt.imshow(unet3), plt.axis('off')
plt.subplot(3,4,12), plt.title('pspnet')
plt.imshow(pspnet3), plt.axis('off')

plt.show()

<br/>
