【飞桨常规赛】GAMMA中央凹检测 11月第2名方案

#获取数据集!wget https://dataset-bj.cdn.bcebos.com/%E5%8C%BB%E7%96%97%E6%AF%94%E8%B5%9B/task2_Fovea_localization.zip#解压数据集到/data文件夹!unzip -oq task2_Fovea_localization.zip -d ./data#解压已经炼好的模型，大家可以在此基础上再继续精炼import os
os.mkdir('./model')
!unzip -oq data/data120091/炼好的模型.zip -d ./model

#导入相关包，函数from work.my_func.data_process import transfer_img_location,get_gauss_map,dark_kernel_processfrom work.my_func.data_info import train_lr,train_size,test_lr,test_size,get_img_pathfrom work.my_func.model import Unetimport paddleimport paddle.nn as nnimport paddle.nn.functional as Ffrom paddle.io import Dataset,DataLoaderfrom paddle.nn import Linear,Dropout,BatchNorm1Dimport numpy as npimport pandas as pdimport matplotlib.pyplot as pltimport randomimport warningsfrom PIL import Image# 忽略警告输出warnings.filterwarnings("ignore")
paddle.set_device('gpu')
paddle.disable_static()

#接收转换后的位置transfer_location_x = []
transfer_location_y = []#遍历训练数据for index in range(100):
    _,location = transfer_img_location(index,lr=train_lr[index],size=train_size[index],mode='train')
    transfer_location_x.append(location[0])
    transfer_location_y.append(location[1])#分析结果print('x的波动范围：{}'.format(np.max(transfer_location_x) - np.min(transfer_location_x)))print('y的波动范围：{}'.format(np.max(transfer_location_y) - np.min(transfer_location_y)))print('x的中值：{}'.format((np.max(transfer_location_x) + np.min(transfer_location_x))/2))print('y的中值：{}'.format((np.max(transfer_location_y) + np.min(transfer_location_y))/2))print('中央凹分布如下')

plt.scatter(transfer_location_x,transfer_location_y)
plt.show()

#列表乱序，随机切分数据集random.seed(1024)
all_data = [i for i in range(100)]
random.shuffle(all_data)class TrainData(Dataset):
    def __init__(self,fold_num):        #传入折数，1,2,3,4,5其中一个
        super(TrainData,self).__init__()
        self.num_samples = 80
        self.fold_num = fold_num
        self.sample_list = list(set(all_data) - set(all_data[(self.fold_num-1)*20:(self.fold_num-1)*20+20]))    #获取训练数据样本id

    def __getitem__(self, index):
        #读取图片和标签
        index = self.sample_list[index]
        img,location = transfer_img_location(index,lr=train_lr[index],size=train_size[index],mode='train')  #加载图片，位置

        #以中央凹为中心，对图片做随即平移，防止网络只输出一个常量
        #由于在训练时，每次看到的图片都不一样（平移量不一样），所以训练的epoch要多一点100或200轮
        x,y = location
        x,y = int(x),int(y)
        move_x = random.randint(-240,240)
        move_y = random.randint(-180,180)
        x = x + move_x
        y = y + move_y
        img = img[:,x-304:x+304,y-200:y+200]        #转换输出类型为np.array,'float32'
        features = np.array(img).astype('float32')
        labels = np.array(get_gauss_map((304-move_x,200-move_y),sigma=1,r=80)).astype('float32') #标签是热力图的形式
        return features,labels    def __len__(self):
        return self.num_samples

#epoch:训练轮次，方便模型命名#train_size:计算归一化欧式距离#model:评估的模型#fold_num:与训练数据集相对应，使用剩下的20个样本进行评估#visual_avalible:是否可视化模型输出与输入图片，默认为Falsedef evaluation(epoch,train_size,model,fold_num,visual_avalible=False):

    model.eval()
    ED = 0      #归一化欧氏距离
    valid_sample = all_data[(fold_num-1)*20:(fold_num-1)*20+20]    for index in valid_sample:        #加载数据，标签
        img,location = transfer_img_location(index,lr=train_lr[index],size=train_size[index],mode='train')
        img = img[:,836:1444,840:1240]
        features = np.array(img).astype('float32')
        labels = np.array(get_gauss_map(location)).astype('float32')        #模型预测
        features = paddle.to_tensor([features])
        pre = model(features)[0].numpy()
        #由于模型极少情况下预测的热力图是空白，因此分类讨论输出
        if np.sum(pre) < 1000:
            pre_x,pre_y = 304+80,200+40
        else:
            pre_x,pre_y = dark_kernel_process(pre[0])  #效果最好

        #计算ED
        x,y = np.array(location) - np.array([836,840])        if train_size[index] == 1:
            ED = ED + (((pre_x - x)/2992)**2 + ((pre_y - y)/2000)**2)**(1/2)        else:
            ED = ED + (((pre_x - x)/1956)**2 + ((pre_y - y)/1934)**2)**(1/2)        #可视化模型输出与输入图片

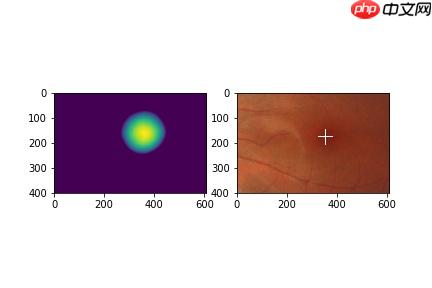

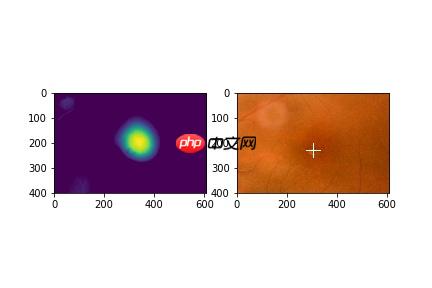

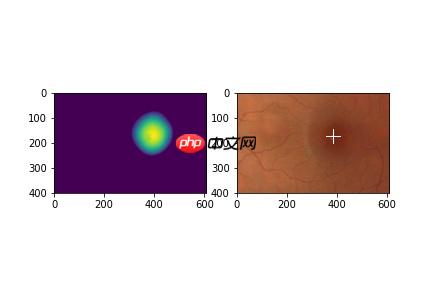

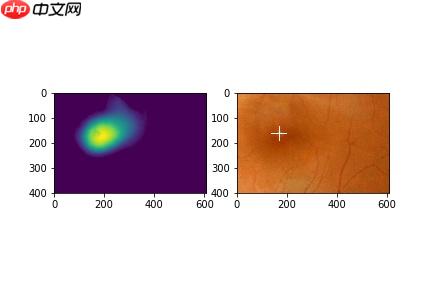

        if visual_avalible:            print('第{}张图片'.format(index+1))
            plt.subplot(121)
            plt.imshow(pre[0].transpose(1,0))
            plt.subplot(122)
            plt.imshow(img.transpose(2,1,0))
            plt.show()

    ED = ED / 20
    print('epoch:{},ED:{}'.format(epoch,ED))    #对效果较好的模型进行保存
    if ED < 0.009:
        paddle.save(model.state_dict(), 'model/model{}_ED{}.pdparams'.format(fold_num,ED)) #保存模型参数

    model.train()

#传入三个参数model,opt,fold_num#建议使用GPU32G环境运送此项目def train(model,opt,fold_num,EPOCH_NUM=200,visual_avalible=False):    #加载预训练模型再训练时，可将此处设置为100
    use_gpu = True
    paddle.set_device('gpu:0') if use_gpu else paddle.set_device('cpu')
    model.train()    for epoch_id in range(EPOCH_NUM):        for batch_id,data in enumerate(train_loader()):            #读取数据
            features,labels = data
            features = paddle.to_tensor(features)
            labels = paddle.to_tensor(labels)            #前向传播
            predicts = model(features)            #使用均方误差，同时增加了对模型方差的控制，希望模型的预测热力图能集中在一个区域，因此需要增加方差，在代价函数中采用-0.0005的系数
            loss = F.square_error_cost(predicts,labels) - 0.0005 * paddle.var(predicts)            #反向传播
            avg_loss = paddle.mean(loss)
            avg_loss.backward()            #更新参数
            opt.step()            #变量梯度清0
            opt.clear_grad()            #打印损失
            if batch_id % 3 == 0:                print('epoch_id:{},loss:{}'.format(epoch_id,avg_loss.numpy()))

        evaluation(epoch_id,train_size,model,fold_num,visual_avalible=visual_avalible)  #需要可视化时，添加visual_avalible=True

'''
由于训练每个模型需要20G以上显存，因此训练好一个模型以后，请重启内核再训练下一个模型，防止显存溢出。
'''#加载模型model = Unet()#加载预训练模型，预训练模型是在100个样本上进行的训练layer_state_dict = paddle.load("model/model_epoch201_batch22_loss[0.46564353].pdparams")
model.set_state_dict(layer_state_dict)#定义优化器opt = paddle.optimizer.Adam(learning_rate=5e-4,parameters=model.parameters(),weight_decay=paddle.regularizer.L2Decay(coeff=0.001))#定义fold_num,从1到5共训练五个模型fold_num = 1    train_data = TrainData(fold_num)
train_loader = DataLoader(train_data,batch_size=10,shuffle=True,drop_last=False)    #batch_size不要过大#模型训练train(model,opt,fold_num,EPOCH_NUM=10,visual_avalible=False)

#加载模型model1 = Unet()
model1.set_state_dict(paddle.load("model/model1_ED0.008243825249706058.pdparams"))
model1.eval()

model2 = Unet()
model2.set_state_dict(paddle.load("model/model2_ED0.00708214607276843.pdparams"))
model2.eval()

model3 = Unet()
model3.set_state_dict(paddle.load("model/model3_ED0.008693393679250788.pdparams"))
model3.eval()

model4 = Unet()
model4.set_state_dict(paddle.load("model/model4_ED0.00877534777237888.pdparams"))
model4.eval()

model5 = Unet()
model5.set_state_dict(paddle.load("model/model5_ED0.007696413964666473.pdparams"))
model5.eval()

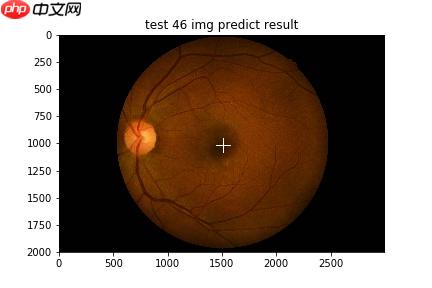

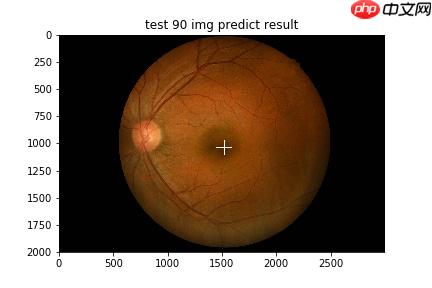

model_list = [model1,model2,model3,model4,model5]#生成预测结果predict_list = []print('解算开始...')for index in range(100):    #载入测试数据
    img,location = transfer_img_location(index,lr=test_lr[index],size=test_size[index],mode='test')
    img = img[:,836:1444,840:1240]
    features = np.array(img).astype('float32')
    labels = np.array(get_gauss_map(location)).astype('float32')
    features = paddle.to_tensor([features])    '''
    这里的方法是对每个热力图做黑核搜索然后将坐标平均；另一种做法是先对热力图做平均，在对其使用黑核搜索（推荐尝试）
    '''
    PreX,PreY = 0,0
    for model in model_list:
        pre = model(features)[0].numpy()        if np.sum(pre) < 1000:
            pre_x,pre_y = 304+80,200+40
        else:
            pre_x,pre_y = dark_kernel_process(pre[0],kernel_size=80)  #使用黑核搜索将热力图转为标签
        PreX = pre_x + PreX
        PreY = pre_y + PreY
    PreX = PreX / 5
    PreY = PreY / 5

    PreX = PreX + 1140-304
    PreY = PreY + 1040-200
    if test_lr[index] == 1:
        PreX = 1956 -PreX    if test_size[index] == 1:
        PreX = PreX + 518
        PreY = PreY + 33

    print('图片：{}，预测结果：{}'.format(index+101,[PreX,PreY]))
    predict_list.append([PreX,PreY])print('解算完毕！')#生成csv文件pre_list = []for index in range(100):
    pre_list.append([index+101] + predict_list[index])

dataframe = pd.DataFrame(pre_list)
dataframe.columns=['data','Fovea_X','Fovea_Y']#最高得分9.07791dataframe.to_csv('pre{}.csv'.format(3),sep=',',index=False)  #format里自设数字，区分开提交的版本即可
