【赛博魔杖】PaddlePaddle3.0助力36类魔法手势识别

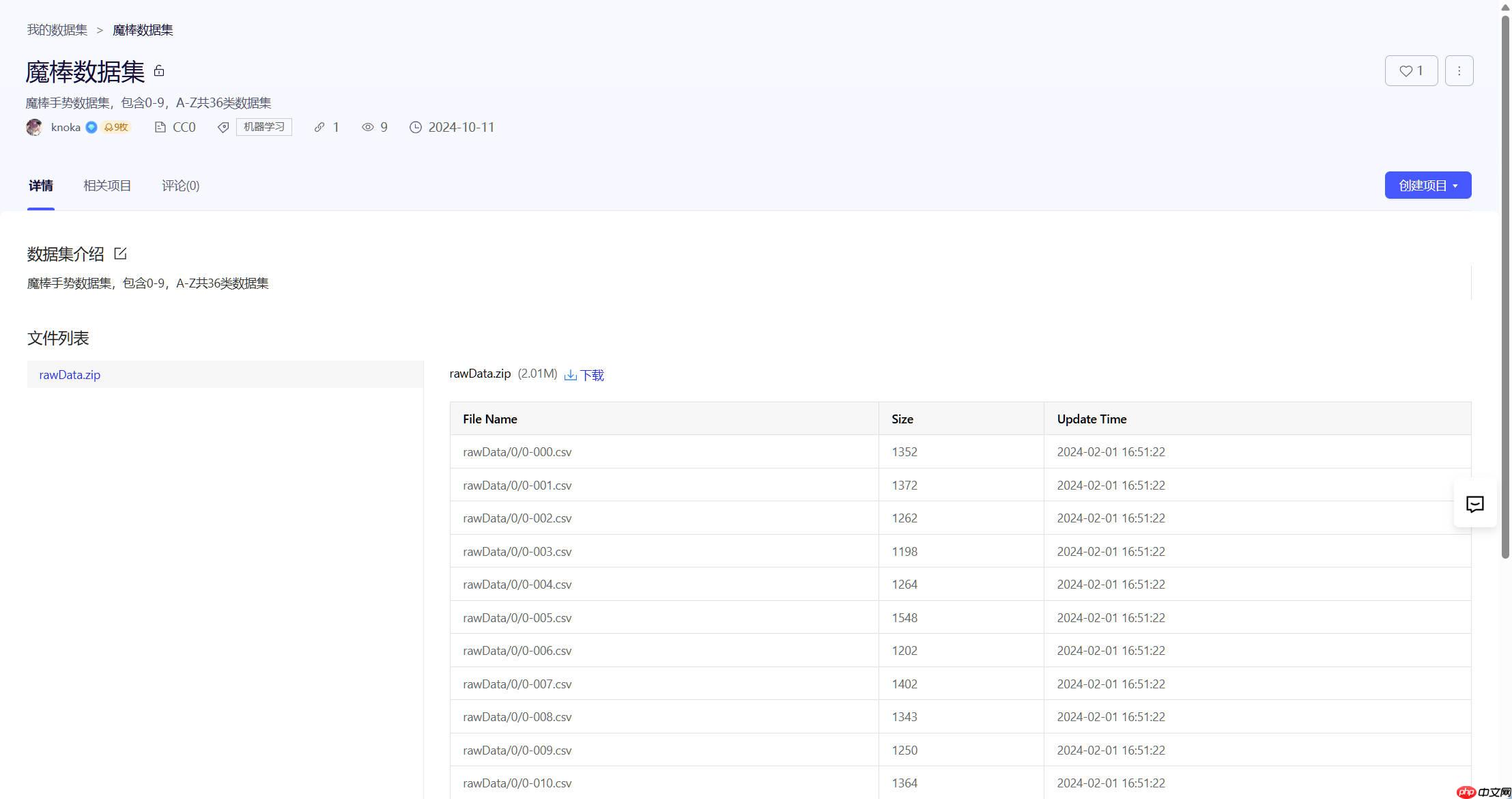

!unzip /home/aistudio/data/data296940/rawData.zip -d work/

import osimport pandas as pdimport numpy as npfrom scipy import signal, fftimport matplotlib.pyplot as plt# 创建一个空列表来存储所有数据total_data = []# 设定标准的数据行数为 128 行STANDARD_ROWS = 128# 初始化滤波器b, a = signal.butter(8, 0.2, 'lowpass')'''
  signal.butter 是用于设计巴特沃斯数字滤波器的函数，本部分初始化了一个8阶巴特沃斯低通滤波器。
  第一个参数8表示滤波器的阶数，阶数越高，滤波器的截止频率越陡峭，但计算量也越大。
  第二个参数0.2表示归一化截止频率。归一化截止频率是指截止频率与采样频率的一半之比。在这个例子中，截止频率是采样频率的0.2倍。
  第三个参数'lowpass'表示滤波器的类型为低通滤波器，它允许低于截止频率的信号通过，并衰减高于截止频率的信号。
  作用:巴特沃斯低通滤波器通常用于去除信号中的高频噪声，同时保留低频信号。在代码中，它用于对加速度计数据进行滤波，以减少噪声的影响。
'''lab_i = 0class_name={}# 遍历文件夹,folder这里代表文件夹for folder in os.listdir('work/rawData'):    # 通过正则表达式判断文件夹名是否是字母和数字的组合
    if folder.isalnum():        print("folder name:%c, label:%d"%(folder, lab_i))
        class_name[lab_i] = folder        # 拼接完整的文件夹路径
        folder_path = os.path.join('work/rawData', folder)        # print(folder_path)#         # 遍历文件夹中的文件
        for file in os.listdir(folder_path):            if file.endswith('.csv'):  # 确保只处理csv文件
                # 获取文件的标签（文件夹名）
                label = lab_i#                 # 读取csv文件

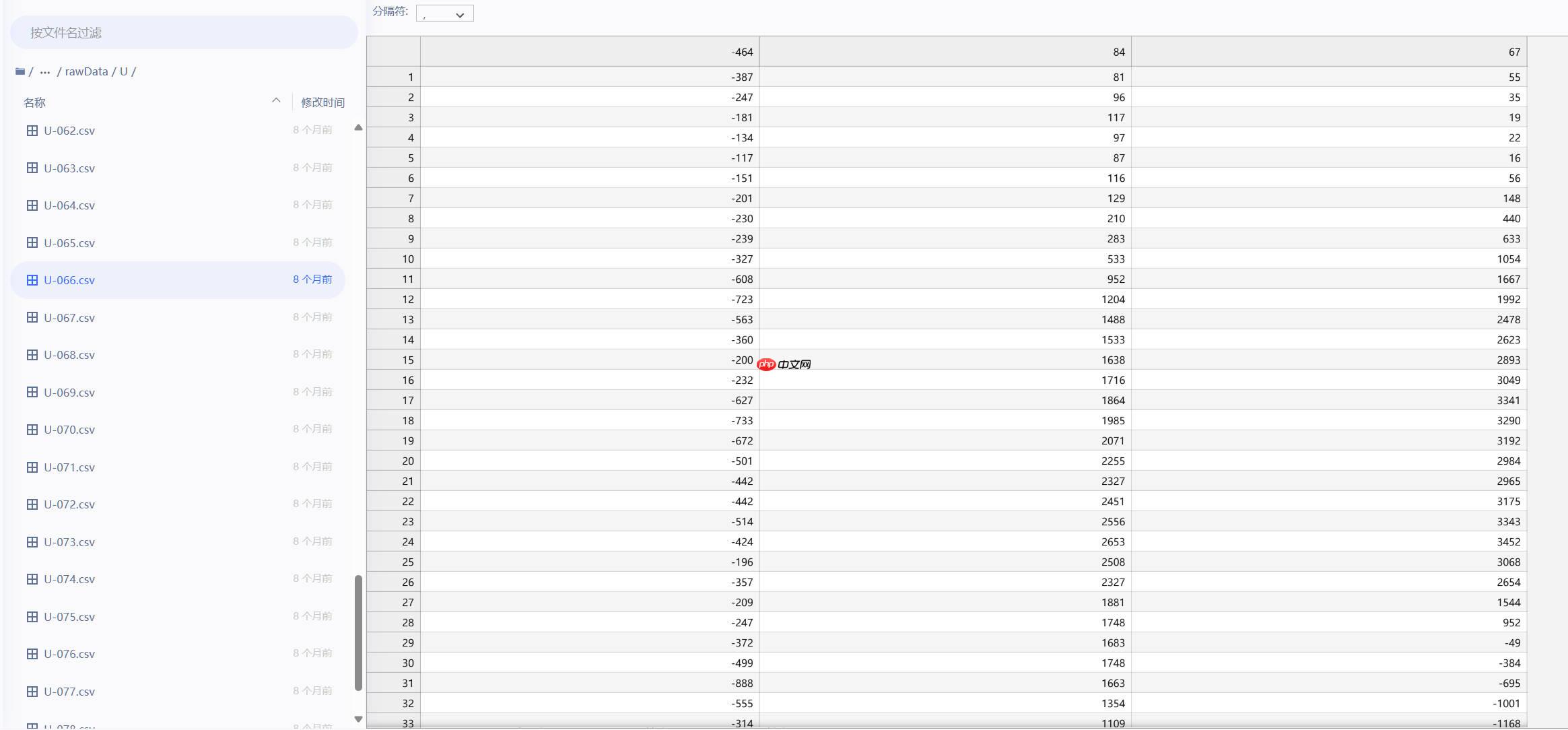

                df = pd.read_csv(os.path.join(folder_path, file))                # 检查数据行数，处理异常情况
                rows = df.shape[0]  # 获取数据行数
                if rows < STANDARD_ROWS:  # 数据行数少于128行，将缺少的数据补零
                    # Use pd.concat instead of append
                    df = pd.concat([df, pd.DataFrame(0, index=range(rows, STANDARD_ROWS), columns=df.columns)], ignore_index=True)                elif rows > STANDARD_ROWS:  # 数据行数多于128行，忽略多余的数据
                    df = df[:STANDARD_ROWS]                # 将每行三个数据分别命名为gx，gy，gz 并滤波处理
                gx = signal.filtfilt(b, a, df.iloc[:, 0].tolist())
                gy = signal.filtfilt(b, a, df.iloc[:, 1].tolist())
                gz = signal.filtfilt(b, a, df.iloc[:, 2].tolist())                # 使用np.dstack重新组织数据，并reshape为(128, 3)的形状
                data = np.dstack((gx, gy, gz)).reshape((128, 3))  # 128 datapoints with 3 channels
                # print(data)
                # 将处理后的数据和标签添加到total_data列表中
                total_data.append((data, label))
        lab_i = lab_i+1print(f"导入了 {np.array(total_data, dtype=object).shape[0]} 个动作数据样本，每个动作样本有 2秒×64Hz×3轴 个数据")

Train data shpae is  (1749, 128, 3)
Train label shpae is  (1749, 1)
Validation data shpae is  (584, 128, 3)
Validation label shpae is  (584, 1)
Test data shpae is  (583, 128, 3)
Test label shpae is  (583, 1)

np.random.seed(25682568)
np.random.shuffle(total_data)  # 打乱数据集train = total_data[0:1749]  # 60%val = total_data[1749:2333]  # 20%test = total_data[2333:2916]  # 20%test_data = []
test_label = []
train_data = []
train_label = []
val_data = []
val_label = []for i in range(len(test)):
    test_data.append(test[i][0])
    test_label.append([test[i][1]])for i in range(len(train)):
    train_data.append(train[i][0])
    train_label.append([train[i][1]])for i in range(len(val)):
    val_data.append(val[i][0])
    val_label.append([val[i][1]])
test_data=np.array(test_data)
test_label=np.array(test_label)
train_data=np.array(train_data)
train_label=np.array(train_label)
val_data=np.array(val_data)
val_label=np.array(val_label)print("Train data shpae is ",train_data.shape,)print("Train label shpae is ",train_label.shape,)print("Validation data shpae is ",val_data.shape,)print("Validation label shpae is ",val_label.shape,)print("Test data shpae is ",test_data.shape,)print("Test label shpae is ",test_label.shape,)

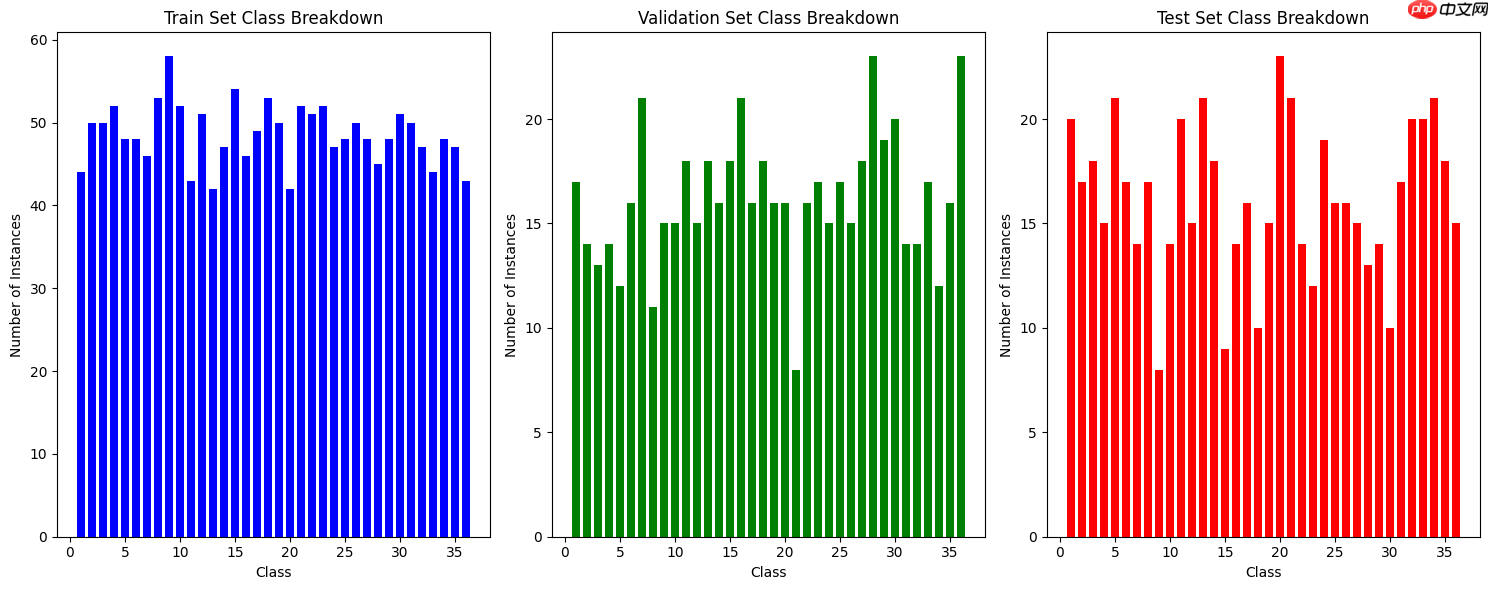

train_counts=[]
val_counts=[]
test_counts=[]import pandas as pdimport matplotlib.pyplot as pltdef class_breakdown(data):
    df = pd.DataFrame(data)
    counts = df.groupby(0).size()
    counts = counts.values    for i in range(len(counts)):
        percent = counts[i] / len(df) * 100
        print('Class=%d, total=%d, percentage=%.3f' % (i+1, counts[i], percent))
def class_breakdown(data):
    df = pd.DataFrame(data)
    counts = df.groupby(0).size()
    counts = counts.values
    summary = {}    for i in range(len(counts)):
        percent = counts[i] / len(df) * 100
        summary[i+1] = {'total': counts[i], 'percentage': percent}        print('Class=%d, total=%d, percentage=%.3f' % (i+1, counts[i], percent))    return summarydef plot_class_breakdown(train_summary, val_summary, test_summary):
    num_classes = len(train_summary)
    classes = list(range(1, num_classes + 1))
    plt.figure(figsize=(15, 6))    # Train set
    plt.subplot(1, 3, 1)
    plt.bar(classes, [train_summary[c]['total'] for c in classes], color='blue')
    plt.title('Train Set Class Breakdown')
    plt.xlabel('Class')
    plt.ylabel('Number of Instances')    # Validation set
    plt.subplot(1, 3, 2)
    plt.bar(classes, [val_summary[c]['total'] for c in classes], color='green')
    plt.title('Validation Set Class Breakdown')
    plt.xlabel('Class')
    plt.ylabel('Number of Instances')    # Test set
    plt.subplot(1, 3, 3)
    plt.bar(classes, [test_summary[c]['total'] for c in classes], color='red')
    plt.title('Test Set Class Breakdown')
    plt.xlabel('Class')
    plt.ylabel('Number of Instances')    # Adjust layout
    plt.tight_layout()

    plt.show()# Assuming train_label, val_label, and test_label are defined and are numpy arraysprint("Train set:")
train_summary = class_breakdown(train_label)print("")print("Validation set:")
val_summary = class_breakdown(val_label)print("")print("Test set:")
test_summary = class_breakdown(test_label)print("")# Plot the class breakdownplot_class_breakdown(train_summary, val_summary, test_summary)

import paddle

num_classes = 36  # 假设你已经知道类别数# 将NumPy数组转换为PaddlePaddle的Tensortest_label_tensor = paddle.to_tensor(test_label)
train_label_tensor = paddle.to_tensor(train_label)
val_label_tensor = paddle.to_tensor(val_label)# 使用paddle.nn.functional.one_hot进行one-hot编码test_label = paddle.nn.functional.one_hot(test_label_tensor, num_classes=num_classes)
train_label = paddle.nn.functional.one_hot(train_label_tensor, num_classes=num_classes)
val_label = paddle.nn.functional.one_hot(val_label_tensor, num_classes=num_classes)

import paddleimport numpy as npimport matplotlib.pyplot as plt# 打印前3个test_labelprint(test_label[:3])# 打印gxprint(gx)# 打印gx的长度print(len(gx))# 绘制gxplt.plot(gx)
plt.show()# 假设train_data是已经存在的数据# 使用paddle.static.InputSpec定义输入input_spec = paddle.static.InputSpec([None] + list(train_data.shape[1:]), 'float32', name='train_data')print(input_spec)

from paddle.io import DataLoader# 将numpy数组转换为paddle.Tensor，并确保数据类型为float32train_data = paddle.to_tensor(train_data, dtype='float32', stop_gradient=True)
train_label = paddle.to_tensor(train_label.squeeze(), dtype='float32', stop_gradient=True)
val_data = paddle.to_tensor(val_data, dtype='float32', stop_gradient=True)
val_label = paddle.to_tensor(val_label.squeeze(), dtype='float32', stop_gradient=True)
test_data = paddle.to_tensor(test_data, dtype='float32', stop_gradient=True)
test_label = paddle.to_tensor(test_label.squeeze(), dtype='float32', stop_gradient=True)# 调整数据维度print(train_data.shape)# 创建DataLoadertrain_loader = DataLoader(list(zip(train_data, train_label)), batch_size=100, shuffle=True)
val_loader = DataLoader(list(zip(val_data, val_label)), batch_size=100, shuffle=False)
test_loader = DataLoader(list(zip(test_data, test_label)), batch_size=100, shuffle=False)

  (conv1): Conv1D(3, 64, kernel_size=[3], padding=1, data_format=NCL)
  (conv2): Conv1D(64, 64, kernel_size=[3], padding=1, data_format=NCL)
  (pool): MaxPool1D(kernel_size=2, stride=None, padding=0)
  (fc1): Linear(in_features=4096, out_features=128, dtype=float32)
  (fc2): Linear(in_features=128, out_features=36, dtype=float32)
  (softmax): Softmax(axis=1)

import paddleimport paddle.nn as nnimport paddle.nn.functional as Fimport paddle.optimizer as optimfrom paddle.nn import Conv1D, MaxPool1D, Flatten, Linear, ReLU, Softmax# 定义模型类class ConvNet(nn.Layer):
    def __init__(self):
        super(ConvNet, self).__init__()        # 添加一维卷积层，卷积核大小为3，数量为64，输入形状为（128,3）
        self.conv1 = nn.Conv1D(in_channels=3, out_channels=64, kernel_size=3, stride=1, padding=1)        # 添加一维卷积层，卷积核大小为3，数量为64
        self.conv2 = Conv1D(in_channels=64, out_channels=64, kernel_size=3, stride=1, padding=1)        # 添加一维最大池化层，池化窗口大小为2
        self.pool = nn.MaxPool1D(kernel_size=2)        # 添加全连接层，节点数为128
        self.fc1 = nn.Linear(64 * 64, 128)  # 64是池化后的特征数
        # 添加输出层，节点数为类别数
        self.fc2 = nn.Linear(128, 36)  # 如果有其他数量的类别，请修改这里的节点数
        self.softmax = Softmax(axis=1)  # 创建Softmax实例


    def forward(self, x):
        # 通过卷积层、激活函数和池化层
        x = F.relu(self.conv1(x))        # print(x.shape)
        x = F.relu(self.conv2(x))        # print(x.shape)
        x = self.pool(x)        # print(x.shape)
        # 展平层
        x = paddle.flatten(x, 1)        # 通过全连接层和激活函数
        x = F.relu(self.fc1(x))
        x = self.fc2(x)        # print(x.shape)
        # x = self.softmax(x)
        return x# 实例化模型model = ConvNet()# 定义损失函数和优化器criterion = nn.CrossEntropyLoss(soft_label=False)
optimizer = optim.Adam(parameters=model.parameters(),weight_decay=paddle.regularizer.L2Decay(coeff=1e-4),learning_rate=0.0001)
model

Epoch 297, Loss: 0.0018434367246097988
Epoch 297, Val Loss: 45.983871936798096, Val Acc: 89.73%
Epoch 298, Loss: 0.0018418160163693959
Epoch 298, Val Loss: 45.983682791392006, Val Acc: 89.73%
Epoch 299, Loss: 0.0018405009888940388
Epoch 299, Val Loss: 45.98337427775065, Val Acc: 89.73%
Epoch 300, Loss: 0.001838982105255127
Epoch 300, Val Loss: 45.98327096303304, Val Acc: 89.73%

iters=[]
losses=[]
final_checkpoint = dict()# 评估模型def evaluate(model, loader):
    model.eval()  # 设置模型为评估模式
    total_loss = 0.0
    correct = 0
    total = 0
    for inputs, labels in loader:        # 转换数据形状为 (batch_size, channels, length)
        inputs = paddle.transpose(inputs, perm=[0, 2, 1])
        outputs = model(inputs)
        labels = paddle.argmax(labels, axis=1)
        loss = criterion(outputs, labels)
        total_loss += loss.item()        # 获取预测结果
        # print(outputs[1])
        # print(labels)
        predicted = paddle.argmax(outputs, axis=1)        # print(predicted)
        # 计算准确率
        correct += (predicted == labels).sum().item()
        total += labels.shape[0]

    avg_loss = total_loss / len(loader)
    accuracy = correct / total    return avg_loss, accuracy# 训练模型def train(model, train_loader, val_loader, epochs):
    for epoch in range(epochs):
        model.train()
        running_loss = 0.0
        for i, data in enumerate(train_loader, 0):
            inputs, labels = data            # print(inputs.shape)
            # 转换数据形状为 (batch_size, channels, length)
            inputs = paddle.transpose(inputs, perm=[0, 2, 1])
            optimizer.clear_grad()
            outputs = model(inputs)
            labels = paddle.argmax(labels, axis=1)
            loss = criterion(outputs, labels)
            avg_loss = paddle.mean(loss)            # 累计迭代次数和对应的loss
            iters.append(epoch*len(labels))
            losses.append(avg_loss)
            loss.backward()
            optimizer.step()
            running_loss += loss.item()
        print(f'Epoch {epoch+1}, Loss: {running_loss/len(train_loader)}')        # 在验证集上评估模型
        val_loss, val_accuracy = evaluate(model, val_loader)        print(f'Epoch {epoch+1}, Val Loss: {val_loss}, Val Acc: {val_accuracy*100:.2f}%')        # 最后一个epoch保存检查点checkpoint
        if epoch == 149:
            final_checkpoint["epoch"] = epoch
            final_checkpoint["loss"] = loss    # #保存模型参数
    # paddle.save(model.state_dict(), 'mnist_regul.pdparams')
    # 保存model参数
    paddle.save(model.state_dict(), "linear_net.pdparams")    # 保存优化器参数
    paddle.save(optimizer.state_dict(), "adam.pdopt")    # 保存检查点checkpoint信息
    paddle.save(final_checkpoint, "final_checkpoint.pkl")# 假设train_loader和val_loader是已经定义好的DataLoadertrain(model, train_loader, val_loader, 300)

#画出训练过程中Loss的变化曲线plt.figure()
plt.title("train loss", fontsize=24)
plt.xlabel("iter", fontsize=14)
plt.ylabel("loss", fontsize=14)
plt.plot(iters, losses,color='red',label='train loss')
plt.grid()
plt.show()

Test Loss: 46.4569943745931, Test Accuracy: 91.25%

import paddledef evaluate(model, test_loader, criterion):
    model.eval()  # 将模型设置为评估模式
    total_loss = 0.0
    correct = 0
    total = 0
    for inputs, labels in test_loader:
        inputs = paddle.transpose(inputs, perm=[0, 2, 1])  # 调整输入数据的形状
        outputs = model(inputs)
        labels = paddle.argmax(labels, axis=1)
        loss = criterion(outputs, labels)  # 计算损失
        total_loss += loss.item()
        predicted = paddle.argmax(outputs, axis=1)  # 获取预测结果
        correct += (predicted == labels).sum().item()
        total += labels.shape[0]

    avg_loss = total_loss / len(test_loader)
    accuracy = correct / total    return avg_loss, accuracy# test_loader 是测试数据加载器# criterion 是损失函数# 调用 evaluate 函数来测试模型test_loss, test_accuracy = evaluate(model, test_loader, criterion)print(f"Test Loss: {test_loss}, Test Accuracy: {test_accuracy * 100:.2f}%")

Loaded Final Checkpoint. Epoch : 149, Loss : 0.0

import pandas as pdimport numpy as npimport paddlefrom scipy import signal# 实例化模型model = ConvNet()# param_dict = paddle.load('/home/aistudio/mnist_regul.pdparams')# model.set_state_dict(param_dict)# 载入模型参数、优化器参数和最后一个epoch保存的检查点model_state_dict = paddle.load("linear_net.pdparams")
opt_state_dict = paddle.load("adam.pdopt")
final_checkpoint_dict = paddle.load("final_checkpoint.pkl")# 将load后的参数与模型关联起来model.set_state_dict(model_state_dict)
optimizer.set_state_dict(opt_state_dict)# 打印出来之前保存的 checkpoint 信息print(    "Loaded Final Checkpoint. Epoch : {}, Loss : {}".format(
        final_checkpoint_dict["epoch"], final_checkpoint_dict["loss"].numpy()
    )
)

Prediction: Tensor(shape=[1, 36], dtype=float32, place=Place(gpu:0), stop_gradient=True,
       [[ 74.05798340  , -3079.14428711, -980.79516602 , -651.90545654 ,
         -445.17956543 ,  754.55334473 ,  1467.66772461, -4221.56884766,
          1359.46069336, -6019.58886719, -3092.41357422, -2200.08032227,
          2534.37011719, -2090.34619141, -1726.27294922, -1667.51159668,
          520.28381348 , -2390.97949219,  1313.23974609,  4192.66796875,
         -1726.86071777,  484.49822998 , -3699.26684570,  3221.54736328,
         -1274.19323730, -4175.11718750, -2077.25366211, -36.47094727  ,
          2935.93505859,  1057.33081055,  4233.02539062, -455.59204102 ,
          490.94299316 ,  15.99664307  , -1210.64855957,  2860.55053711]])
Predicted class index: 30
Predicted class: I

# 定义滤波器def filter_data(data):
    b, a = signal.butter(8, 0.2, 'lowpass')
    gx = signal.filtfilt(b, a, data.iloc[:, 0].tolist())
    gy = signal.filtfilt(b, a, data.iloc[:, 1].tolist())
    gz = signal.filtfilt(b, a, data.iloc[:, 2].tolist())    return np.dstack((gx, gy, gz))# 读取CSV文件并进行推理def predict_from_csv(model, csv_file_path):
    # 读取 CSV 文件
    df = pd.read_csv(csv_file_path)
    # 检查数据行数，处理异常情况
    rows = df.shape[0]    # print(rows)
    # 读取csv文件

    if rows < 128:  # 数据行数少于128行，将缺少的数据补零
        df = pd.concat([df, pd.DataFrame(0, index=range(rows, 128), columns=df.columns)], ignore_index=True)    elif rows > 128:  # 数据行数多于128行，忽略多余的数据
        df = df[:128]    # print(df)
    # 预处理数据
    # data = df.values.astype('float32')
    # print(data)
    data = filter_data(df)    # # 将数据转换为 PaddlePaddle 的 Tensor
    data_tensor = paddle.to_tensor(data).astype('float32')  # 增加一个批次维度
    data_tensor =paddle.transpose(data_tensor, perm=[0, 2, 1])    # 确保模型处于评估模式
    model.eval()
    # 禁用梯度计算
    with paddle.no_grad():        # 进行预测
        prediction = model(data_tensor)
    # # 返回预测结果
    return prediction# 假设你的模型已经加载并且路径已经设置好csv_file_path = '/home/aistudio/work/rawData/A/A-042.csv'prediction = predict_from_csv(model, csv_file_path)print("Prediction:", prediction)# 使用 softmax 函数将 logits 转换为概率分布probabilities = paddle.nn.functional.softmax(prediction, axis=1)# 使用 argmax 找到最高概率的类别索引predicted_class = paddle.argmax(probabilities, axis=1)print("Predicted class index:", predicted_class.numpy()[0])print("Predicted class:", class_name[predicted_class.numpy()[0]])
