【AI达人特训营】AdaptFormer：一种新型fine-tuning方法复现

from __future__ import divisionfrom __future__ import print_functionimport paddle.nn as nnfrom paddle.nn import functional as Ffrom paddle.utils.download import get_weights_path_from_urlimport pickleimport numpy as npfrom paddle import callbacksfrom paddle.vision.transforms import (
    ToTensor, RandomHorizontalFlip, RandomResizedCrop, SaturationTransform, Compose,
    HueTransform, BrightnessTransform, ContrastTransform, RandomCrop, Normalize, RandomRotation, Resize
)from paddle.vision.datasets import Cifar10, Cifar100from paddle.io import DataLoaderfrom paddle.optimizer.lr import CosineAnnealingDecay, MultiStepDecay, LinearWarmupimport randomimport osimport numpy as npimport cv2from PIL import Imageimport matplotlib.pyplot as pltimport paddlefrom paddle.io import Datasetfrom paddle.nn import Conv2D, MaxPool2D, Linear, Dropout, BatchNorm, AdaptiveAvgPool2D, AvgPool2Dimport paddle.nn.functional as Fimport paddle.nn as nn

IS_STOP_GRADIENT = False

# 图像分块、Embeddingclass PatchEmbed(nn.Layer):
    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768):
        super().__init__()        # 原始大小为int，转为tuple，即：img_size原始输入224，变换后为[224,224]
        img_size = to_2tuple(img_size)
        patch_size = to_2tuple(patch_size)        # 图像块的个数
        num_patches = (img_size[1] // patch_size[1]) * \
            (img_size[0] // patch_size[0])
        self.img_size = img_size
        self.patch_size = patch_size
        self.num_patches = num_patches        # kernel_size=块大小，即每个块输出一个值，类似每个块展平后使用相同的全连接层进行处理
        # 输入维度为3，输出维度为块向量长度
        # 与原文中：分块、展平、全连接降维保持一致
        # 输出为[B, C, H, W]
        self.proj = nn.Conv2D(
            in_chans, embed_dim, kernel_size=patch_size, stride=patch_size)    def forward(self, x):
        B, C, H, W = x.shape        assert H == self.img_size[0] and W == self.img_size[1], \            "Input image size ({H}*{W}) doesn't match model ({self.img_size[0]}*{self.img_size[1]})."
        # [B, C, H, W] -> [B, C, H*W] ->[B, H*W, C]
        x = self.proj(x).flatten(2).transpose((0, 2, 1))        return x

class Attention(nn.Layer):
    def __init__(self,
                 dim,
                 num_heads=8,
                 qkv_bias=False,
                 qk_scale=None,
                 attn_drop=0.,
                 proj_drop=0.):
        super().__init__()
        self.num_heads = num_heads
        head_dim = dim // num_heads
        self.scale = qk_scale or head_dim**-0.5
        # 计算 q,k,v 的转移矩阵
        self.qkv = nn.Linear(dim, dim * 3, bias_attr=qkv_bias)
        self.attn_drop = nn.Dropout(attn_drop)        # 最终的线性层
        self.proj = nn.Linear(dim, dim)
        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):
        N, C = x.shape[1:]        # 线性变换
        qkv = self.qkv(x).reshape((-1, N, 3, self.num_heads, C //
                                   self.num_heads)).transpose((2, 0, 3, 1, 4))        # 分割 query key value
        q, k, v = qkv[0], qkv[1], qkv[2]        # Scaled Dot-Product Attention
        # Matmul + Scale
        attn = (q.matmul(k.transpose((0, 1, 3, 2)))) * self.scale        # SoftMax
        attn = nn.functional.softmax(attn, axis=-1)
        attn = self.attn_drop(attn)        # Matmul
        x = (attn.matmul(v)).transpose((0, 2, 1, 3)).reshape((-1, N, C))        # 线性变换
        x = self.proj(x)
        x = self.proj_drop(x)        return x

class Mlp(nn.Layer):
    def __init__(self,
                 in_features,
                 hidden_features=None,
                 out_features=None,
                 act_layer=nn.GELU,
                 drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.fc1 = nn.Linear(in_features, hidden_features)
        self.act = act_layer()
        self.fc2 = nn.Linear(hidden_features, out_features)
        self.drop = nn.Dropout(drop)    def forward(self, x):
        # 输入层：线性变换
        x = self.fc1(x)        # 应用激活函数
        x = self.act(x)        # Dropout
        x = self.drop(x)        # 输出层：线性变换
        x = self.fc2(x)        # Dropout
        x = self.drop(x)        return x

def drop_path(x, drop_prob=0., training=False):
    if drop_prob == 0. or not training:        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (paddle.shape(x)[0], ) + (1, ) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor)
    output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)

x = self.norm(x)x.sotp_gradient = True

x = self.norm(x)self.norm.stop_gradient = True

class Block(nn.Layer):
    def __init__(self,
                 dim,
                 num_heads,
                 mlp_ratio=4.,
                 qkv_bias=False,
                 qk_scale=None,
                 drop=0.,
                 attn_drop=0.,
                 drop_path=0.,
                 act_layer=nn.GELU,
                 norm_layer='nn.LayerNorm',
                 epsilon=1e-5):
        super().__init__()
        self.norm1 = eval(norm_layer)(dim, epsilon=epsilon)        # Multi-head Self-attention
        self.attn = Attention(
            dim,
            num_heads=num_heads,
            qkv_bias=qkv_bias,
            qk_scale=qk_scale,
            attn_drop=attn_drop,
            proj_drop=drop)        # DropPath
        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()
        self.norm2 = eval(norm_layer)(dim, epsilon=epsilon)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim,
                       hidden_features=mlp_hidden_dim,
                       act_layer=act_layer,
                       drop=drop)
        self.n_embd = 768
        self.down_size = 64
        self.down_proj = nn.Linear(self.n_embd, self.down_size)
        self.non_linear_func = nn.ReLU()
        self.up_proj = nn.Linear(self.down_size, self.n_embd)
        self.scale = self.create_parameter(shape=(1, 1), default_initializer=nn.initializer.Constant(value=1.))    def forward(self, x):
        # Multi-head Self-attention， Add， LayerNorm
        ###
        # 设置是否训练参数
        ###
        self.norm1.stop_gradient = IS_STOP_GRADIENT
        self.attn.stop_gradient = IS_STOP_GRADIENT
        x = x + self.drop_path(self.attn(self.norm1(x)))        # Feed Forward， Add， LayerNorm
        residual = x        ###
        # 设置是否训练norm层参数
        ###
        self.norm2.stop_gradient = IS_STOP_GRADIENT
        x = self.norm2(x)        ###
        # 设置是否训练MLP层参数
        ###
        self.mlp.stop_gradient = IS_STOP_GRADIENT
        ###

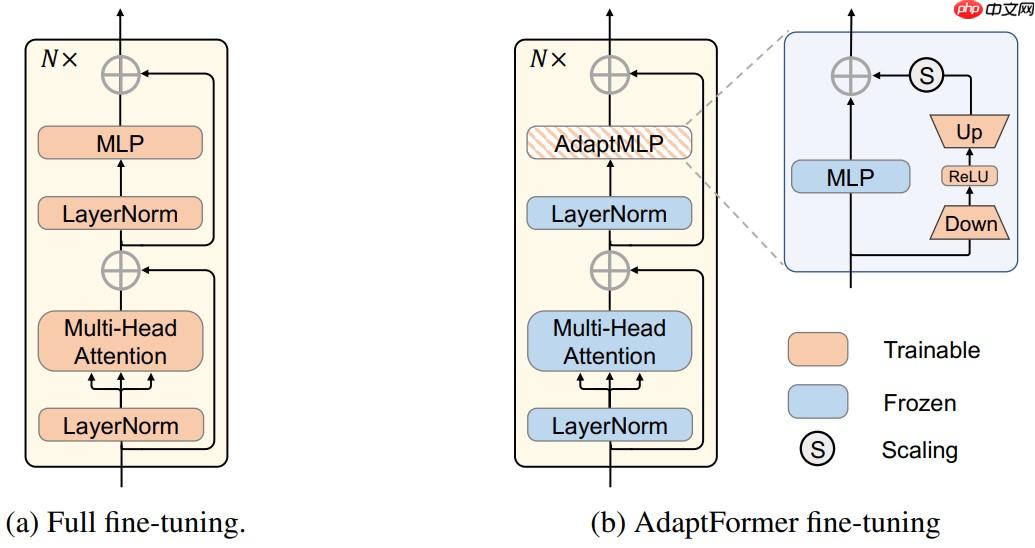

        # 以下几层为AdaptFormer改进的核心，迁移训练过程中参数不变
        ###

        down = self.down_proj(x)
        down = self.non_linear_func(down)
        down = nn.functional.dropout(down, p=0.1)
        up = self.up_proj(down)
        up = up * self.scale + self.mlp(x)
        up = self.drop_path(up)
        output = up + residual        return output

# 参数初始化配置trunc_normal_ = nn.initializer.TruncatedNormal(std=.02)
zeros_ = nn.initializer.Constant(value=0.)
ones_ = nn.initializer.Constant(value=1.)# 将输入 x 由 int 类型转为 tuple 类型def to_2tuple(x):
    return tuple([x] * 2)# 定义一个什么操作都不进行的网络层class Identity(nn.Layer):
    def __init__(self):
        super(Identity, self).__init__()    def forward(self, input):
        return input

class VisionTransformer(nn.Layer):
    def __init__(self,
                 img_size=32,
                 patch_size=3,
                 in_chans=3,
                 class_dim=100,
                 embed_dim=768,
                 depth=12,
                 num_heads=12,
                 mlp_ratio=4,
                 qkv_bias=False,
                 qk_scale=None,
                 drop_rate=0.,
                 attn_drop_rate=0.,
                 drop_path_rate=0.,
                 norm_layer='nn.LayerNorm',
                 epsilon=1e-5,
                 **args):
        super().__init__()
        self.class_dim = class_dim

        self.num_features = self.embed_dim = embed_dim        # 图片分块和降维，块大小为patch_size，最终块向量维度为768
        self.patch_embed = PatchEmbed(
            img_size=img_size,
            patch_size=patch_size,
            in_chans=in_chans,
            embed_dim=embed_dim)        # 分块数量
        num_patches = self.patch_embed.num_patches        # 可学习的位置编码
        self.pos_embed = self.create_parameter(
            shape=(1, num_patches + 1, embed_dim), default_initializer=zeros_)
        self.add_parameter("pos_embed", self.pos_embed)        # 人为追加class token，并使用该向量进行分类预测
        self.cls_token = self.create_parameter(
            shape=(1, 1, embed_dim), default_initializer=zeros_)
        self.add_parameter("cls_token", self.cls_token)
        self.pos_drop = nn.Dropout(p=drop_rate)

        dpr = np.linspace(0, drop_path_rate, depth)        # transformer
        self.blocks = nn.LayerList([
            Block(
                dim=embed_dim,
                num_heads=num_heads,
                mlp_ratio=mlp_ratio,
                qkv_bias=qkv_bias,
                qk_scale=qk_scale,
                drop=drop_rate,
                attn_drop=attn_drop_rate,
                drop_path=dpr[i],
                norm_layer=norm_layer,
                epsilon=epsilon) for i in range(depth)
        ])

        self.norm = eval(norm_layer)(embed_dim, epsilon=epsilon)        # Classifier head
        self.head = nn.Linear(embed_dim,
                              class_dim) if class_dim > 0 else Identity()

        trunc_normal_(self.pos_embed)
        trunc_normal_(self.cls_token)
        self.apply(self._init_weights)    # 参数初始化
    def _init_weights(self, m):
        if isinstance(m, nn.Linear):
            trunc_normal_(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:
                zeros_(m.bias)        elif isinstance(m, nn.LayerNorm):
            zeros_(m.bias)
            ones_(m.weight)    # 获取图像特征
    def forward_features(self, x):
        B = paddle.shape(x)[0]        # 将图片分块，并调整每个块向量的维度
        x = self.patch_embed(x)        # 将class token与前面的分块进行拼接
        cls_tokens = self.cls_token.expand((B, -1, -1))
        x = paddle.concat((cls_tokens, x), axis=1)        # 将编码向量中加入位置编码
        x = x + self.pos_embed
        x = self.pos_drop(x)        ###
        # 设置是否冻结网络
        ###

        x.stop_gradient = IS_STOP_GRADIENT
        # 堆叠 transformer 结构
        for blk in self.blocks:
            x = blk(x)        # LayerNorm
        x = self.norm(x)        # 提取分类 tokens 的输出
        return x[:, 0]    def forward(self, x):
        # 获取图像特征
        x = self.forward_features(x)        # 图像分类
        x = self.head(x)        return x

# 测试vit = VisionTransformer()
paddle.summary(vit, (1, 3, 32, 32))

class ToArray(object):
    def __call__(self, img):
        img = np.array(img)
        img = np.transpose(img, [2, 0, 1])
        img = img / 255.
        return img.astype('float32')class RandomApply(object):
    def __init__(self, transform, p=0.5):
        super().__init__()
        self.p = p
        self.transform = transform

    def __call__(self, img):
        if self.p < random.random():            return img
        img = self.transform(img)        return img
class LRSchedulerM(callbacks.LRScheduler):
    def __init__(self, by_step=False, by_epoch=True, warm_up=True):
        super().__init__(by_step, by_epoch)
        assert by_step ^ warm_up
        self.warm_up = warm_up
    def on_epoch_end(self, epoch, logs=None):
        if self.by_epoch and not self.warm_up:            if self.model._optimizer and hasattr(
                self.model._optimizer, '_learning_rate') and isinstance(
                    self.model._optimizer._learning_rate, paddle.optimizer.lr.LRScheduler):
                self.model._optimizer._learning_rate.step()

    def on_train_batch_end(self, step, logs=None):
        if self.by_step or self.warm_up:
            if self.model._optimizer and hasattr(
                self.model._optimizer, '_learning_rate') and isinstance(
                    self.model._optimizer._learning_rate, paddle.optimizer.lr.LRScheduler):
                self.model._optimizer._learning_rate.step()            if self.model._optimizer._learning_rate.last_epoch >= self.model._optimizer._learning_rate.warmup_steps:
                self.warm_up = Falsedef _on_train_batch_end(self, step, logs=None):
    logs = logs or {}
    logs['lr'] = self.model._optimizer.get_lr()
    self.train_step += 1
    if self._is_write():
        self._updates(logs, 'train')def _on_train_begin(self, logs=None):
    self.epochs = self.params['epochs']    assert self.epochs
    self.train_metrics = self.params['metrics'] + ['lr']    assert self.train_metrics
    self._is_fit = True
    self.train_step = 0callbacks.VisualDL.on_train_batch_end = _on_train_batch_end
callbacks.VisualDL.on_train_begin = _on_train_begin

model = paddle.Model(VisionTransformer(class_dim=100))# 加载checkpoint# model.load('output/AdaptFormer/80.pdparams', skip_mismatch=True)MAX_EPOCH = 80LR = 0.01WEIGHT_DECAY = 5e-4MOMENTUM = 0.9BATCH_SIZE = 128IS_STOP_GRADIENT = FalseCIFAR_MEAN = [0.5071, 0.4865, 0.4409]
CIFAR_STD = [0.1942, 0.1918, 0.1958]
DATA_FILE = Nonemodel.prepare(
    paddle.optimizer.Momentum(
        learning_rate=LinearWarmup(CosineAnnealingDecay(LR, MAX_EPOCH), 2000, 0., LR),
        momentum=MOMENTUM,
        parameters=model.parameters(),
        weight_decay=WEIGHT_DECAY),
    paddle.nn.CrossEntropyLoss(),
    paddle.metric.Accuracy(topk=(1,5)))# 定义数据集增强方式transforms = Compose([
    RandomCrop(32, padding=4),
    RandomApply(BrightnessTransform(0.1)),
    RandomApply(ContrastTransform(0.1)),
    RandomHorizontalFlip(),
    RandomRotation(15),
    ToArray(),
    Normalize(CIFAR_MEAN, CIFAR_STD),    # Resize(size=72)])
val_transforms = Compose([ToArray(), Normalize(CIFAR_MEAN, CIFAR_STD)])# 加载训练和测试数据集train_set = Cifar100(DATA_FILE, mode='train', transform=transforms)
test_set = Cifar100(DATA_FILE, mode='test', transform=val_transforms)# 定义保存方式和训练可视化checkpoint_callback = paddle.callbacks.ModelCheckpoint(save_freq=20, save_dir='output/AdaptFormer_BaseModel')
callbacks = [LRSchedulerM(),checkpoint_callback, callbacks.VisualDL('vis_logs/AdaptFormer_BaseModel.log')]# 训练模型model.fit(
    train_set,
    test_set,
    epochs=MAX_EPOCH,
    batch_size=BATCH_SIZE,
    shuffle=True,
    num_workers=0,
    verbose=1,
    callbacks=callbacks,
)

model = paddle.Model(VisionTransformer(class_dim=10))# 加载checkpointmodel.load('output/AdaptFormer_BaseModel/80.pdparams', skip_mismatch=True)
MAX_EPOCH = 10LR = 0.01WEIGHT_DECAY = 5e-4MOMENTUM = 0.9BATCH_SIZE = 128IS_STOP_GRADIENT = True    # 实验组IS_STOP_GRADIENT = False   # 对照组CIFAR_MEAN = [0.5071, 0.4865, 0.4409]
CIFAR_STD = [0.1942, 0.1918, 0.1958]
DATA_FILE = Nonemodel.prepare(
    paddle.optimizer.Momentum(
        learning_rate=LinearWarmup(CosineAnnealingDecay(LR, MAX_EPOCH), 2000, 0., LR),
        momentum=MOMENTUM,
        parameters=model.parameters(),
        weight_decay=WEIGHT_DECAY),
    paddle.nn.CrossEntropyLoss(),
    paddle.metric.Accuracy(topk=(1,5)))# 定义数据集增强方式transforms = Compose([
    RandomCrop(32, padding=4),
    RandomApply(BrightnessTransform(0.1)),
    RandomApply(ContrastTransform(0.1)),
    RandomHorizontalFlip(),
    RandomRotation(15),
    ToArray(),
    Normalize(CIFAR_MEAN, CIFAR_STD),    # Resize(size=72)])
val_transforms = Compose([ToArray(), Normalize(CIFAR_MEAN, CIFAR_STD)])# 加载训练和测试数据集train_set = Cifar10(DATA_FILE, mode='train', transform=transforms)
test_set = Cifar10(DATA_FILE, mode='test', transform=val_transforms)# 定义保存方式和训练可视化checkpoint_callback = paddle.callbacks.ModelCheckpoint(save_freq=20, save_dir='output/AdaptFormer_BaseModel')
callbacks = [LRSchedulerM(),checkpoint_callback, callbacks.VisualDL('vis_logs/AdaptFormer_BaseModel.log')]# 训练模型model.fit(
    train_set,
    test_set,
    epochs=MAX_EPOCH,
    batch_size=BATCH_SIZE,
    shuffle=True,
    num_workers=0,
    verbose=1,
    callbacks=callbacks,
)
