本文基于文档阴影消除网盘赛，提供了一套PaddlePaddle训练模板。模板实现了定制输出、中断续训、保存最优模型等功能，涵盖数据增强、模型训练等全流程，还支持图像分块提升精度。示例用KIUnet和UNet_3Plus模型，提交结果0.59951，方便用户快速修改实现想法。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜
在使用Paddle写项目的时候，相信你也有和我一样的困惑：
高级API的封装太好，需要定制一些函数功能的时候不好添加；低级的API功能又很单一，要实现很多功能需要额外写很多代码。
如果能有一个模板，本身就具有比较完善的功能，只需要修改一部分代码就能快速实现自己的想法就好了。
基于这个想法，我完成了一套训练模型的模板，具有定制输出，模型中断后继续训练，保存最优模型等功能。
大家可以基于这个模板，快速修改并实现自己的想法。
生活中在使用手机进行文档扫描时，由于角度原因，难免会在照片中留下举手拍摄时遗留的恼人阴影。为了帮助人们解决这样的问题，减少阴影带来的干扰，选手需要通过深度学习技术训练模型，对给定的真实场景下采集得到的带有阴影的图片进行处理，还原图片原本的样子，并最终输出处理后的结果图片。

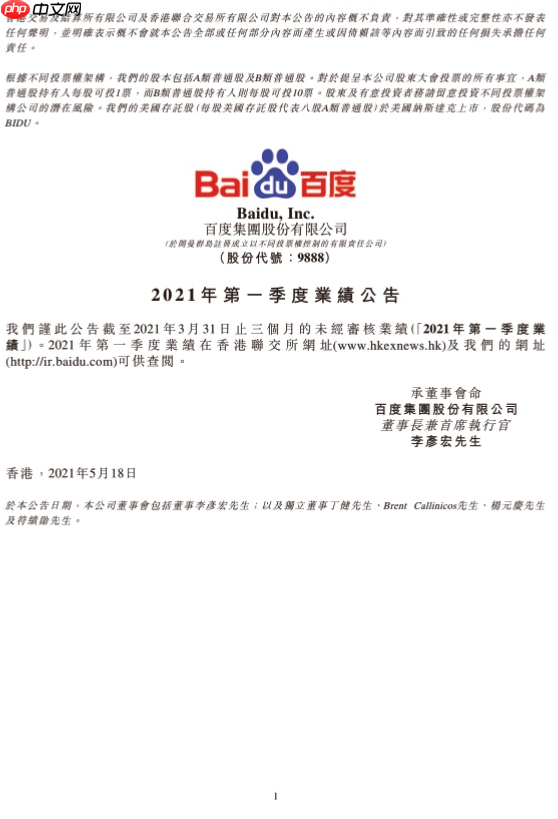

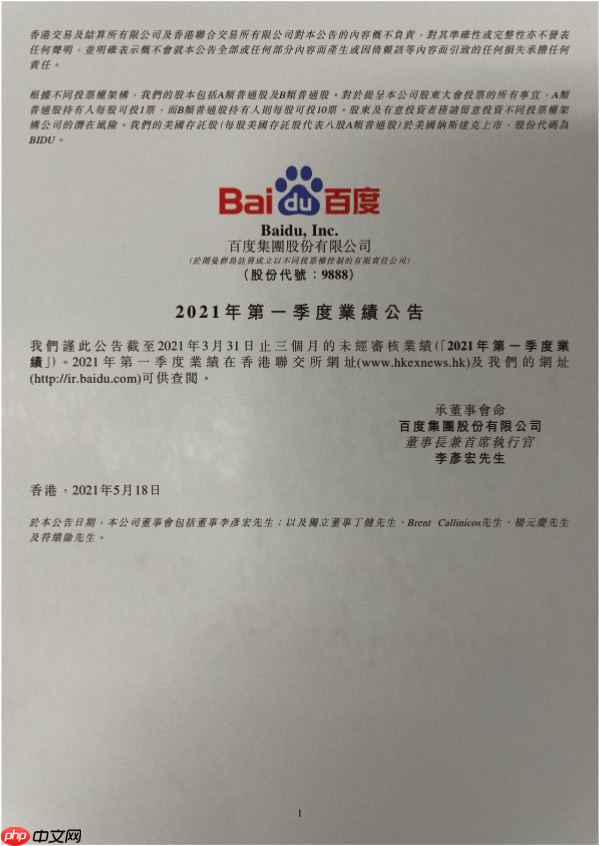

| 有阴影图片 | 无阴影图片 |
|---|---|
| @@##@@ | @@##@@ |
本次比赛最新发布的数据集共包含训练集、A榜测试集、B榜测试集三个部分，其中，训练集共1410个样本（图片编号非连续），A榜测试集共300个样本（图片编号连续），B榜测试集共397个样本；
images为带阴影的源图像数据，gts为无阴影的真值数据；(测试数据集的GT不开放)
images与gts中的图片根据图片名称一一对应。
1 :每个epoch输出定制信息,使用tqdm进度条实时查看每个epoch运行时间（修正windows终端或异常中断tqdm出现的混乱）
2 :可以直接定义并修改损失函数和模型，并给出示例
3 :可以选择传入模型继续训练或从头训练
4 :在训练完成后，以csv形式保存log文件
5 :自定义评价指标，并根据评价指标结果自动保存最优模型
6 :完成数据增强，模型训练，测试，推理全流程代码
7 :实现输入图像的分块，能有效提升图像类任务精度
# 解压数据集!unzip -o data/data125945/shadowRemovalOfDoc.zip!unzip delight_testA_dataset.zip -d data/ >>/dev/null !unzip delight_train_dataset.zip -d data/ >>/dev/null
# 安装需要的库函数!pip install scikit_image==0.15.0
prepare_data( patch_size=256, stride=200, aug_times=1)
patch_size：切分的正方形块的大小
stride：切分步长，每隔切分步长进行切块
aug_times：增强次数，每个图块生成几张增强图像
CODE 4 第32行 scales = [1] # 对数据进行随机放缩
[1，1.2] 表示原图和将图像扩大1.2倍后进行切分，这样增加训练数据量为 [1] 的两倍
# 定义离线数据增强方法def data_augmentation(image,label, mode):
out = np.transpose(image, (1,2,0))
out_label = np.transpose(label, (1,2,0)) if mode == 0: # original
out = out
out_label = out_label elif mode == 1: # flip up and down
out = np.flipud(out)
out_label = np.flipud(out_label) elif mode == 2: # rotate counterwise 90 degree
out = np.rot90(out)
out_label = np.rot90(out_label) elif mode == 3: # rotate 90 degree and flip up and down
out = np.rot90(out)
out = np.flipud(out)
out_label = np.rot90(out_label)
out_label = np.flipud(out_label) elif mode == 4: # rotate 180 degree
out = np.rot90(out, k=2)
out_label = np.rot90(out_label, k=2) elif mode == 5: # rotate 180 degree and flip
out = np.rot90(out, k=2)
out = np.flipud(out)
out_label = np.rot90(out_label, k=2)
out_label = np.flipud(out_label) elif mode == 6: # rotate 270 degree
out = np.rot90(out, k=3)
out_label = np.rot90(out_label, k=3) elif mode == 7: # rotate 270 degree and flip
out = np.rot90(out, k=3)
out = np.flipud(out)
out_label = np.rot90(out_label, k=3)
out_label = np.flipud(out_label) return out,out_label## 制作分块数据集import cv2import numpy as npimport mathimport glob
import osdef Im2Patch(img, win, stride=1):
k = 0
endc = img.shape[0]
endw = img.shape[1]
endh = img.shape[2]
patch = img[:, 0:endw-win+0+1:stride, 0:endh-win+0+1:stride]
TotalPatNum = patch.shape[1] * patch.shape[2]
Y = np.zeros([endc, win*win,TotalPatNum], np.float32) for i in range(win): for j in range(win):
patch = img[:,i:endw-win+i+1:stride,j:endh-win+j+1:stride]
Y[:,k,:] = np.array(patch[:]).reshape(endc, TotalPatNum)
k = k + 1
return Y.reshape([endc, win, win, TotalPatNum])def prepare_data(patch_size, stride, aug_times=1):
'''
该函数用于将图像切成方块，并进行数据增强
patch_size： 图像块的大小，本项目200*200
stride： 步长，每个图像块的间隔
aug_times： 数据增强次数，默认从八种增强方式中选择一种
'''
# train
print('process training data')
scales = [1] # 对数据进行随机放缩
files = glob.glob(os.path.join('data/delight_train_dataset/images', '*.jpg'))
files.sort()
img_folder = 'work/img_patch'
if not os.path.exists(img_folder):
os.mkdir(img_folder)
label_folder = 'work/label_patch'
if not os.path.exists(label_folder):
os.mkdir(label_folder)
train_num = 0
for i in range(len(files)):
img = cv2.imread(files[i])
label = cv2.imread(files[i].replace('images','gts'))
h, w, c = img.shape for k in range(len(scales)):
Img = cv2.resize(img, (int(h*scales[k]), int(w*scales[k])), interpolation=cv2.INTER_CUBIC)
Label = cv2.resize(label, (int(h*scales[k]), int(w*scales[k])), interpolation=cv2.INTER_CUBIC)
Img = np.transpose(Img, (2,0,1))
Label = np.transpose(Label, (2,0,1))
Img = np.float32(np.clip(Img,0,255))
Label = np.float32(np.clip(Label,0,255))
patches = Im2Patch(Img, win=patch_size, stride=stride)
label_patches = Im2Patch(Label, win=patch_size, stride=stride) print("file: %s scale %.1f # samples: %d" % (files[i], scales[k], patches.shape[3]*aug_times)) for n in range(patches.shape[3]):
data = patches[:,:,:,n].copy()
label_data = label_patches[:,:,:,n].copy()
for m in range(aug_times):
data_aug,label_aug = data_augmentation(data,label_data, np.random.randint(1,8))
label_name = os.path.join(label_folder,str(train_num)+"_aug_%d" % (m+1)+'.jpg')
image_name = os.path.join(img_folder,str(train_num)+"_aug_%d" % (m+1)+'.jpg')
cv2.imwrite(image_name, data_aug,[int( cv2.IMWRITE_JPEG_QUALITY), 100])
cv2.imwrite(label_name, label_aug,[int( cv2.IMWRITE_JPEG_QUALITY), 100])
train_num += 1
print('training set, # samples %d\n' % train_num)
## 生成数据prepare_data( patch_size=256, stride=200, aug_times=1)该部分代码使用了paddle.vision.transforms内置的图像增强方法
# 重写数据读取类import paddleimport paddle.vision.transforms as Timport numpy as npimport globimport cv2# 重写数据读取类class DEshadowDataset(paddle.io.Dataset):
def __init__(self,mode = 'train',is_transforms = False):
label_path_ ='work/label_patch/*.jpg'
jpg_path_ ='work/img_patch/*.jpg'
self.label_list_ = glob.glob(label_path_)
self.jpg_list_ = glob.glob(jpg_path_)
self.is_transforms = is_transforms
self.mode = mode
scale_point = 0.95
self.transforms =T.Compose([
T.Normalize(data_format='HWC',),
T.HueTransform(0.4),
T.SaturationTransform(0.4),
T.HueTransform(0.4),
T.ToTensor(),
]) # 选择前95%训练，后5%验证
if self.mode == 'train':
self.jpg_list_ = self.jpg_list_[:int(scale_point*len(self.jpg_list_))]
self.label_list_ = self.label_list_[:int(scale_point*len(self.label_list_))] else:
self.jpg_list_ = self.jpg_list_[int(scale_point*len(self.jpg_list_)):]
self.label_list_ = self.label_list_[int(scale_point*len(self.label_list_)):] def __getitem__(self, index):
jpg_ = self.jpg_list_[index]
label_ = self.label_list_[index]
data = cv2.imread(jpg_) # 读取和代码处于同一目录下的 lena.png # 转为 0-1
mask = cv2.imread(label_)
data = cv2.cvtColor(data, cv2.COLOR_BGR2RGB) # BGR 2 RGB
mask = cv2.cvtColor(mask, cv2.COLOR_BGR2RGB) # BGR 2 RGB
data = np.uint8(data)
mask = np.uint8(mask) if self.is_transforms:
data = self.transforms(data)
data = data/255
mask = T.functional.to_tensor(mask)
return data,mask
def __len__(self):
return len(self.jpg_list_)# 数据读取及增强可视化import paddle.vision.transforms as Timport matplotlib.pyplot as pltfrom PIL import Image
dataset = DEshadowDataset(mode='train',is_transforms = False )print('=============train dataset=============')
img_,mask_ = dataset[3] # mask 始终大于 imgimg = Image.fromarray(img_)
mask = Image.fromarray(mask_)#当要保存的图片为灰度图像时，灰度图像的 numpy 尺度是 [1, h, w]。需要将 [1, h, w] 改变为 [h, w]plt.figure(figsize=(12, 6))
plt.subplot(1,2,1),plt.xticks([]),plt.yticks([]),plt.imshow(img)
plt.subplot(1,2,2),plt.xticks([]),plt.yticks([]),plt.imshow(mask)
plt.show()网络介绍详情请点击链接查看。
# 定义KIUnet import paddleimport paddle.nn as nnimport paddle.nn.functional as Ffrom paddle.nn import initializerdef init_weights(init_type='kaiming'):
if init_type == 'normal': return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.Normal()) elif init_type == 'xavier': return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.XavierNormal()) elif init_type == 'kaiming': return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.KaimingNormal) else: raise NotImplementedError('initialization method [%s] is not implemented' % init_type)class kiunet(nn.Layer):
def __init__(self ,in_channels = 3, n_classes =3):
super(kiunet,self).__init__()
self.in_channels = in_channels
self.n_class = n_classes
self.encoder1 = nn.Conv2D(self.in_channels, 16, 3, stride=1, padding=1) # First Layer GrayScale Image , change to input channels to 3 in case of RGB
self.en1_bn = nn.BatchNorm(16)
self.encoder2= nn.Conv2D(16, 32, 3, stride=1, padding=1)
self.en2_bn = nn.BatchNorm(32)
self.encoder3= nn.Conv2D(32, 64, 3, stride=1, padding=1)
self.en3_bn = nn.BatchNorm(64)
self.decoder1 = nn.Conv2D(64, 32, 3, stride=1, padding=1)
self.de1_bn = nn.BatchNorm(32)
self.decoder2 = nn.Conv2D(32,16, 3, stride=1, padding=1)
self.de2_bn = nn.BatchNorm(16)
self.decoder3 = nn.Conv2D(16, 8, 3, stride=1, padding=1)
self.de3_bn = nn.BatchNorm(8)
self.decoderf1 = nn.Conv2D(64, 32, 3, stride=1, padding=1)
self.def1_bn = nn.BatchNorm(32)
self.decoderf2= nn.Conv2D(32, 16, 3, stride=1, padding=1)
self.def2_bn = nn.BatchNorm(16)
self.decoderf3 = nn.Conv2D(16, 8, 3, stride=1, padding=1)
self.def3_bn = nn.BatchNorm(8)
self.encoderf1 = nn.Conv2D(in_channels, 16, 3, stride=1, padding=1) # First Layer GrayScale Image , change to input channels to 3 in case of RGB
self.enf1_bn = nn.BatchNorm(16)
self.encoderf2= nn.Conv2D(16, 32, 3, stride=1, padding=1)
self.enf2_bn = nn.BatchNorm(32)
self.encoderf3 = nn.Conv2D(32, 64, 3, stride=1, padding=1)
self.enf3_bn = nn.BatchNorm(64)
self.intere1_1 = nn.Conv2D(16,16,3, stride=1, padding=1)
self.inte1_1bn = nn.BatchNorm(16)
self.intere2_1 = nn.Conv2D(32,32,3, stride=1, padding=1)
self.inte2_1bn = nn.BatchNorm(32)
self.intere3_1 = nn.Conv2D(64,64,3, stride=1, padding=1)
self.inte3_1bn = nn.BatchNorm(64)
self.intere1_2 = nn.Conv2D(16,16,3, stride=1, padding=1)
self.inte1_2bn = nn.BatchNorm(16)
self.intere2_2 = nn.Conv2D(32,32,3, stride=1, padding=1)
self.inte2_2bn = nn.BatchNorm(32)
self.intere3_2 = nn.Conv2D(64,64,3, stride=1, padding=1)
self.inte3_2bn = nn.BatchNorm(64)
self.interd1_1 = nn.Conv2D(32,32,3, stride=1, padding=1)
self.intd1_1bn = nn.BatchNorm(32)
self.interd2_1 = nn.Conv2D(16,16,3, stride=1, padding=1)
self.intd2_1bn = nn.BatchNorm(16)
self.interd3_1 = nn.Conv2D(64,64,3, stride=1, padding=1)
self.intd3_1bn = nn.BatchNorm(64)
self.interd1_2 = nn.Conv2D(32,32,3, stride=1, padding=1)
self.intd1_2bn = nn.BatchNorm(32)
self.interd2_2 = nn.Conv2D(16,16,3, stride=1, padding=1)
self.intd2_2bn = nn.BatchNorm(16)
self.interd3_2 = nn.Conv2D(64,64,3, stride=1, padding=1)
self.intd3_2bn = nn.BatchNorm(64)
self.final = nn.Sequential(
nn.Conv2D(8,self.n_class,1,stride=1,padding=0),
nn.AdaptiveAvgPool2D(output_size=1)) # initialise weights
for m in self.sublayers (): if isinstance(m, nn.Conv2D):
m.weight_attr = init_weights(init_type='kaiming')
m.bias_attr = init_weights(init_type='kaiming') elif isinstance(m, nn.BatchNorm):
m.param_attr =init_weights(init_type='kaiming')
m.bias_attr = init_weights(init_type='kaiming')
def forward(self, x):
# input: c * h * w -> 16 * h/2 * w/2
out = F.relu(self.en1_bn(F.max_pool2d(self.encoder1(x),2,2))) #U-Net branch
# c * h * w -> 16 * 2h * 2w
out1 = F.relu(self.enf1_bn(F.interpolate(self.encoderf1(x),scale_factor=(2,2),mode ='bicubic'))) #Ki-Net branch
# 16 * h/2 * w/2
tmp = out # 16 * 2h * 2w -> 16 * h/2 * w/2
out = paddle.add(out,F.interpolate(F.relu(self.inte1_1bn(self.intere1_1(out1))),scale_factor=(0.25,0.25),mode ='bicubic')) #CRFB
# 16 * h/2 * w/2 -> 16 * 2h * 2w
out1 = paddle.add(out1,F.interpolate(F.relu(self.inte1_2bn(self.intere1_2(tmp))),scale_factor=(4,4),mode ='bicubic')) #CRFB
# 16 * h/2 * w/2
u1 = out #skip conn
# 16 * 2h * 2w
o1 = out1 #skip conn
# 16 * h/2 * w/2 -> 32 * h/4 * w/4
out = F.relu(self.en2_bn(F.max_pool2d(self.encoder2(out),2,2))) # 16 * 2h * 2w -> 32 * 4h * 4w
out1 = F.relu(self.enf2_bn(F.interpolate(self.encoderf2(out1),scale_factor=(2,2),mode ='bicubic'))) # 32 * h/4 * w/4
tmp = out # 32 * 4h * 4w -> 32 * h/4 *w/4
out = paddle.add(out,F.interpolate(F.relu(self.inte2_1bn(self.intere2_1(out1))),scale_factor=(0.0625,0.0625),mode ='bicubic')) # 32 * h/4 * w/4 -> 32 *4h *4w
out1 = paddle.add(out1,F.interpolate(F.relu(self.inte2_2bn(self.intere2_2(tmp))),scale_factor=(16,16),mode ='bicubic'))
# 32 * h/4 *w/4
u2 = out # 32 *4h *4w
o2 = out1
# 32 * h/4 *w/4 -> 64 * h/8 *w/8
out = F.relu(self.en3_bn(F.max_pool2d(self.encoder3(out),2,2))) # 32 *4h *4w -> 64 * 8h *8w
out1 = F.relu(self.enf3_bn(F.interpolate(self.encoderf3(out1),scale_factor=(2,2),mode ='bicubic'))) # 64 * h/8 *w/8
tmp = out # 64 * 8h *8w -> 64 * h/8 * w/8
out = paddle.add(out,F.interpolate(F.relu(self.inte3_1bn(self.intere3_1(out1))),scale_factor=(0.015625,0.015625),mode ='bicubic')) # 64 * h/8 *w/8 -> 64 * 8h * 8w
out1 = paddle.add(out1,F.interpolate(F.relu(self.inte3_2bn(self.intere3_2(tmp))),scale_factor=(64,64),mode ='bicubic'))
### End of encoder block
### Start Decoder
# 64 * h/8 * w/8 -> 32 * h/4 * w/4
out = F.relu(self.de1_bn(F.interpolate(self.decoder1(out),scale_factor=(2,2),mode ='bicubic'))) #U-NET
# 64 * 8h * 8w -> 32 * 4h * 4w
out1 = F.relu(self.def1_bn(F.max_pool2d(self.decoderf1(out1),2,2))) #Ki-NET
# 32 * h/4 * w/4
tmp = out # 32 * 4h * 4w -> 32 * h/4 * w/4
out = paddle.add(out,F.interpolate(F.relu(self.intd1_1bn(self.interd1_1(out1))),scale_factor=(0.0625,0.0625),mode ='bicubic')) # 32 * h/4 * w/4 -> 32 * 4h * 4w
out1 = paddle.add(out1,F.interpolate(F.relu(self.intd1_2bn(self.interd1_2(tmp))),scale_factor=(16,16),mode ='bicubic'))
# 32 * h/4 * w/4
out = paddle.add(out,u2) #skip conn
# 32 * 4h * 4w
out1 = paddle.add(out1,o2) #skip conn
# 32 * h/4 * w/4 -> 16 * h/2 * w/2
out = F.relu(self.de2_bn(F.interpolate(self.decoder2(out),scale_factor=(2,2),mode ='bicubic'))) # 32 * 4h * 4w -> 16 * 2h * 2w
out1 = F.relu(self.def2_bn(F.max_pool2d(self.decoderf2(out1),2,2))) # 16 * h/2 * w/2
tmp = out # 16 * 2h * 2w -> 16 * h/2 * w/2
out = paddle.add(out,F.interpolate(F.relu(self.intd2_1bn(self.interd2_1(out1))),scale_factor=(0.25,0.25),mode ='bicubic')) # 16 * h/2 * w/2 -> 16 * 2h * 2w
out1 = paddle.add(out1,F.interpolate(F.relu(self.intd2_2bn(self.interd2_2(tmp))),scale_factor=(4,4),mode ='bicubic'))
# 16 * h/2 * w/2
out = paddle.add(out,u1) # 16 * 2h * 2w
out1 = paddle.add(out1,o1) # 16 * h/2 * w/2 -> 8 * h * w
out = F.relu(self.de3_bn(F.interpolate(self.decoder3(out),scale_factor=(2,2),mode ='bicubic'))) # 16 * 2h * 2w -> 8 * h * w
out1 = F.relu(self.def3_bn(F.max_pool2d(self.decoderf3(out1),2,2))) # 8 * h * w
out = paddle.add(out,out1) # fusion of both branches
# 最后一层用sigmoid激活函数
out = F.sigmoid(self.final(out)) #1*1 conv
return outimport paddleimport paddle.nn as nnimport paddle.nn.functional as Ffrom paddle.nn import initializerdef init_weights(init_type='kaiming'):
if init_type == 'normal': return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.Normal()) elif init_type == 'xavier': return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.XavierNormal()) elif init_type == 'kaiming': return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.KaimingNormal) else: raise NotImplementedError('initialization method [%s] is not implemented' % init_type)class unetConv2(nn.Layer):
def __init__(self, in_size, out_size, is_batchnorm, n=2, ks=3, stride=1, padding=1):
super(unetConv2, self).__init__()
self.n = n
self.ks = ks
self.stride = stride
self.padding = padding
s = stride
p = padding if is_batchnorm: for i in range(1, n + 1):
conv = nn.Sequential(nn.Conv2D(in_size, out_size, ks, s, p),
nn.BatchNorm(out_size),
nn.ReLU(), ) setattr(self, 'conv%d' % i, conv)
in_size = out_size else: for i in range(1, n + 1):
conv = nn.Sequential(nn.Conv2D(in_size, out_size, ks, s, p),
nn.ReLU(), ) setattr(self, 'conv%d' % i, conv)
in_size = out_size # initialise the blocks
for m in self.children():
m.weight_attr=init_weights(init_type='kaiming')
m.bias_attr=init_weights(init_type='kaiming') def forward(self, inputs):
x = inputs for i in range(1, self.n + 1):
conv = getattr(self, 'conv%d' % i)
x = conv(x) return x'''
UNet 3+
'''class UNet_3Plus(nn.Layer):
def __init__(self, in_channels=3, n_classes=1, is_deconv=True, is_batchnorm=True, end_sigmoid=True):
super(UNet_3Plus, self).__init__()
self.is_deconv = is_deconv
self.in_channels = in_channels
self.is_batchnorm = is_batchnorm
self.end_sigmoid = end_sigmoid
filters = [16, 32, 64, 128, 256] ## -------------Encoder--------------
self.conv1 = unetConv2(self.in_channels, filters[0], self.is_batchnorm)
self.maxpool1 = nn.MaxPool2D(kernel_size=2)
self.conv2 = unetConv2(filters[0], filters[1], self.is_batchnorm)
self.maxpool2 = nn.MaxPool2D(kernel_size=2)
self.conv3 = unetConv2(filters[1], filters[2], self.is_batchnorm)
self.maxpool3 = nn.MaxPool2D(kernel_size=2)
self.conv4 = unetConv2(filters[2], filters[3], self.is_batchnorm)
self.maxpool4 = nn.MaxPool2D(kernel_size=2)
self.conv5 = unetConv2(filters[3], filters[4], self.is_batchnorm) ## -------------Decoder--------------
self.CatChannels = filters[0]
self.CatBlocks = 5
self.UpChannels = self.CatChannels * self.CatBlocks '''stage 4d'''
# h2->320*320, hd4->40*40, Pooling 8 times
self.h2_PT_hd4 = nn.MaxPool2D(8, 8, ceil_mode=True)
self.h2_PT_hd4_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
self.h2_PT_hd4_bn = nn.BatchNorm(self.CatChannels)
self.h2_PT_hd4_relu = nn.ReLU() # h2->160*160, hd4->40*40, Pooling 4 times
self.h2_PT_hd4 = nn.MaxPool2D(4, 4, ceil_mode=True)
self.h2_PT_hd4_conv = nn.Conv2D(filters[1], self.CatChannels, 3, padding=1)
self.h2_PT_hd4_bn = nn.BatchNorm(self.CatChannels)
self.h2_PT_hd4_relu = nn.ReLU() # h3->80*80, hd4->40*40, Pooling 2 times
self.h3_PT_hd4 = nn.MaxPool2D(2, 2, ceil_mode=True)
self.h3_PT_hd4_conv = nn.Conv2D(filters[2], self.CatChannels, 3, padding=1)
self.h3_PT_hd4_bn = nn.BatchNorm(self.CatChannels)
self.h3_PT_hd4_relu = nn.ReLU() # h4->40*40, hd4->40*40, Concatenation
self.h4_Cat_hd4_conv = nn.Conv2D(filters[3], self.CatChannels, 3, padding=1)
self.h4_Cat_hd4_bn = nn.BatchNorm(self.CatChannels)
self.h4_Cat_hd4_relu = nn.ReLU() # hd5->20*20, hd4->40*40, Upsample 2 times
self.hd5_UT_hd4 = nn.Upsample(scale_factor=2, mode='bilinear') # 14*14
self.hd5_UT_hd4_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
self.hd5_UT_hd4_bn = nn.BatchNorm(self.CatChannels)
self.hd5_UT_hd4_relu = nn.ReLU() # fusion(h2_PT_hd4, h2_PT_hd4, h3_PT_hd4, h4_Cat_hd4, hd5_UT_hd4)
self.conv4d_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1) # 16
self.bn4d_1 = nn.BatchNorm(self.UpChannels)
self.relu4d_1 = nn.ReLU() '''stage 3d'''
# h2->320*320, hd3->80*80, Pooling 4 times
self.h2_PT_hd3 = nn.MaxPool2D(4, 4, ceil_mode=True)
self.h2_PT_hd3_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
self.h2_PT_hd3_bn = nn.BatchNorm(self.CatChannels)
self.h2_PT_hd3_relu = nn.ReLU() # h2->160*160, hd3->80*80, Pooling 2 times
self.h2_PT_hd3 = nn.MaxPool2D(2, 2, ceil_mode=True)
self.h2_PT_hd3_conv = nn.Conv2D(filters[1], self.CatChannels, 3, padding=1)
self.h2_PT_hd3_bn = nn.BatchNorm(self.CatChannels)
self.h2_PT_hd3_relu = nn.ReLU() # h3->80*80, hd3->80*80, Concatenation
self.h3_Cat_hd3_conv = nn.Conv2D(filters[2], self.CatChannels, 3, padding=1)
self.h3_Cat_hd3_bn = nn.BatchNorm(self.CatChannels)
self.h3_Cat_hd3_relu = nn.ReLU() # hd4->40*40, hd4->80*80, Upsample 2 times
self.hd4_UT_hd3 = nn.Upsample(scale_factor=2, mode='bilinear') # 14*14
self.hd4_UT_hd3_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
self.hd4_UT_hd3_bn = nn.BatchNorm(self.CatChannels)
self.hd4_UT_hd3_relu = nn.ReLU() # hd5->20*20, hd4->80*80, Upsample 4 times
self.hd5_UT_hd3 = nn.Upsample(scale_factor=4, mode='bilinear') # 14*14
self.hd5_UT_hd3_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
self.hd5_UT_hd3_bn = nn.BatchNorm(self.CatChannels)
self.hd5_UT_hd3_relu = nn.ReLU() # fusion(h2_PT_hd3, h2_PT_hd3, h3_Cat_hd3, hd4_UT_hd3, hd5_UT_hd3)
self.conv3d_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1) # 16
self.bn3d_1 = nn.BatchNorm(self.UpChannels)
self.relu3d_1 = nn.ReLU() '''stage 2d '''
# h2->320*320, hd2->160*160, Pooling 2 times
self.h2_PT_hd2 = nn.MaxPool2D(2, 2, ceil_mode=True)
self.h2_PT_hd2_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
self.h2_PT_hd2_bn = nn.BatchNorm(self.CatChannels)
self.h2_PT_hd2_relu = nn.ReLU() # h2->160*160, hd2->160*160, Concatenation
self.h2_Cat_hd2_conv = nn.Conv2D(filters[1], self.CatChannels, 3, padding=1)
self.h2_Cat_hd2_bn = nn.BatchNorm(self.CatChannels)
self.h2_Cat_hd2_relu = nn.ReLU() # hd3->80*80, hd2->160*160, Upsample 2 times
self.hd3_UT_hd2 = nn.Upsample(scale_factor=2, mode='bilinear') # 14*14
self.hd3_UT_hd2_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
self.hd3_UT_hd2_bn = nn.BatchNorm(self.CatChannels)
self.hd3_UT_hd2_relu = nn.ReLU() # hd4->40*40, hd2->160*160, Upsample 4 times
self.hd4_UT_hd2 = nn.Upsample(scale_factor=4, mode='bilinear') # 14*14
self.hd4_UT_hd2_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
self.hd4_UT_hd2_bn = nn.BatchNorm(self.CatChannels)
self.hd4_UT_hd2_relu = nn.ReLU() # hd5->20*20, hd2->160*160, Upsample 8 times
self.hd5_UT_hd2 = nn.Upsample(scale_factor=8, mode='bilinear') # 14*14
self.hd5_UT_hd2_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
self.hd5_UT_hd2_bn = nn.BatchNorm(self.CatChannels)
self.hd5_UT_hd2_relu = nn.ReLU() # fusion(h2_PT_hd2, h2_Cat_hd2, hd3_UT_hd2, hd4_UT_hd2, hd5_UT_hd2)
self.Conv2D_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1) # 16
self.bn2d_1 = nn.BatchNorm(self.UpChannels)
self.relu2d_1 = nn.ReLU() '''stage 1d'''
# h2->320*320, hd1->320*320, Concatenation
self.h2_Cat_hd1_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
self.h2_Cat_hd1_bn = nn.BatchNorm(self.CatChannels)
self.h2_Cat_hd1_relu = nn.ReLU() # hd2->160*160, hd1->320*320, Upsample 2 times
self.hd2_UT_hd1 = nn.Upsample(scale_factor=2, mode='bilinear') # 14*14
self.hd2_UT_hd1_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
self.hd2_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
self.hd2_UT_hd1_relu = nn.ReLU() # hd3->80*80, hd1->320*320, Upsample 4 times
self.hd3_UT_hd1 = nn.Upsample(scale_factor=4, mode='bilinear') # 14*14
self.hd3_UT_hd1_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
self.hd3_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
self.hd3_UT_hd1_relu = nn.ReLU() # hd4->40*40, hd1->320*320, Upsample 8 times
self.hd4_UT_hd1 = nn.Upsample(scale_factor=8, mode='bilinear') # 14*14
self.hd4_UT_hd1_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
self.hd4_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
self.hd4_UT_hd1_relu = nn.ReLU() # hd5->20*20, hd1->320*320, Upsample 16 times
self.hd5_UT_hd1 = nn.Upsample(scale_factor=16, mode='bilinear') # 14*14
self.hd5_UT_hd1_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
self.hd5_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
self.hd5_UT_hd1_relu = nn.ReLU() # fusion(h2_Cat_hd1, hd2_UT_hd1, hd3_UT_hd1, hd4_UT_hd1, hd5_UT_hd1)
self.conv1d_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1) # 16
self.bn1d_1 = nn.BatchNorm(self.UpChannels)
self.relu1d_1 = nn.ReLU() # output
self.outconv1 = nn.Conv2D(self.UpChannels, n_classes, 3, padding=1) # initialise weights
for m in self.sublayers (): if isinstance(m, nn.Conv2D):
m.weight_attr = init_weights(init_type='kaiming')
m.bias_attr = init_weights(init_type='kaiming') elif isinstance(m, nn.BatchNorm):
m.param_attr =init_weights(init_type='kaiming')
m.bias_attr = init_weights(init_type='kaiming') def forward(self, inputs):
## -------------Encoder-------------
h2 = self.conv1(inputs) # h2->320*320*64
h2 = self.maxpool1(h2)
h2 = self.conv2(h2) # h2->160*160*128
h3 = self.maxpool2(h2)
h3 = self.conv3(h3) # h3->80*80*256
h4 = self.maxpool3(h3)
h4 = self.conv4(h4) # h4->40*40*512
h5 = self.maxpool4(h4)
hd5 = self.conv5(h5) # h5->20*20*1024
## -------------Decoder-------------
h2_PT_hd4 = self.h2_PT_hd4_relu(self.h2_PT_hd4_bn(self.h2_PT_hd4_conv(self.h2_PT_hd4(h2))))
h2_PT_hd4 = self.h2_PT_hd4_relu(self.h2_PT_hd4_bn(self.h2_PT_hd4_conv(self.h2_PT_hd4(h2))))
h3_PT_hd4 = self.h3_PT_hd4_relu(self.h3_PT_hd4_bn(self.h3_PT_hd4_conv(self.h3_PT_hd4(h3))))
h4_Cat_hd4 = self.h4_Cat_hd4_relu(self.h4_Cat_hd4_bn(self.h4_Cat_hd4_conv(h4)))
hd5_UT_hd4 = self.hd5_UT_hd4_relu(self.hd5_UT_hd4_bn(self.hd5_UT_hd4_conv(self.hd5_UT_hd4(hd5))))
hd4 = self.relu4d_1(self.bn4d_1(self.conv4d_1(
paddle.concat([h2_PT_hd4, h2_PT_hd4, h3_PT_hd4, h4_Cat_hd4, hd5_UT_hd4], 1)))) # hd4->40*40*UpChannels
h2_PT_hd3 = self.h2_PT_hd3_relu(self.h2_PT_hd3_bn(self.h2_PT_hd3_conv(self.h2_PT_hd3(h2))))
h2_PT_hd3 = self.h2_PT_hd3_relu(self.h2_PT_hd3_bn(self.h2_PT_hd3_conv(self.h2_PT_hd3(h2))))
h3_Cat_hd3 = self.h3_Cat_hd3_relu(self.h3_Cat_hd3_bn(self.h3_Cat_hd3_conv(h3)))
hd4_UT_hd3 = self.hd4_UT_hd3_relu(self.hd4_UT_hd3_bn(self.hd4_UT_hd3_conv(self.hd4_UT_hd3(hd4))))
hd5_UT_hd3 = self.hd5_UT_hd3_relu(self.hd5_UT_hd3_bn(self.hd5_UT_hd3_conv(self.hd5_UT_hd3(hd5))))
hd3 = self.relu3d_1(self.bn3d_1(self.conv3d_1(
paddle.concat([h2_PT_hd3, h2_PT_hd3, h3_Cat_hd3, hd4_UT_hd3, hd5_UT_hd3], 1)))) # hd3->80*80*UpChannels
h2_PT_hd2 = self.h2_PT_hd2_relu(self.h2_PT_hd2_bn(self.h2_PT_hd2_conv(self.h2_PT_hd2(h2))))
h2_Cat_hd2 = self.h2_Cat_hd2_relu(self.h2_Cat_hd2_bn(self.h2_Cat_hd2_conv(h2)))
hd3_UT_hd2 = self.hd3_UT_hd2_relu(self.hd3_UT_hd2_bn(self.hd3_UT_hd2_conv(self.hd3_UT_hd2(hd3))))
hd4_UT_hd2 = self.hd4_UT_hd2_relu(self.hd4_UT_hd2_bn(self.hd4_UT_hd2_conv(self.hd4_UT_hd2(hd4))))
hd5_UT_hd2 = self.hd5_UT_hd2_relu(self.hd5_UT_hd2_bn(self.hd5_UT_hd2_conv(self.hd5_UT_hd2(hd5))))
hd2 = self.relu2d_1(self.bn2d_1(self.Conv2D_1(
paddle.concat([h2_PT_hd2, h2_Cat_hd2, hd3_UT_hd2, hd4_UT_hd2, hd5_UT_hd2], 1)))) # hd2->160*160*UpChannels
h2_Cat_hd1 = self.h2_Cat_hd1_relu(self.h2_Cat_hd1_bn(self.h2_Cat_hd1_conv(h2)))
hd2_UT_hd1 = self.hd2_UT_hd1_relu(self.hd2_UT_hd1_bn(self.hd2_UT_hd1_conv(self.hd2_UT_hd1(hd2))))
hd3_UT_hd1 = self.hd3_UT_hd1_relu(self.hd3_UT_hd1_bn(self.hd3_UT_hd1_conv(self.hd3_UT_hd1(hd3))))
hd4_UT_hd1 = self.hd4_UT_hd1_relu(self.hd4_UT_hd1_bn(self.hd4_UT_hd1_conv(self.hd4_UT_hd1(hd4))))
hd5_UT_hd1 = self.hd5_UT_hd1_relu(self.hd5_UT_hd1_bn(self.hd5_UT_hd1_conv(self.hd5_UT_hd1(hd5))))
hd1 = self.relu1d_1(self.bn1d_1(self.conv1d_1(
paddle.concat([h2_Cat_hd1, hd2_UT_hd1, hd3_UT_hd1, hd4_UT_hd1, hd5_UT_hd1], 1)))) # hd1->320*320*UpChannels
d1 = self.outconv1(hd1) # d1->320*320*n_classes
if self.end_sigmoid:
out = F.sigmoid(d1) else:
out = d1 return out# 查看网络结构KIunet = kiunet(in_channels = 3, n_classes =3) Unet3p = UNet_3Plus( in_channels=3, n_classes=3) model = paddle.Model(Unet3p) model.summary((2,3, 256, 256))
该部分介绍模板的具体使用：
- 模型运行
| 参数 | self.is_Train | self.PATH |
|---|---|---|
| False | 进行推理 | 从头训练 |
| True | 进行训练 | 读取模型继续训练 |
注意： self.PATH的True指输入模型路径，例如：当self.is_Train为False时， self.PATH为模型路径，此时不需要训练，直接进行推理生成结果。
- 损失函数
在work目录下loss.py文件中实现了：
---- TVLoss
---- SSIMLoss
---- LossVGG19（感知损失）
......
可以根据自己的需求进行修改或添加
- 最优模型
在Eval方法中定义了score变量，该变量记录验证集上的评价指标。
每个EPOCH会计算一次验证集上的score。
只有当获得更高的score时，才会删除原模型，记录新的最优模型。
注意： 需要自定义评价指标时，只需修改score的计算即可
- 保存结果
函数会zi'dong在work目录下生成一系列目录：
log
用于保存训练过程的结果
outputs
用于以模型名称为文件夹保存推理的结果
saveModel
用于记录最优的模型，名称为模型名+验证集score分数
注意： 需要自定义修改self.Modelname，用于区分不同模型的生成结果
## 主函数定义 Baseline # 基本假设 干净图像 + 噪声 = 受污染图像# 阴影部分的像素值要低一些，因此，需要对受污染图像的像素值进行增强# 受污染图像 + 阴影 = 干净图像"""
@author: xupeng
"""from work.loss import *from work.util import batch_psnr_ssimfrom PIL import Imageimport numpy as npimport pandas as pdfrom tqdm import tqdmimport osimport matplotlib.pyplot as pltimport globfrom PIL import Imagefrom skimage.measure.simple_metrics import compare_psnrimport skimageimport paddle.vision.transforms as Timport cv2class Solver(object):
def __init__(self):
self.model = None
self.lr = 1e-4 # 学习率
self.epochs = 10 # 训练的代数
self.batch_size = 4 # 训练批次数量
self.optimizer = None
self.scheduler = None
self.saveSetDir = r'data/delight_testA_dataset/images/' # 测试集地址
self.train_set = None
self.eval_set = None
self.train_loader = None
self.eval_loader = None
self.Modelname = 'Unet3p' # 使用的网络声明（生成的文件会以该声明为区分）
self.evaTOP = 0
self.is_Train = True # #是否对执行模型训练，当为False时，给出self.PATH,直接进行推理
self.PATH = False #False# 用于记录最优模型的名称,需要预训练时，此项不为空
def InitModeAndData(self):
print("---------------trainInit:---------------") # API文档搜索：vision.transforms 查看数据增强方法
is_transforms = True
self.train_set = DEshadowDataset(mode='train',is_transforms = is_transforms)
self.eval_set = DEshadowDataset(mode='eval',is_transforms = is_transforms) # 使用paddle.io.DataLoader 定义DataLoader对象用于加载Python生成器产生的数据
self.train_loader = paddle.io.DataLoader(self.train_set, batch_size=self.batch_size, shuffle=True)
self.eval_loader = paddle.io.DataLoader(self.eval_set, batch_size=self.batch_size, shuffle=False)
self.model = UNet_3Plus( in_channels=3, n_classes=3) if self.is_Train and self.PATH: # 已经有模型还要训练时，进行二次训练
params = paddle.load(self.PATH)
self.model.set_state_dict(params)
self.evaTOP = float(self.PATH.split(self.Modelname)[-1].replace('.pdparams',''))
self.scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=self.lr, T_max=30, verbose=False)
self.optimizer = paddle.optimizer.Adam(parameters=self.model.parameters(), learning_rate=self.scheduler,beta1=0.5, beta2=0.999) # 创建文件夹
for item in ['log','outputs','saveModel']:
make_folder = os.path.join('work',item) if not os.path.exists(make_folder):
os.mkdir(make_folder) def train(self,epoch):
print("=======Epoch:{}/{}=======".format(epoch,self.epochs))
self.model.train()
TV_criterion = nTVLoss() # 用于规范图像噪声
ssim_criterion = SSIMLoss() # 用于对原图进行
lossnet = LossVGG19() # 感知loss
l1_loss = paddle.nn.L1Loss()
Mse_loss = nn.MSELoss() try: # 使用这种写法(try-except 和 ascii=True)，可以避免windows终端或异常中断tqdm出现的混乱
with tqdm(enumerate(self.train_loader),total=len(self.train_loader), ascii=True) as tqdmData:
mean_loss = []
for idx, (img_train,mask_train) in tqdmData:
tqdmData.set_description('train')
img_train = paddle.to_tensor(img_train,dtype="float32")
mask_train = paddle.to_tensor(mask_train,dtype="float32") # MODEL
outputs_noise = self.model(img_train) # mask > img 因此需要增加像素值
mask_noise = mask_train - img_train # 真实图像与阴影的差值
# 恢复出来的图像
restore_trian =img_train + outputs_noise '''
# 去均值
tensor_c = paddle.to_tensor(np.array([123.6800, 116.7790, 103.9390]).astype(np.float32).reshape((1, 3, 1, 1)))
# 感知损失
# preceptual loss
loss_fake_B = lossnet(restore_trian * 255 - tensor_c)
loss_real_B = lossnet(mask_train * 255 - tensor_c)
p0 = l1_loss(restore_trian * 255 - tensor_c, mask_train * 255 - tensor_c) * 2
p1 = l1_loss(loss_fake_B['relu1'], loss_real_B['relu1']) / 2.6
p2 = l1_loss(loss_fake_B['relu2'], loss_real_B['relu2']) / 4.8
loss_p = p0 + p1 + p2
loss = loss_p + ssim_criterion(restore_trian,mask_train) + 10*l1_loss(outputs_noise,mask_noise)
'''
loss = l1_loss(restore_trian,mask_train)
self.optimizer.clear_grad()
loss.backward()
self.optimizer.step()
self.scheduler.step() ### 改优化器记得改这个
mean_loss.append(loss.item()) except KeyboardInterrupt:
tqdmData.close()
os._exit(0)
tqdmData.close() # 清除中间变量，释放内存
del loss,img_train,mask_train,outputs_noise,mask_noise,restore_trian
paddle.device.cuda.empty_cache() return {'Mean_trainLoss':np.mean(mean_loss)}
def Eval(self,modelname):
self.model.eval()
temp_eval_psnr ,temp_eval_ssim= [],[] with paddle.no_grad(): try: with tqdm(enumerate(self.eval_loader),total=len(self.eval_loader), ascii=True) as tqdmData: for idx, (img_eval,mask_eval) in tqdmData:
tqdmData.set_description(' eval')
img_eval= paddle.to_tensor(img_eval,dtype="float32")
mask_eval = paddle.to_tensor(mask_eval,dtype="float32")
outputs_denoise = self.model(img_eval) # 模型输出
outputs_denoise = img_eval + outputs_denoise # 恢复后的图像
psnr_test,ssim_test = batch_psnr_ssim(outputs_denoise, mask_eval, 1.)
temp_eval_psnr.append(psnr_test)
temp_eval_ssim.append(ssim_test)
except KeyboardInterrupt:
tqdmData.close()
os._exit(0)
tqdmData.close()
paddle.device.cuda.empty_cache() # 打印test psnr & ssim
# print('eval_psnr:',np.mean(temp_eval_psnr),'eval_ssim:',np.mean(temp_eval_ssim))
# 实现评价指标
score = 0.05*np.mean(temp_eval_psnr)+0.5*np.mean(temp_eval_ssim) return {'eval_psnr':np.mean(temp_eval_psnr),'eval_ssim':np.mean(temp_eval_ssim),'SCORE':score}
def saveModel(self,trainloss,modelname):
trainLoss = trainloss['SCORE'] if trainLoss < self.evaTOP and self.evaTOP!=0:
return 0
else:
folder = 'work/saveModel/'
self.PATH = folder+modelname+str(trainLoss)+'.pdparams'
removePATH = folder+modelname+str(self.evaTOP)+'.pdparams'
paddle.save(self.model.state_dict(), self.PATH) if self.evaTOP!=0:
os.remove(removePATH)
self.evaTOP = trainLoss return 1
def saveResult(self):
print("---------------saveResult:---------------")
self.model.set_state_dict(paddle.load(self.PATH))
self.model.eval()
paddle.set_grad_enabled(False)
paddle.device.cuda.empty_cache()
data_dir = glob.glob(self.saveSetDir+'*.jpg') # 创建保存文件夹
make_save_result = os.path.join('work/outputs',self.Modelname) if not os.path.exists(make_save_result):
os.mkdir(make_save_result)
saveSet = pd.DataFrame()
tpsnr,tssim = [],[]
for idx,ori_path in enumerate(data_dir): print(len(data_dir),'|',idx+1,end = '\r',flush = True)
ori = cv2.imread(ori_path) # W,H,C
ori = cv2.cvtColor(ori, cv2.COLOR_BGR2RGB) # BGR 2 RGB
ori_w,ori_h,ori_c = ori.shape # normalize_test = T.Normalize(
# [0.610621, 0.5989216, 0.5876396],
# [0.1835931, 0.18701428, 0.19362564],
# data_format='HWC')
#ori = normalize_test(ori)
ori = T.functional.resize(ori,(1024,1024),interpolation = 'bicubic') ###不切块送进去 1024,1024 上采样
# from HWC to CHW ,[0,255] to [0,1]
ori = np.transpose(ori,(2,0,1))/255
ori_img = paddle.to_tensor(ori,dtype="float32")
ori_img = paddle.unsqueeze(ori_img,0) # N C W H
out_noise = self.model(ori_img) #不切块送进去
out_noise = ori_img + out_noise #加上恢复的像素
img_cpu = out_noise.cpu().numpy() #保存结果
img_cpu = np.squeeze(img_cpu)
img_cpu = np.transpose(img_cpu,(1,2,0)) # C,W,H to W,H,C
img_cpu = np.clip(img_cpu, 0., 1.)
savepic = np.uint8(img_cpu*255)
savepic = T.functional.resize(savepic,(ori_w,ori_h),interpolation = 'bicubic') ## 采样回原始大小
# 保存路径
savedir = os.path.join(make_save_result,ori_path.split('/')[-1])
savepic = cv2.cvtColor(savepic, cv2.COLOR_RGB2BGR) # BGR
cv2.imwrite(savedir, savepic, [int( cv2.IMWRITE_JPEG_QUALITY), 100]) def run(self):
self.InitModeAndData()
if self.is_Train:
modelname = self.Modelname # 使用的网络名称
result = pd.DataFrame()
for epoch in range(1, self.epochs + 1):
trainloss = self.train(epoch)
evalloss = self.Eval(modelname)#
Type = self.saveModel(evalloss,modelname)
type_ = {'Type':Type}
trainloss.update(evalloss)#
trainloss.update(type_)
result = result.append(trainloss,ignore_index=True) print('Epoch:',epoch,trainloss)
#self.scheduler.step()
evalloss = self.Eval(modelname)#
result.to_csv('work/log/' +modelname+str(evalloss['SCORE'])+'.csv')#
self.saveResult() else:
self.saveResult()def main():
solver = Solver()
solver.run()
if __name__ == '__main__':
main()进入输出路径创建readme.txt文件，输入要求的内容：
训练框架：PaddlePaddle
代码运行环境：V100
是否使用GPU：是
单张图片耗时/s：1
模型大小：45
其他说明：算法参考UNet+++
# %cd /home/aistudio/work/outputs/Unet3p# !zip result.zip *.jpg *.txt
项目实现了一套简单的训练模板。
项目基于文档阴影消除任务创建，提交结果为0.59951
欢迎大家在该基础上修改自己的算法！
以上就是『网盘赛』基于自定义训练模板的文档阴影消除的详细内容，更多请关注php中文网其它相关文章！
每个人都需要一台速度更快、更稳定的 PC。随着时间的推移，垃圾文件、旧注册表数据和不必要的后台进程会占用资源并降低性能。幸运的是，许多工具可以让 Windows 保持平稳运行。
Copyright 2014-2025 https://www.php.cn/ All Rights Reserved | php.cn | 湘ICP备2023035733号
669
收藏
