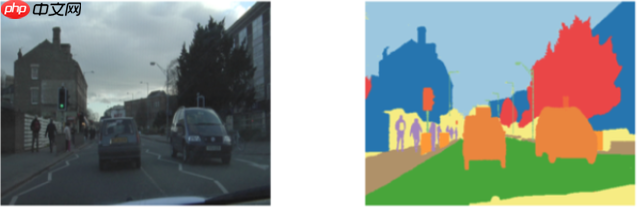

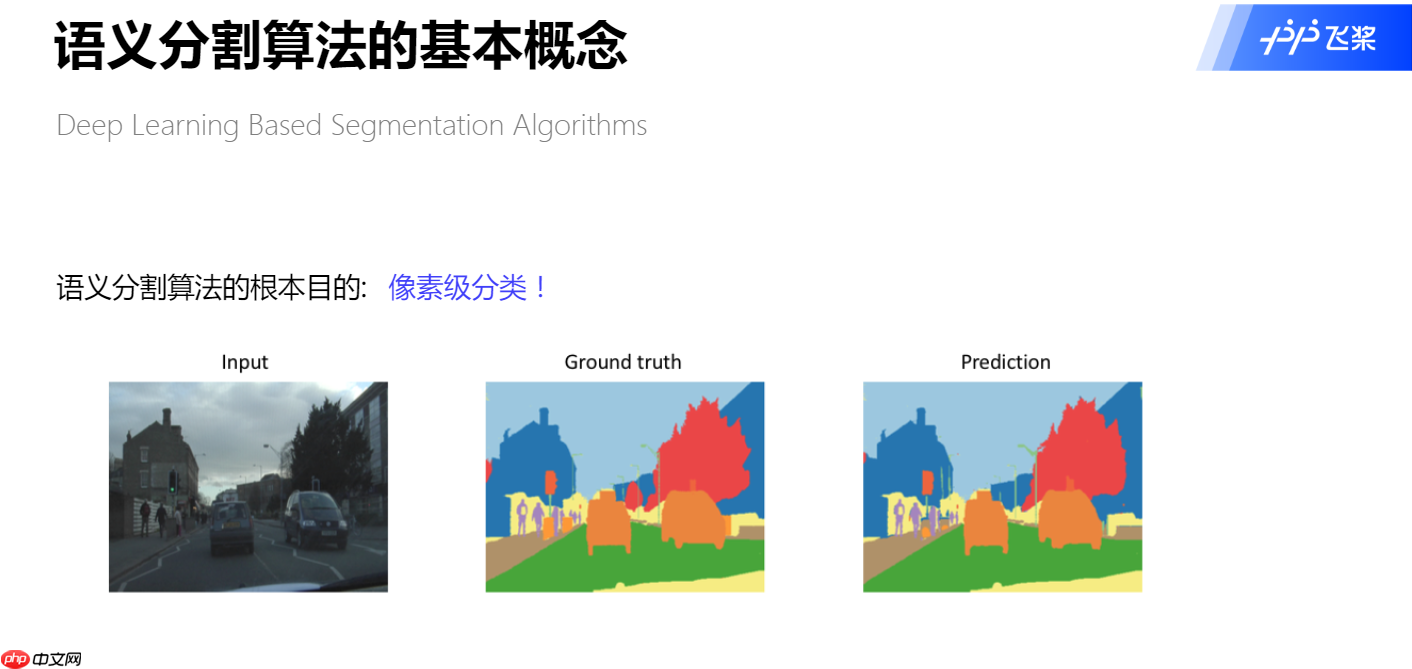

本文介绍基于CULane数据集和ERFnet网络实现车道线检测的入门项目。先简述语义分割任务，即像素级分类，类似机器自动“抠图”并按类上色。接着介绍CULane数据集，随后详解项目实操，包括数据处理、ERFnet网络搭建、模型训练与推理，最后展示部署效果。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜
![[小白入门]基于erfnet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/202507/28/2025072810294994602.jpg)
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988544081.jpg)
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988535001.jpg)
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988636711.jpg)

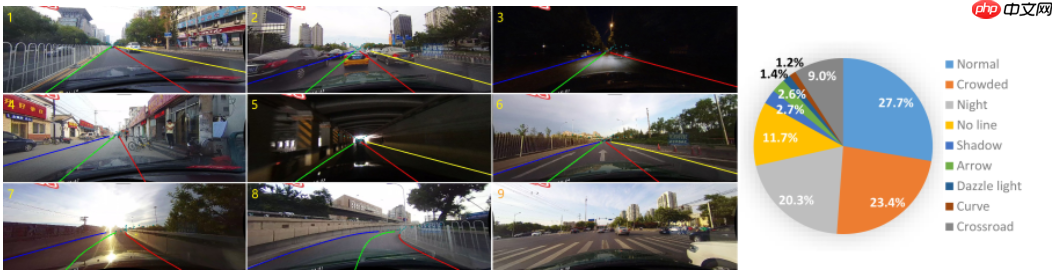

CULane是一个大规模且具有挑战性的车道线数据集，主要应用于行车道检测的学术研究。 它是由安装在六辆由北京不同驾驶员驾驶的不同车辆上的摄像机收集的。 收集了超过55小时的视频，并提取了133,235帧。 数据集分为88880张训练集图像，9675张验证集图像和34680张测试集图像。 测试集分为正常类别和8个具有挑战性的类别，分别对应于下面的9个示例。![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988769841.jpg)
在每一帧数据图像中，作者都使用三次样条曲线手动注释行车道。 对于车道被车辆遮挡或看不见的情况，作者仍会根据上下文对车道进行注释，作者还希望算法能够区分道路上的障碍。 因此，对于在障碍物另一侧的车道没有进行标注。 在此数据集中，作者将注意力集中在四个车道标记的检测上，这在实际应用中最受关注，其他车道标记未标注。
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988891179.jpg)
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988894932.jpg)

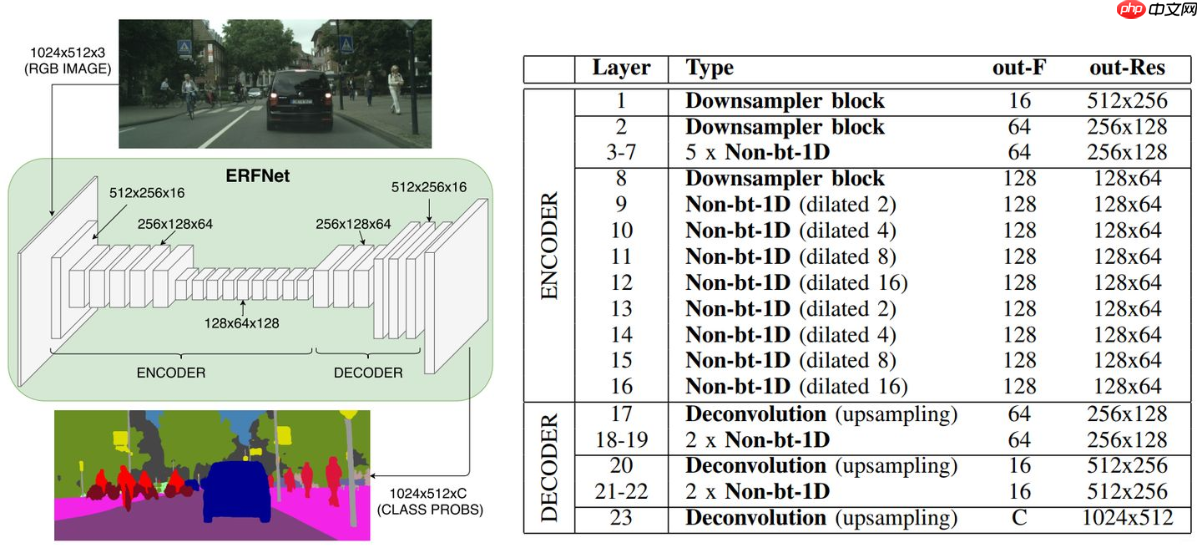

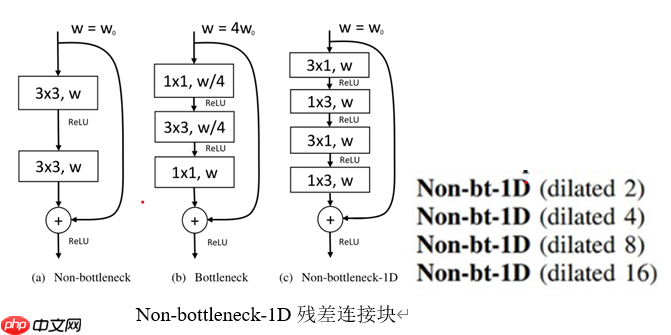

具体来讲， ERFnet是一种基于残差连接和可分离卷积的语义分割网络，旨在在不降低准确率的同时提高模型处理帧数的效率，可以很好的满足在自动驾驶中对于实时性的要求，且由于其轻量级的特性，在进行硬件部署时也具有很好的契合度，因而在自动驾驶及车道线检测领域具有不俗的参考意义。ERFnet网络结构中所用到的Non-bottleneck-1D残差连接块，对经典残差网络开山之作Resnet中提出的Non-bottleneck残差块作出了改进，将二维卷积拆分为了两个一维卷积，增加了非线性化的层数，以及在整体上减少参数数量。改进后的Non-bottleneck-1D残差块可以在保持相同的参数数量的情况下，扩大卷积的尺寸，增强感受的能力，很好的保证了ERFnet网络的精确度。从总体结构来看，ERFnet沿用了U-net中经典的Encoder-Decoder结构，通过Encoder编码器进行下采样(提取特征),通过Decoder解码器进行上采样(还原图像)，并在其中穿插了特征融合和空洞卷积，因而在模型轻量的情况下还能保证不俗的精度。
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366988992698.jpg)
![[小白入门]基于ERFNet车道线检测入门语义分割 - php中文网](https://img.php.cn/upload/article/001/571/248/175366989043304.jpg)
1. 神经网络更多讲究搭建端到端网络，什么意思呢？其实就是您给网络一个输入，然后网络给您一个输出，而数据在网络中的运算过程对一般用户来说其实是不可见过程，说这个有什么意义呢？其实是这样的，现在开源的网络结构有很多，虽然咱们可能不太清楚其中的一些高深的原理，但其实咱们可以站在用户的角度来看待这个问题，虽然咱们不懂细节，但我们会用就行！
2. 想要“走捷径”快速的使用一个陌生的网络结构，我们更多的是需要关注网络的输入和输出部分的构建，对于不同的任务，输出部分的构建往往也是不一样的。举个简单的例子，在图像分类任务中，网络的结尾会接全连接层，最后网络的输出是多个类别对应的概率值，但是在语义分割的网络中，咱们输出结果是与原图大小相等的多通道图像！其中通道数等于类别数！这是分割任务的一大特点，大家千万不要弄混了。所以结论是，对于咱们这个车道线检测项目，咱们输入的结果是形如[1,3,576,1640]的多维图像矩阵（图像是3通道图像所以通道数为3），咱们的输出结果是形如[1,2,576,1640]的多维图像矩阵，其中1是图像数量（咱们输入网络1张图像，所以输出也为1），其中2为类别数（咱们这个车道线检测任务，主要是2分类，一类是背景一类是车道线，所以这里输出结果通道数为2（分割任务的结果分类类别数等于通道数）），其中（576，1640）是输出图像的大小尺寸这与输入保持一致。
import randomimport paddle import paddle.nn as nnfrom paddle.nn import functional as Ffrom paddle.io import Datasetfrom paddle.vision.transforms import transforms as Timport osimport ioimport numpy as npimport cv2 as cvimport matplotlib.pyplot as pltfrom PIL import Image as PilImage %matplotlib inline
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import MutableMapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Iterable, Mapping /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working from collections import Sized
# 第一步解压数据集!unzip -oq /home/aistudio/data/data112899/CULane.zip #第一次运行记得解压一下数据集（只运行一次就可以啦）
# 第二步 数据集划分，在这里咱们按8：1：1的比例划分训练集、验证集、测试集path_origin = 'CULane/JPEGImages/'path_seg = 'CULane/Annotations/'pic_dir = os.listdir(path_origin)
f_train = open('CULane/train_list.txt', 'w')
f_val = open('CULane/val_list.txt', 'w')
f_test = open('CULane/test_list.txt','w')for i in range(len(pic_dir)): if i % 9 == 0:
f_val.write(path_origin + pic_dir[i] + '\t' + path_seg + pic_dir[i].split('.')[0] + '.png' + '\n') elif i % 10 == 0 :
f_test.write(path_origin + pic_dir[i] + '\t' + path_seg + pic_dir[i].split('.')[0] + '.png' + '\n') else:
f_train.write(path_origin + pic_dir[i] + '\t' + path_seg + pic_dir[i].split('.')[0] + '.png' + '\n')
f_train.close()
f_val.close()
f_test.close()# 第三步 测试一下生成的train_list.txt中的路径是否设置正确，根据路径读取图片进行展示。with open('CULane/train_list.txt', 'r') as f:
i = 0
for line in f.readlines():
image_path, label_path = line.strip().split('\t')
image = np.array(PilImage.open(image_path))
label = np.array(PilImage.open(label_path)) if i > 2: break
# 进行图片的展示
plt.figure()
plt.subplot(1,2,1),
plt.title('Train Image')
plt.imshow(image.astype('uint8'))
plt.axis('off')
plt.subplot(1,2,2),
plt.title('Label')
plt.imshow(label.astype('uint8'), cmap='gray')
plt.axis('off')
plt.show()
i = i + 1/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2349: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working if isinstance(obj, collections.Iterator): /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2366: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working return list(data) if isinstance(data, collections.MappingView) else data /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:425: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead a_min = np.asscalar(a_min.astype(scaled_dtype)) /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:426: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead a_max = np.asscalar(a_max.astype(scaled_dtype))
<Figure size 640x480 with 2 Axes>
<Figure size 640x480 with 2 Axes>
<Figure size 640x480 with 2 Axes>
# 第四步 构建数据读取器IMAGE_SIZE = (576,1640)class MyDateset(Dataset):
"""
数据集定义
"""
def __init__(self, mode='train'):
"""
构造函数
"""
self.image_size = IMAGE_SIZE
self.mode = mode.lower()
self.train_images = []
self.label_images = [] with open('CULane/{}_list.txt'.format(self.mode), 'r') as f: for line in f.readlines():
image, label = line.strip().split('\t')
self.train_images.append(image)
self.label_images.append(label)
def _load_img(self, path, color_mode='rgb', transforms=[]):
"""
统一的图像处理接口封装，用于规整图像大小和通道
"""
with open(path, 'rb') as f:
img = PilImage.open(io.BytesIO(f.read())) if color_mode == 'grayscale': if img.mode not in ('L', 'I;16', 'I'):
img = img.convert('L') elif color_mode == 'rgba': if img.mode != 'RGBA':
img = img.convert('RGBA') elif color_mode == 'rgb': if img.mode != 'RGB':
img = img.convert('RGB') else: raise ValueError('color_mode must be "grayscale", "rgb", or "rgba"')
return T.Compose([T.Resize(self.image_size)] + transforms)(img) def __getitem__(self, idx):
"""
返回 image, label
"""
train_image = self._load_img(self.train_images[idx],
transforms=[
T.Transpose(),
T.Normalize(mean=127.5, std=127.5)
]) # 加载原始图像
label_image = self._load_img(self.label_images[idx],
color_mode='grayscale',
transforms=[T.Grayscale()]) # 加载Label图像
# 返回image, label
train_image = np.array(train_image, dtype='float32')
label_image = np.array(label_image, dtype='int64') return train_image, label_image
def __len__(self):
"""
返回数据集总数
"""
return len(self.train_images)# 第五步 模型网络搭建，这里采用了ERFnet网络，当然啦实在看不懂也可以先暂时跳过，您只需要知道输入和输出的结果是什么就行。class non_bottleneck_1d(paddle.nn.Layer):
def __init__(self, chann, dropprob, dilated):
super().__init__()
self.conv3x1_1 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(3, 1), stride=1, padding=(1, 0), bias_attr=True)
self.conv1x3_1 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(1, 3), stride=1, padding=(0, 1), bias_attr=True)
self.bn1 = paddle.nn.BatchNorm(chann, epsilon=1e-03)
self.conv3x1_2 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(3, 1), stride=1, padding=(1 * dilated, 0), bias_attr=True,
dilation=(dilated, 1))
self.conv1x3_2 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(1, 3), stride=1, padding=(0, 1 * dilated), bias_attr=True,
dilation=(1, dilated))
self.bn2 = paddle.nn.BatchNorm(chann, epsilon=1e-03)
self.dropout = paddle.nn.Dropout(dropprob)
self.p = dropprob def forward(self, input):
output = self.conv3x1_1(input)
output = paddle.nn.functional.relu(output)
output = self.conv1x3_1(output)
output = self.bn1(output)
output = paddle.nn.functional.relu(output)
output = self.conv3x1_2(output)
output = paddle.nn.functional.relu(output)
output = self.conv1x3_2(output)
output = self.bn2(output) if self.p != 0:
output = self.dropout(output) return paddle.nn.functional.relu(output + input)import paddleclass non_bottleneck_1d(paddle.nn.Layer):
def __init__(self, chann, dropprob, dilated):
super().__init__()
self.conv3x1_1 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(3, 1), stride=1, padding=(1, 0), bias_attr=True)
self.conv1x3_1 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(1, 3), stride=1, padding=(0, 1), bias_attr=True)
self.bn1 = paddle.nn.BatchNorm(chann, epsilon=1e-03)
self.conv3x1_2 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(3, 1), stride=1, padding=(1 * dilated, 0), bias_attr=True,
dilation=(dilated, 1))
self.conv1x3_2 = paddle.nn.Conv2D(in_channels=chann, out_channels=chann, kernel_size=(1, 3), stride=1, padding=(0, 1 * dilated), bias_attr=True,
dilation=(1, dilated))
self.bn2 = paddle.nn.BatchNorm(chann, epsilon=1e-03)
self.dropout = paddle.nn.Dropout(dropprob)
self.p = dropprob def forward(self, input):
output = self.conv3x1_1(input)
output = paddle.nn.functional.relu(output)
output = self.conv1x3_1(output)
output = self.bn1(output)
output = paddle.nn.functional.relu(output)
output = self.conv3x1_2(output)
output = paddle.nn.functional.relu(output)
output = self.conv1x3_2(output)
output = self.bn2(output) if self.p != 0:
output = self.dropout(output) return paddle.nn.functional.relu(output + input)class DownsamplerBlock(paddle.nn.Layer):

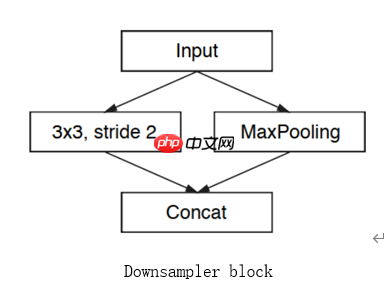

def __init__(self, ninput, noutput):
super().__init__()
self.conv = paddle.nn.Conv2D(in_channels=ninput, out_channels=noutput-ninput, kernel_size=3,
stride=2, padding=1, bias_attr=True)
self.pool = paddle.nn.MaxPool2D(kernel_size=2, stride=2)
self.bn = paddle.nn.BatchNorm(noutput, epsilon=1e-3) def forward(self, input):
output = paddle.concat(x=[self.conv(input), self.pool(input)], axis=1)
output = self.bn(output) return paddle.nn.functional.relu(output)class Encoder(paddle.nn.Layer):
def __init__(self, num_classes):
super().__init__()
self.initial_block = DownsamplerBlock(3, 16)
self.layers = paddle.nn.LayerList()
self.layers.append(DownsamplerBlock(16, 64)) for x in range(0, 5): # 5 times
self.layers.append(non_bottleneck_1d(64, 1, 1))
self.layers.append(DownsamplerBlock(64, 128)) for x in range(0, 2): # 2 times
self.layers.append(non_bottleneck_1d(128, 1, 2))
self.layers.append(non_bottleneck_1d(128, 1, 4))
self.layers.append(non_bottleneck_1d(128, 1, 8))
self.layers.append(non_bottleneck_1d(128, 1, 16))
self.output_conv = paddle.nn.Conv2D(in_channels=128, out_channels=num_classes, kernel_size=1, stride=1, padding=0, bias_attr=True) def forward(self, input, predict=False):
output = self.initial_block(input) for layer in self.layers:
output = layer(output) if predict:
output = self.output_conv(output) return outputclass UpsamplerBlock(paddle.nn.Layer):
def __init__(self, ninput, noutput, output_size=[16, 16]):
super().__init__()
self.conv = paddle.nn.Conv2DTranspose(ninput, noutput, kernel_size=3, stride=2, padding=1, bias_attr=True)
self.bn = paddle.nn.BatchNorm(noutput, epsilon=1e-3)
self.output_size = output_size def forward(self, input):
output = self.conv(input, output_size=self.output_size)
output = self.bn(output) return paddle.nn.functional.relu(output)class Decoder(paddle.nn.Layer):
def __init__(self, num_classes, raw_size=[576, 1640]):
super().__init__()
self.layers = paddle.nn.LayerList()
self.raw_size = raw_size
self.layers.append(UpsamplerBlock(128, 64, output_size=[raw_size[0] // 4, raw_size[1] // 4]))
self.layers.append(non_bottleneck_1d(64, 0, 1))
self.layers.append(non_bottleneck_1d(64, 0, 1))
self.layers.append(UpsamplerBlock(64, 16, output_size=[raw_size[0] // 2, raw_size[1] // 2]))
self.layers.append(non_bottleneck_1d(16, 0, 1))
self.layers.append(non_bottleneck_1d(16, 0, 1))
self.output_conv = paddle.nn.Conv2DTranspose(16, num_classes, kernel_size=2, stride=2, padding=0, bias_attr=True) def forward(self, input):
output = input
for layer in self.layers:
output = layer(output)
output = self.output_conv(output, output_size=[self.raw_size[0], self.raw_size[1]]) return outputclass ERFNet(paddle.nn.Layer):
def __init__(self, num_classes, raw_size=[576, 1640]):
super().__init__()
self.encoder = Encoder(num_classes)
self.decoder = Decoder(num_classes, raw_size=raw_size) def forward(self, input):
output = self.encoder(input) return self.decoder.forward(output)# 第六步 查看一下网络结构，测试一下能不能跑通。paddle.summary(ERFNet(2),(1,3,576,1640))
W1122 09:06:07.775314 1189 device_context.cc:447] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 12.0, Runtime API Version: 10.1 W1122 09:06:07.780476 1189 device_context.cc:465] device: 0, cuDNN Version: 7.6.
--------------------------------------------------------------------------------
Layer (type) Input Shape Output Shape Param #
================================================================================
Conv2D-1 [[1, 3, 576, 1640]] [1, 13, 288, 820] 364
MaxPool2D-1 [[1, 3, 576, 1640]] [1, 3, 288, 820] 0
BatchNorm-1 [[1, 16, 288, 820]] [1, 16, 288, 820] 64
DownsamplerBlock-1 [[1, 3, 576, 1640]] [1, 16, 288, 820] 0
Conv2D-2 [[1, 16, 288, 820]] [1, 48, 144, 410] 6,960
MaxPool2D-2 [[1, 16, 288, 820]] [1, 16, 144, 410] 0
BatchNorm-2 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
DownsamplerBlock-2 [[1, 16, 288, 820]] [1, 64, 144, 410] 0
Conv2D-3 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-4 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-3 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-5 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-6 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-4 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Dropout-1 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
non_bottleneck_1d-1 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2D-7 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-8 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-5 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-9 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-10 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-6 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Dropout-2 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
non_bottleneck_1d-2 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2D-11 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-12 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-7 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-13 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-14 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-8 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Dropout-3 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
non_bottleneck_1d-3 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2D-15 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-16 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-9 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-17 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-18 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-10 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Dropout-4 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
non_bottleneck_1d-4 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2D-19 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-20 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-11 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-21 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-22 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-12 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Dropout-5 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
non_bottleneck_1d-5 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2D-23 [[1, 64, 144, 410]] [1, 64, 72, 205] 36,928
MaxPool2D-3 [[1, 64, 144, 410]] [1, 64, 72, 205] 0
BatchNorm-13 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
DownsamplerBlock-3 [[1, 64, 144, 410]] [1, 128, 72, 205] 0
Conv2D-24 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-25 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-14 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-26 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-27 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-15 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-6 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-6 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-28 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-29 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-16 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-30 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-31 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-17 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-7 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-7 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-32 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-33 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-18 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-34 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-35 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-19 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-8 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-8 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-36 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-37 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-20 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-38 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-39 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-21 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-9 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-9 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-40 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-41 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-22 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-42 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-43 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-23 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-10 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-10 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-44 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-45 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-24 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-46 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-47 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-25 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-11 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-11 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-48 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-49 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-26 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-50 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-51 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-27 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-12 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-12 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Conv2D-52 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-53 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-28 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Conv2D-54 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
Conv2D-55 [[1, 128, 72, 205]] [1, 128, 72, 205] 49,280
BatchNorm-29 [[1, 128, 72, 205]] [1, 128, 72, 205] 512
Dropout-13 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
non_bottleneck_1d-13 [[1, 128, 72, 205]] [1, 128, 72, 205] 0
Encoder-1 [[1, 3, 576, 1640]] [1, 128, 72, 205] 0
Conv2DTranspose-1 [[1, 128, 72, 205]] [1, 64, 144, 410] 73,792
BatchNorm-30 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
UpsamplerBlock-1 [[1, 128, 72, 205]] [1, 64, 144, 410] 0
Conv2D-57 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-58 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-31 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-59 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-60 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-32 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
non_bottleneck_1d-14 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2D-61 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-62 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-33 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
Conv2D-63 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
Conv2D-64 [[1, 64, 144, 410]] [1, 64, 144, 410] 12,352
BatchNorm-34 [[1, 64, 144, 410]] [1, 64, 144, 410] 256
non_bottleneck_1d-15 [[1, 64, 144, 410]] [1, 64, 144, 410] 0
Conv2DTranspose-2 [[1, 64, 144, 410]] [1, 16, 288, 820] 9,232
BatchNorm-35 [[1, 16, 288, 820]] [1, 16, 288, 820] 64
UpsamplerBlock-2 [[1, 64, 144, 410]] [1, 16, 288, 820] 0
Conv2D-65 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
Conv2D-66 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
BatchNorm-36 [[1, 16, 288, 820]] [1, 16, 288, 820] 64
Conv2D-67 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
Conv2D-68 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
BatchNorm-37 [[1, 16, 288, 820]] [1, 16, 288, 820] 64
non_bottleneck_1d-16 [[1, 16, 288, 820]] [1, 16, 288, 820] 0
Conv2D-69 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
Conv2D-70 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
BatchNorm-38 [[1, 16, 288, 820]] [1, 16, 288, 820] 64
Conv2D-71 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
Conv2D-72 [[1, 16, 288, 820]] [1, 16, 288, 820] 784
BatchNorm-39 [[1, 16, 288, 820]] [1, 16, 288, 820] 64
non_bottleneck_1d-17 [[1, 16, 288, 820]] [1, 16, 288, 820] 0
Conv2DTranspose-3 [[1, 16, 288, 820]] [1, 2, 576, 1640] 130
================================================================================
Total params: 2,069,678
Trainable params: 2,056,494
Non-trainable params: 13,184
--------------------------------------------------------------------------------
Input size (MB): 10.81
Forward/backward pass size (MB): 3300.82
Params size (MB): 7.90
Estimated Total Size (MB): 3319.53
--------------------------------------------------------------------------------{'total_params': 2069678, 'trainable_params': 2056494}# 第七步 实例化训练集、验证集、测试集train_dataset = MyDateset(mode='train') # 训练数据集val_dataset = MyDateset(mode='val') # 验证数据集test_dataset = MyDateset(mode='test') # 测试数据集train_dataloader = paddle.io.DataLoader(
train_dataset,
batch_size=8,
shuffle=True,
drop_last=False)
val_dataloader = paddle.io.DataLoader(
val_dataset,
batch_size=1,
shuffle=True,
drop_last=False)
test_dataloader = paddle.io.DataLoader(
test_dataset,
batch_size=1,
shuffle=True,
drop_last=False)# 配置模型、loss函数、优化器model = ERFNet(num_classes=2)
model.train()
loss_fn = paddle.nn.CrossEntropyLoss(axis=1)
max_epoch=1 # 这里为了方便演示代码 设置了epoch数为1 要复现项目效果 请把epoch数设置为50scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=0.001, T_max=max_epoch)
opt = paddle.optimizer.Adam(learning_rate=scheduler, parameters=model.parameters())# 可用于加载之前训练的模型文件# model_state_dict = paddle.load("save_model/epoch_3.pdparams")# opt_state_dict = paddle.load("save_model/epoch_3.pdopt")# model.set_state_dict(model_state_dict)# opt.set_state_dict(opt_state_dict)# 模型训练并记录os.environ['CUDA_VISIBLE_DEVICES'] = '0'f_log = open('log.txt', 'a')for epoch in range(0,max_epoch): for step, data in enumerate(train_dataloader):
img, label = data
pre = model(img)
loss = loss_fn(pre, label)
predicts = paddle.argmax(pre, axis=1) # 计算miou
miou,wrong,correct=paddle.fluid.layers.mean_iou(predicts,label,2)
loss.backward()
opt.step()
opt.clear_gradients() if step % 100 == 0 and step!=0:
temp ="epoch: {}, step : {}, loss is: {}, miou is: {}".format(epoch, step, loss.numpy(),miou.numpy()) print(temp)
f_log.write(temp+'\n')
paddle.save(model.state_dict(),"save_model/epoch_{}.pdparams".format(epoch))
paddle.save(opt.state_dict(),"save_model/epoch_{}.pdopt".format(epoch))
f_log.close()epoch: 0, step : 100, loss is: [0.13927686], miou is: [0.4847293] epoch: 0, step : 200, loss is: [0.13330099], miou is: [0.48230854] epoch: 0, step : 300, loss is: [0.10703911], miou is: [0.4881684] epoch: 0, step : 400, loss is: [0.08439594], miou is: [0.49422544] epoch: 0, step : 500, loss is: [0.07835685], miou is: [0.49277282] epoch: 0, step : 600, loss is: [0.13210864], miou is: [0.48121905] epoch: 0, step : 700, loss is: [0.09453978], miou is: [0.4880681] epoch: 0, step : 800, loss is: [0.09746557], miou is: [0.48614118] epoch: 0, step : 900, loss is: [0.12714268], miou is: [0.4805257] epoch: 0, step : 1000, loss is: [0.10404535], miou is: [0.48679313] epoch: 0, step : 1100, loss is: [0.12627521], miou is: [0.4809] epoch: 0, step : 1200, loss is: [0.11702421], miou is: [0.48320922] epoch: 0, step : 1300, loss is: [0.0946762], miou is: [0.48671177] epoch: 0, step : 1400, loss is: [0.11747885], miou is: [0.48124674] epoch: 0, step : 1500, loss is: [0.10730279], miou is: [0.48404324] epoch: 0, step : 1600, loss is: [0.13672356], miou is: [0.4818533] epoch: 0, step : 1700, loss is: [0.12087876], miou is: [0.48356727] epoch: 0, step : 1800, loss is: [0.10689122], miou is: [0.48393604] epoch: 0, step : 1900, loss is: [0.09504438], miou is: [0.4867893] epoch: 0, step : 2000, loss is: [0.11099294], miou is: [0.48421988] epoch: 0, step : 2100, loss is: [0.10703284], miou is: [0.48620635] epoch: 0, step : 2200, loss is: [0.10188617], miou is: [0.48697066] epoch: 0, step : 2300, loss is: [0.07738338], miou is: [0.4924985] epoch: 0, step : 2400, loss is: [0.06830326], miou is: [0.5553771] epoch: 0, step : 2500, loss is: [0.11509577], miou is: [0.56002903] epoch: 0, step : 2600, loss is: [0.09727462], miou is: [0.58344084] epoch: 0, step : 2700, loss is: [0.09854273], miou is: [0.563583] epoch: 0, step : 2800, loss is: [0.09234307], miou is: [0.58188295] epoch: 0, step : 2900, loss is: [0.0960774], miou is: [0.56114256] epoch: 0, step : 3000, loss is: [0.08726992], miou is: [0.55743444] epoch: 0, step : 3100, loss is: [0.10137159], miou is: [0.5864695] epoch: 0, step : 3200, loss is: [0.10453519], miou is: [0.5808536] epoch: 0, step : 3300, loss is: [0.11421765], miou is: [0.5466621] epoch: 0, step : 3400, loss is: [0.11816304], miou is: [0.54667276] epoch: 0, step : 3500, loss is: [0.08592777], miou is: [0.5695046] epoch: 0, step : 3600, loss is: [0.10629157], miou is: [0.5724659] epoch: 0, step : 3700, loss is: [0.08172587], miou is: [0.525596] epoch: 0, step : 3800, loss is: [0.06315774], miou is: [0.57792294] epoch: 0, step : 3900, loss is: [0.10147866], miou is: [0.5600542] epoch: 0, step : 4000, loss is: [0.08548972], miou is: [0.6008725] epoch: 0, step : 4100, loss is: [0.07798672], miou is: [0.62052643] epoch: 0, step : 4200, loss is: [0.08380488], miou is: [0.60859656] epoch: 0, step : 4300, loss is: [0.10450178], miou is: [0.591514] epoch: 0, step : 4400, loss is: [0.08817854], miou is: [0.59015864] epoch: 0, step : 4500, loss is: [0.10661422], miou is: [0.5781183] epoch: 0, step : 4600, loss is: [0.09698336], miou is: [0.5511778] epoch: 0, step : 4700, loss is: [0.09957878], miou is: [0.61045104] epoch: 0, step : 4800, loss is: [0.10301865], miou is: [0.5733046] epoch: 0, step : 4900, loss is: [0.08925698], miou is: [0.5949598] epoch: 0, step : 5000, loss is: [0.08743063], miou is: [0.59802926] epoch: 0, step : 5100, loss is: [0.06179001], miou is: [0.6367101] epoch: 0, step : 5200, loss is: [0.10025749], miou is: [0.58668095] epoch: 0, step : 5300, loss is: [0.09665603], miou is: [0.57429576] epoch: 0, step : 5400, loss is: [0.12474185], miou is: [0.54220945] epoch: 0, step : 5500, loss is: [0.06253532], miou is: [0.6440188] epoch: 0, step : 5600, loss is: [0.09304313], miou is: [0.5715176] epoch: 0, step : 5700, loss is: [0.09525367], miou is: [0.5625985] epoch: 0, step : 5800, loss is: [0.08387703], miou is: [0.5741054] epoch: 0, step : 5900, loss is: [0.08723761], miou is: [0.59803224] epoch: 0, step : 6000, loss is: [0.09758568], miou is: [0.6223379] epoch: 0, step : 6100, loss is: [0.11697459], miou is: [0.57924354] epoch: 0, step : 6200, loss is: [0.100724], miou is: [0.5860153] epoch: 0, step : 6300, loss is: [0.08684465], miou is: [0.61564314] epoch: 0, step : 6400, loss is: [0.09025575], miou is: [0.62548506] epoch: 0, step : 6500, loss is: [0.05869177], miou is: [0.6868839] epoch: 0, step : 6600, loss is: [0.08888834], miou is: [0.6237665] epoch: 0, step : 6700, loss is: [0.06414994], miou is: [0.59068704] epoch: 0, step : 6800, loss is: [0.09091921], miou is: [0.5837776] epoch: 0, step : 6900, loss is: [0.0872962], miou is: [0.5957216] epoch: 0, step : 7000, loss is: [0.10638998], miou is: [0.56399274] epoch: 0, step : 7100, loss is: [0.09597596], miou is: [0.5542962] epoch: 0, step : 7200, loss is: [0.0508446], miou is: [0.57402736] epoch: 0, step : 7300, loss is: [0.08191186], miou is: [0.6318141] epoch: 0, step : 7400, loss is: [0.08166245], miou is: [0.59082395] epoch: 0, step : 7500, loss is: [0.09494389], miou is: [0.61808616] epoch: 0, step : 7600, loss is: [0.08884145], miou is: [0.5611312] epoch: 0, step : 7700, loss is: [0.10616488], miou is: [0.5547414] epoch: 0, step : 7800, loss is: [0.09759728], miou is: [0.62624496] epoch: 0, step : 7900, loss is: [0.08903372], miou is: [0.6205214] epoch: 0, step : 8000, loss is: [0.10339966], miou is: [0.5819689] epoch: 0, step : 8100, loss is: [0.10582763], miou is: [0.55487573] epoch: 0, step : 8200, loss is: [0.08446056], miou is: [0.62681633] epoch: 0, step : 8300, loss is: [0.0832355], miou is: [0.6156939] epoch: 0, step : 8400, loss is: [0.09023587], miou is: [0.6016093] epoch: 0, step : 8500, loss is: [0.08267266], miou is: [0.59566665] epoch: 0, step : 8600, loss is: [0.10186594], miou is: [0.56223583] epoch: 0, step : 8700, loss is: [0.0877626], miou is: [0.63271546] epoch: 0, step : 8800, loss is: [0.11042956], miou is: [0.580356]
# 模型训练完后，咱们可以用动态图的形式保存，这样一来的话，下次加载模型就不需要重新加载网络结构啦from paddle.static import InputSpec
path = "./export_model/MyERFnet"paddle.jit.save(
layer=model,
path=path,
input_spec=[InputSpec(shape=[1,3,576,1640])])/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/utils.py:77: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working return (isinstance(seq, collections.Sequence) and
# 加载模型path = "./export_model/MyERFnet_b"loaded_layer = paddle.jit.load(path) loaded_layer.eval()
for i in range(0,5):
img = cv.imread("/home/aistudio/CULane/JPEGImages/{}.jpg".format(i))
b, g, r = cv.split(img)
img = cv.merge([r, g, b])
orign = img
orign = cv.resize(orign,(1640,576))
transforms =T.Compose([
T.Resize((576,1640)),
T.Transpose(),
T.Normalize(mean=127.5, std=127.5)
])
img = transforms(img)
img = paddle.to_tensor(img)
img = paddle.unsqueeze(img, axis=0)
result = loaded_layer(img)
result = paddle.squeeze(result, axis=0)
result = paddle.transpose(result, perm=[1, 2, 0])
result = np.array(result)
result = np.argmax(result,-1)
plt.figure()
plt.subplot(1,2,1),
plt.title('img')
plt.imshow(orign.astype('uint8'))
plt.axis('off')
plt.subplot(1,2,2),
plt.title('predict')
plt.imshow(result.astype('uint8'), cmap='gray')
plt.axis('off')
plt.show()<Figure size 640x480 with 2 Axes>
<Figure size 640x480 with 2 Axes>
<Figure size 640x480 with 2 Axes>
<Figure size 640x480 with 2 Axes>
<Figure size 640x480 with 2 Axes>
以上就是[小白入门]基于ERFNet车道线检测入门语义分割的详细内容，更多请关注php中文网其它相关文章！
每个人都需要一台速度更快、更稳定的 PC。随着时间的推移，垃圾文件、旧注册表数据和不必要的后台进程会占用资源并降低性能。幸运的是，许多工具可以让 Windows 保持平稳运行。
Copyright 2014-2025 https://www.php.cn/ All Rights Reserved | php.cn | 湘ICP备2023035733号
198
收藏
