模型压缩之聚类量化

import paddlefrom sklearn.cluster import KMeans

# 通过k_means实现对矩阵元素的分类，返回分类后的矩阵和聚类中心def k_means_cpu(weight, n_clusters, init='k-means++', max_iter=50):
    # flatten the weight for computing k-means
    org_shape = weight.shape
    weight = paddle.to_tensor(weight)
    weight = paddle.reshape(weight, [-1, 1])  # single feature
    if n_clusters > weight.size:
        n_clusters = weight.size

    k_means = KMeans(n_clusters=n_clusters, init=init, n_init=1, max_iter=max_iter)
    k_means.fit(weight)

    centroids = k_means.cluster_centers_
    labels = k_means.labels_
    labels = labels.reshape(org_shape)    return paddle.reshape(paddle.to_tensor(centroids), [-1, 1]), paddle.to_tensor(labels, "int32")# 将聚类中心的数值，替换掉分类后矩阵中的类别def reconstruct_weight_from_k_means_result(centroids, labels):
    weight = paddle.zeros_like(labels, "float32")    for i, c in enumerate(centroids.numpy().squeeze()):
        weight[labels == i] = c.item()    return weight

# 随机初始个权重w = paddle.rand([4, 5])print(w)

# 返回聚类中心centroids，和类别矩阵labelscentroids, labels = k_means_cpu(w, 2)print(centroids)print(labels)

# reconstruct_weight_from_k_means_result返回聚类后的权重# 将此代码块结果跟上随机初始矩阵、分类矩阵进行比对，发现权重都被聚类中心值替换w_q = reconstruct_weight_from_k_means_result(centroids, labels)print(w_q)

import paddleimport paddle.nn as nnimport paddle.nn.functional as Ffrom paddle.vision import datasets, transformsimport paddle.utilsimport numpy as npimport mathfrom copy import deepcopyfrom matplotlib import pyplot as pltfrom paddle.io import Datasetfrom paddle.io import DataLoaderfrom sklearn.cluster import KMeans

# 搭建基础线性层class QuantLinear(nn.Linear):
    def __init__(self, in_features, out_features, bias=True):
        super(QuantLinear, self).__init__(in_features, out_features, bias)
        self.weight_labels = None
        self.bias_labels = None
        self.num_cent = None
        self.quant_flag = False
        self.quant_bias = False

    def kmeans_quant(self, bias=False, quantize_bit=4):
        self.num_cent = 2 ** quantize_bit

        w = self.weight
        centroids, self.weight_labels = k_means_cpu(w.cpu().numpy(), self.num_cent)
        w_q = reconstruct_weight_from_k_means_result(centroids, self.weight_labels)
        self.weight.set_value(w_q)
        if bias:
            b = self.bias
            centroids, self.bias_labels = k_means_cpu(b.cpu().numpy(), self.num_cent)
            b_q = reconstruct_weight_from_k_means_result(centroids, self.bias_labels)
            self.bias.data = b_q.float()

        self.quant_flag = True
        self.quant_bias = bias
    def kmeans_update(self):
        if not self.quant_flag:            return

        new_weight_data = paddle.zeros_like(self.weight_labels, "float32")        for i in range(self.num_cent):
            mask_cl = (self.weight_labels == i).float()
            new_weight_data += (self.weight.data * mask_cl).sum() / mask_cl.sum() * mask_cl
        self.weight.data = new_weight_data
        if self.quant_bias:
            new_bias_data = paddle.zeros_like(self.bias_labels, "float32")            for i in range(self.num_cent):
                mask_cl = (self.bias_labels == i).float()
                new_bias_data += (self.bias.data * mask_cl).sum() / mask_cl.sum() * mask_cl
            self.bias.data = new_bias_data

# 搭建基础卷积层class QuantConv2d(nn.Conv2D):
    def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0, dilation=1,
     groups=1, padding_mode='zeros', weight_attr=None, bias_attr=None, data_format='NCHW'):
        super(QuantConv2d, self).__init__(in_channels, out_channels,
            kernel_size, stride, padding, dilation, groups, padding_mode, weight_attr, bias_attr, data_format)
        self.weight_labels = None
        self.bias_labels = None
        self.num_cent = None
        self.quant_flag = False
        self.quant_bias = False

    def kmeans_quant(self, bias=False, quantize_bit=4):
        self.num_cent = 2 ** quantize_bit

        w = self.weight
        centroids, self.weight_labels = k_means_cpu(w.cpu().numpy(), self.num_cent)
        w_q = reconstruct_weight_from_k_means_result(centroids, self.weight_labels)
        self.weight.set_value(w_q)
        if bias:
            b = self.bias
            centroids, self.bias_labels = k_means_cpu(b.cpu().numpy(), self.num_cent)
            b_q = reconstruct_weight_from_k_means_result(centroids, self.bias_labels)
            self.bias.data = b_q.float()

        self.quant_flag = True
        self.quant_bias = bias
    def kmeans_update(self):
        if not self.quant_flag:            return

        new_weight_data = paddle.zeros_like(self.weight_labels, "float32")        for i in range(self.num_cent):
            mask_cl = (self.weight_labels == i).float()
            new_weight_data += (self.weight.data * mask_cl).sum() / mask_cl.sum() * mask_cl
        self.weight.data = new_weight_data
        if self.quant_bias:
            new_bias_data = paddle.zeros_like(self.bias_labels)            for i in range(self.num_cent):
                mask_cl = (self.bias_labels == i).float()
                new_bias_data += (self.bias.data * mask_cl).sum() / mask_cl.sum() * mask_cl
            self.bias.data = new_bias_data

# 搭建网络class ConvNet(nn.Layer):
    def __init__(self):
        super(ConvNet, self).__init__()

        self.conv1 = QuantConv2d(3, 32, kernel_size=3, padding=1, stride=1)
        self.relu1 = nn.ReLU()
        self.maxpool1 = nn.MaxPool2D(2)

        self.conv2 = QuantConv2d(32, 64, kernel_size=3, padding=1, stride=1)
        self.relu2 = nn.ReLU()
        self.maxpool2 = nn.MaxPool2D(2)

        self.conv3 = QuantConv2d(64, 64, kernel_size=3, padding=1, stride=1)
        self.relu3 = nn.ReLU()

        self.linear1 = QuantLinear(7*7*64, 10)
    def forward(self, x):
        out = self.maxpool1(self.relu1(self.conv1(x)))
        out = self.maxpool2(self.relu2(self.conv2(out)))
        out = self.relu3(self.conv3(out))
        out = paddle.reshape(out, [out.shape[0], -1])
        out = self.linear1(out)        return out    def kmeans_quant(self, bias=False, quantize_bit=4):
        # Should be a less manual way to quantize
        # Leave it for the future
        self.conv1.kmeans_quant(bias, quantize_bit)
        self.conv2.kmeans_quant(bias, quantize_bit)
        self.conv3.kmeans_quant(bias, quantize_bit)
        self.linear1.kmeans_quant(bias, quantize_bit)
    def kmeans_update(self):
        self.conv1.kmeans_update()
        self.conv2.kmeans_update()
        self.conv3.kmeans_update()
        self.linear1.kmeans_update()

# 打印输出网络结构convNet_Net = ConvNet()
paddle.summary(convNet_Net,(1, 3, 28, 28))

# 图像转tensor操作，也可以加一些数据增强的方式，例如旋转、模糊等等# 数据增强的方式要加在Compose([  ])中def get_transforms(mode='train'):
    if mode == 'train':
        data_transforms = transforms.Compose([
            transforms.ToTensor(),
            transforms.Normalize(mean=[0.4914, 0.4822, 0.4465], std=[0.2023, 0.1994, 0.2010])])    else:
        data_transforms = transforms.Compose([
            transforms.ToTensor(),
            transforms.Normalize(mean=[0.4914, 0.4822, 0.4465], std=[0.2023, 0.1994, 0.2010])])    return data_transforms# 获取官方MNIST数据集def get_dataset(name='MNIST', mode='train'):
    if name == 'MNIST':
        dataset = datasets.MNIST(mode=mode, transform=get_transforms(mode))    return dataset# 定义数据加载到模型形式def get_dataloader(dataset, batch_size=128, mode='train'):
    dataloader = DataLoader(dataset, batch_size=batch_size, num_workers=2, shuffle=(mode == 'train'))    return dataloader

# 初始化函数，用于模型初始化class AverageMeter():
    """ Meter for monitoring losses"""
    def __init__(self):
        self.avg = 0
        self.sum = 0
        self.cnt = 0
        self.reset()    def reset(self):
        """reset all values to zeros"""
        self.avg = 0
        self.sum = 0
        self.cnt = 0

    def update(self, val, n=1):
        """update avg by val and n, where val is the avg of n values"""
        self.sum += val * n
        self.cnt += n
        self.avg = self.sum / self.cnt

# 网络训练def train_one_epoch(model, dataloader, criterion, optimizer, epoch, total_epoch, report_freq=20):
    print(f'----- Training Epoch [{epoch}/{total_epoch}]:')
    loss_meter = AverageMeter()
    acc_meter = AverageMeter()
    model.train()    for batch_idx, data in enumerate(dataloader):
        image = data[0]
        label = data[1]

        out = model(image)
        loss = criterion(out, label)

        loss.backward()
        optimizer.step()
        optimizer.clear_grad()

        pred = nn.functional.softmax(out, axis=1)
        acc1 = paddle.metric.accuracy(pred, label)

        batch_size = image.shape[0]
        loss_meter.update(loss.cpu().numpy()[0], batch_size)
        acc_meter.update(acc1.cpu().numpy()[0], batch_size)        if batch_idx > 0 and batch_idx % report_freq == 0:            print(f'----- Batch[{batch_idx}/{len(dataloader)}], Loss: {loss_meter.avg:.5}, Acc@1: {acc_meter.avg:.4}')    print(f'----- Epoch[{epoch}/{total_epoch}], Loss: {loss_meter.avg:.5}, Acc@1: {acc_meter.avg:.4}')

# 网络预测def validate(model, dataloader, criterion, report_freq=10):
    print('----- Validation')
    loss_meter = AverageMeter()
    acc_meter = AverageMeter()
    model.eval()    for batch_idx, data in enumerate(dataloader):
        image = data[0]
        label = data[1]

        out = model(image)
        loss = criterion(out, label)

        pred = paddle.nn.functional.softmax(out, axis=1)
        acc1 = paddle.metric.accuracy(pred, label)
        batch_size = image.shape[0]
        loss_meter.update(loss.cpu().numpy()[0], batch_size)
        acc_meter.update(acc1.cpu().numpy()[0], batch_size)        if batch_idx > 0 and batch_idx % report_freq == 0:            print(f'----- Batch [{batch_idx}/{len(dataloader)}], Loss: {loss_meter.avg:.5}, Acc@1: {acc_meter.avg:.4}')    print(f'----- Validation Loss: {loss_meter.avg:.5}, Acc@1: {acc_meter.avg:.4}')

def main():
    total_epoch = 1
    batch_size = 256

    model = ConvNet()
    train_dataset = get_dataset(mode='train')
    train_dataloader = get_dataloader(train_dataset, batch_size, mode='train')
    val_dataset = get_dataset(mode='test')
    val_dataloader = get_dataloader(val_dataset, batch_size, mode='test')
    criterion = nn.CrossEntropyLoss()
    scheduler = paddle.optimizer.lr.CosineAnnealingDecay(0.02, total_epoch)
    optimizer = paddle.optimizer.Momentum(learning_rate=scheduler,
                                          parameters=model.parameters(),
                                          momentum=0.9,
                                          weight_decay=5e-4)

    eval_mode = False
    if eval_mode:
        state_dict = paddle.load('./ConvNet_ep200.pdparams')
        model.set_state_dict(state_dict)
        validate(model, val_dataloader, criterion)        return


    save_freq = 50
    test_freq = 10
    for epoch in range(1, total_epoch+1):
        train_one_epoch(model, train_dataloader, criterion, optimizer, epoch, total_epoch)
        scheduler.step()        if epoch % test_freq == 0 or epoch == total_epoch:
            validate(model, val_dataloader, criterion)        if epoch % save_freq == 0 or epoch == total_epoch:
            paddle.save(model.state_dict(), f'./ConvNet_ep{epoch}.pdparams')
            paddle.save(optimizer.state_dict(), f'./ConvNet_ep{epoch}.pdopts')

    quant_model = deepcopy(model)    print('=='*10)    print('2 bits quantization')
    quant_model.kmeans_quant(bias=False, quantize_bit=4)
    validate(quant_model, val_dataloader, criterion)    return model, quant_model

# 返回值是量化前后网络模型# main()中quantize_bit控制聚类个数，聚类为quantize_bit*2个# 聚类数越多，量化后的模型越接近训练模型，但参数相应增加，所以根据实际情况取舍model, quant_model = main()

from matplotlib import pyplot as plt

# 定义模型权重展示函数def plot_weights(model):
    modules = [module for module in model.sublayers()]
    num_sub_plot = 0
    for i, layer in enumerate(modules):        if hasattr(layer, 'weight'):
            plt.subplot(221+num_sub_plot)
            w = layer.weight
            w_one_dim = w.cpu().numpy().flatten()
            plt.hist(w_one_dim, bins=50)
            num_sub_plot += 1
    plt.show()

# 量化前的权重plot_weights(model)

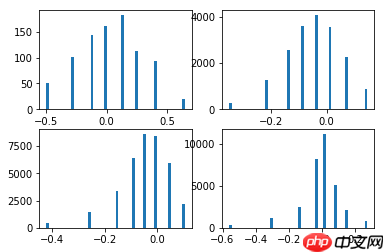

# 量化后的权重plot_weights(quant_model)
